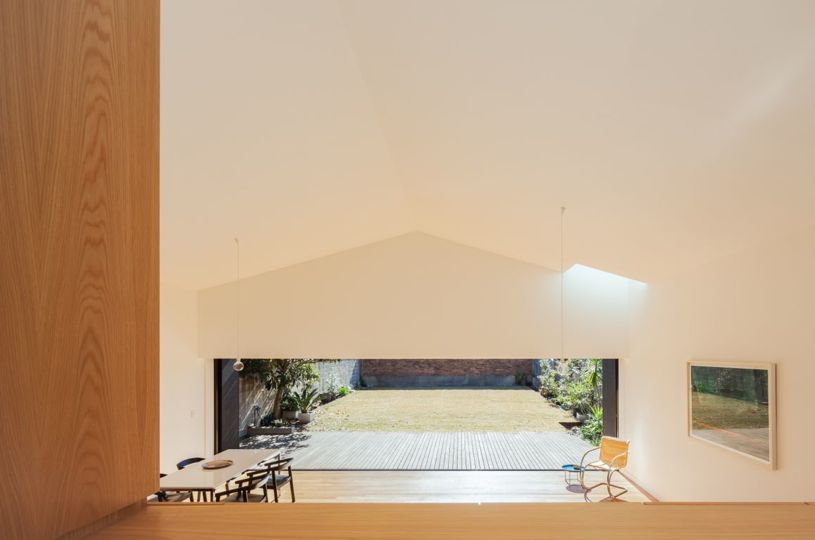

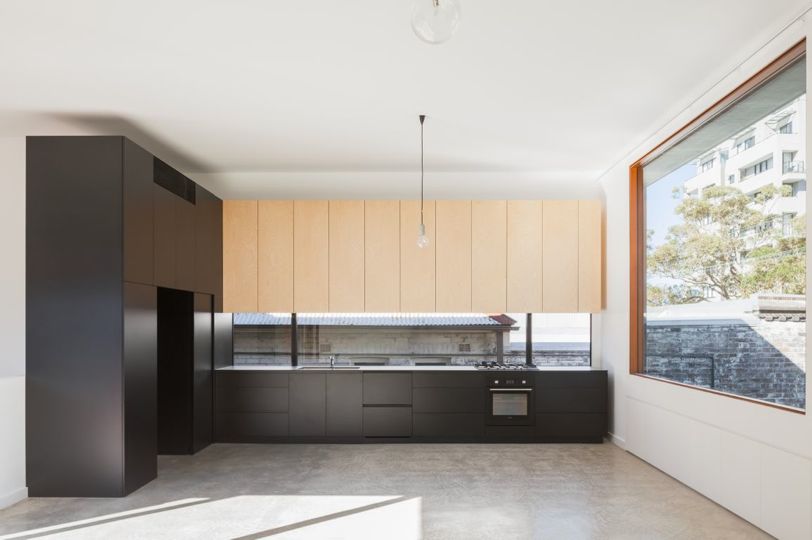

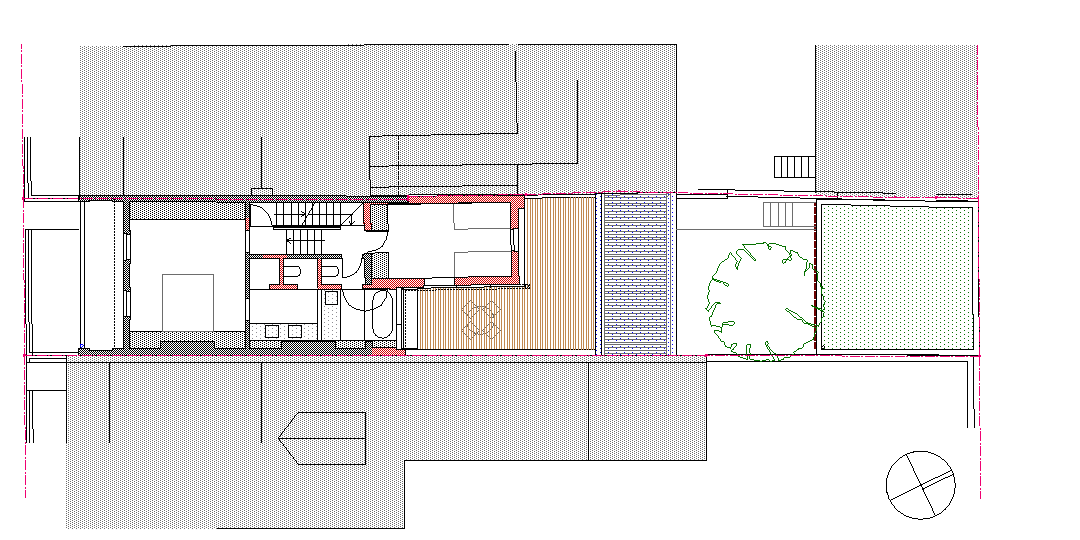

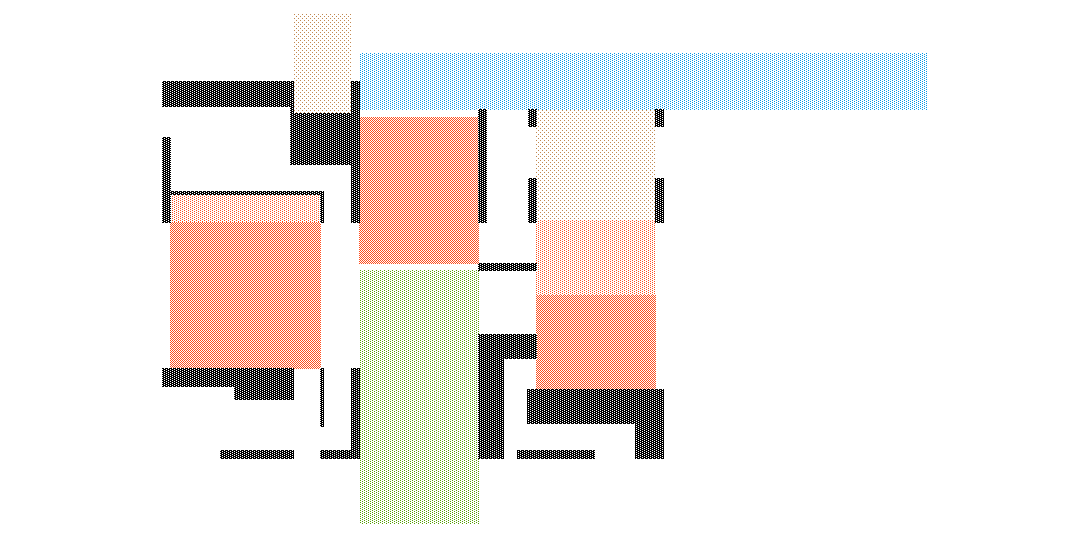

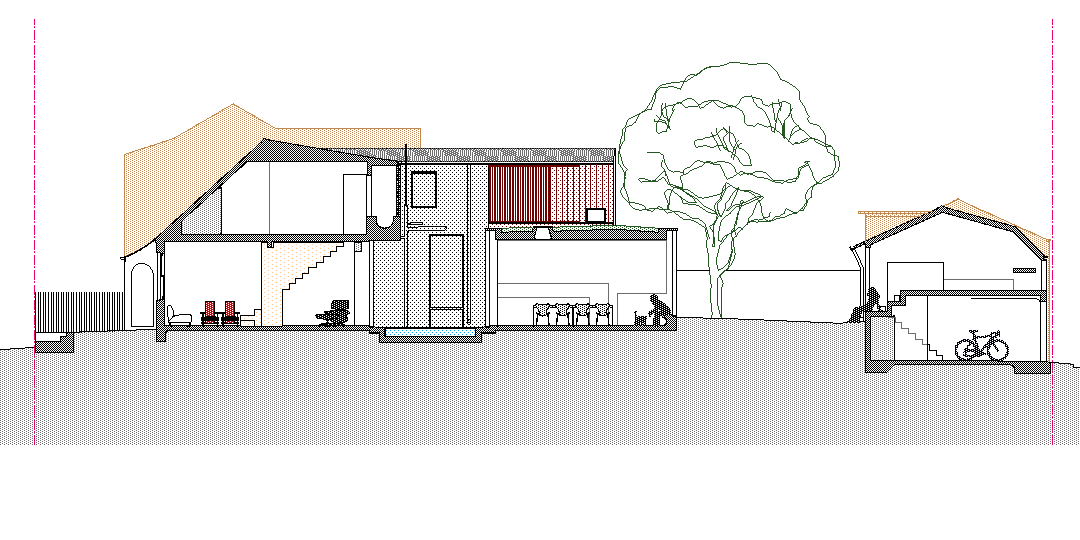

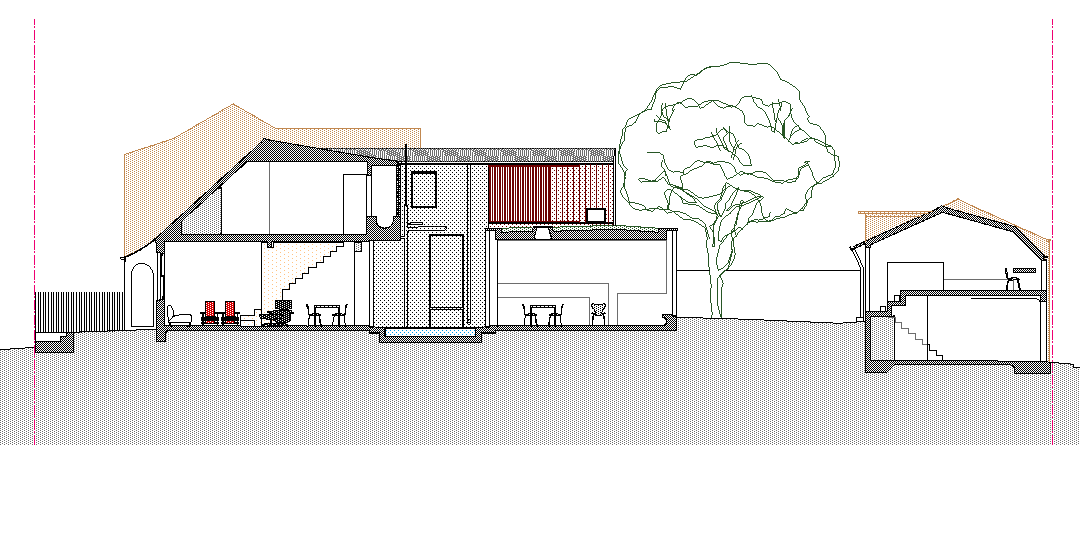

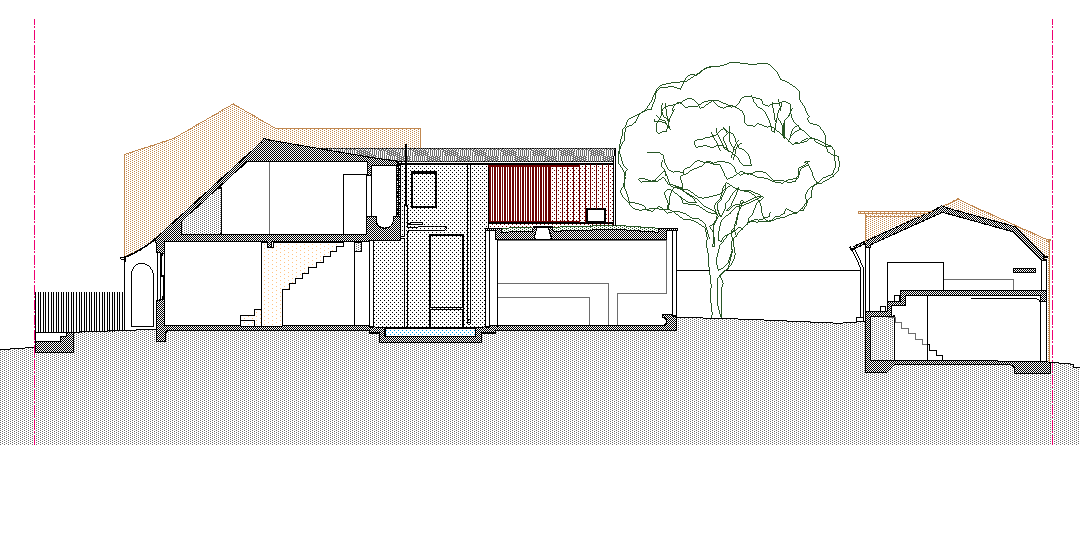

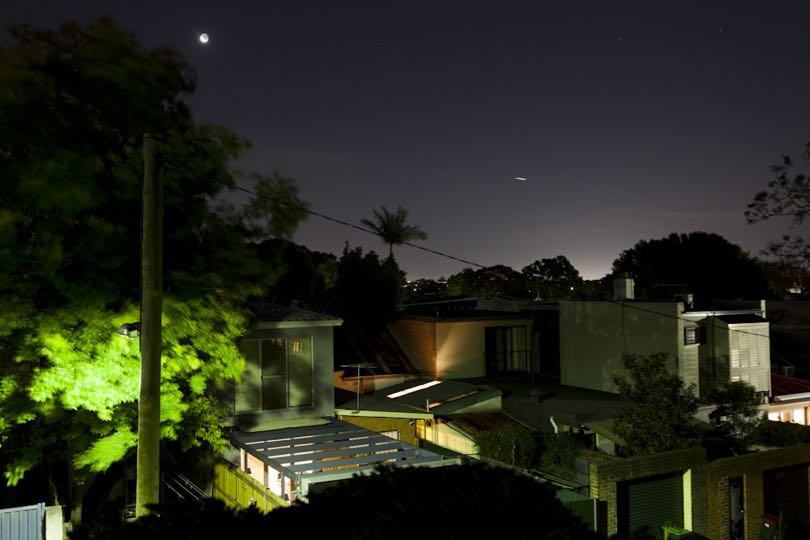

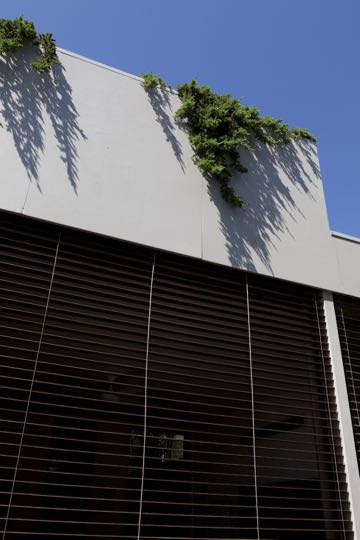

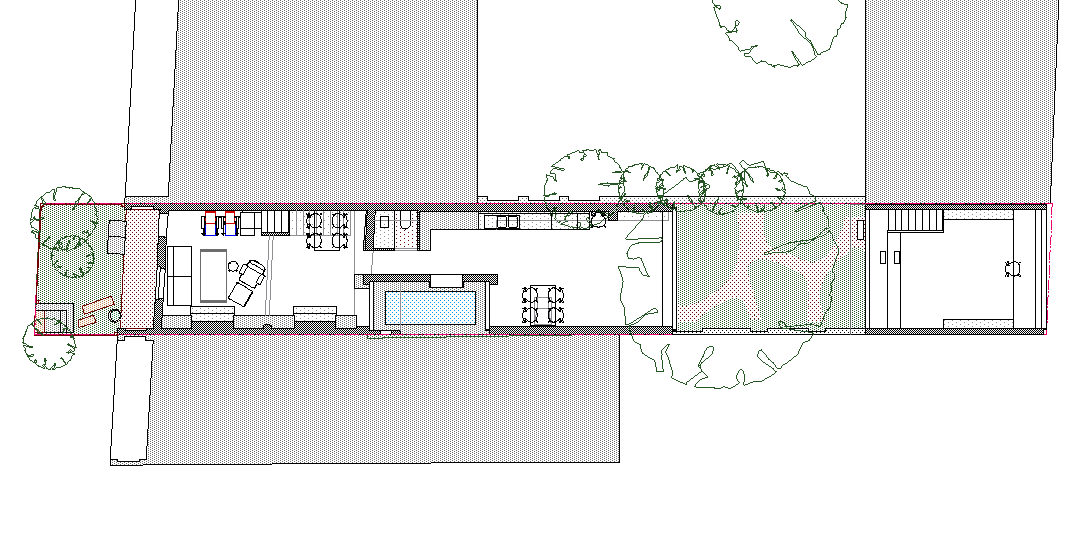

Arthur St, Surry Hills
Home, studio & 4 gardens.
Our house was big enough, but didn't take advantage of the
orientation or the garden. We did the obvious things. We
opened up to the garden and built a garage with a studio
above. The rear yard is heavily landscaped to provide a view
and visual separation between home and studio.

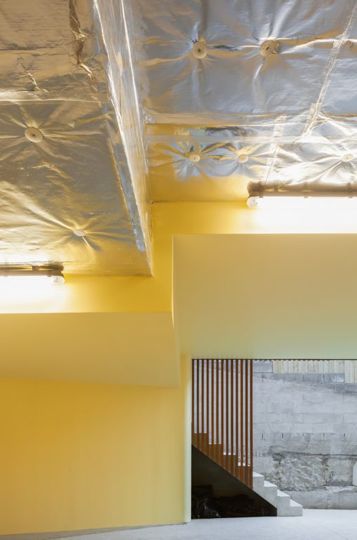

We have a pond in another courtyard which helps keep the
house cool, as does the insulation and mass of a roof
garden. The front yard is our fourth garden.

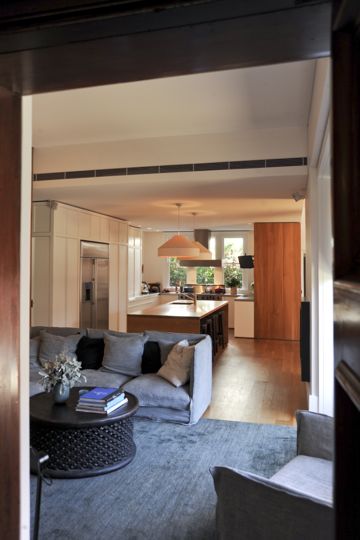

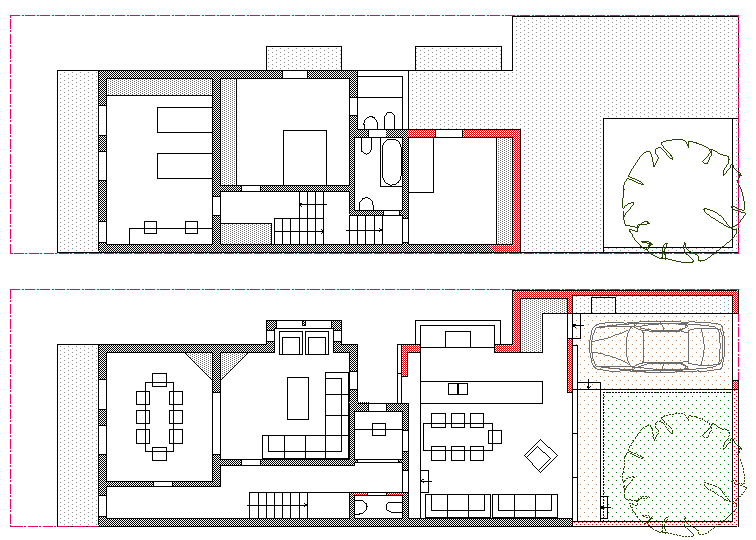

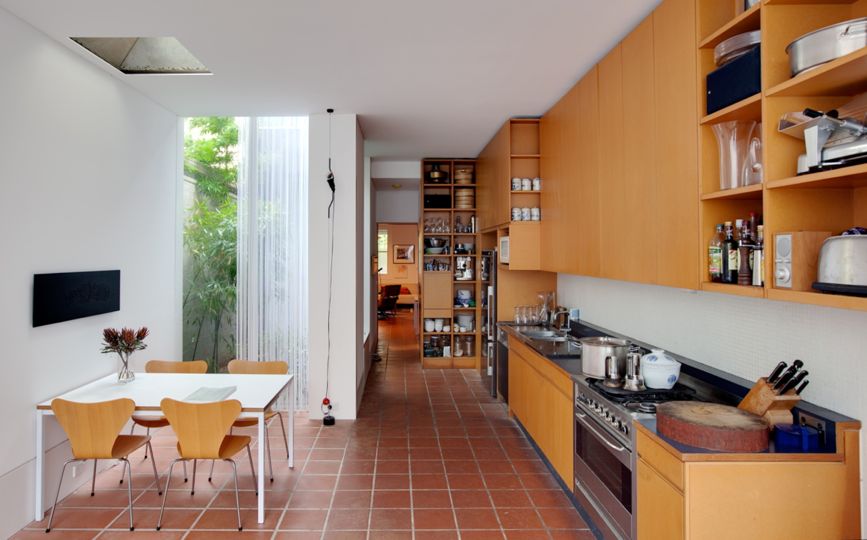

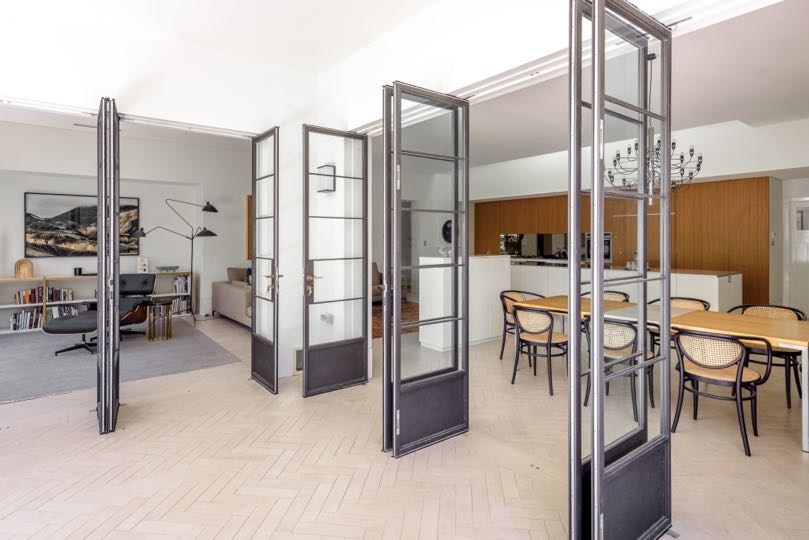

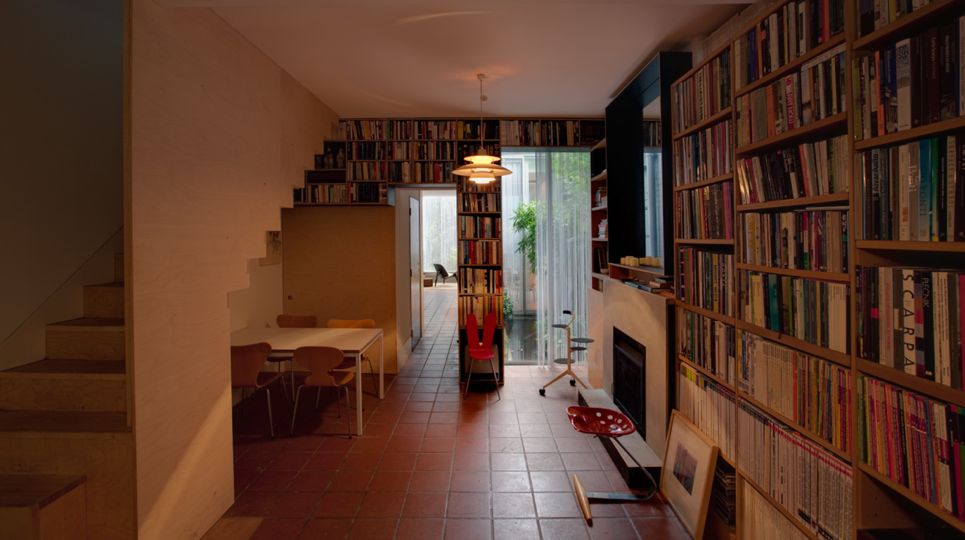

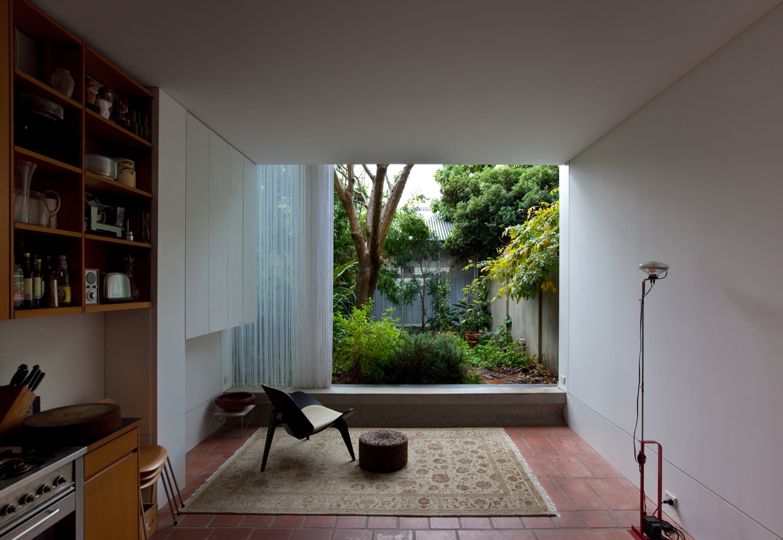

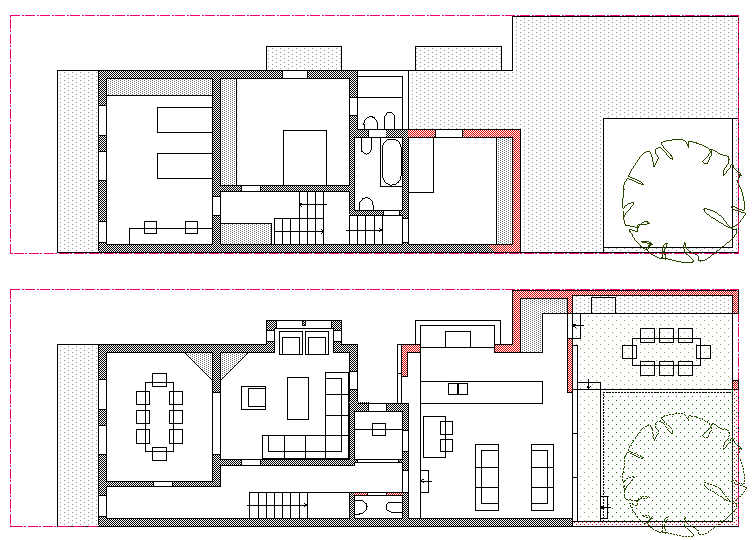

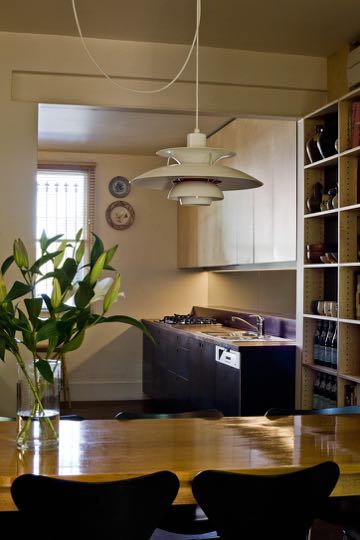

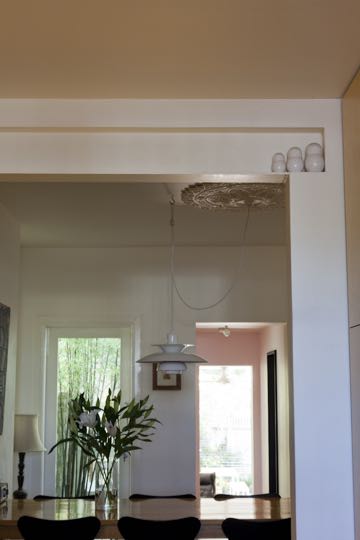

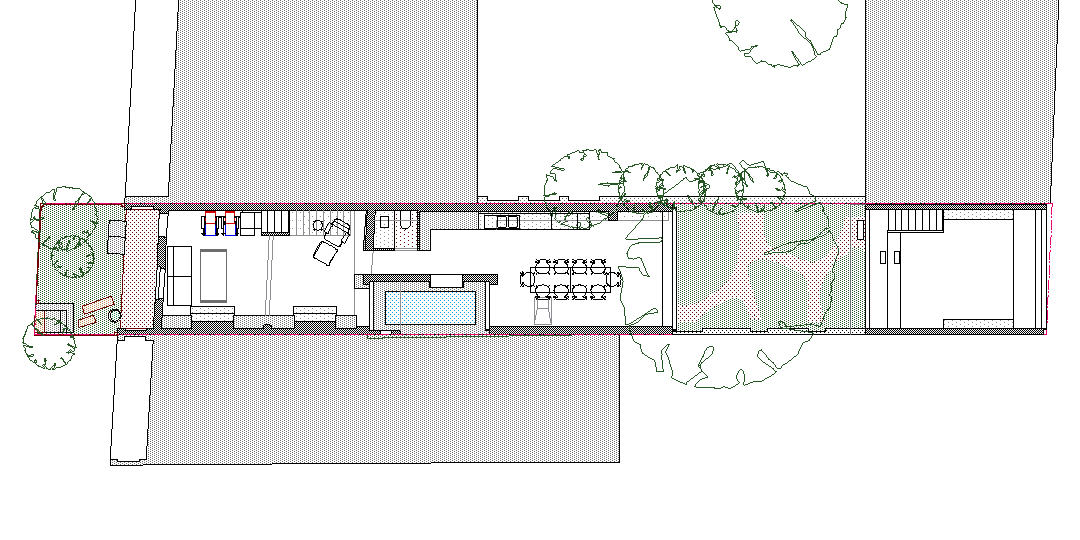

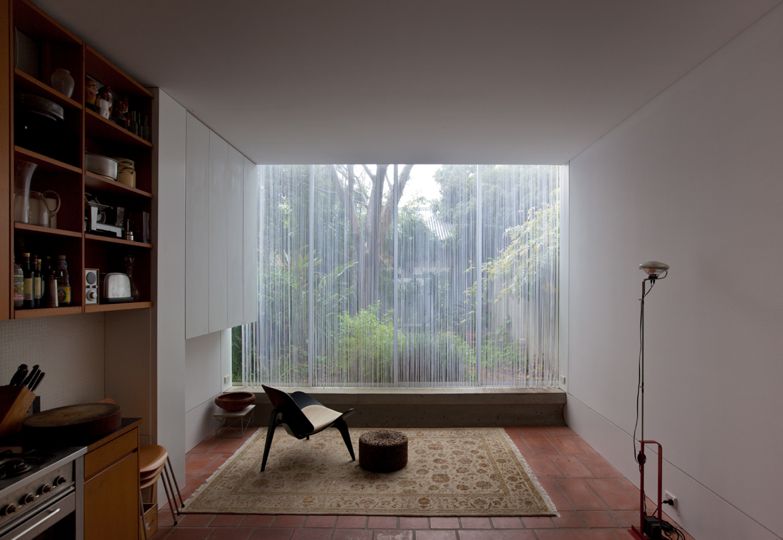

The ground floor has a front, cosy room and an open room at
the back. We move furniture back and forth in response to
weather and occasion.

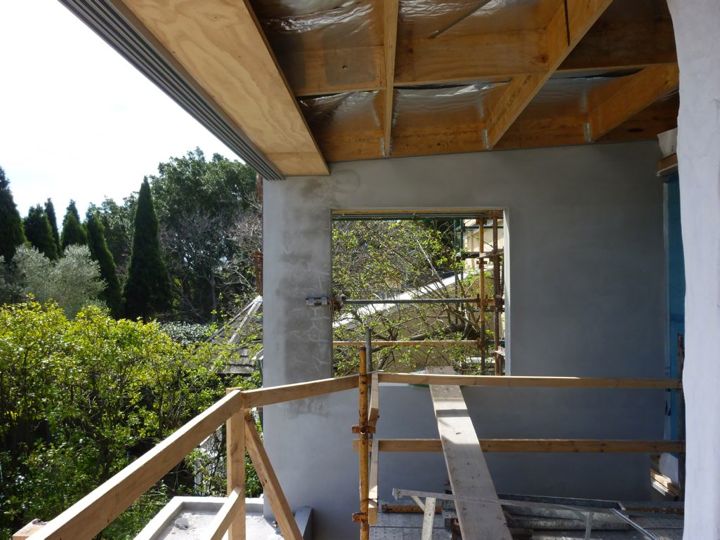

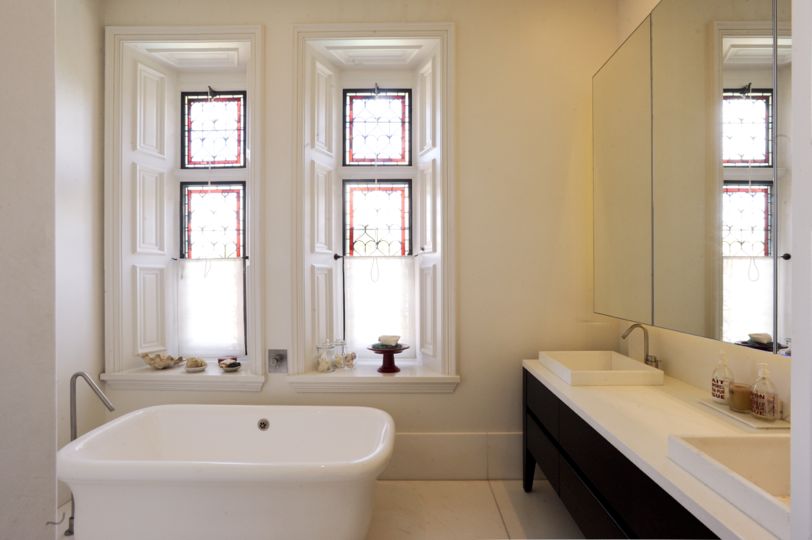

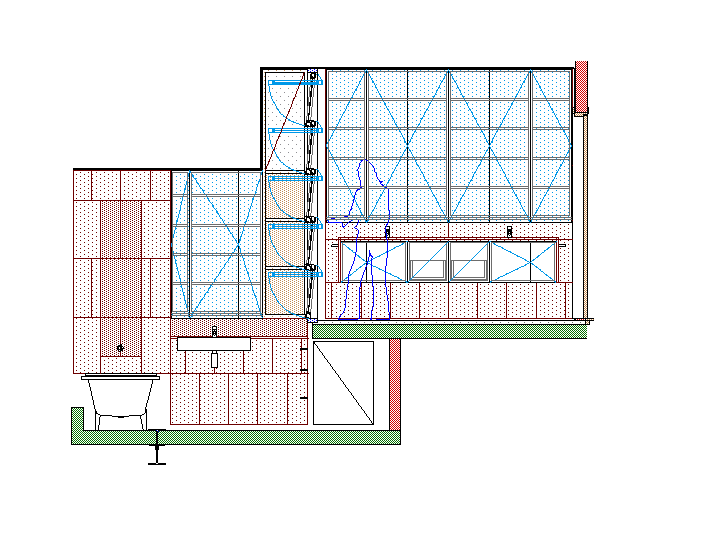

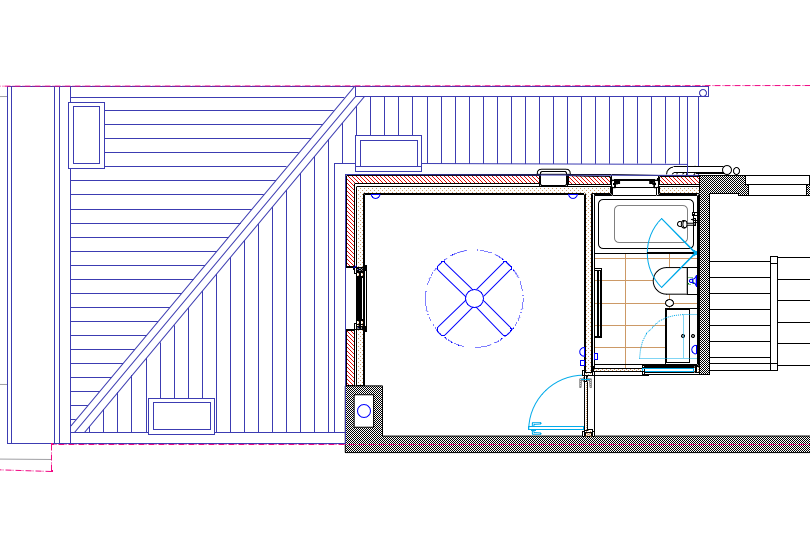

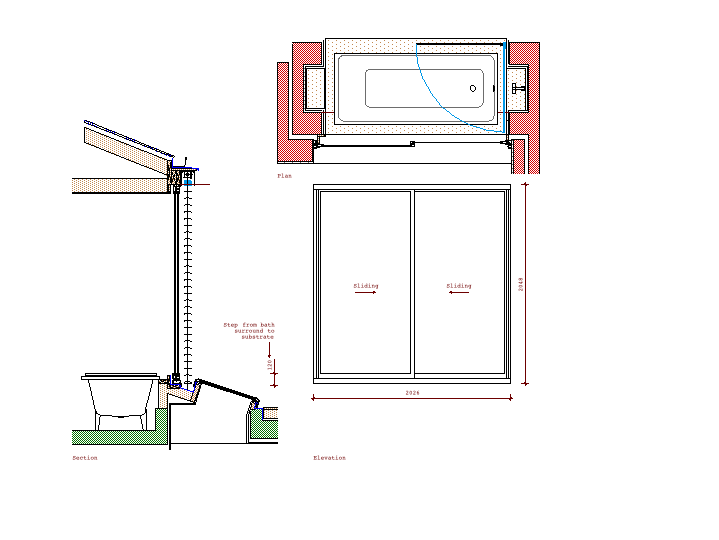

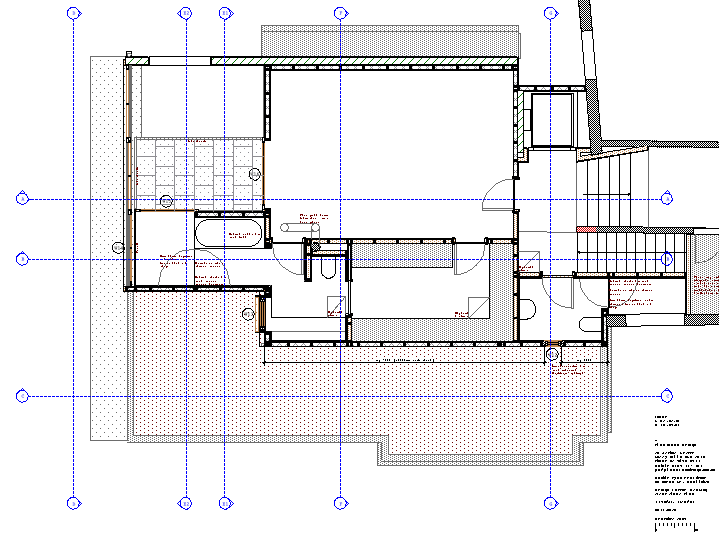

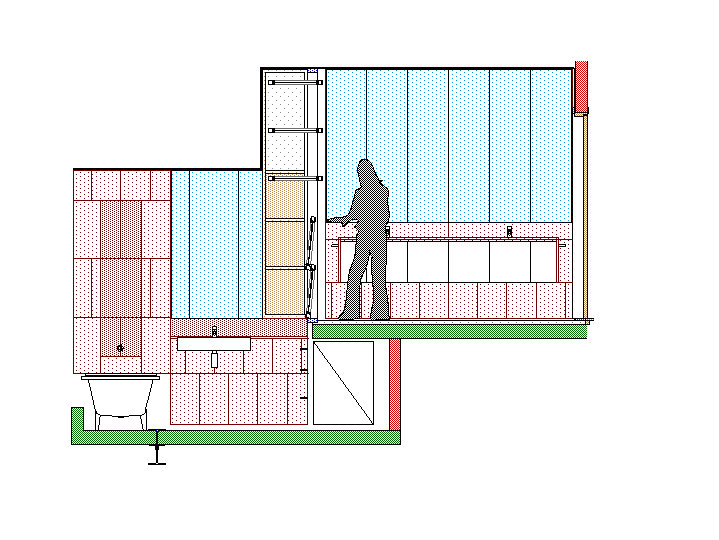

The upper level remained unchanged, except for a bath in a
bay window off the front bedroom. The bath and bedrooms have
views of the roof garden.
Photos, Jason Lam
Structural engineer, Andrew Simpson, SDA
Landscape advice, Sue Barnsley
Built by Lex Dow, Elke Prill & Carl Burt
-

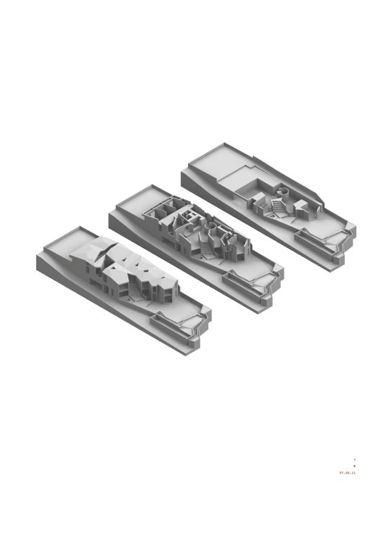

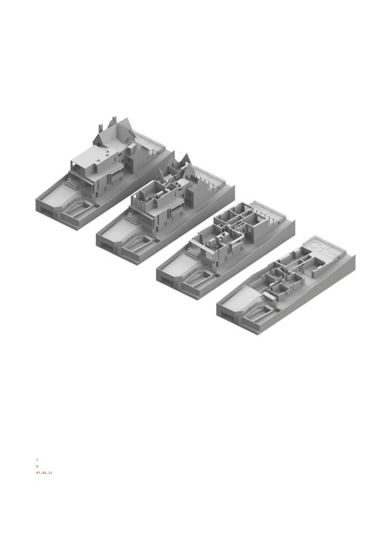

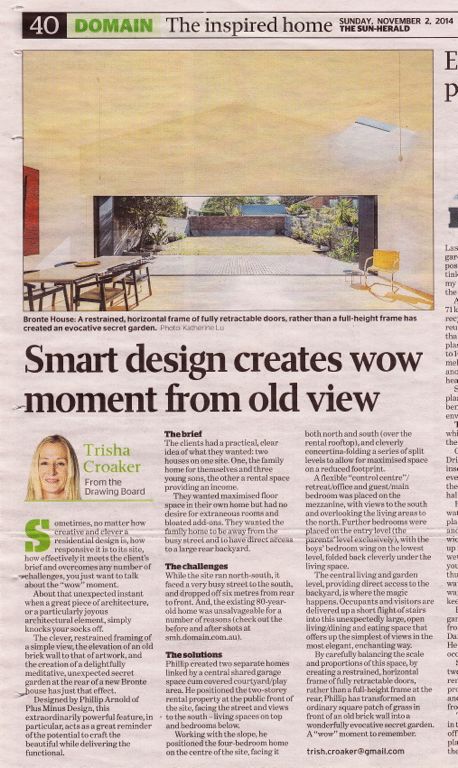

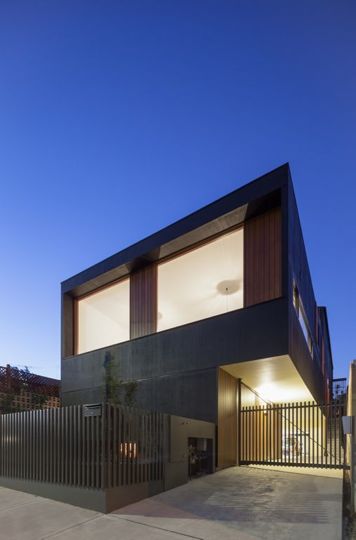

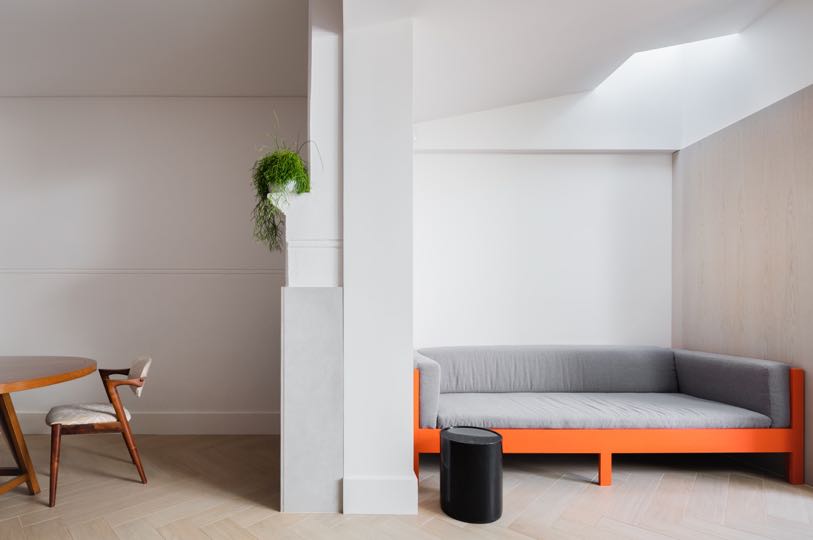

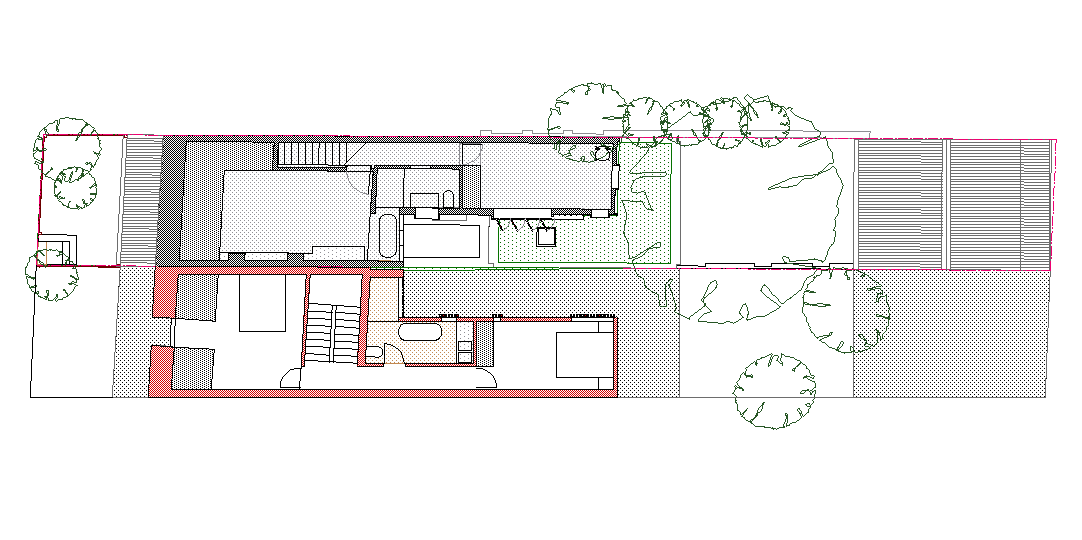

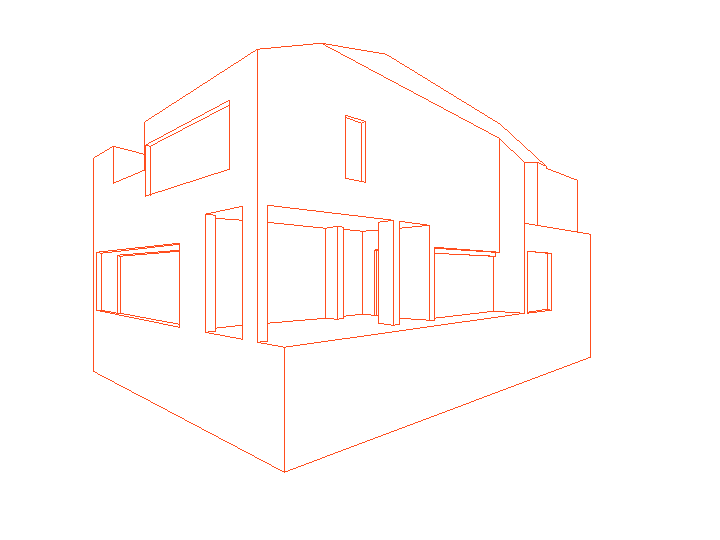

Attached Houses, Bronte
-

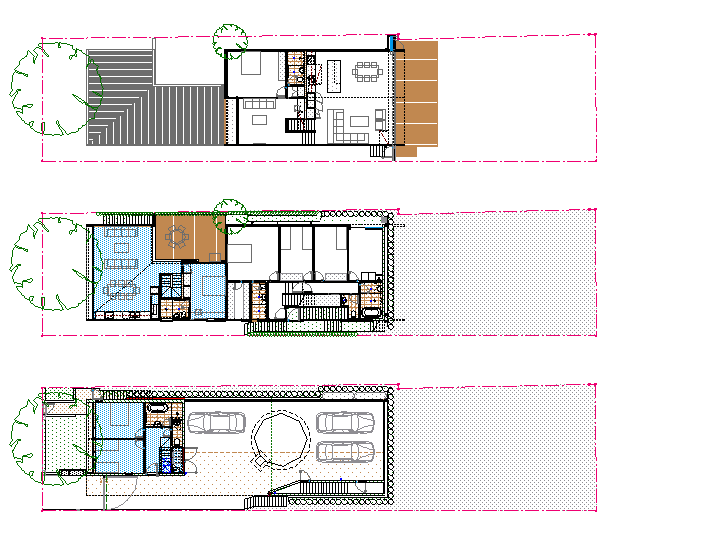

Dwelling 1
-

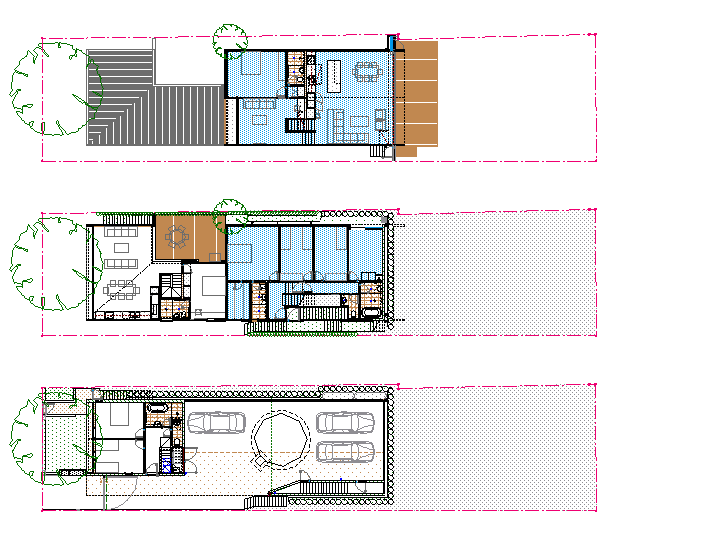

Dwelling 2
-

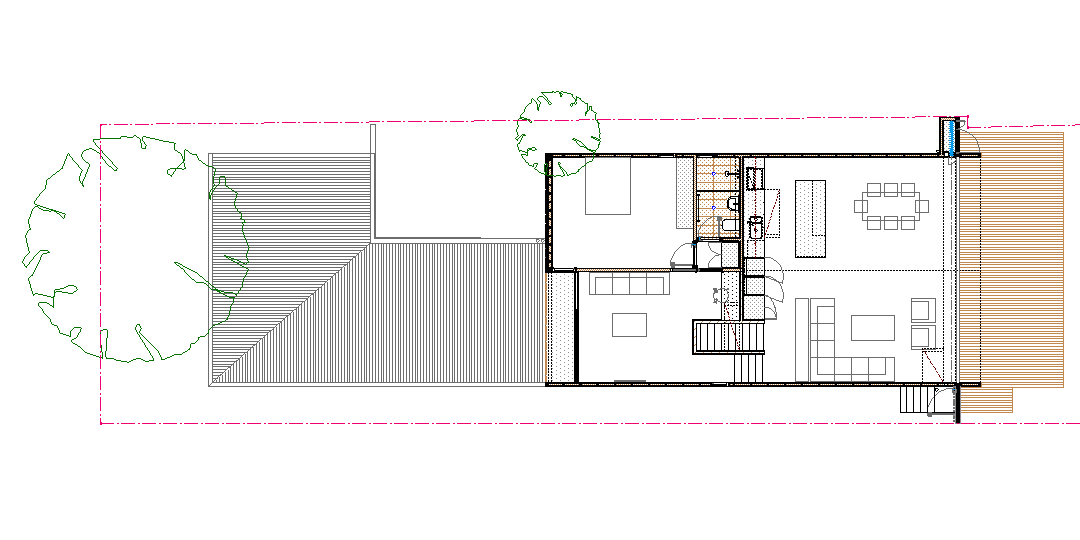

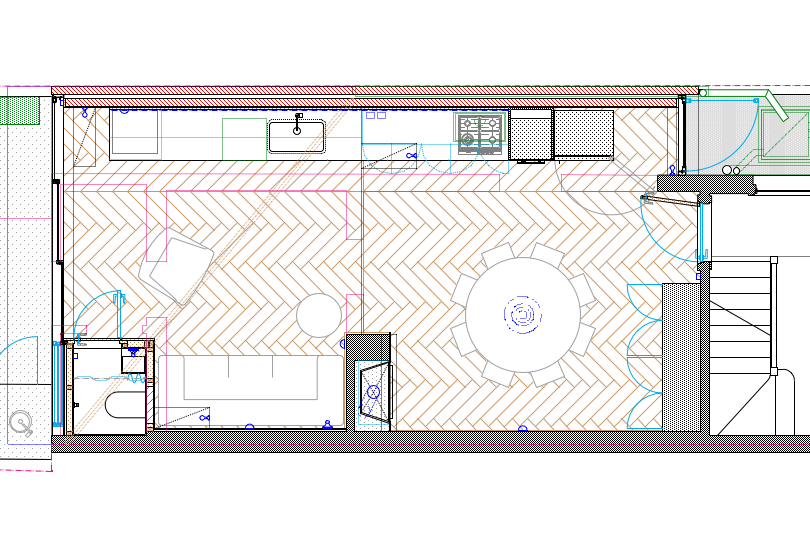

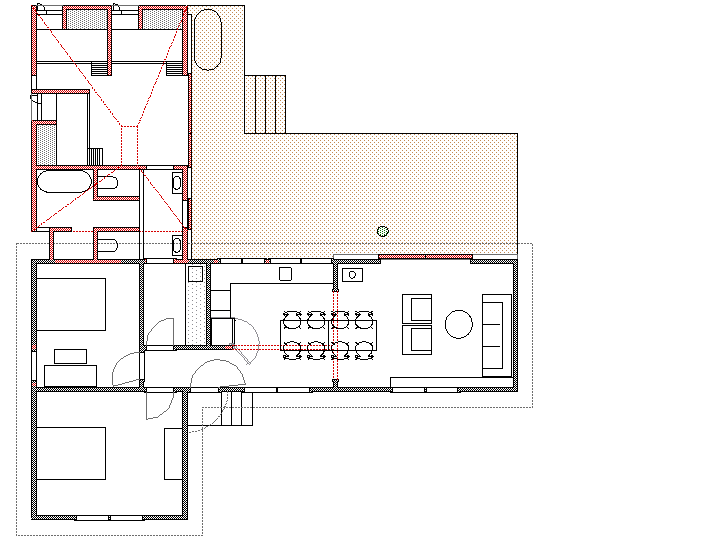

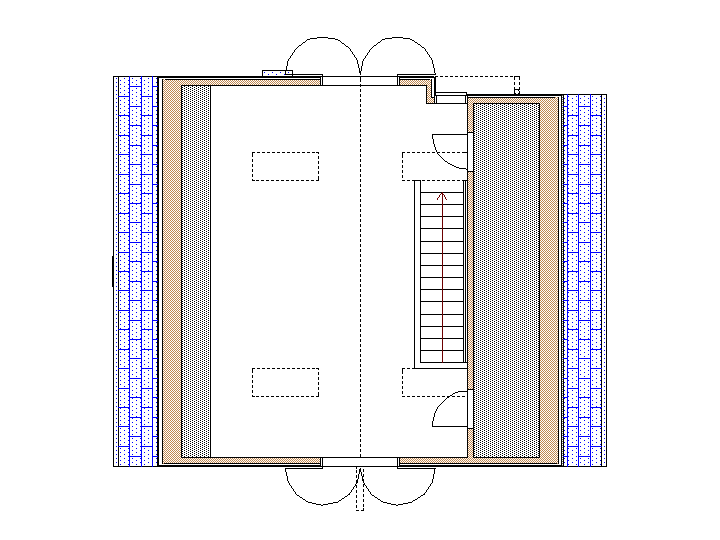

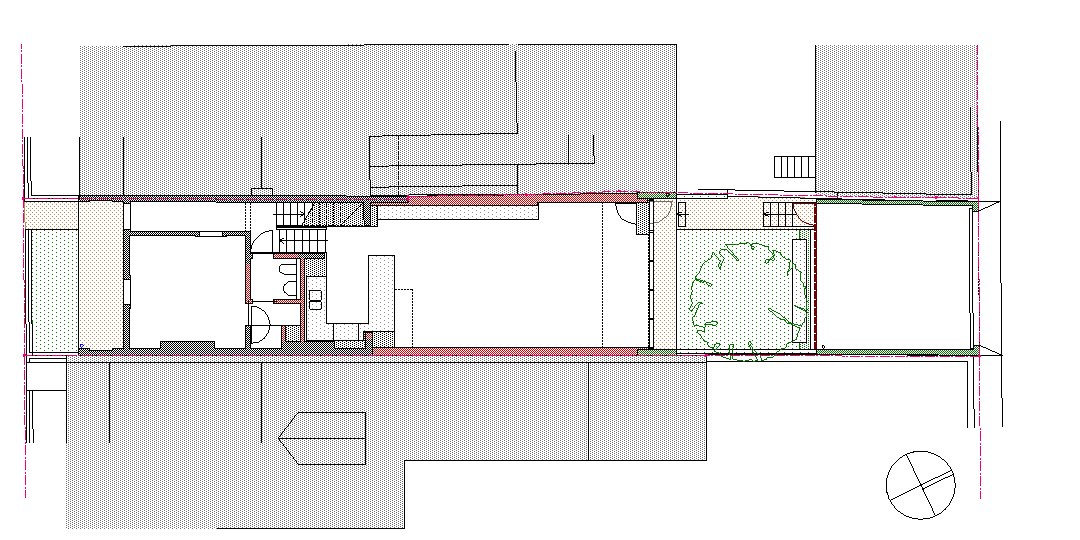

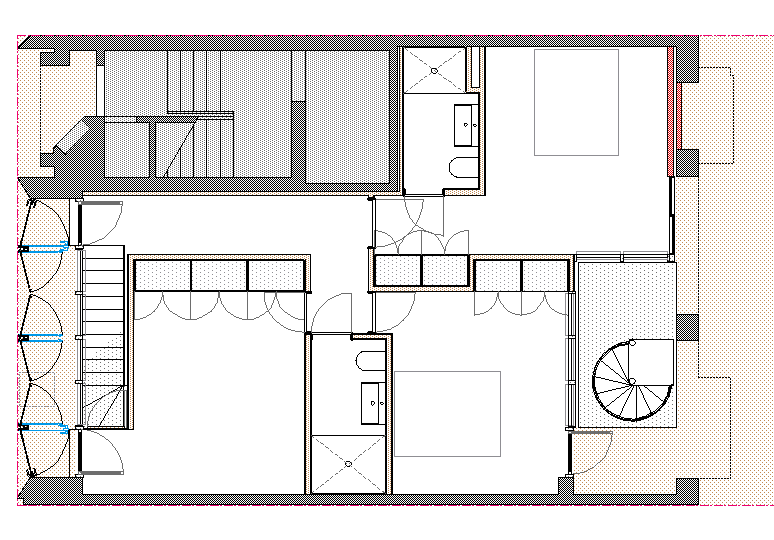

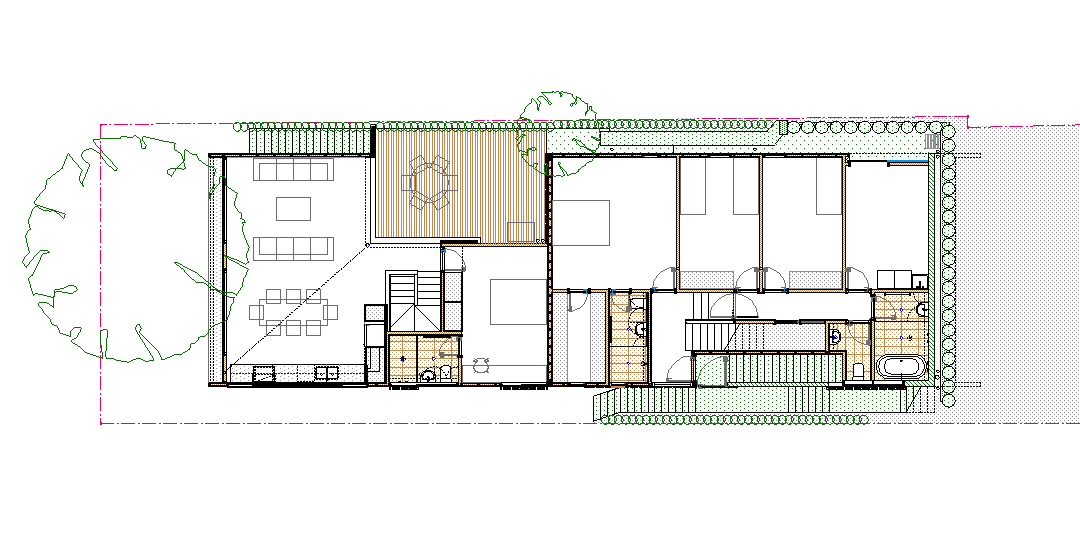

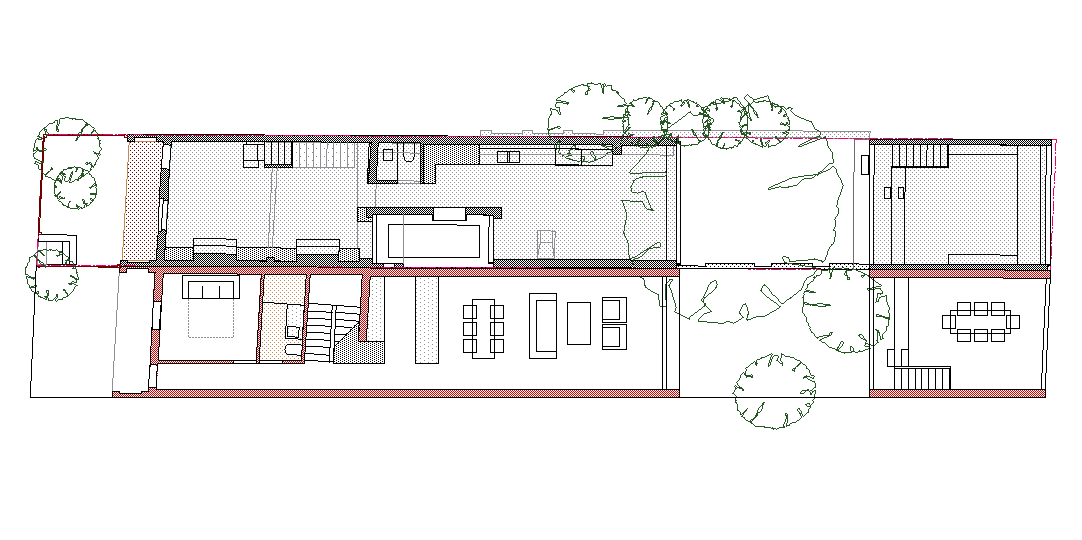

Level 1
-
Level 2
-
Level 3
-

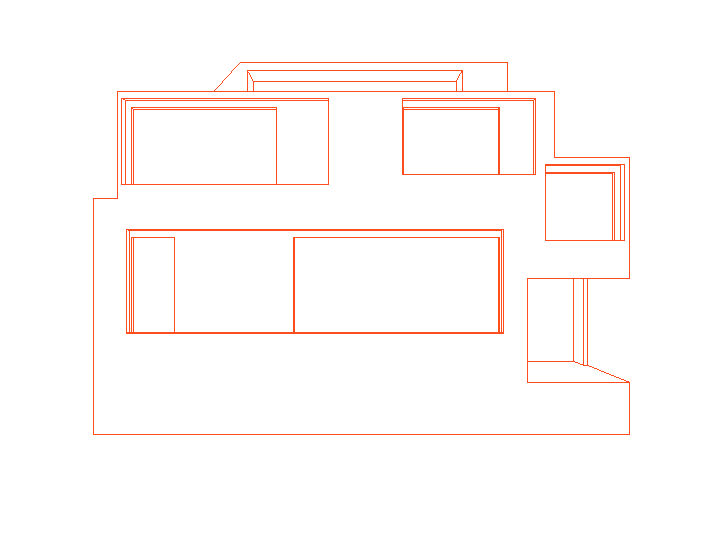

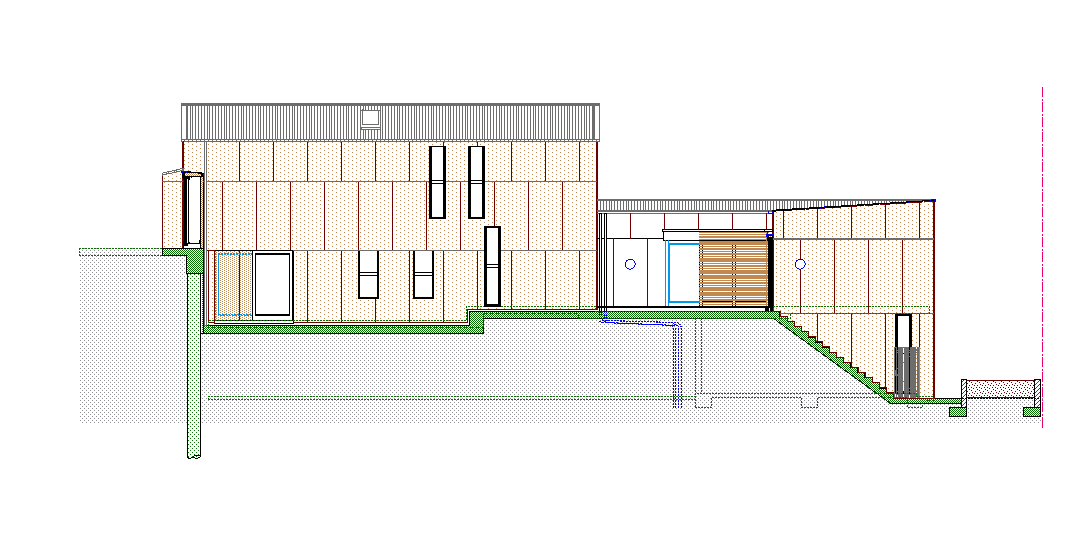

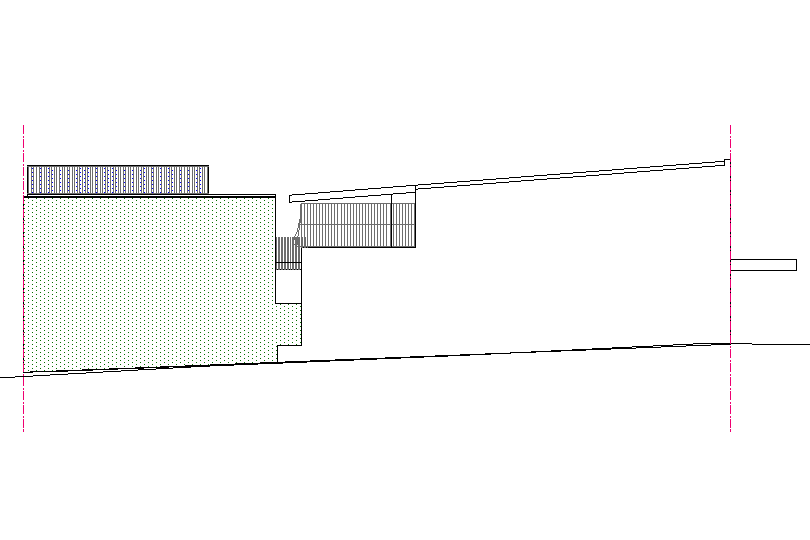

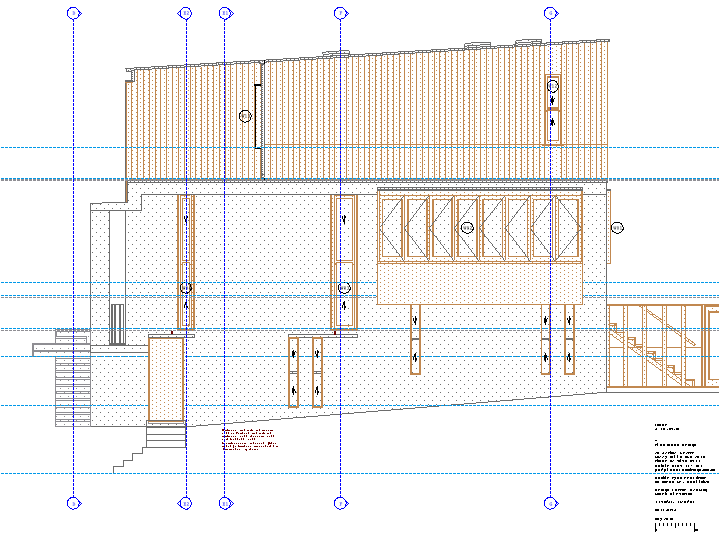

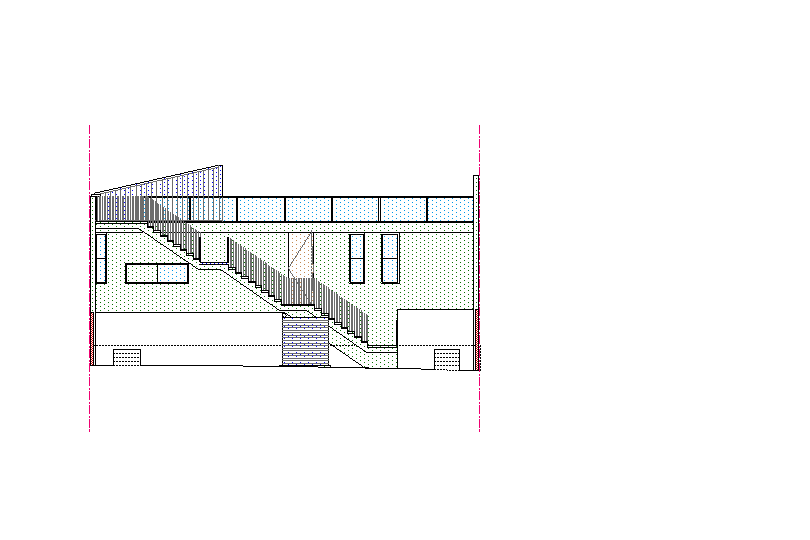

Eastern Elevation
-

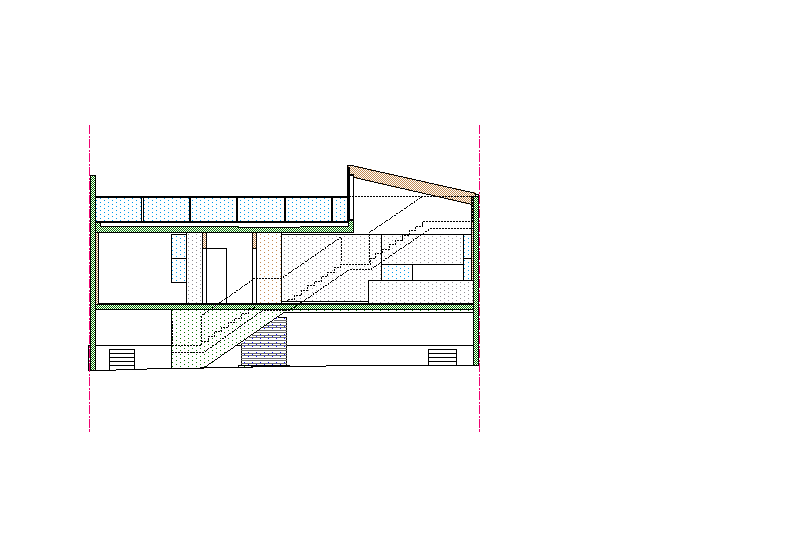

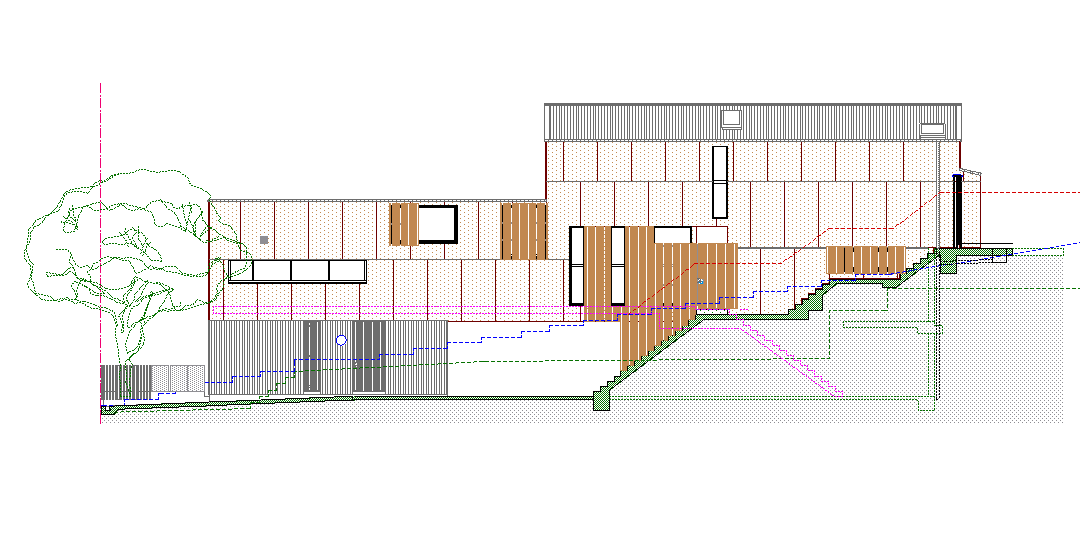

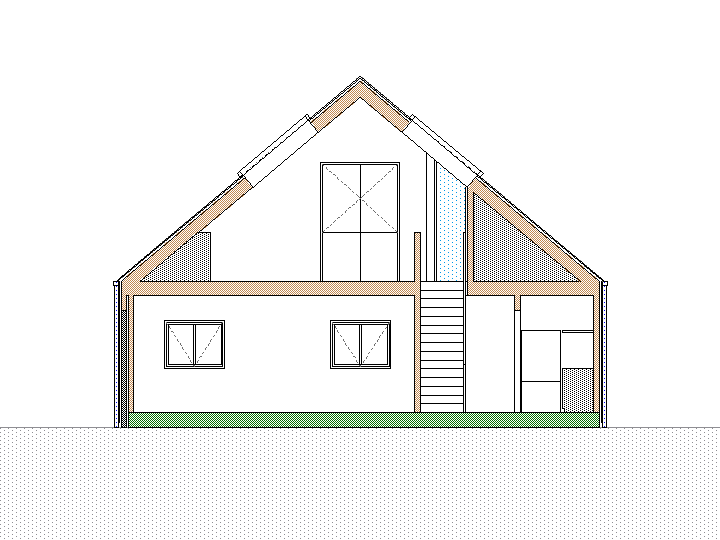

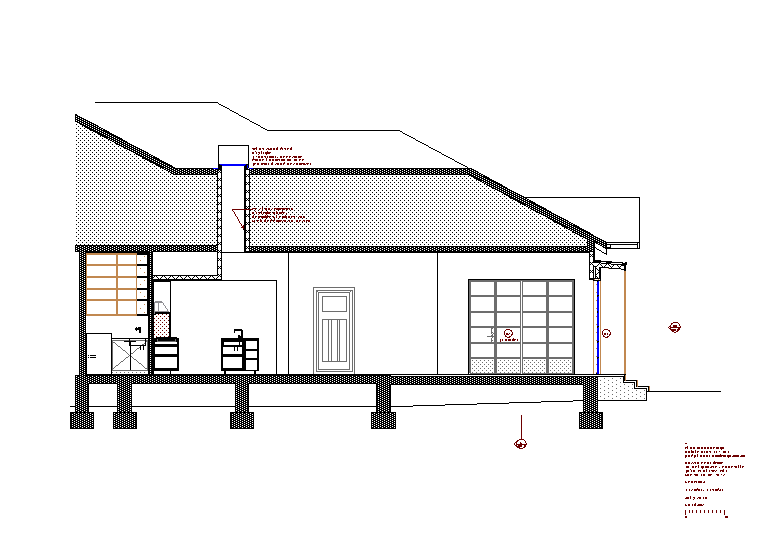

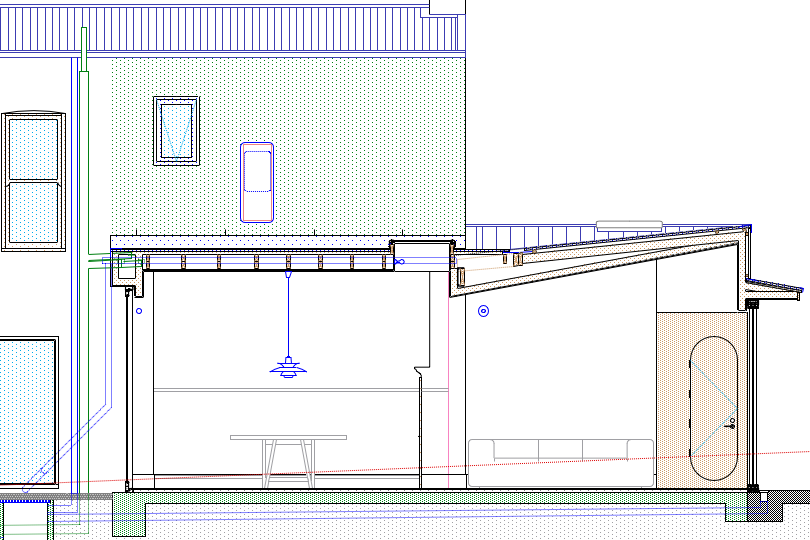

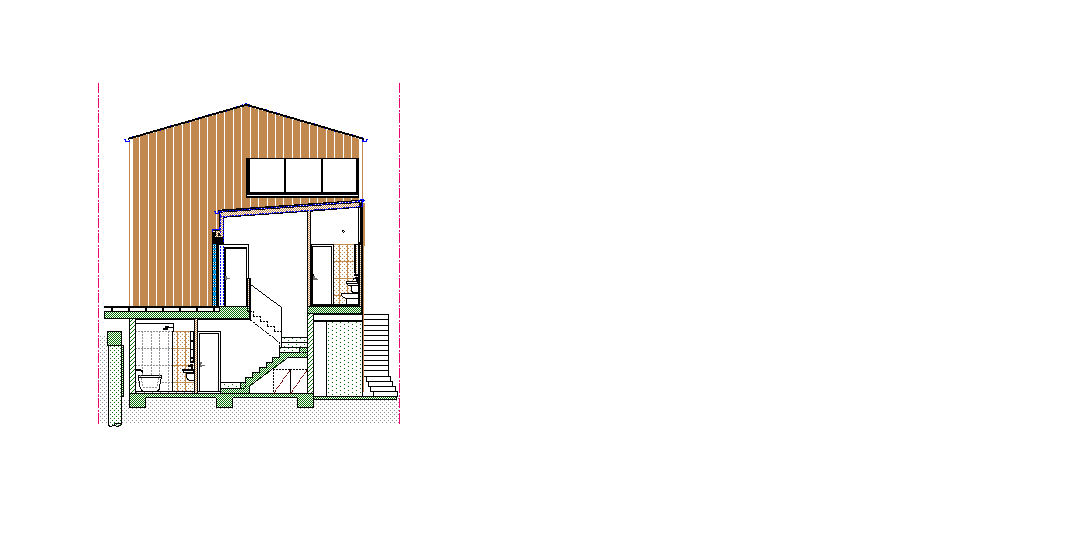

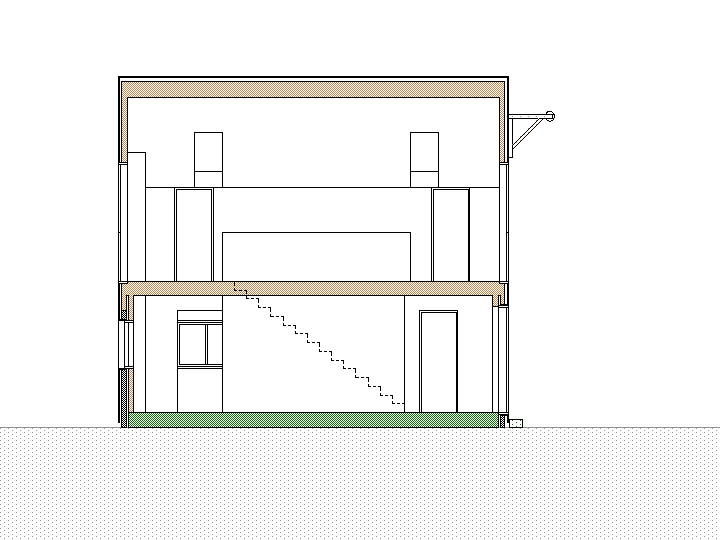

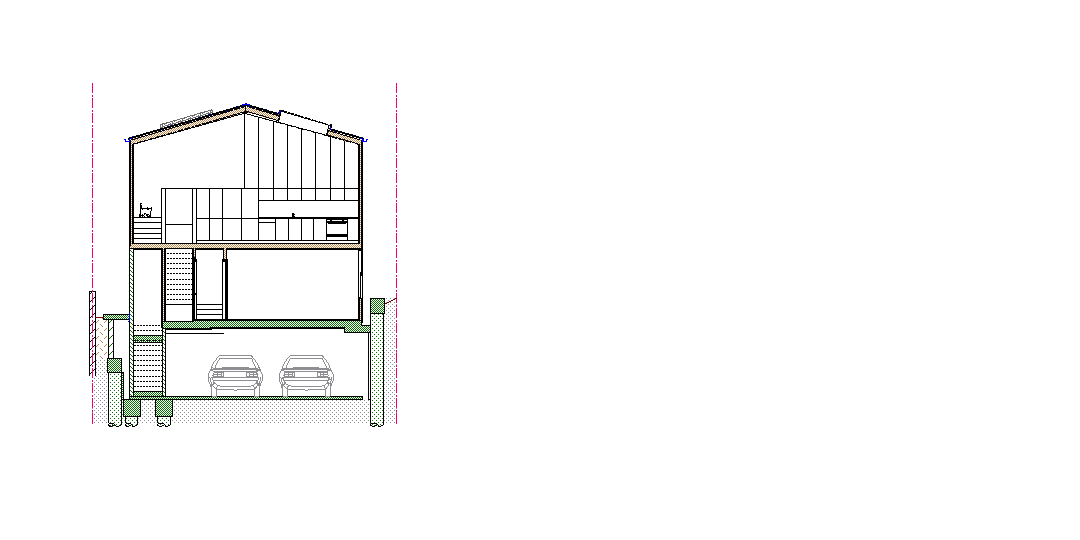

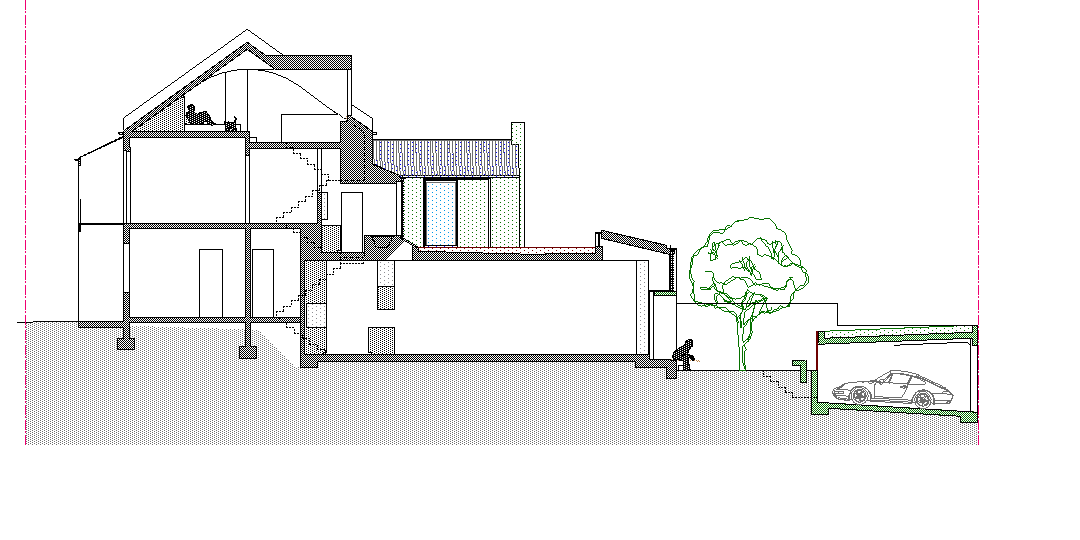

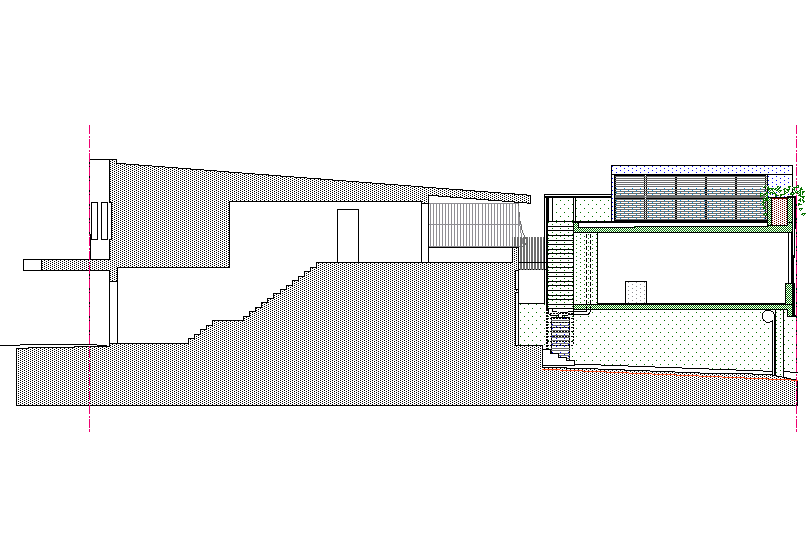

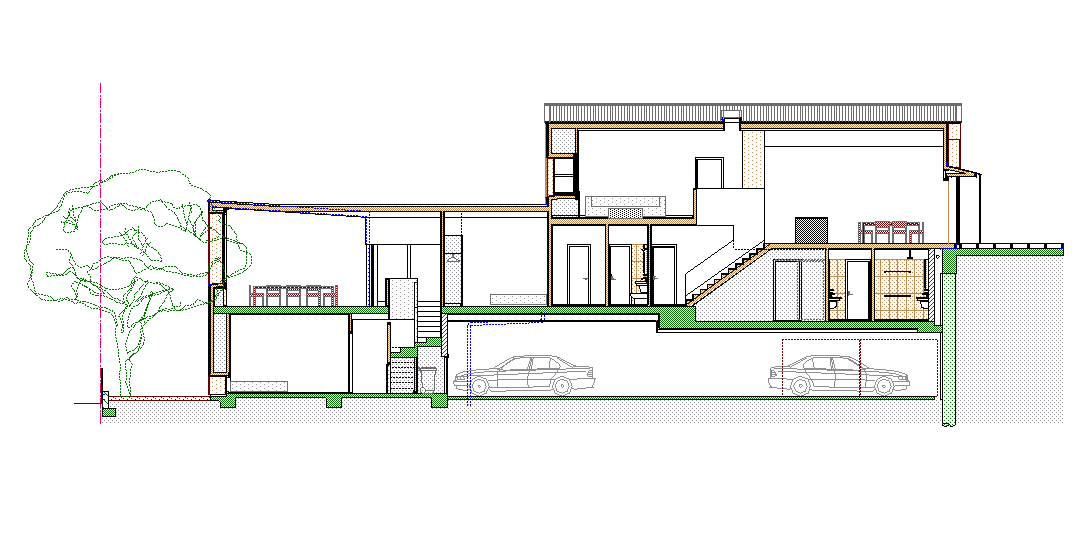

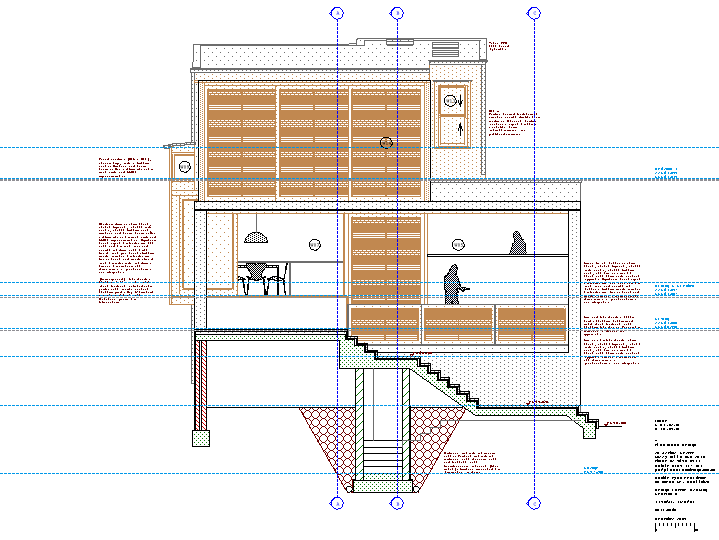

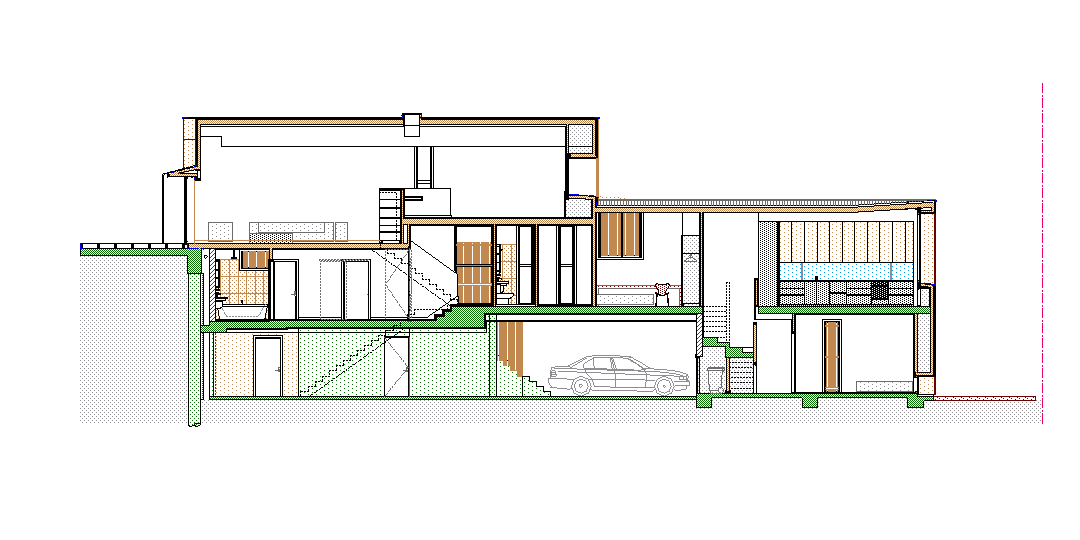

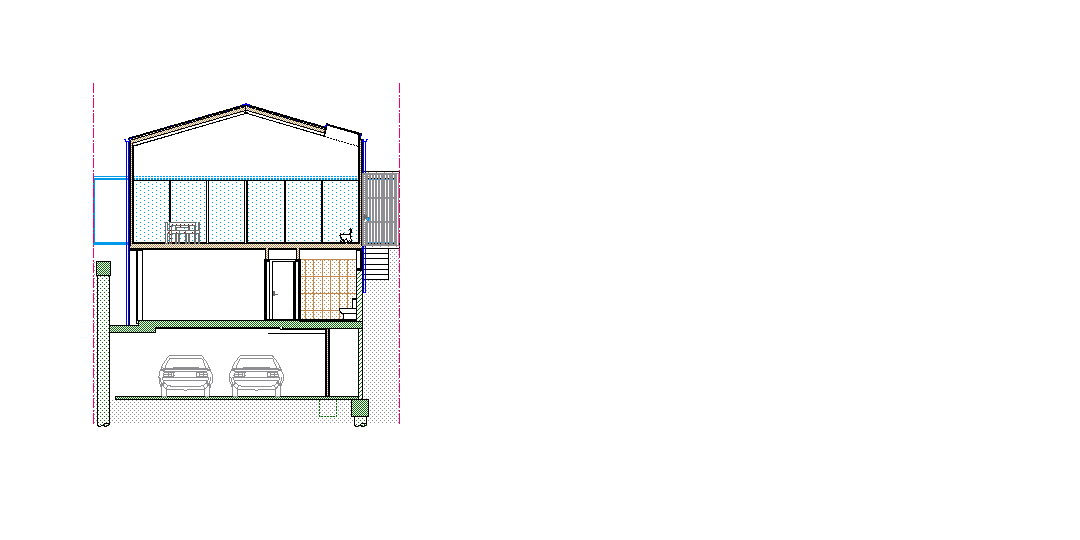

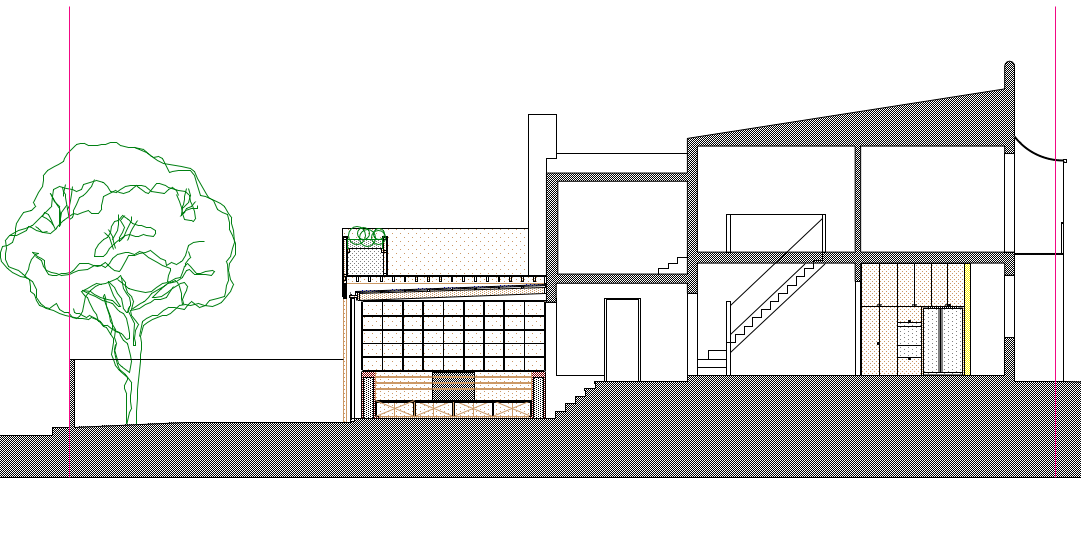

Section A
-

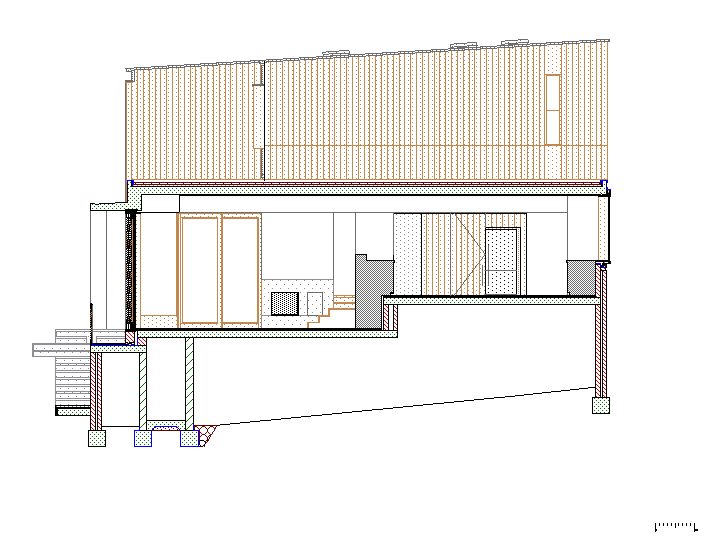

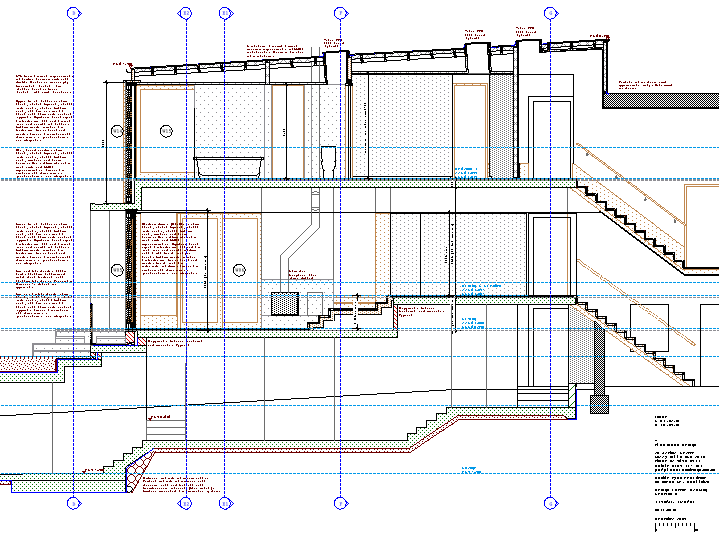

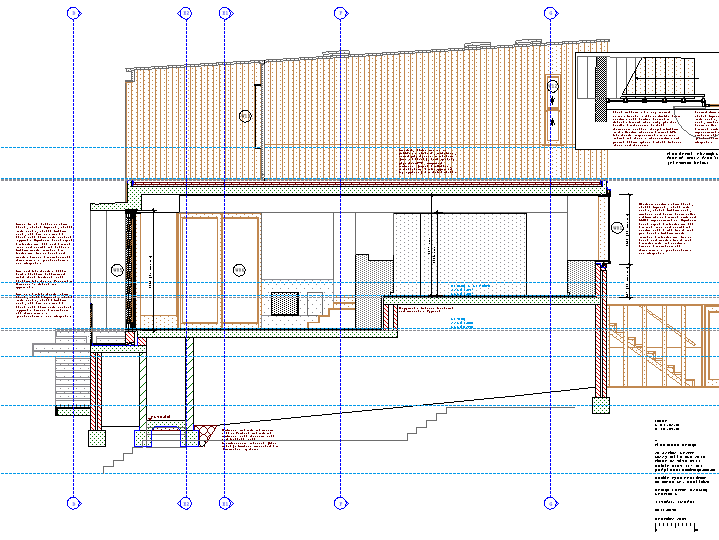

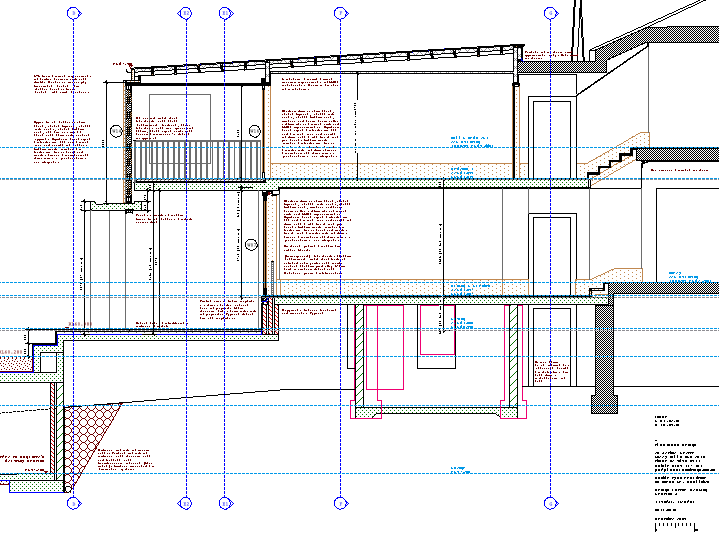

Section B
-
Section D
-

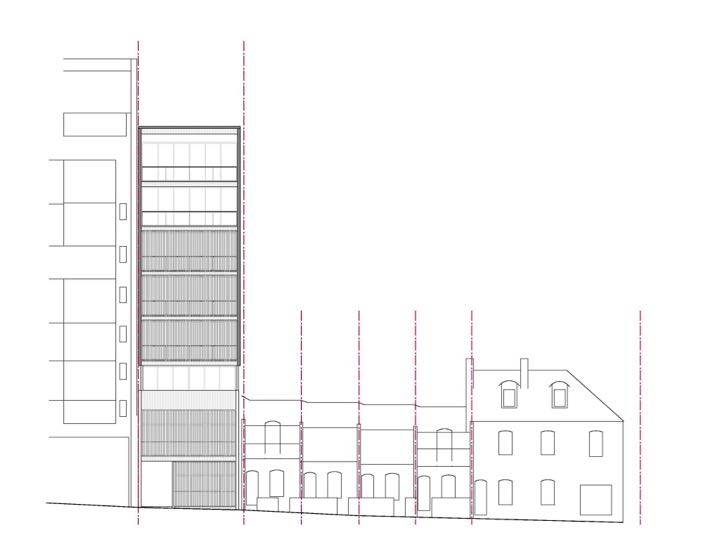

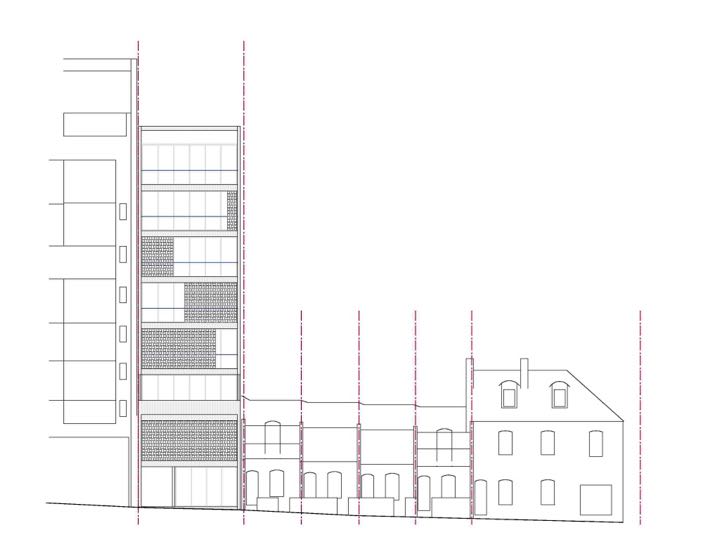

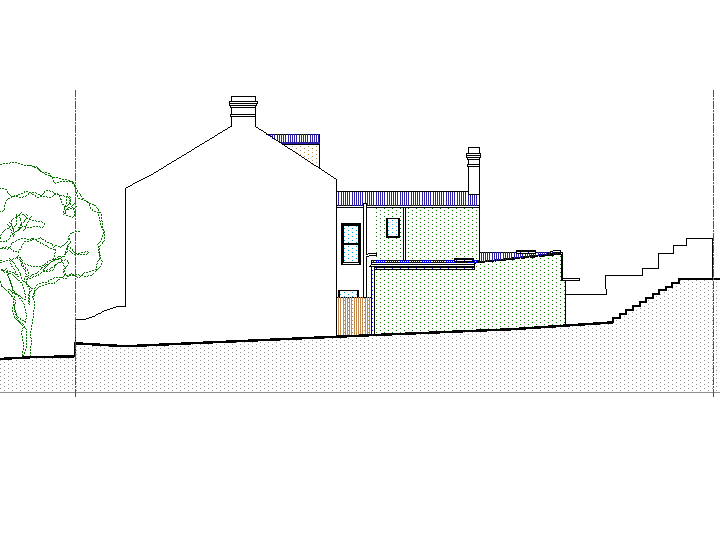

Southern Elevation, street
-
Southern Elevation
-

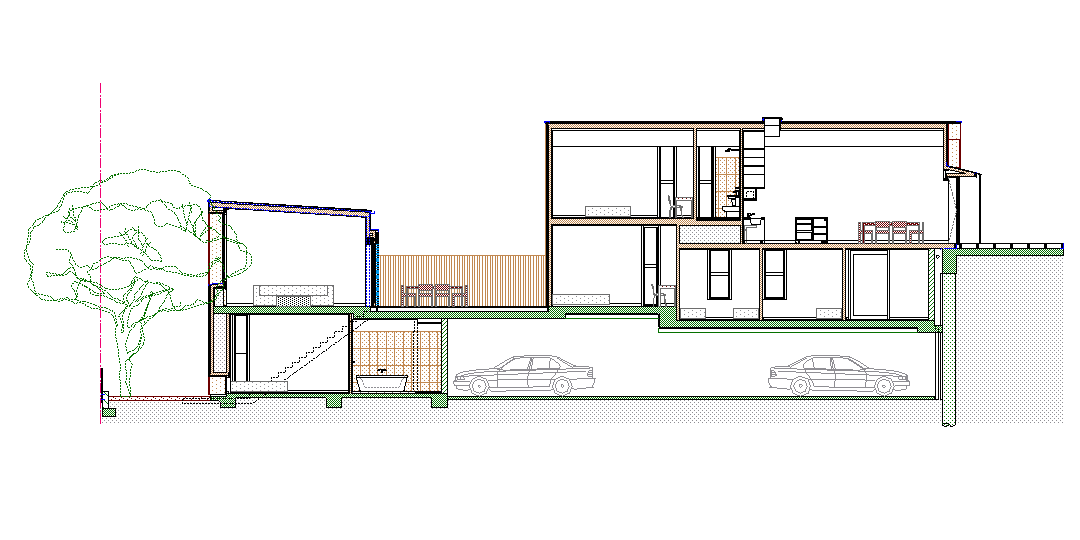

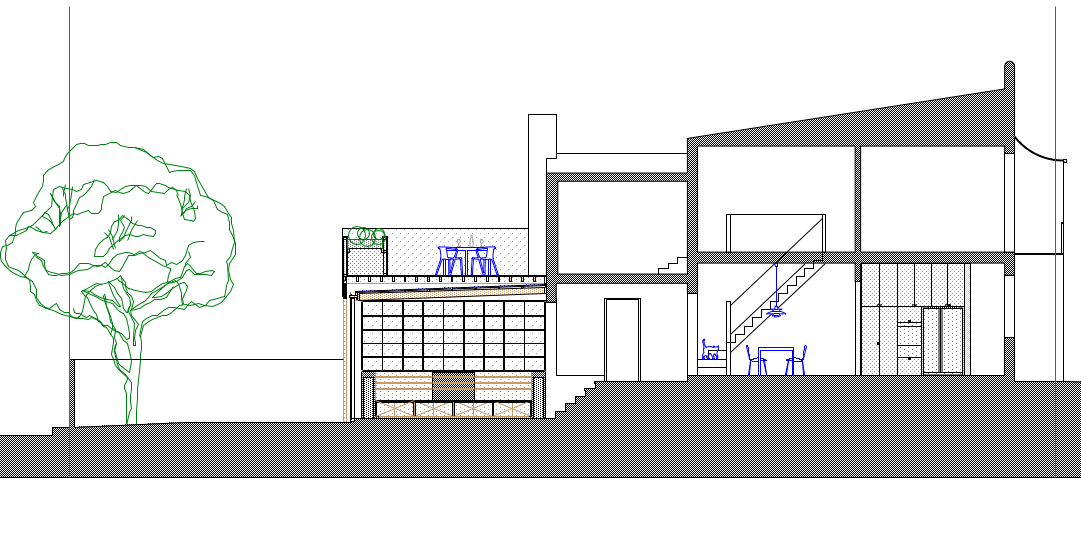

Section E
-
Section E
-
Section F
-
Section G
-
Section I
-

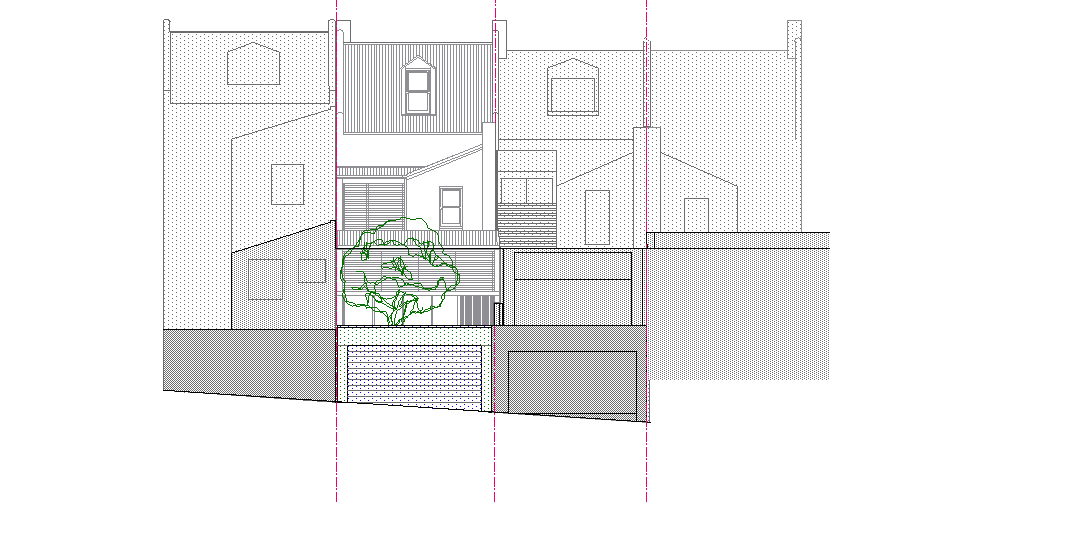

Western Elevation
-
Section G
-
Northern Elevation
-
Section H
-
Before
-

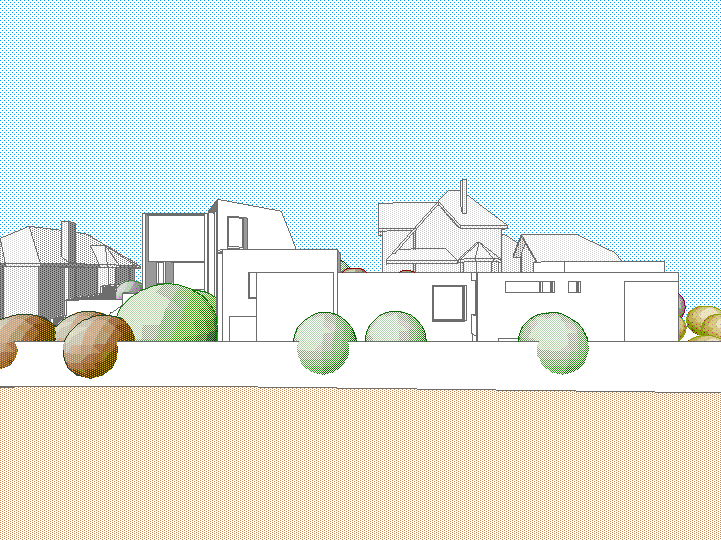

After, Montage
-

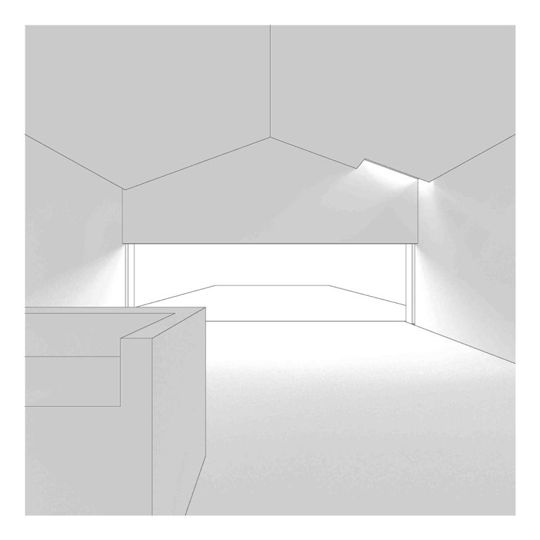

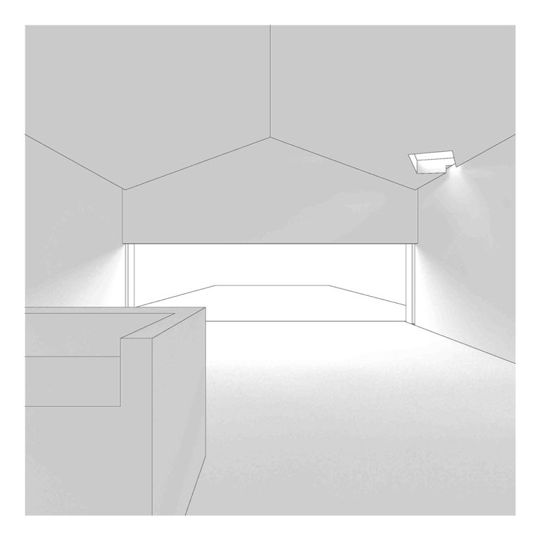

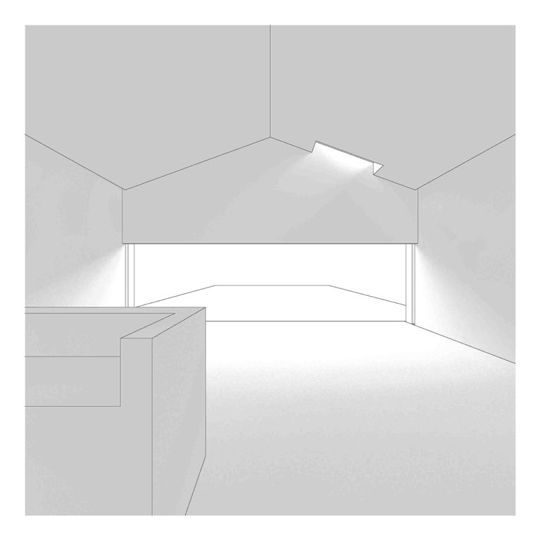

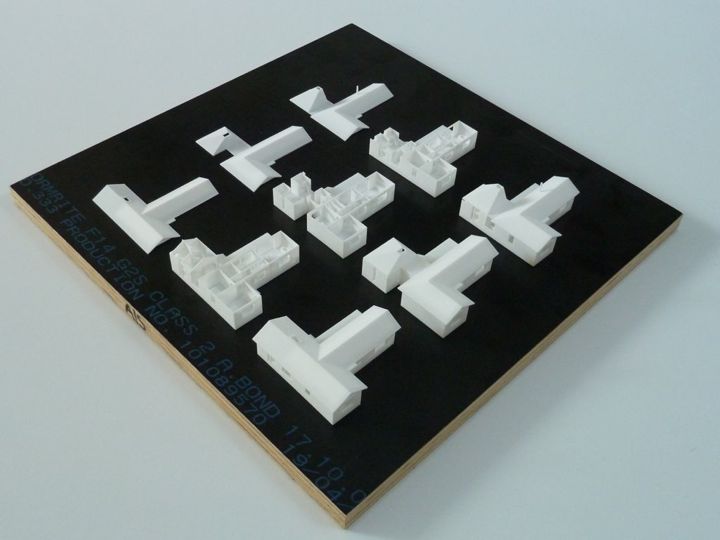

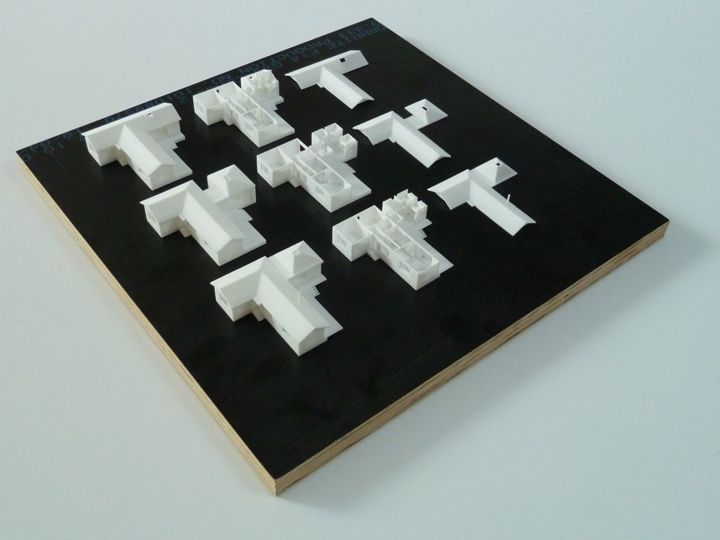

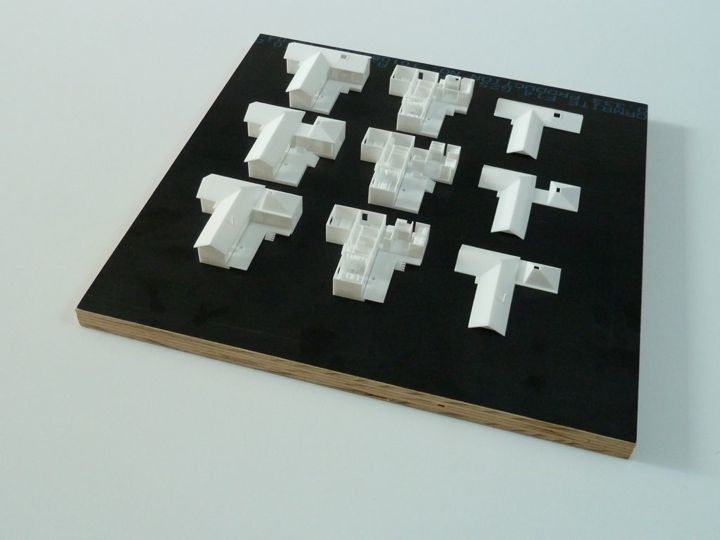

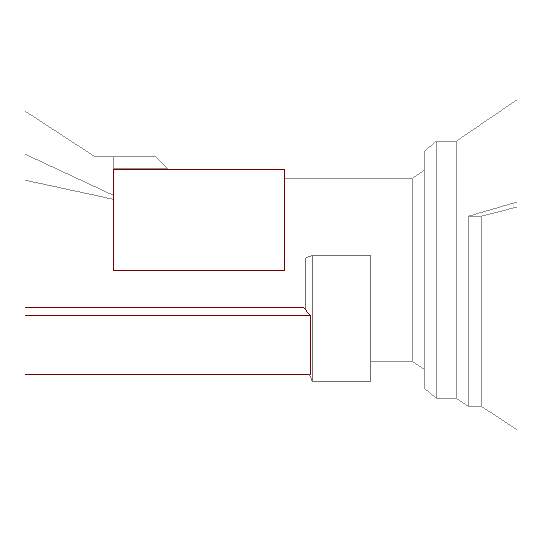

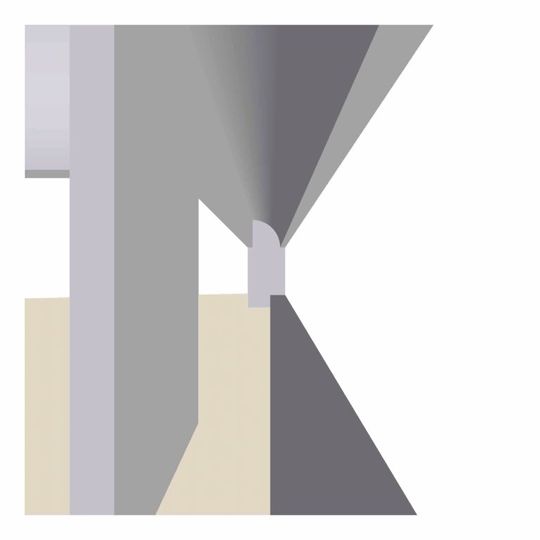

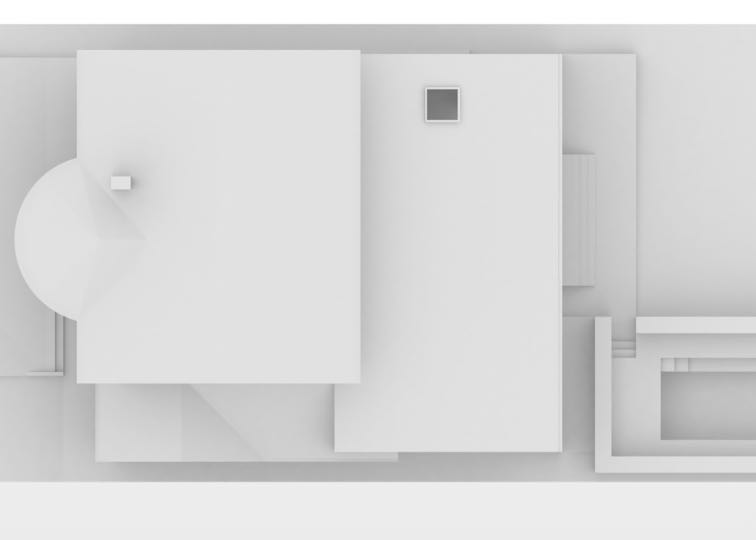

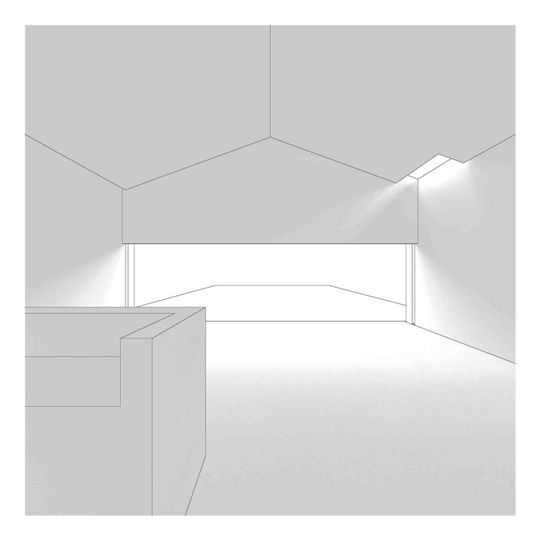

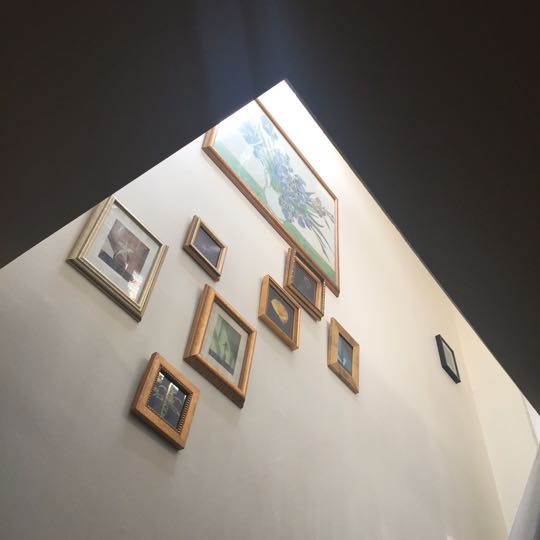

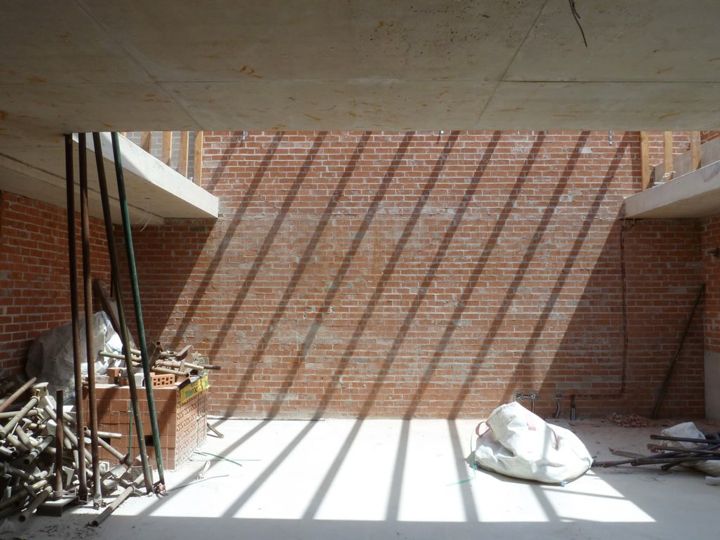

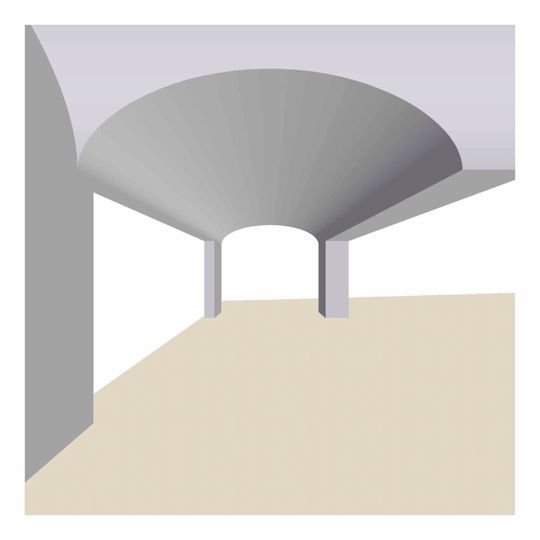

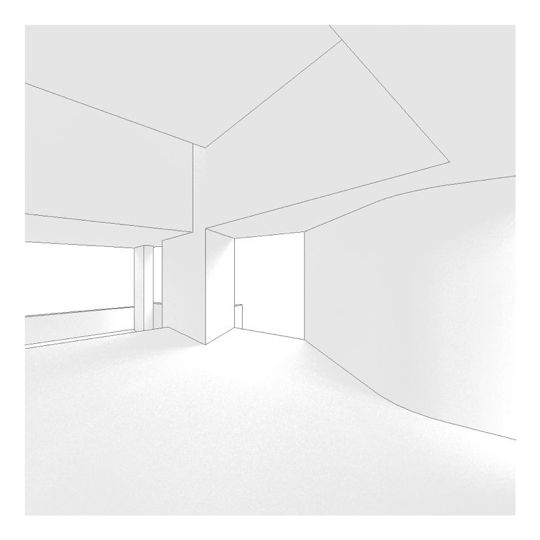

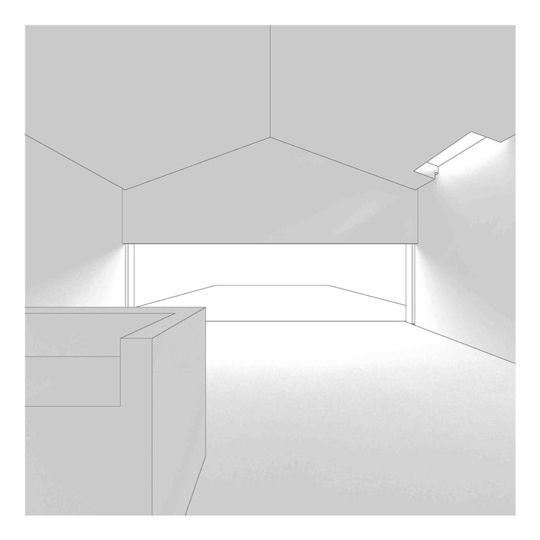

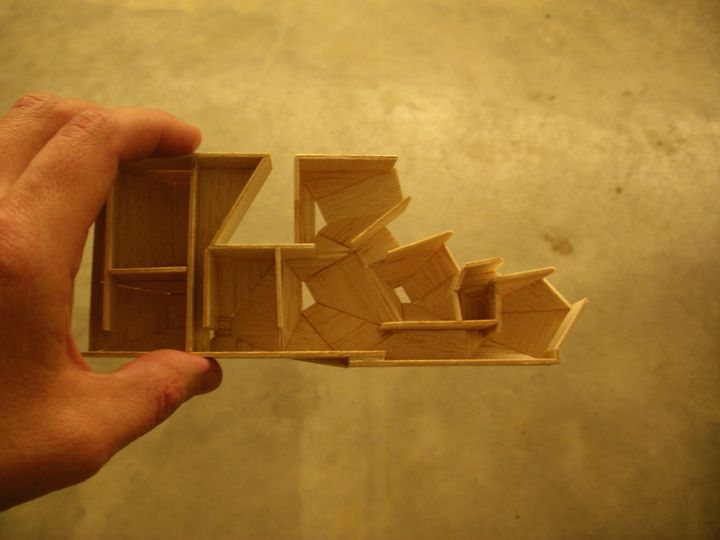

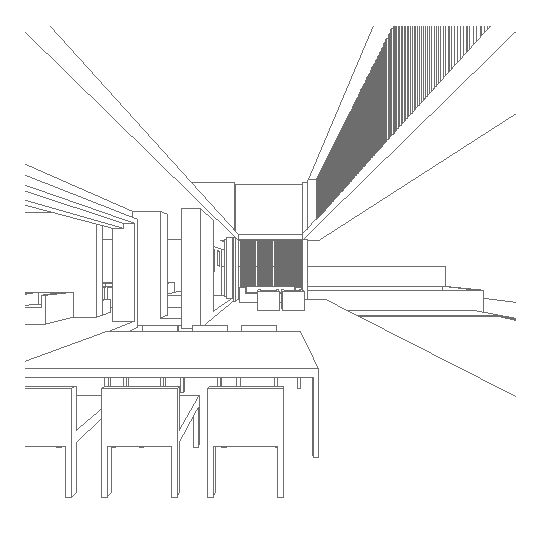

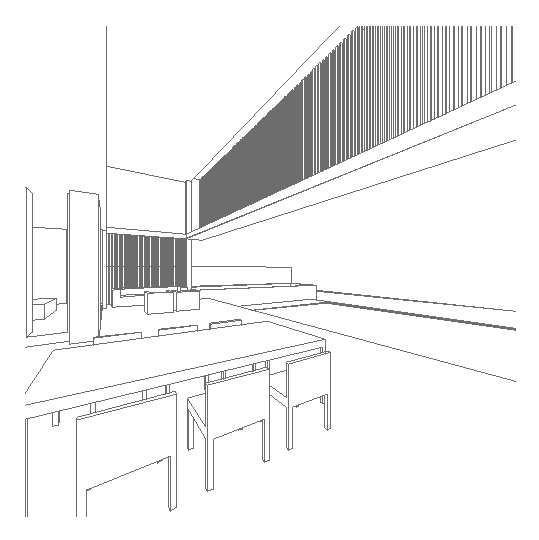

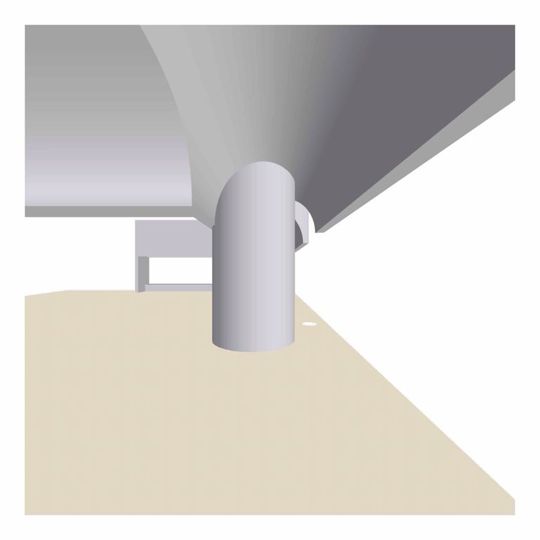

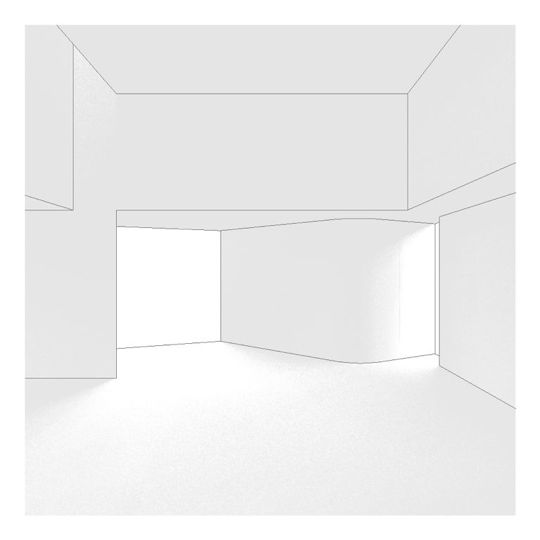

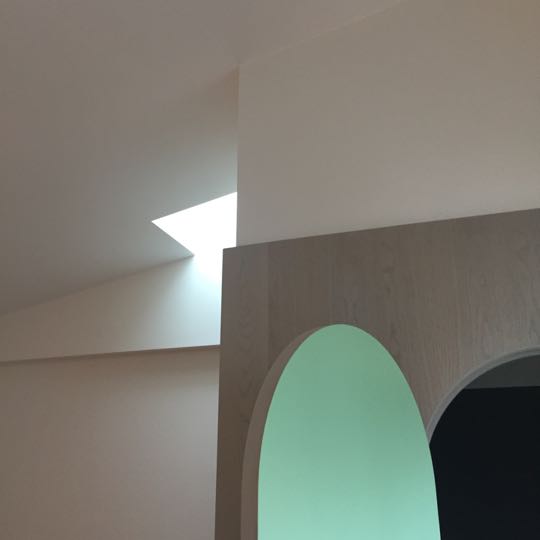

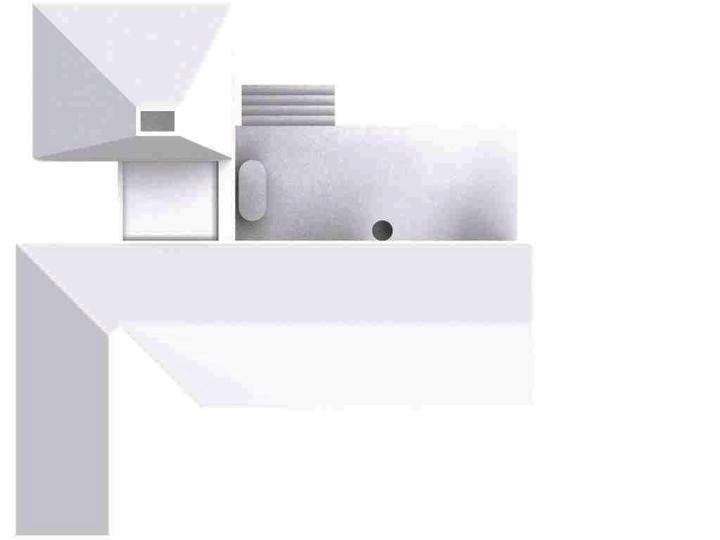

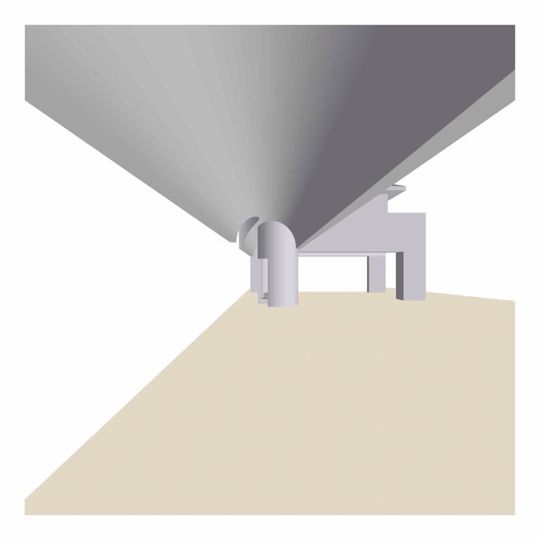

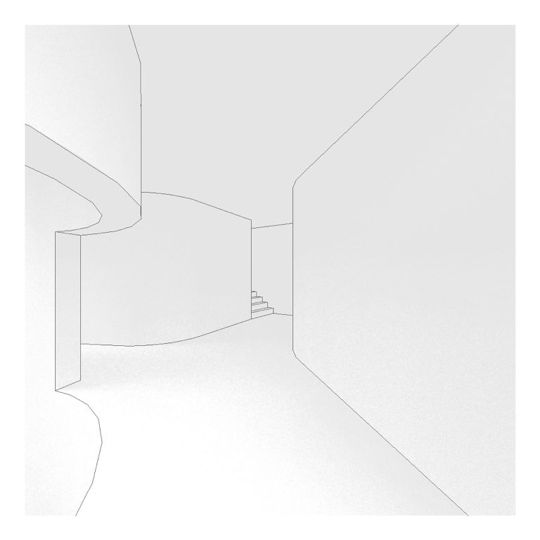

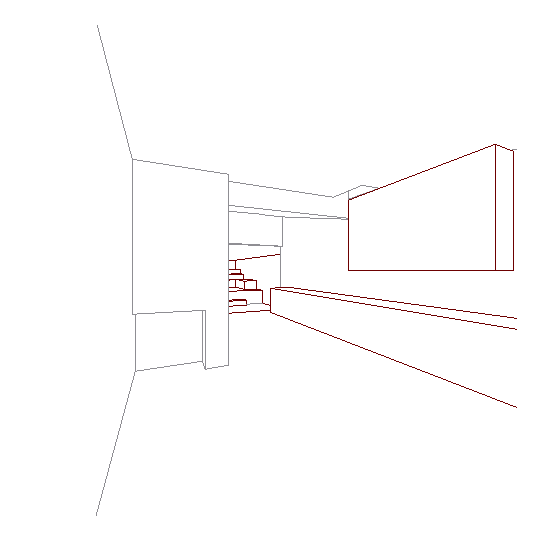

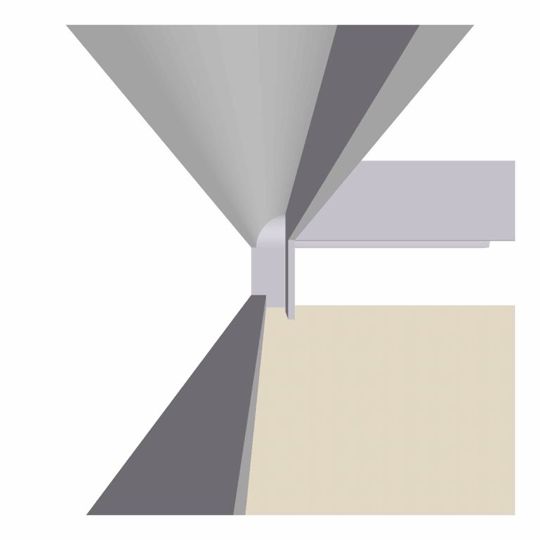

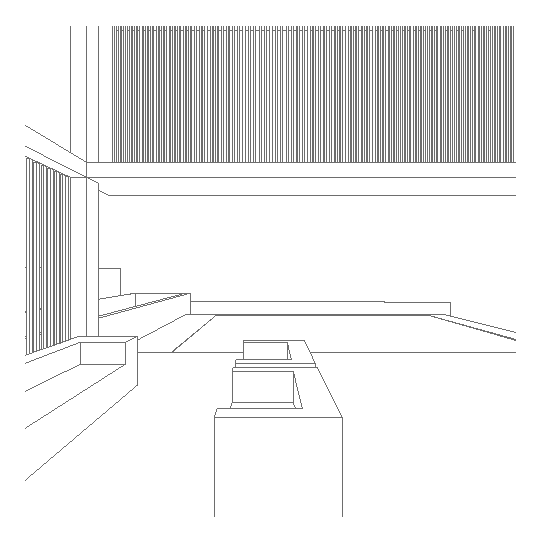

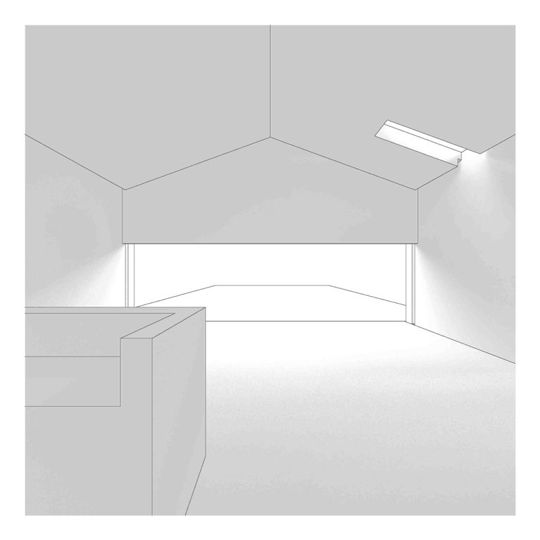

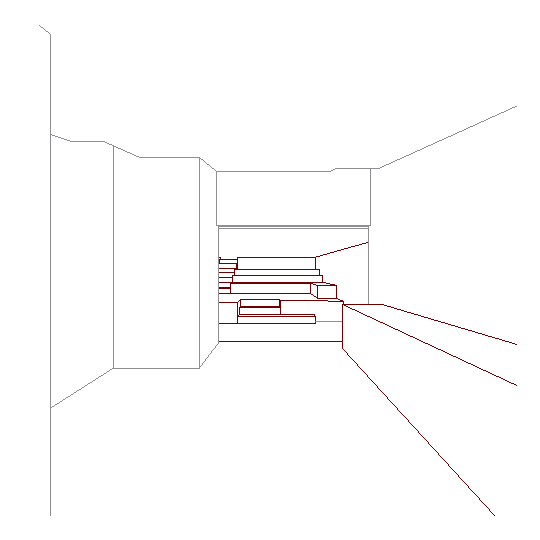

Skylight study
-
Skylight study
-
Skylight study
-
Skylight study
-
Skylight study
-
Skylight study
-
Skylight study

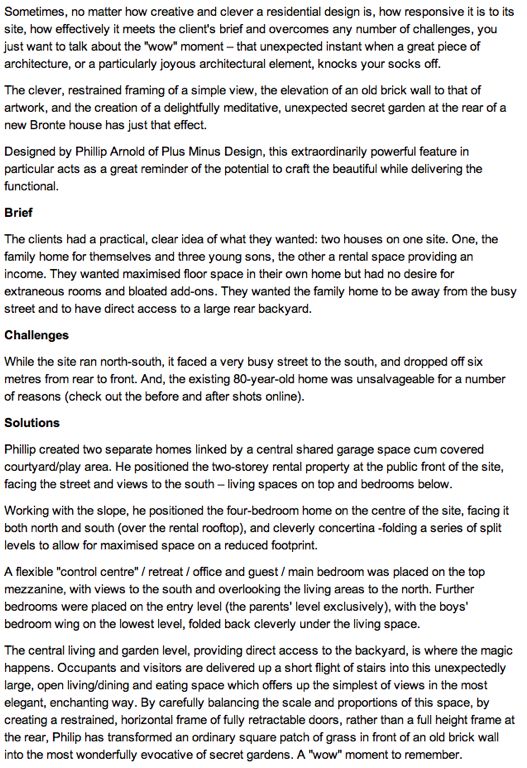

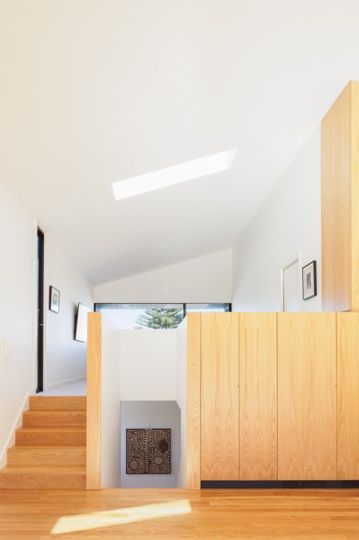

The client brief was perfect. Get the layout and the
proportions right. Specify modest finishes and keep the
detailing direct and uncomplicated. Maximise the floorspace
given planning controls.
Floorspace surplus to the family's requirements allowed for
a second dwelling at the front.

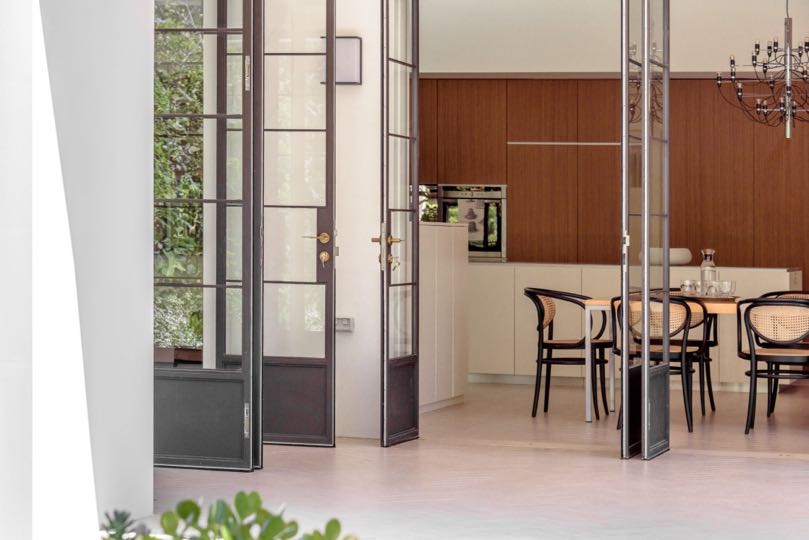

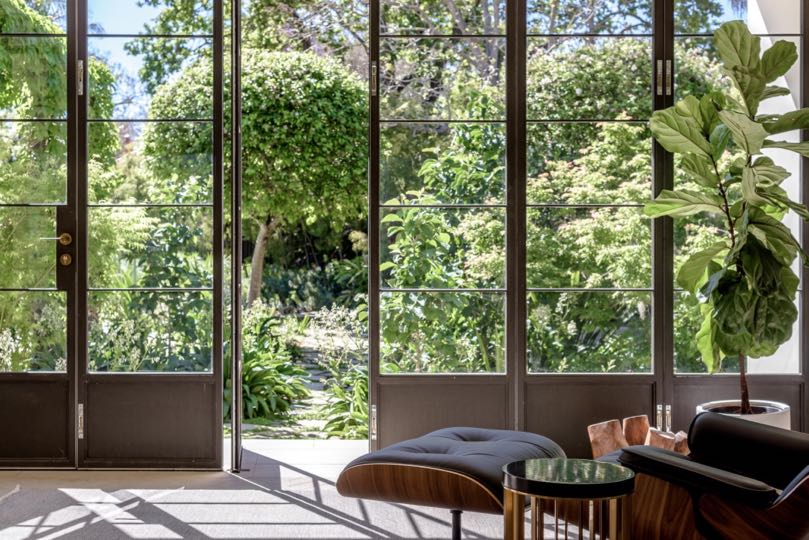

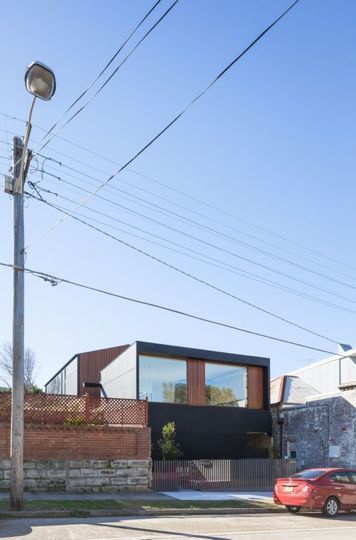

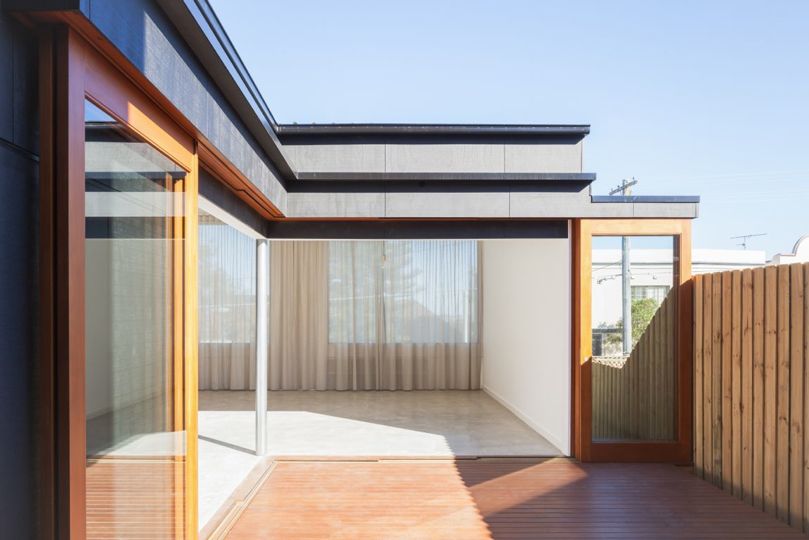

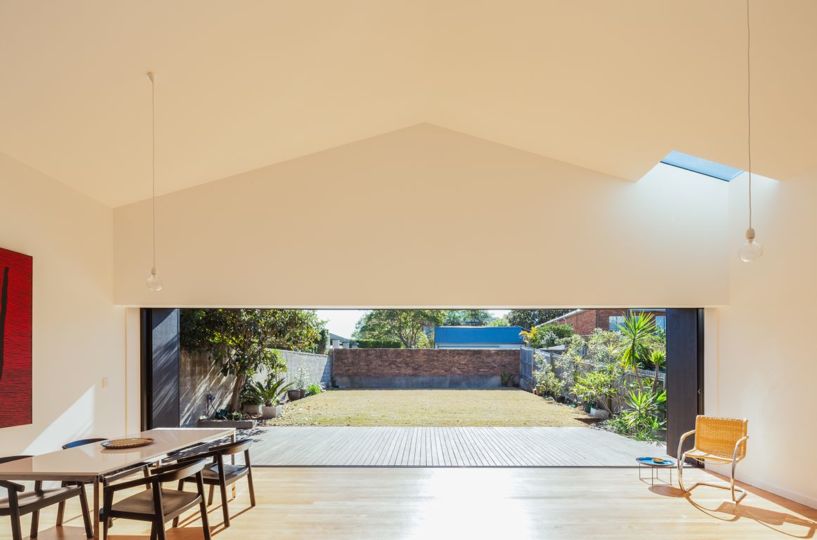

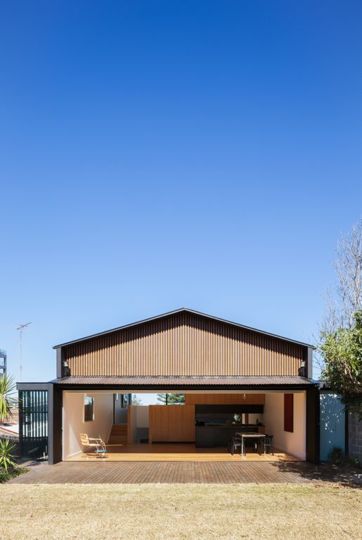

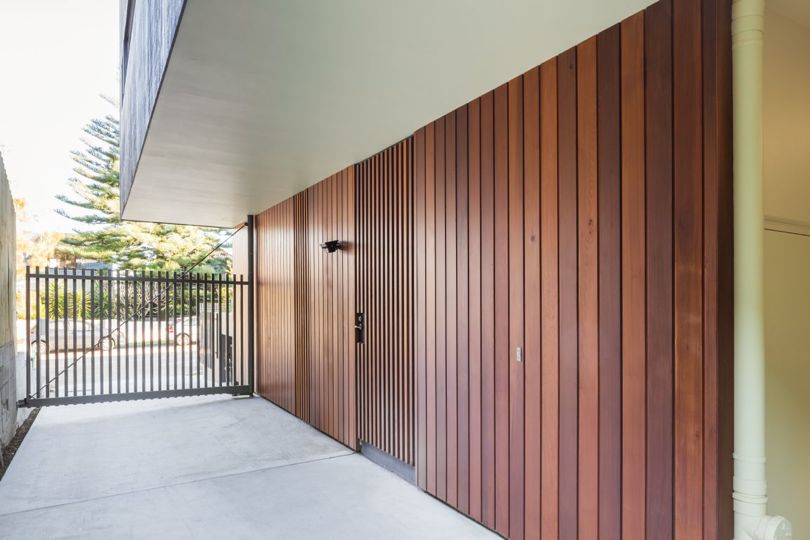

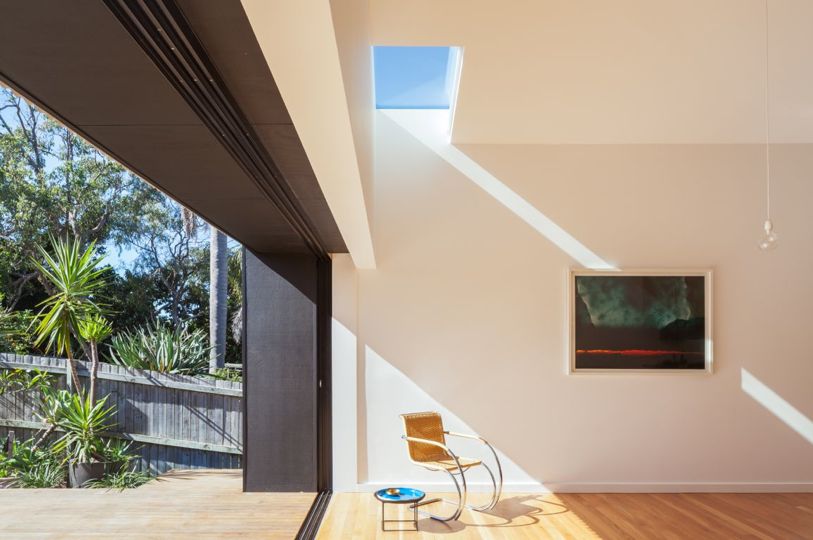

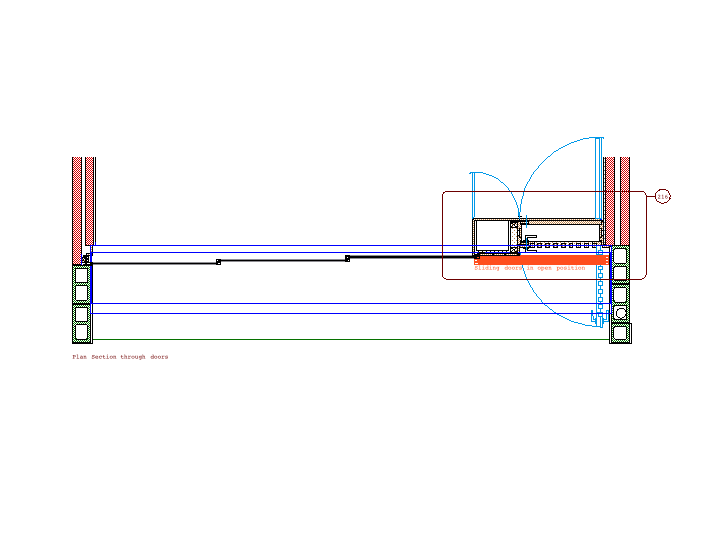

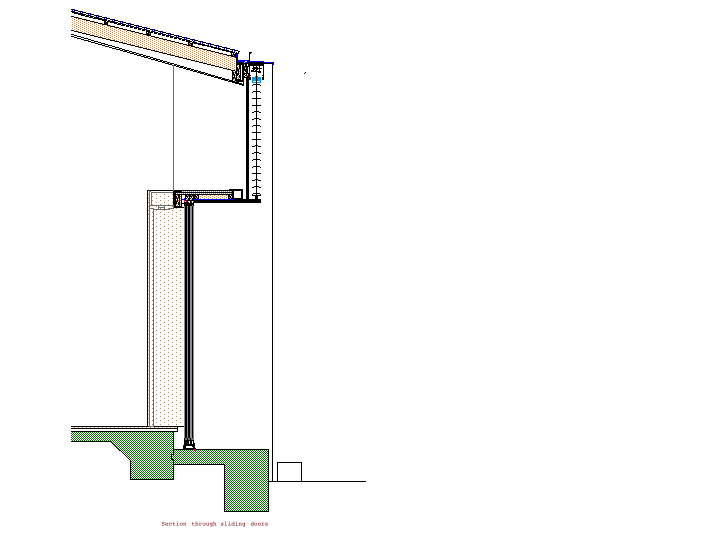

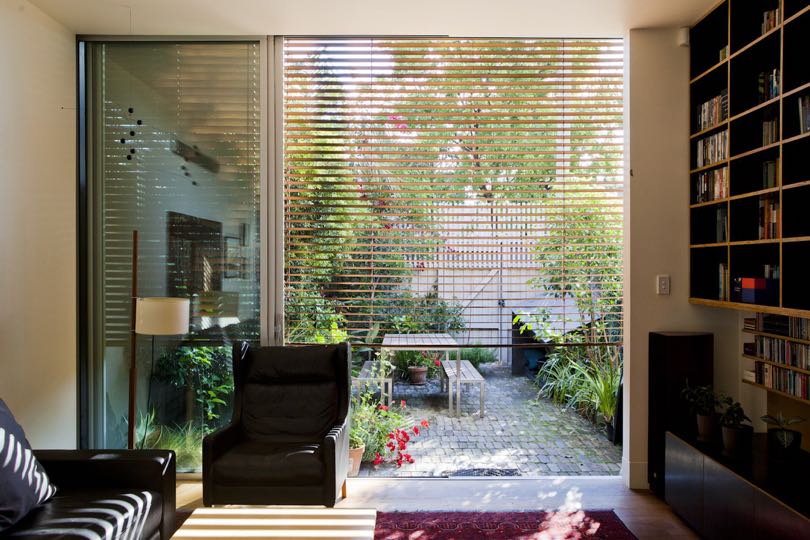

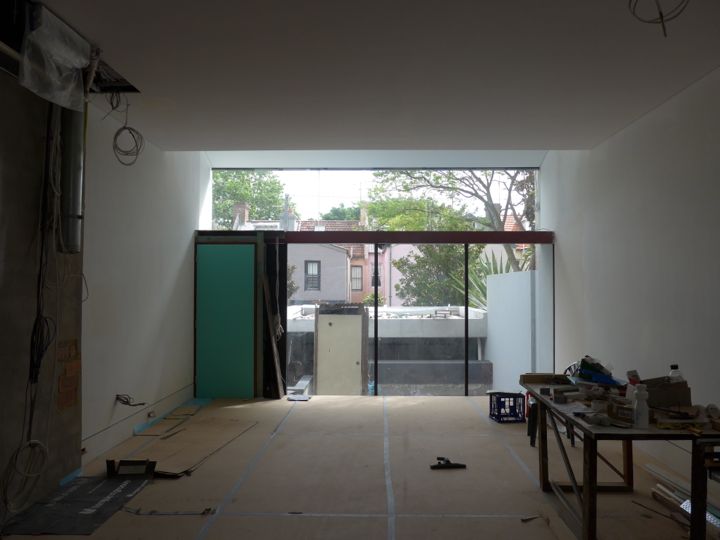

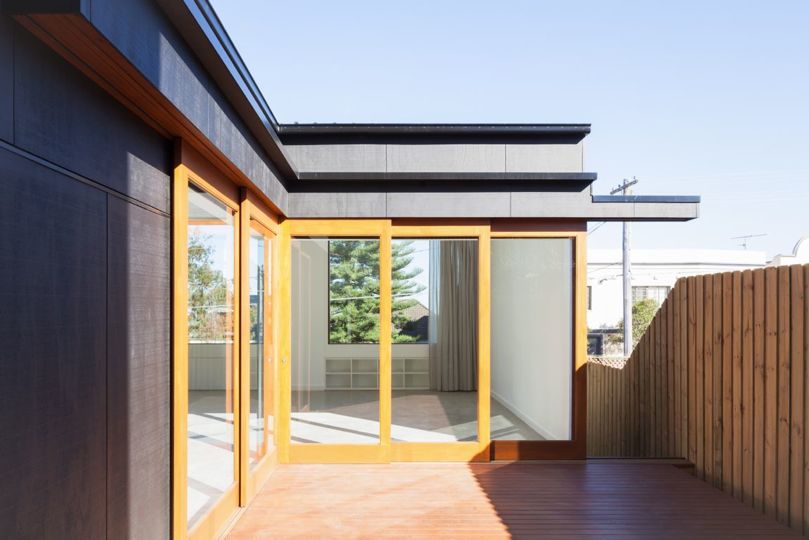

The budget did allow for double glazing to a busy street,
doors to the rear garden that slide beyond the width of the
room, and excavation for off street parking.
I think it is appropriate.
Photos, Katherine Lu
Structural Engineer, Damien Hadley, Cantilever Engineers
Built by Wales Built, Mike Wales, Dan Deegan & Grant Cornwall
-

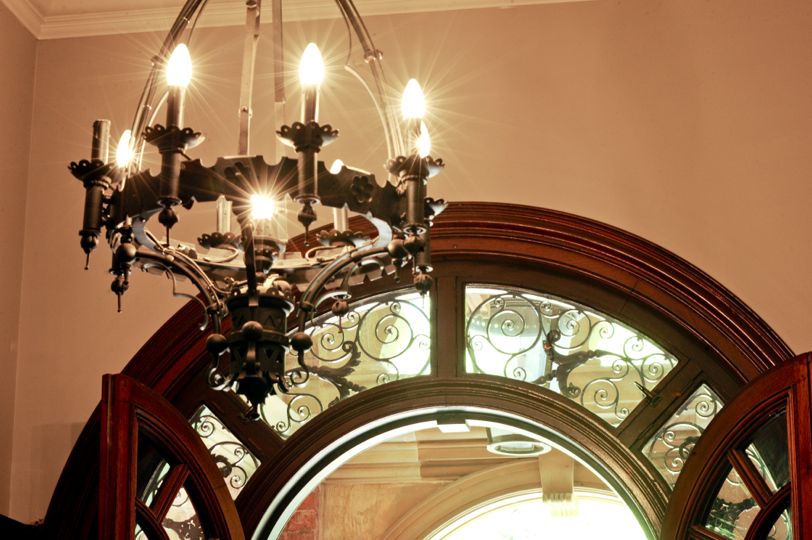

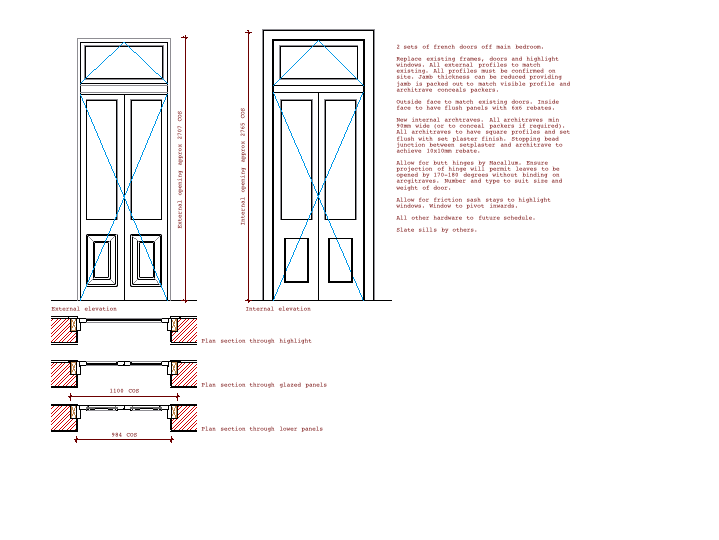

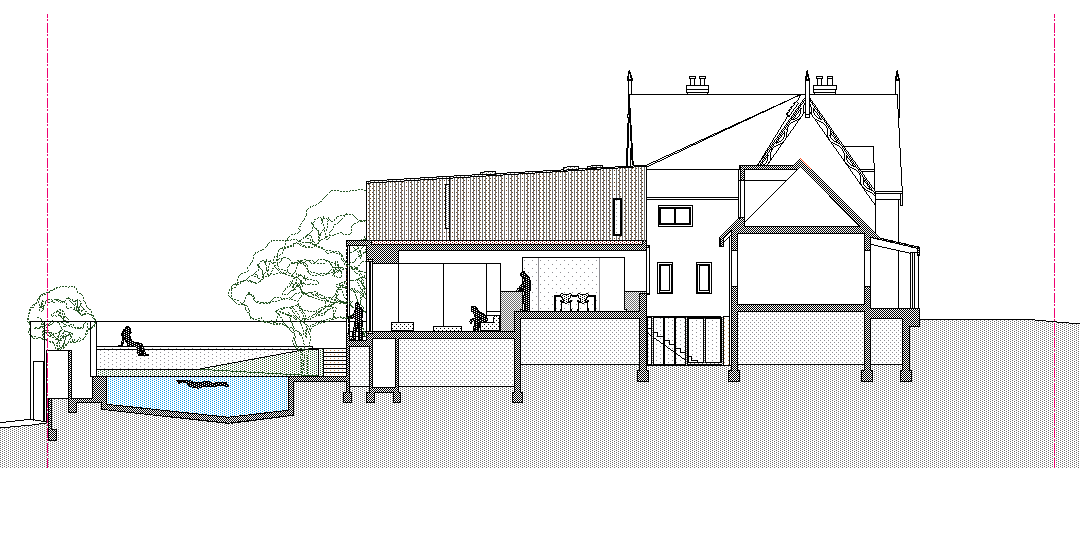

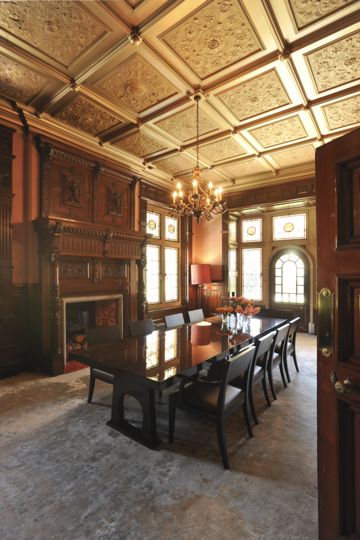

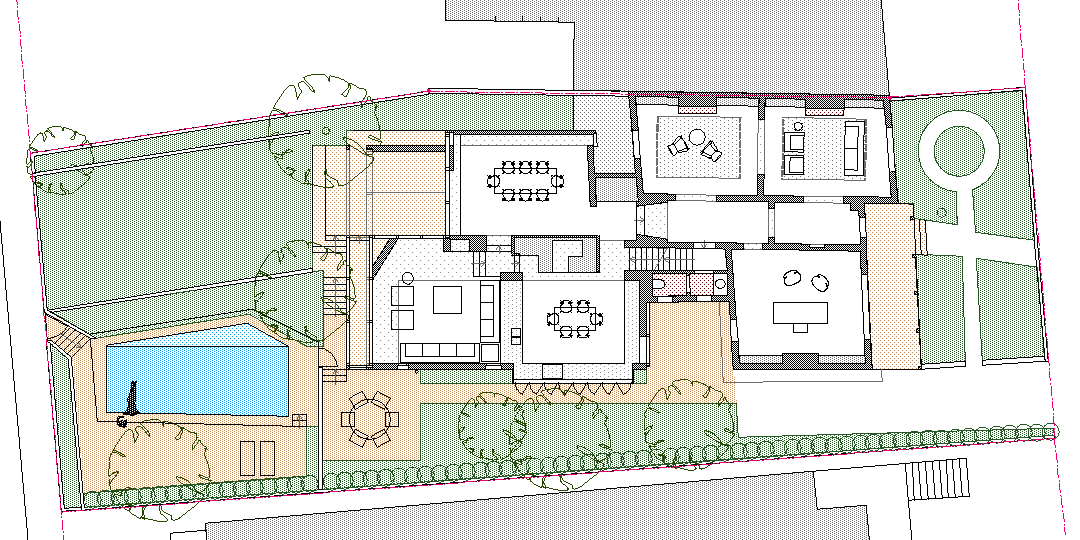

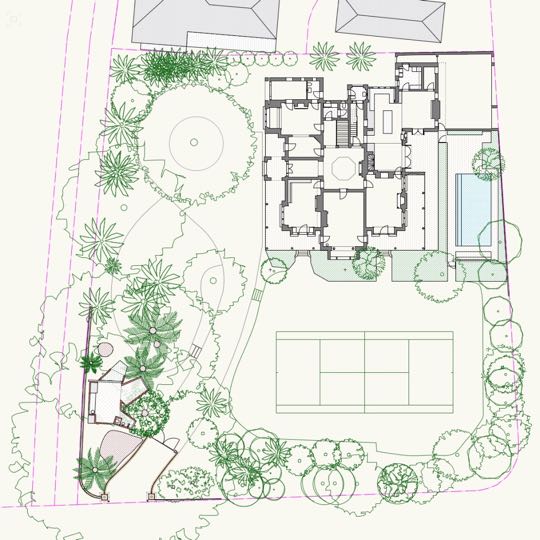

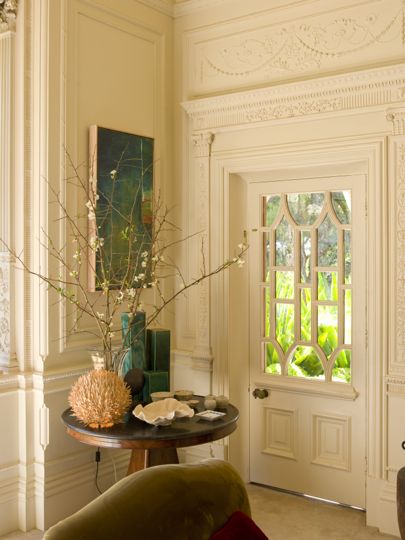

Caerleon
Alterations & restoration of a heritage property

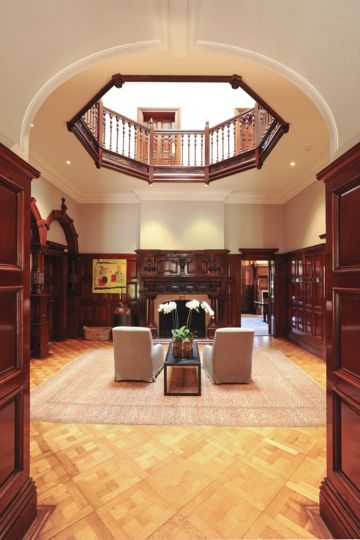

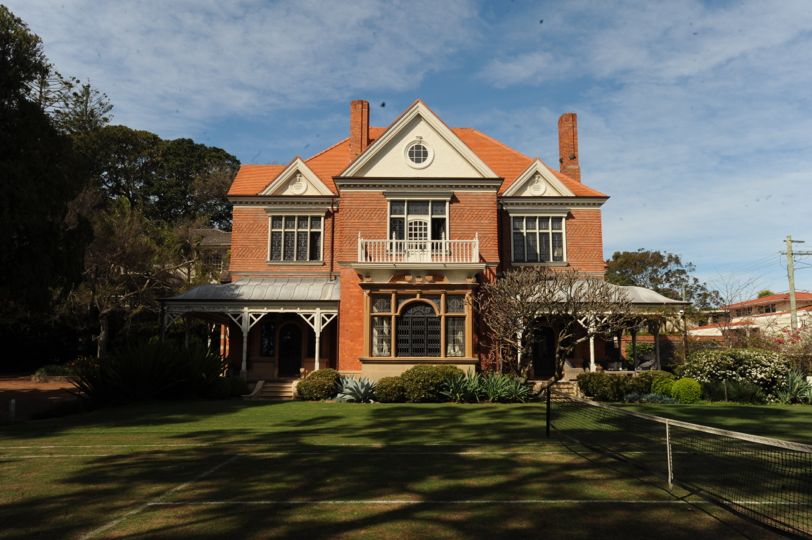

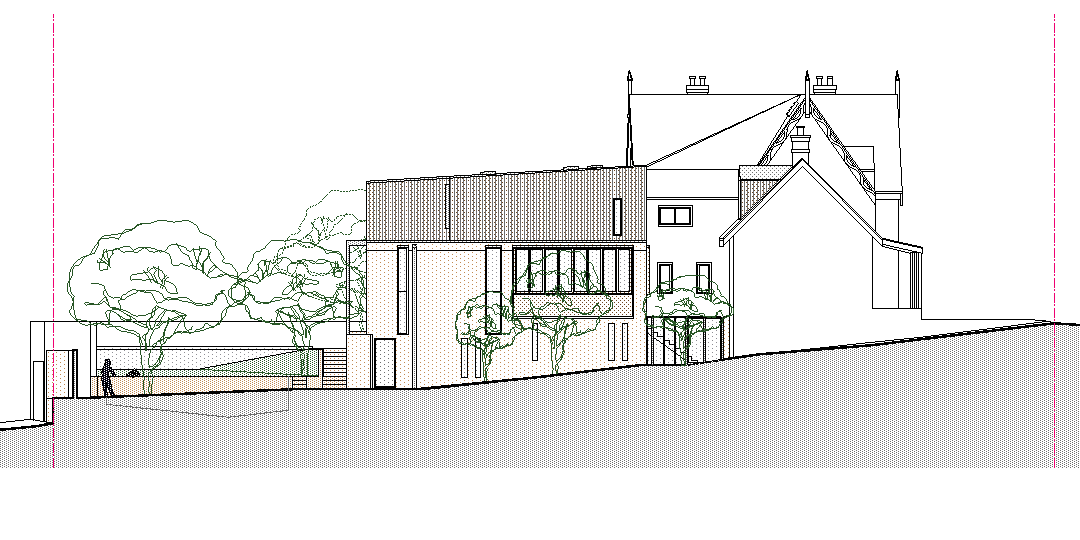

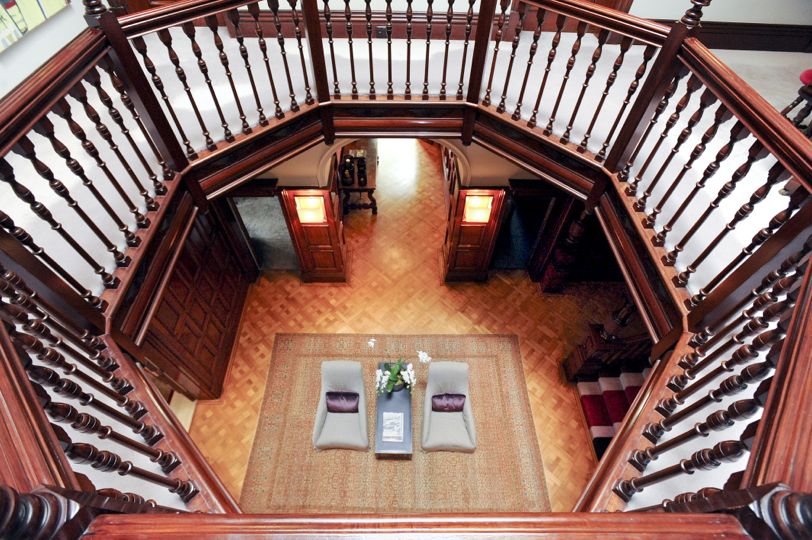

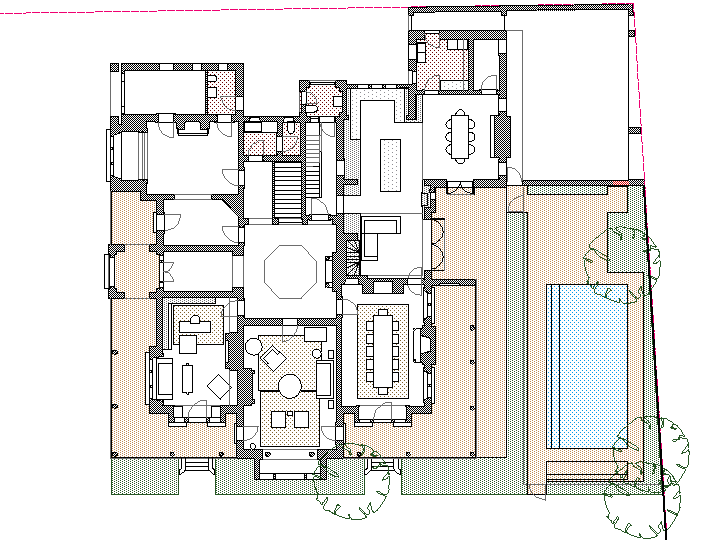

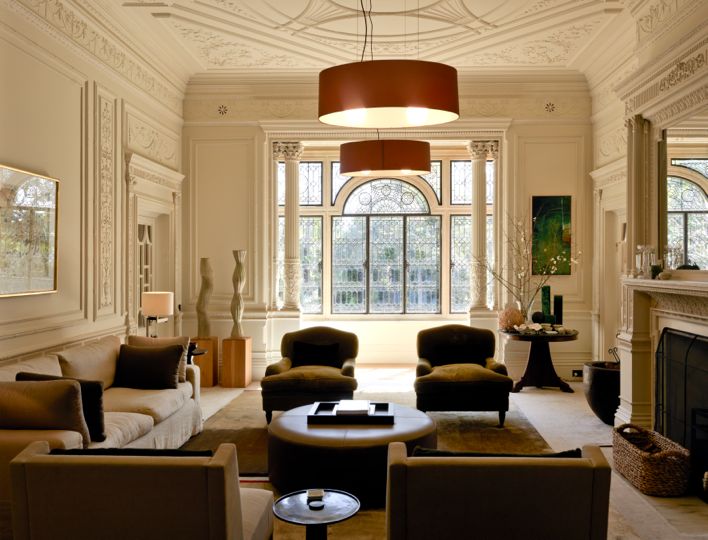

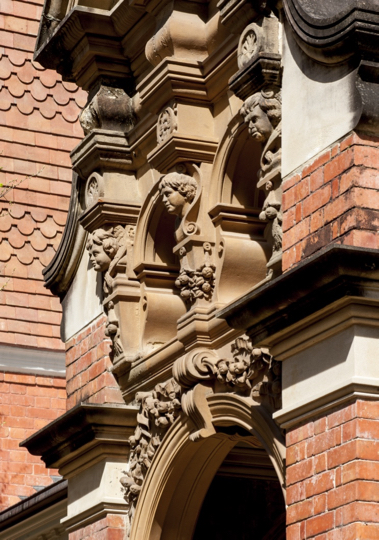

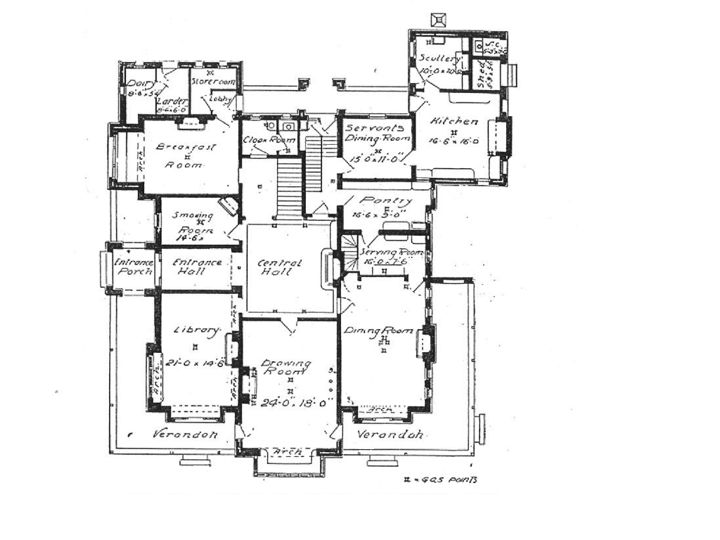

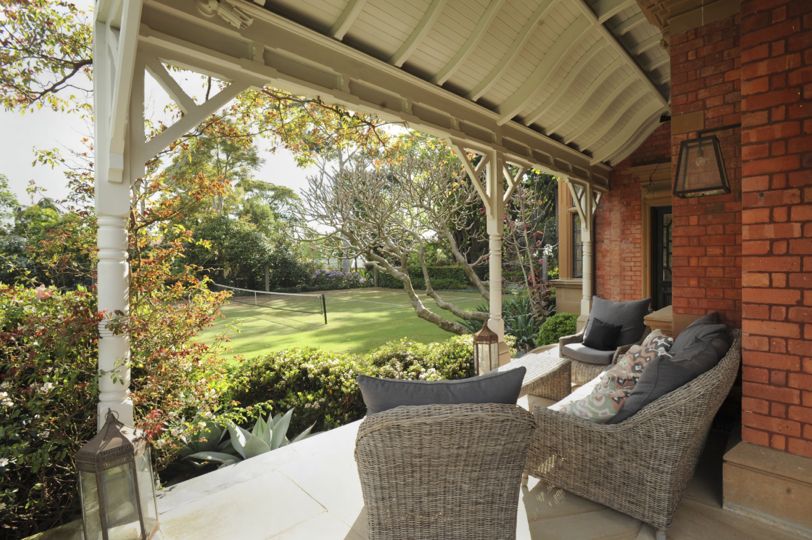

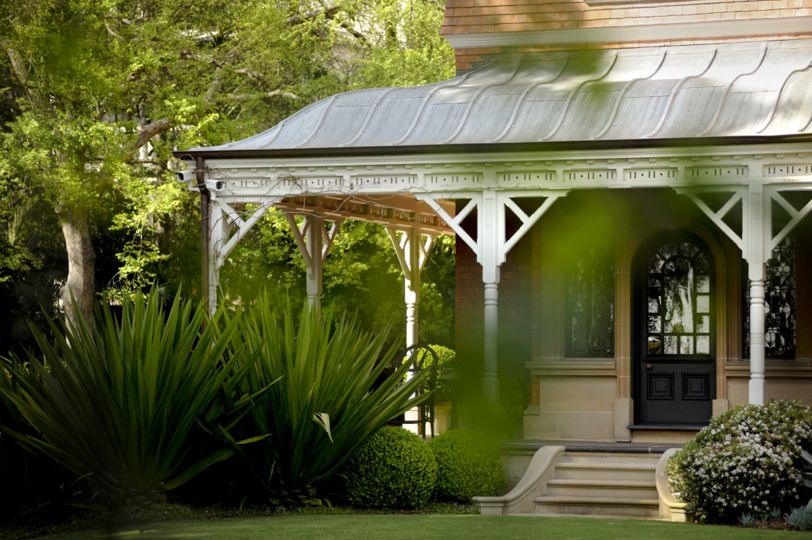

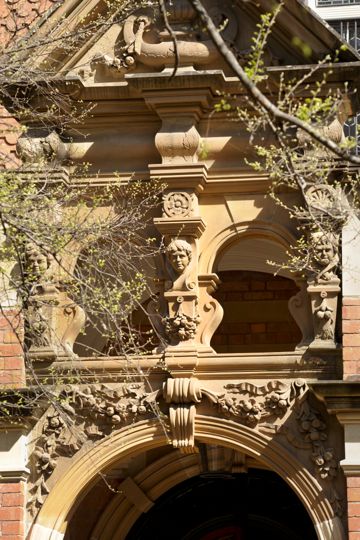

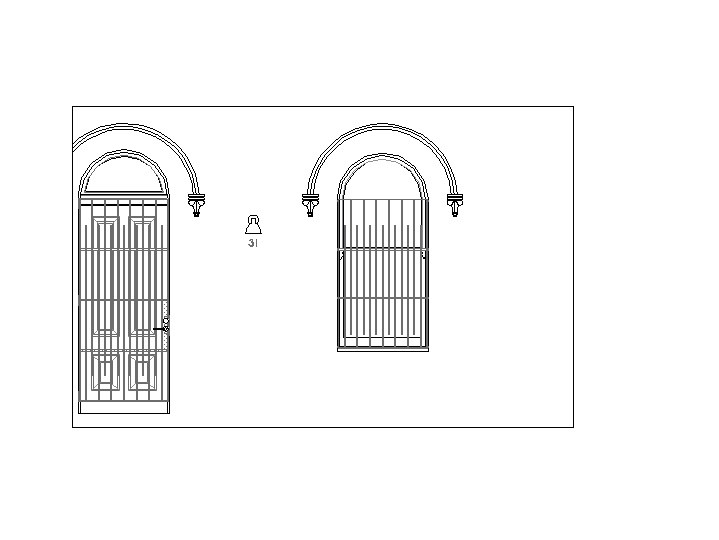

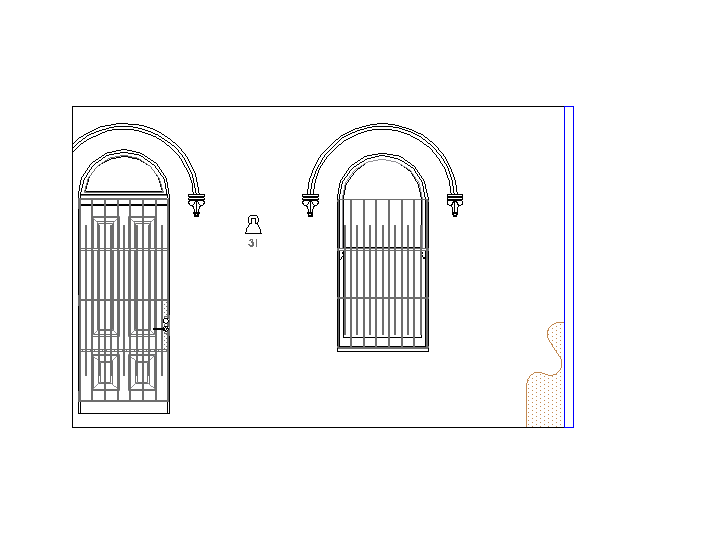

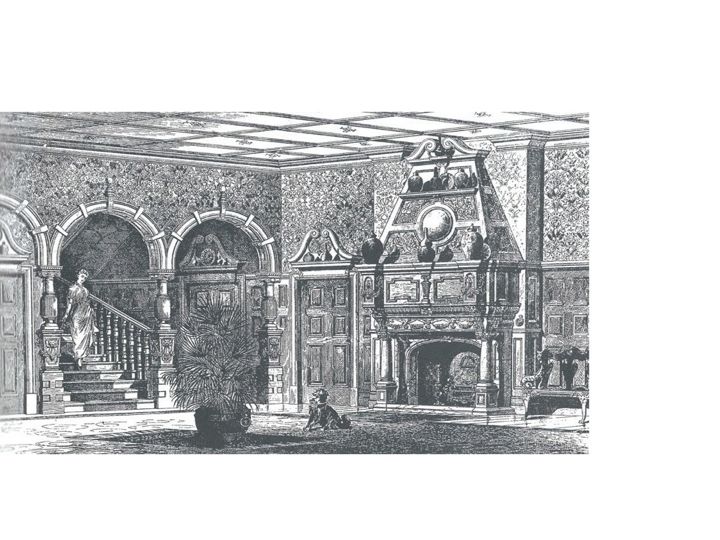

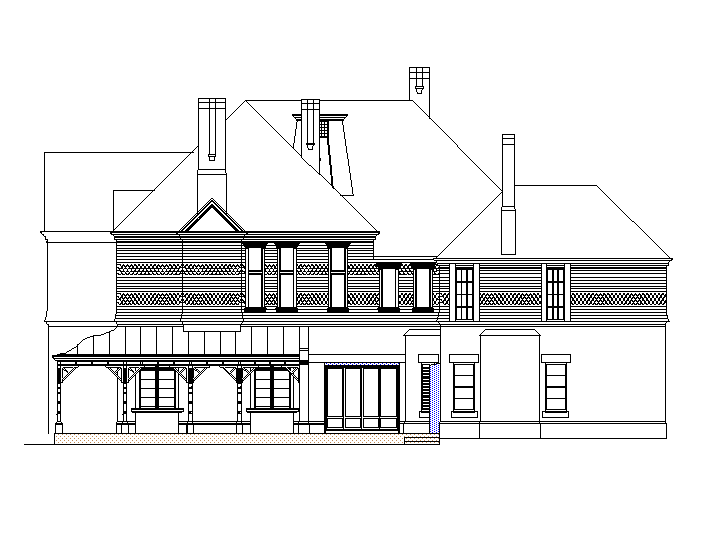

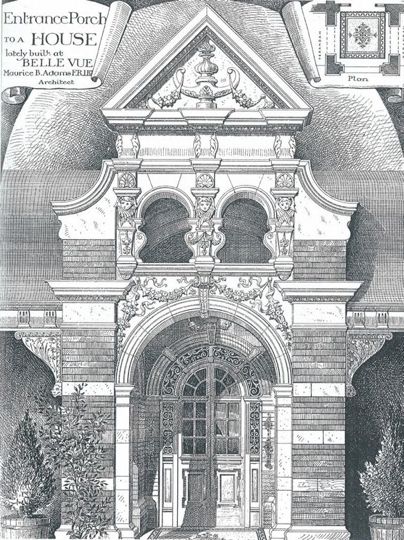

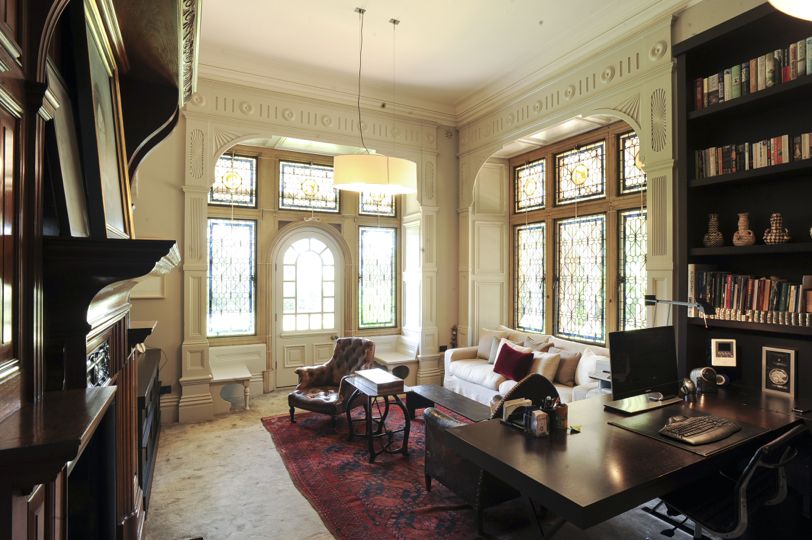

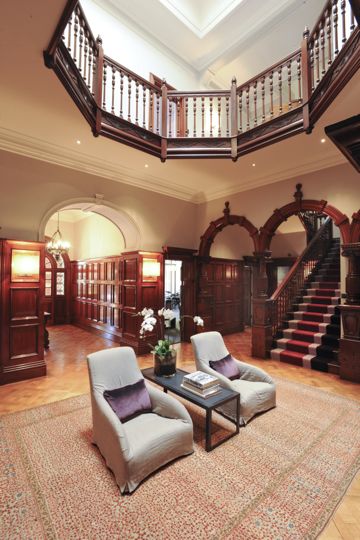

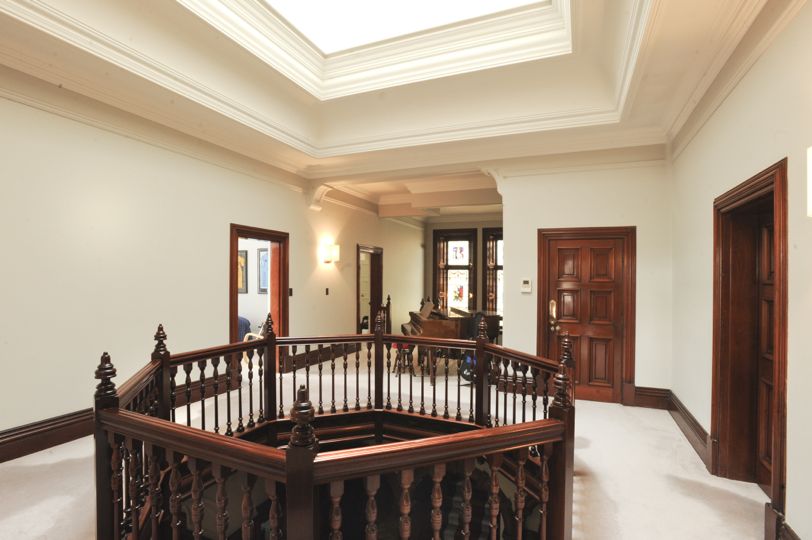

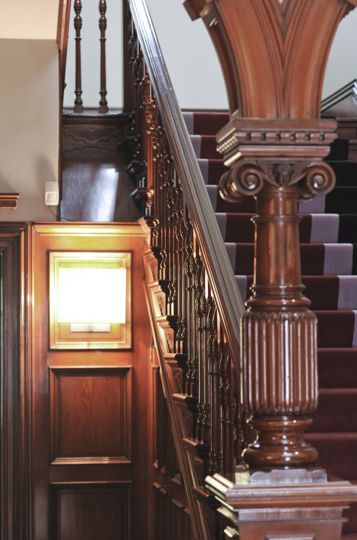

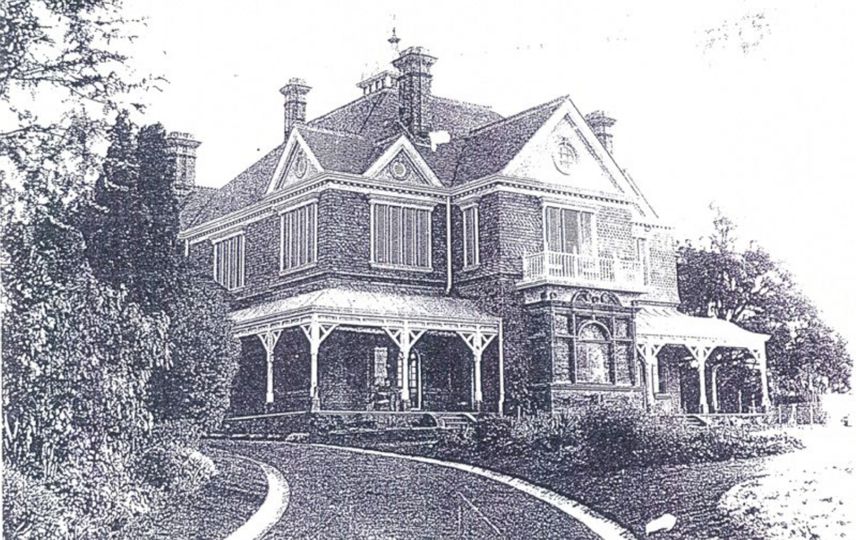

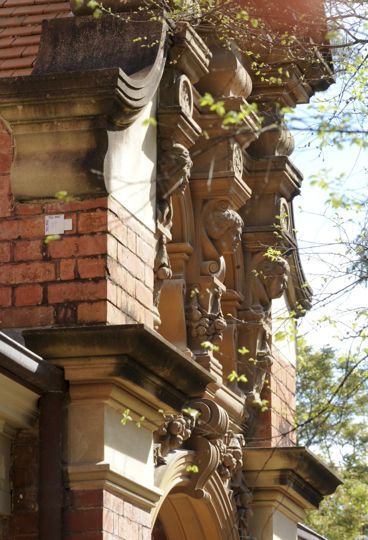

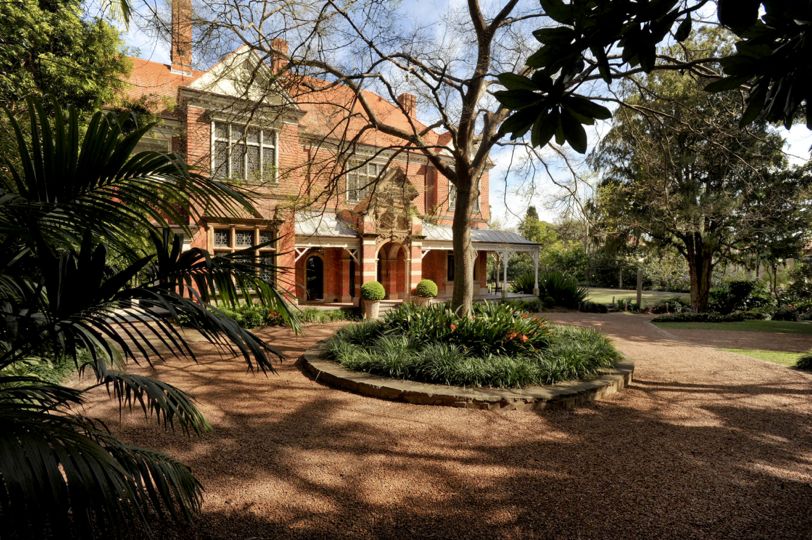

This significant house was designed in the Queen Anne Style
by Harry C Kent in Sydney and Maurice B Adams in London and
was constructed in 1886 for Charles Burton Fairfax. It is
appropriately listed as a heritage item by Woollahra
Council. It is also listed on the Register of the National
Estate and the Jubilee Register of the National Trust of
Australia.

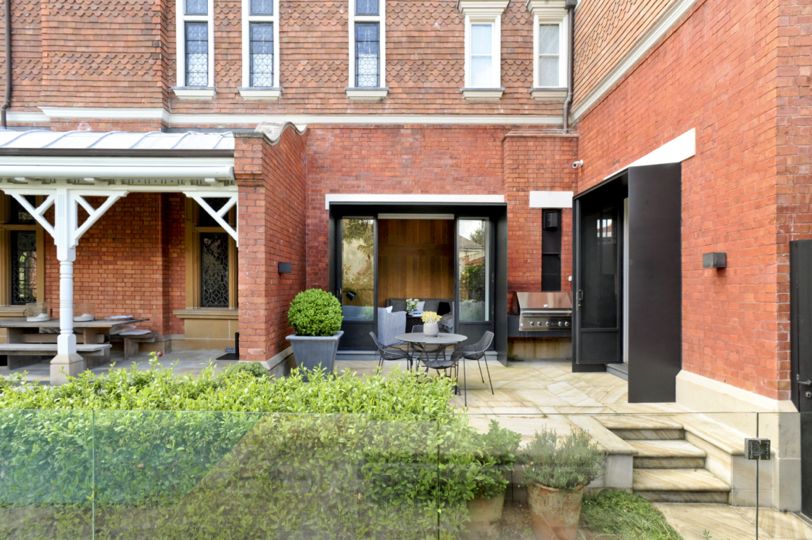

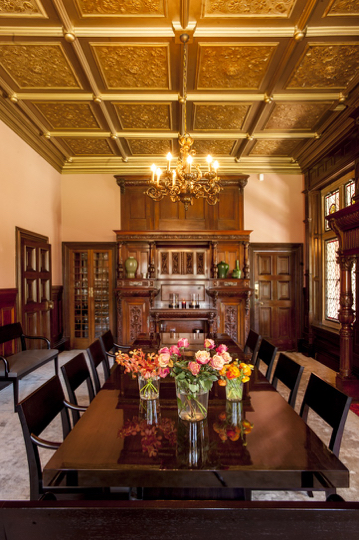

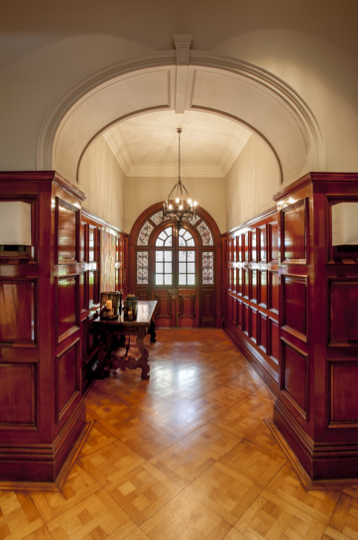

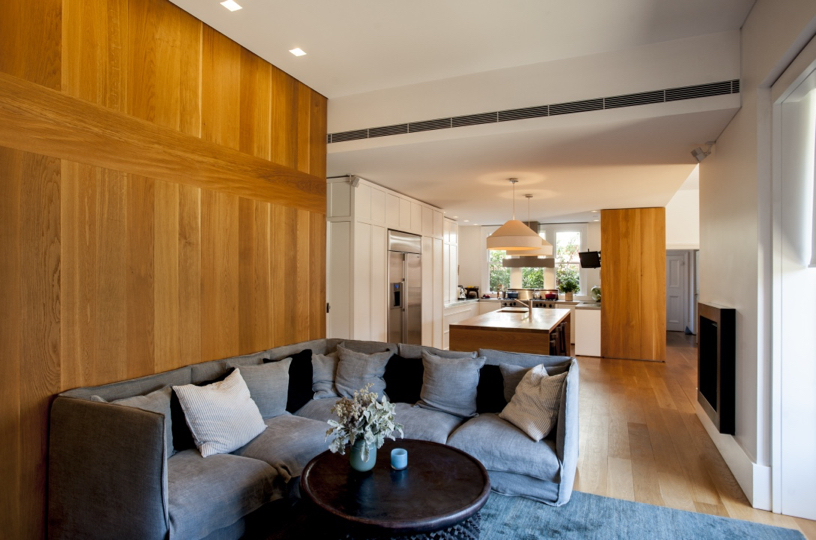

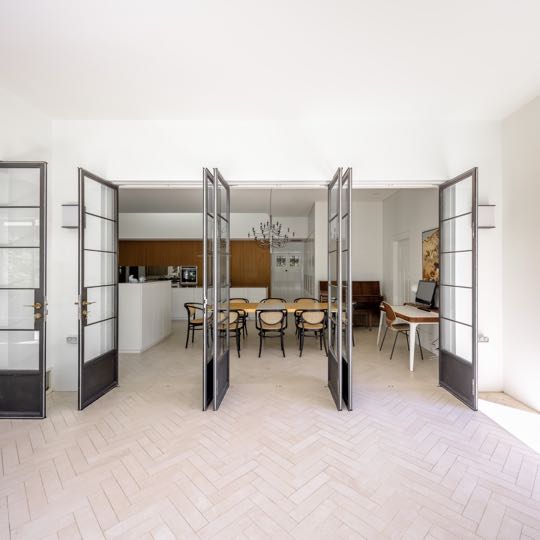

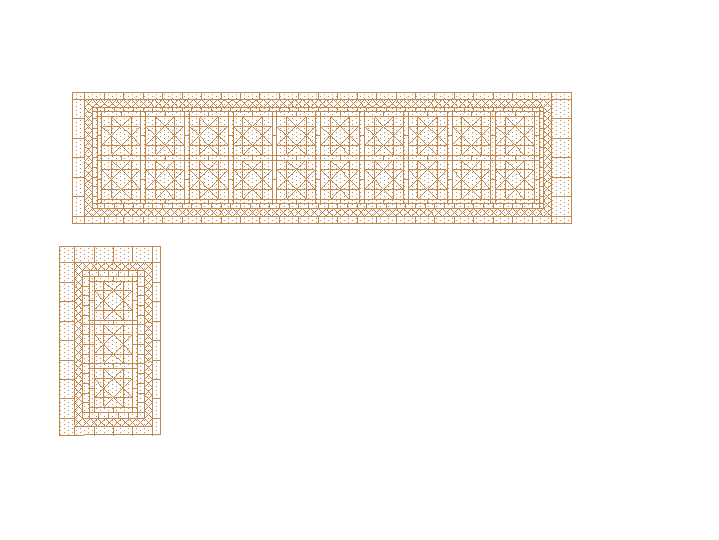

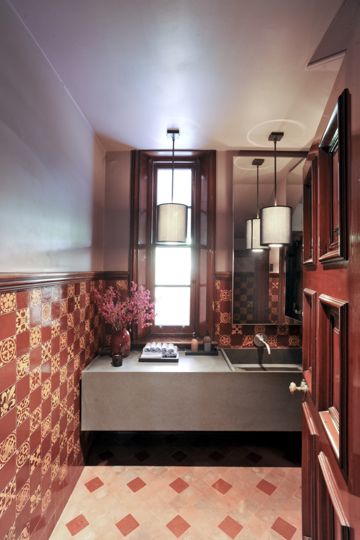

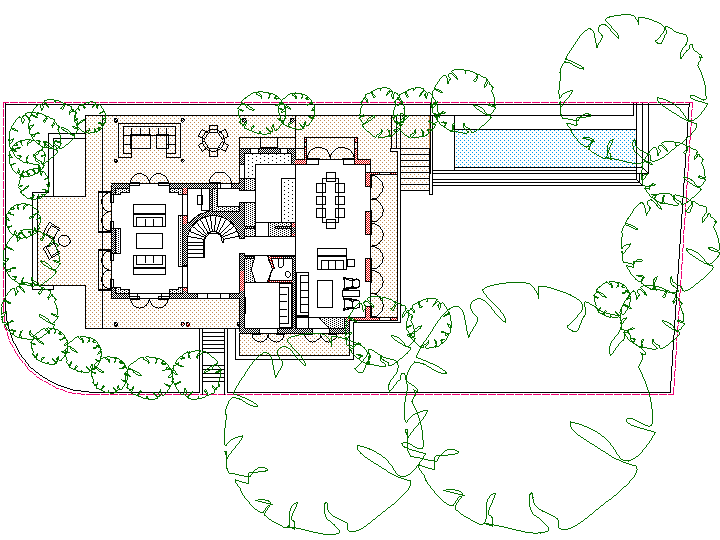

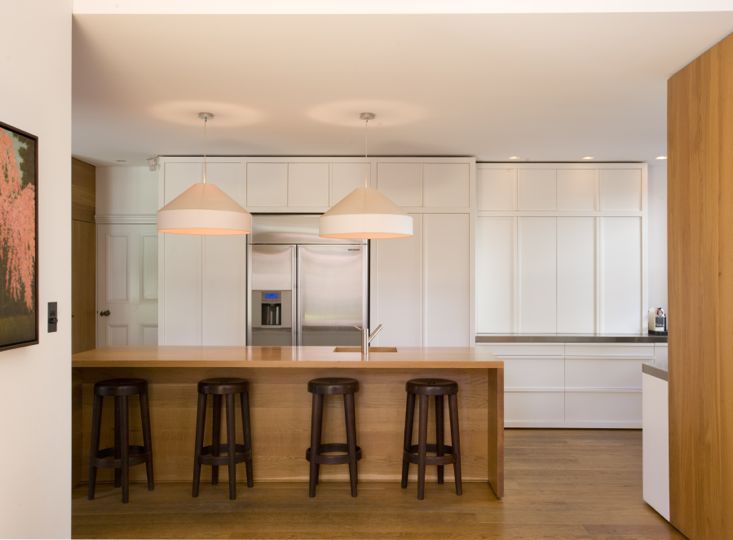

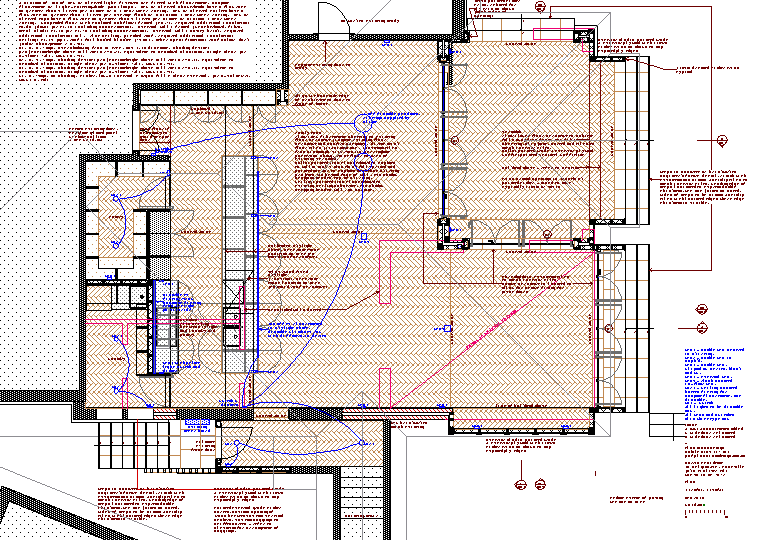

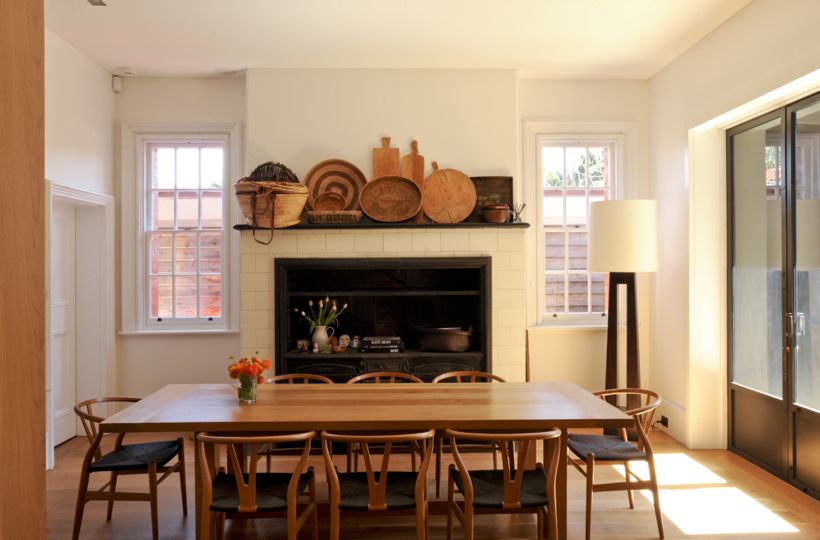

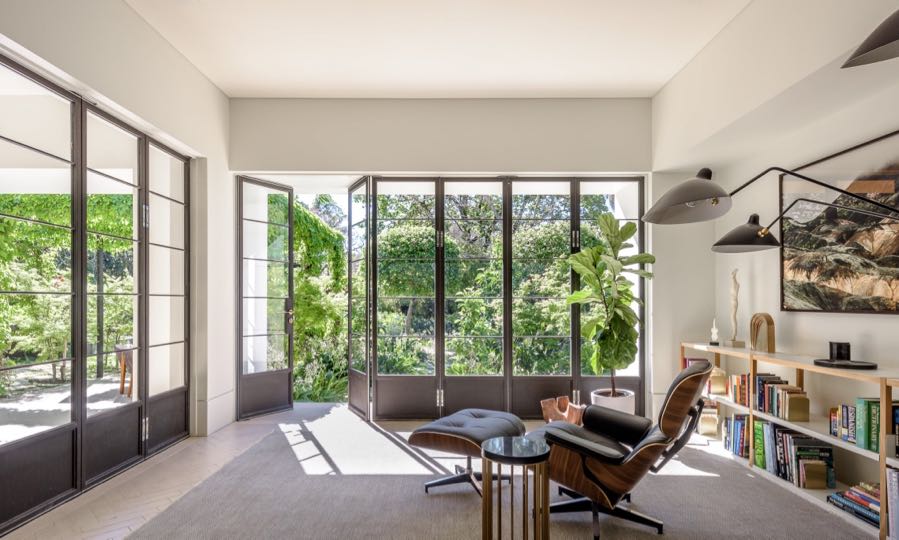

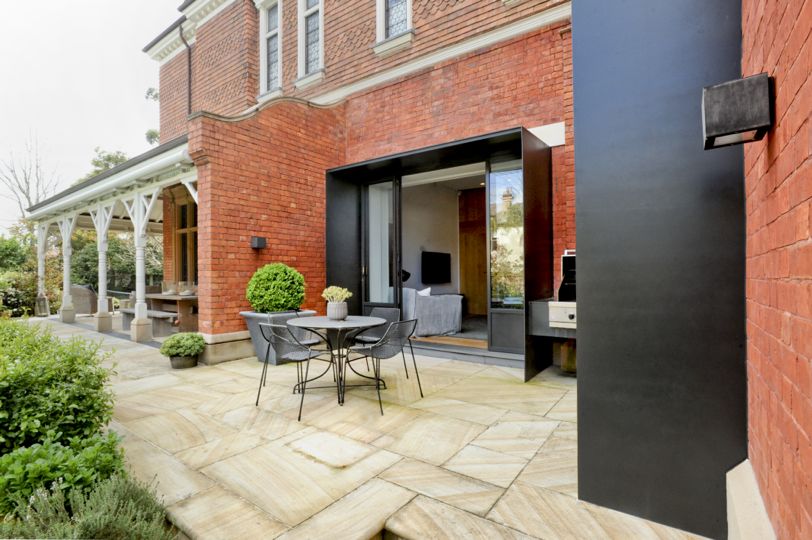

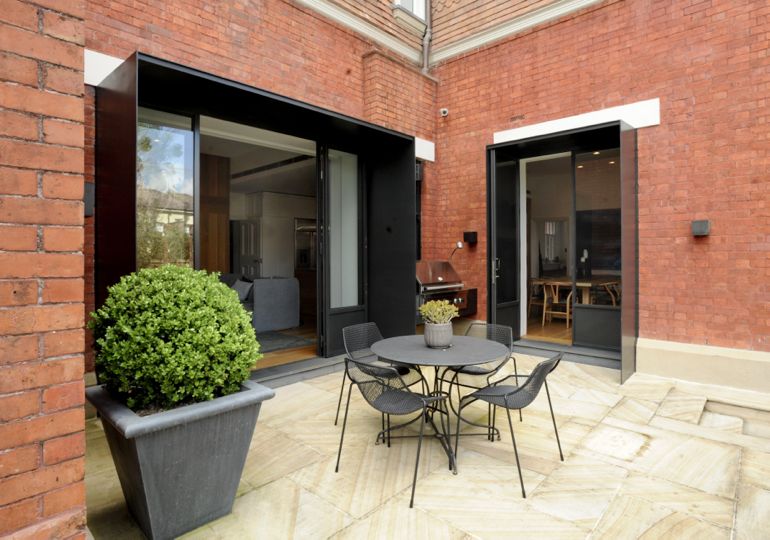

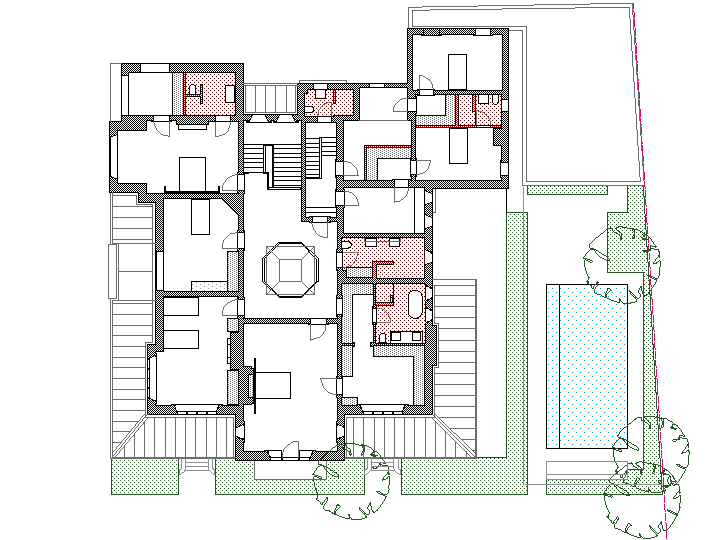

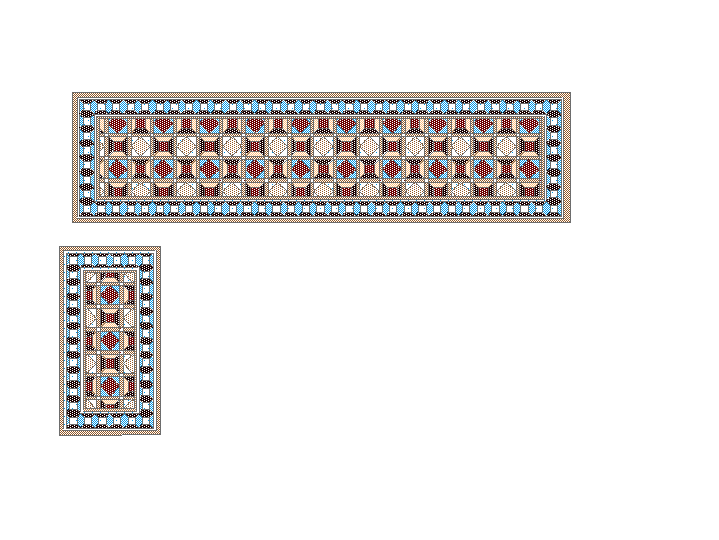

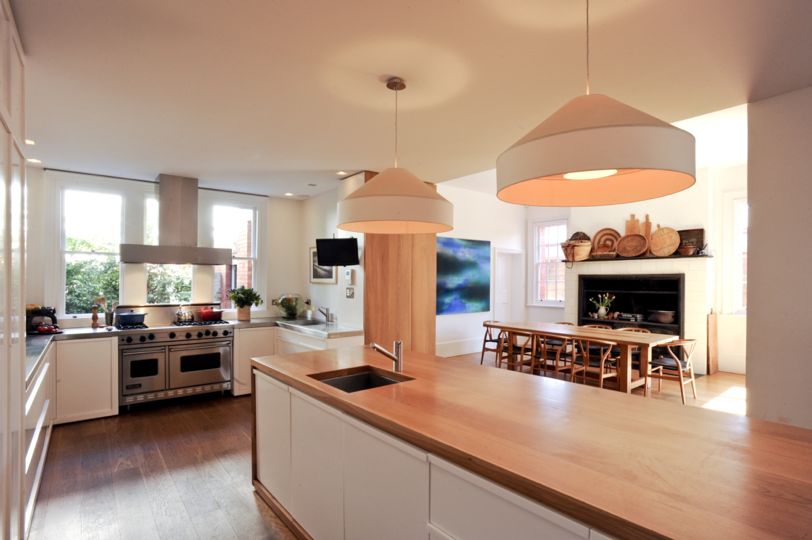

A large part of the project concerned the restoration of the
home, but new work was carried out where original fabric had
already been altered. The original configuration of the
kitchen and associated rooms had been disturbed and so this
area was converted to a kitchen and family area to meet
contemporary expectations. The garage and pool area have
been rebuilt to reduce impact on the original house. New
openings connect the kitchen and family rooms and the pool

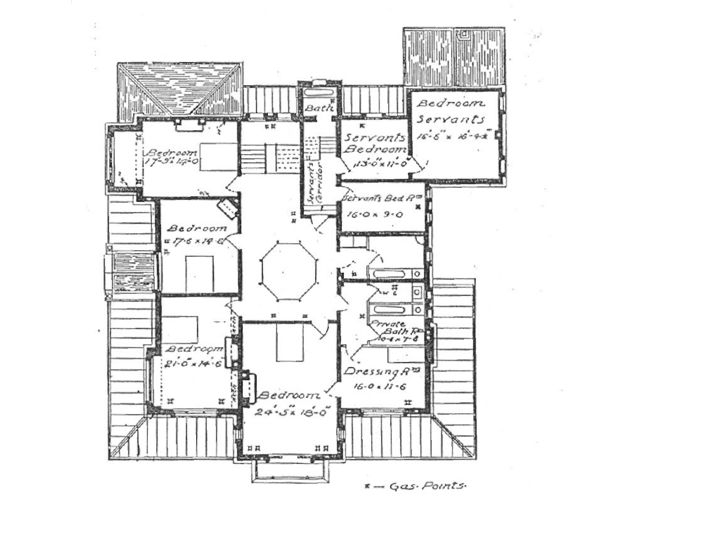

area. Upstairs, servant quarters have been re-organised to
provide rooms for teenagers.
Interventions are polite, ideally not conspicuous, and of a
standard appropriate to the house.
We worked happily and productively with the client, interior
designer Sally Greenaway and the builder. Landscape designer
Will Dangar completed the gardens.
Photos, Anthony Browell
Interior design, Sally Greenaway
Heritage advice, Weir + Phillips, James Phillips & Alice Fuller
Landscape design, Will Dangar
Structural Engineer, Andrew Simpson, SDA
Built by Sandlik Constructions, Peter Moore & Carl Burt
-

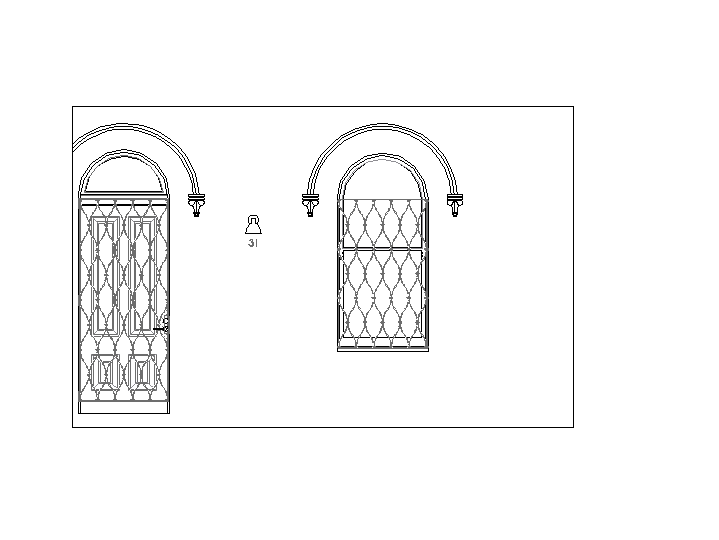

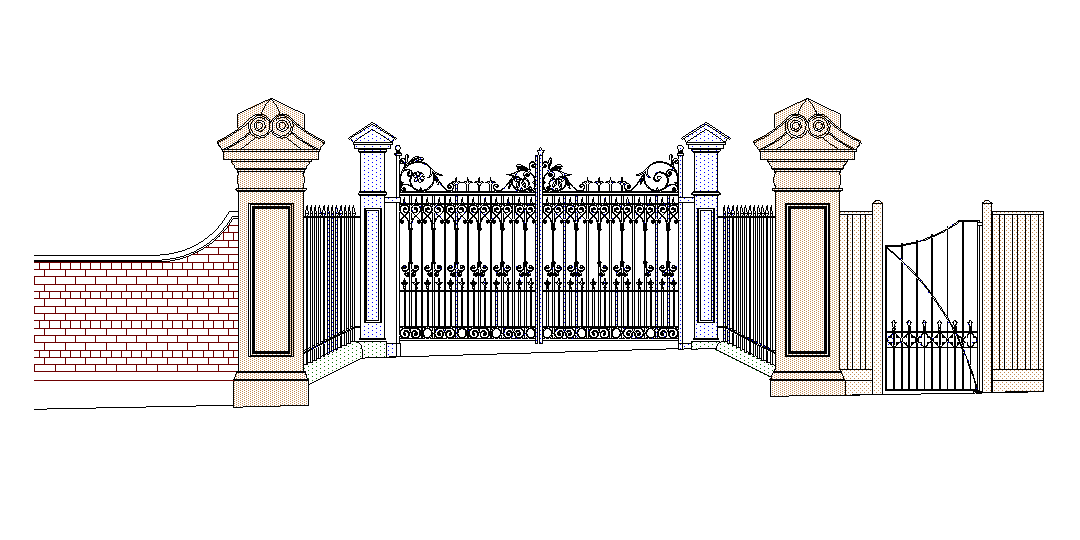

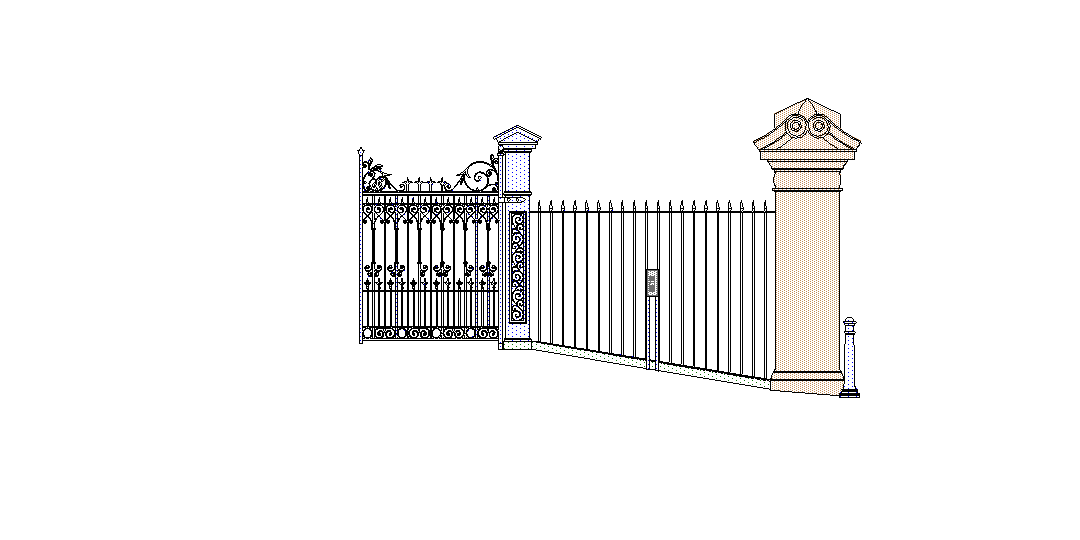

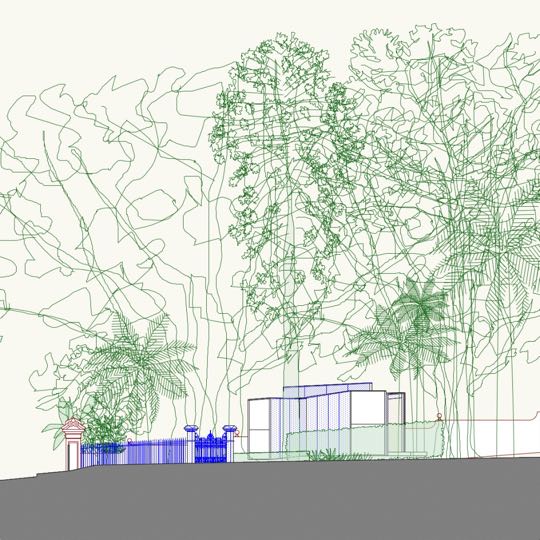

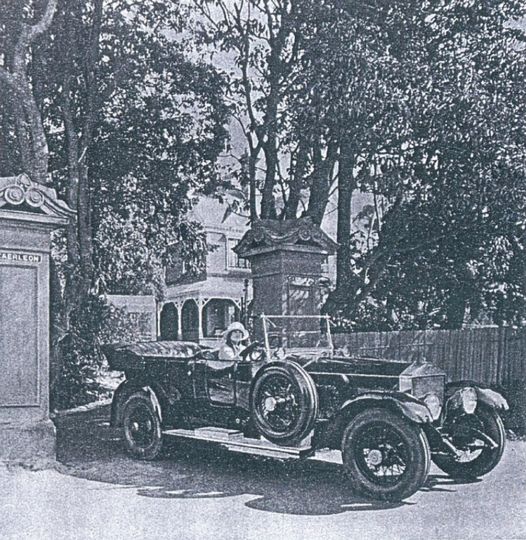

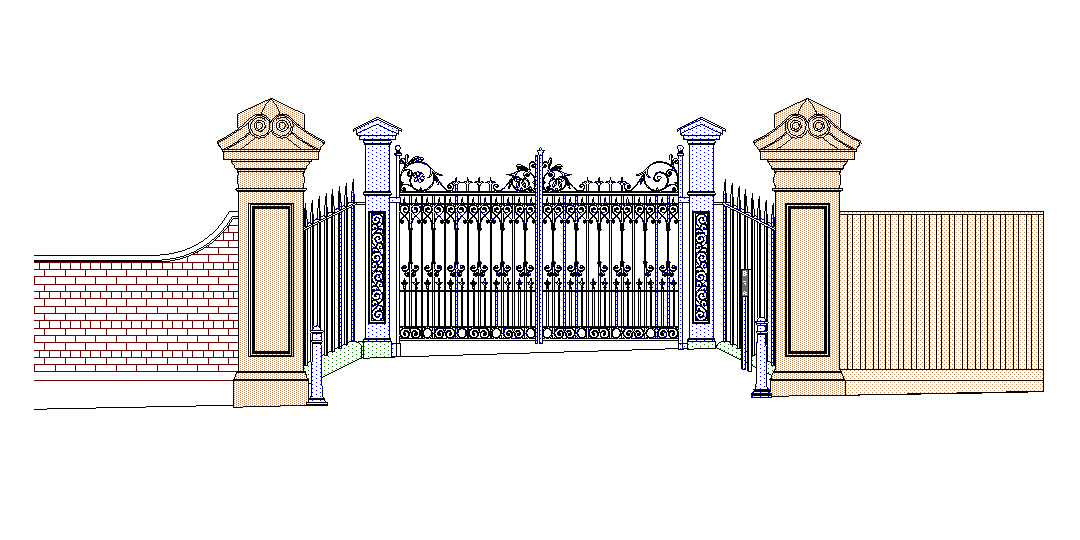

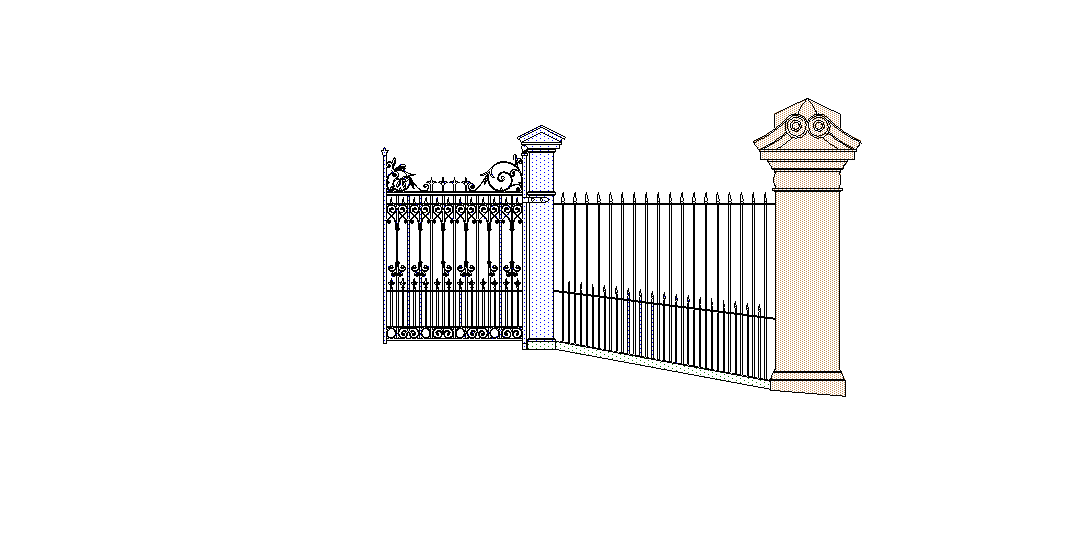

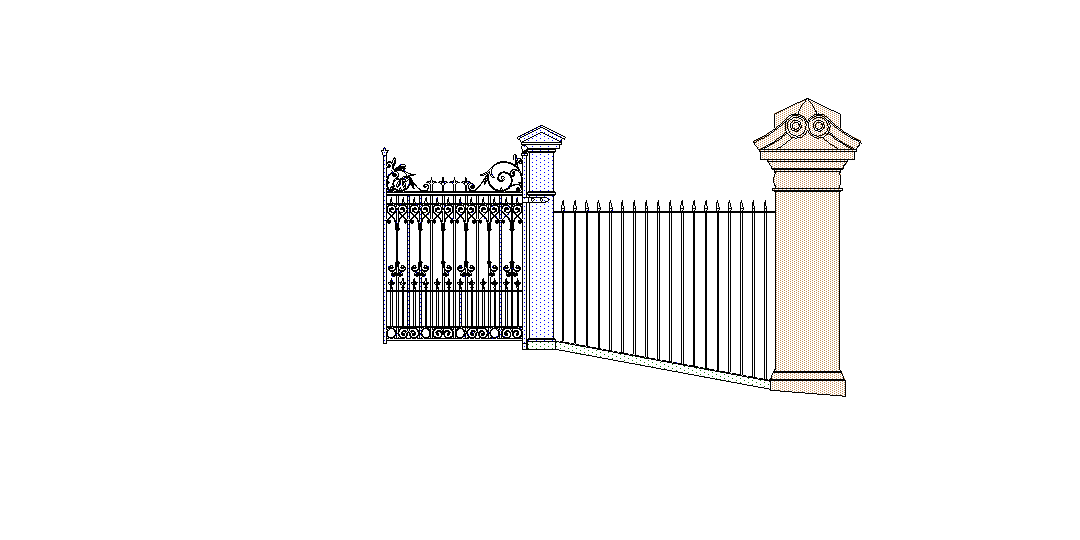

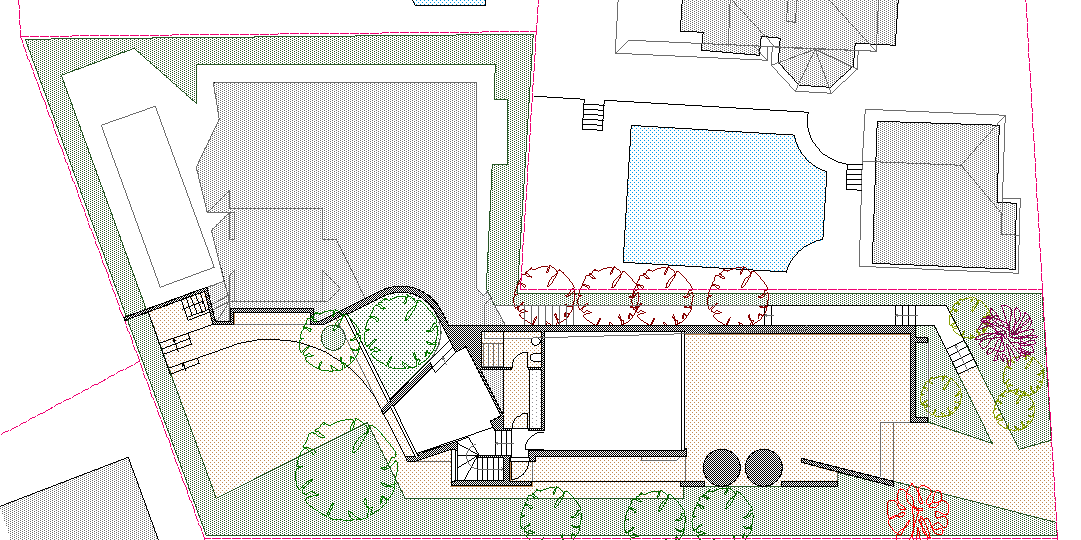

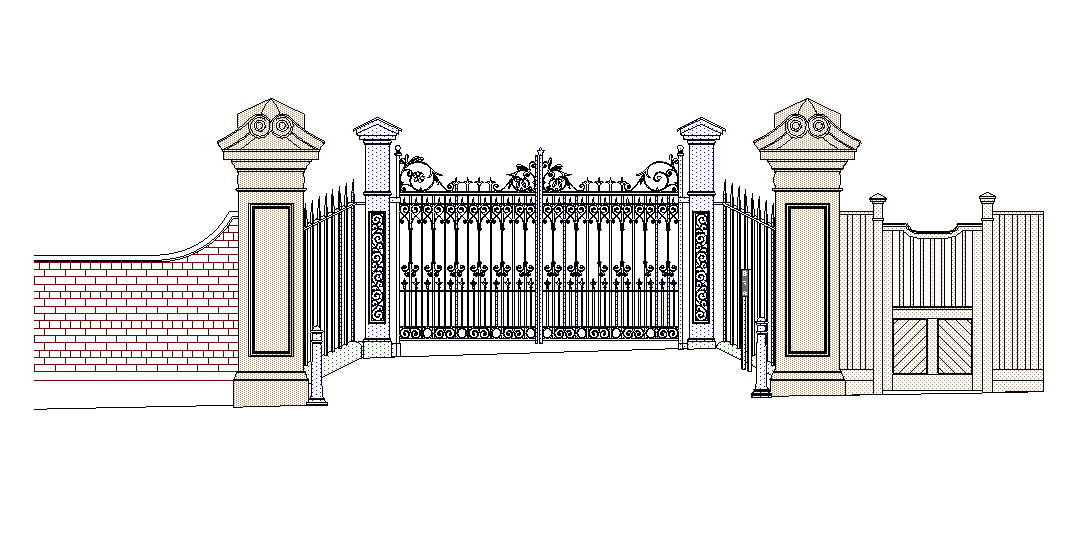

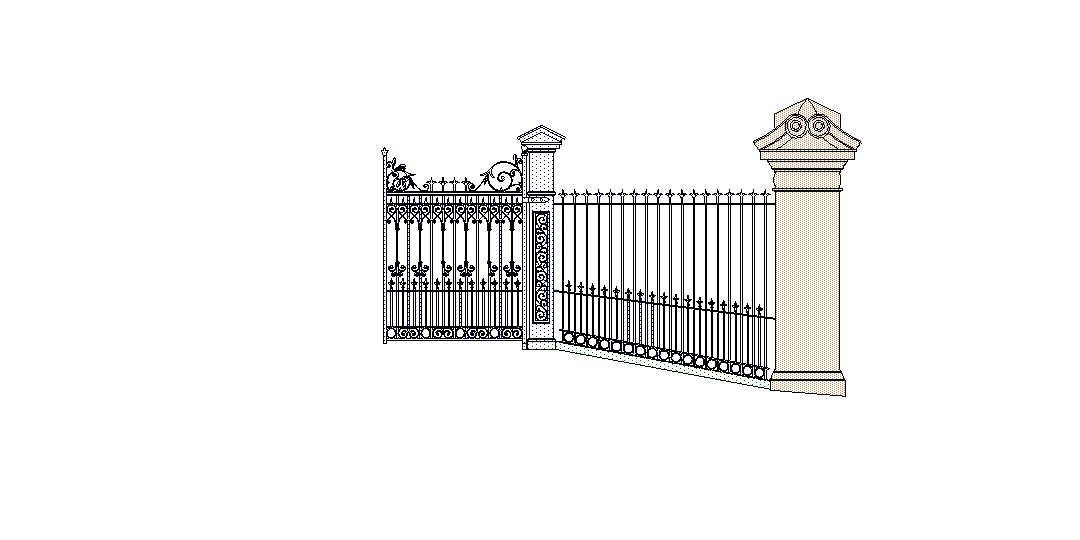

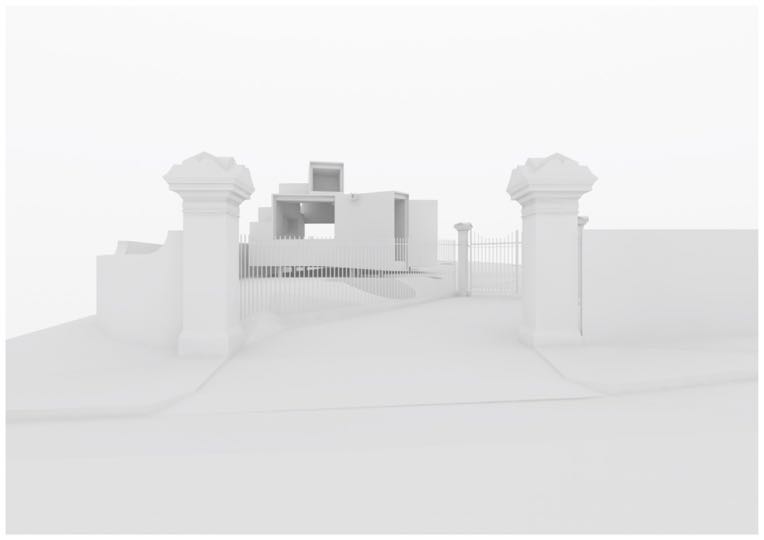

Caerleon Gates
Reconfiguration & restoration of significant gates

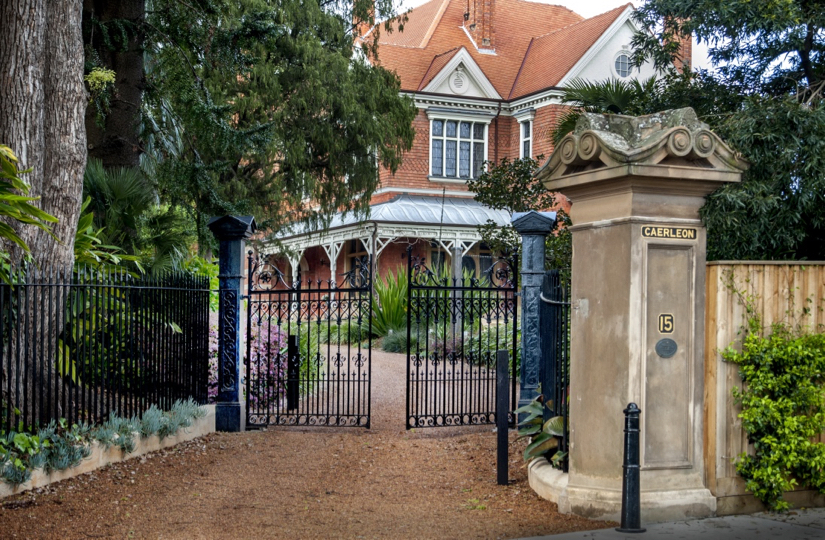

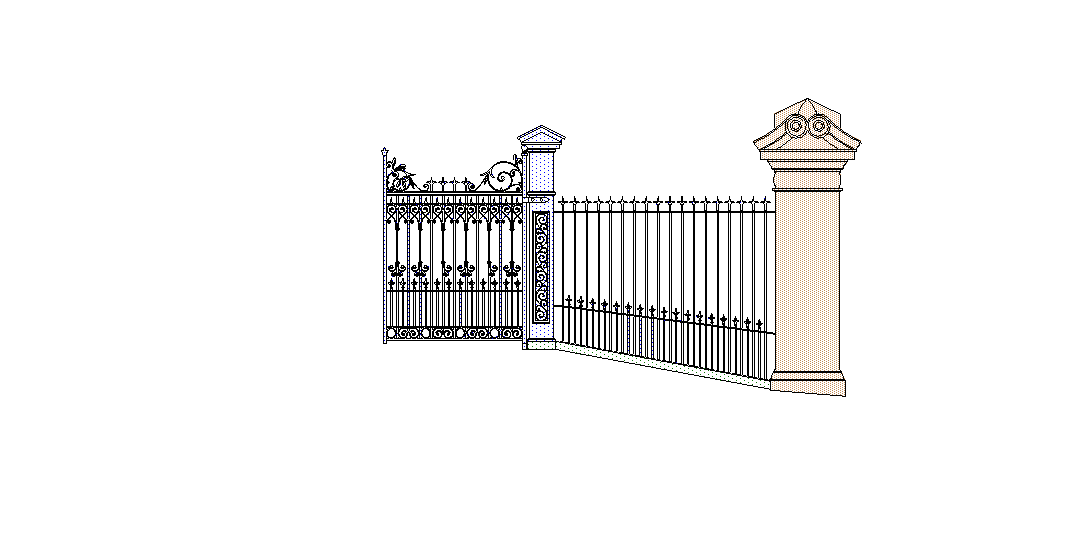

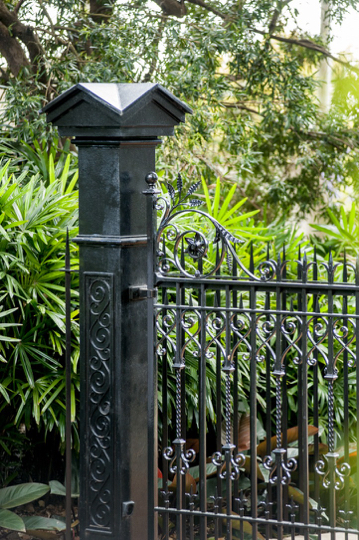

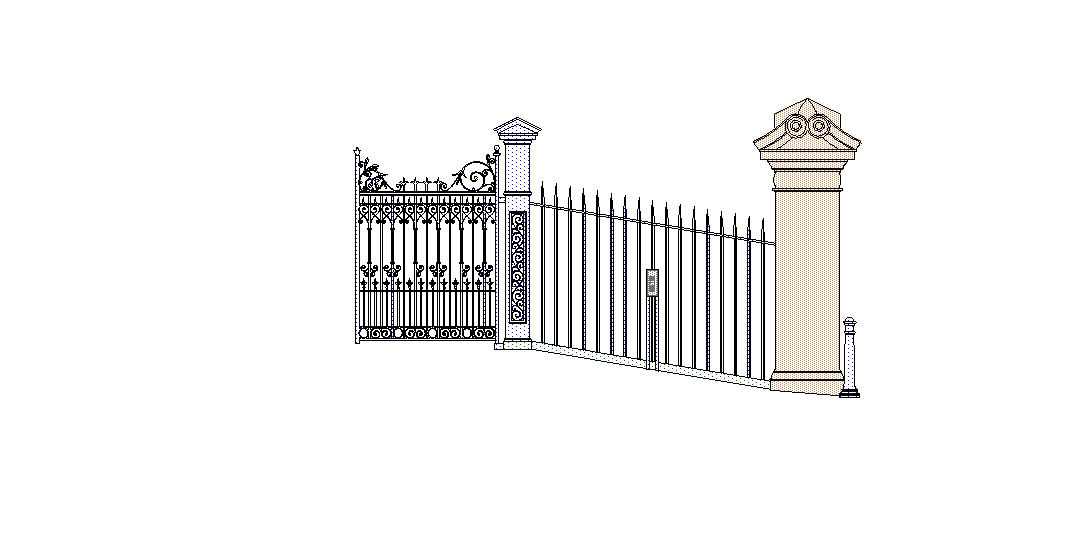

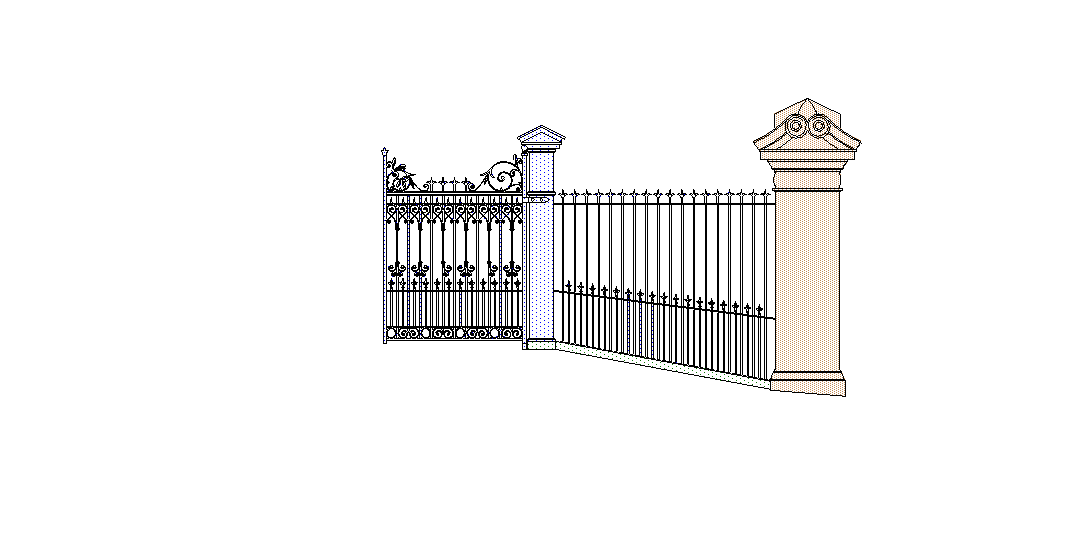

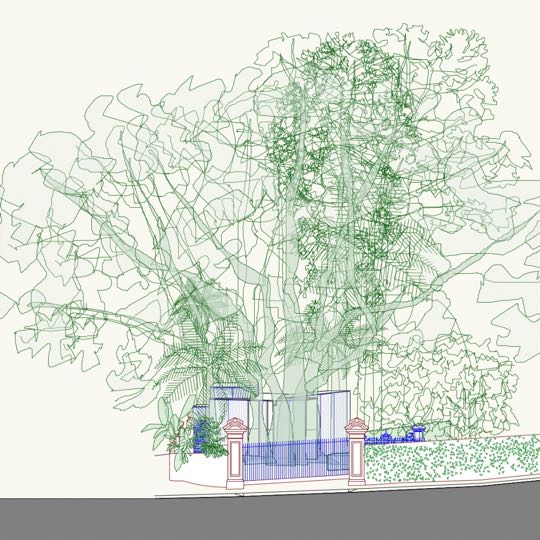

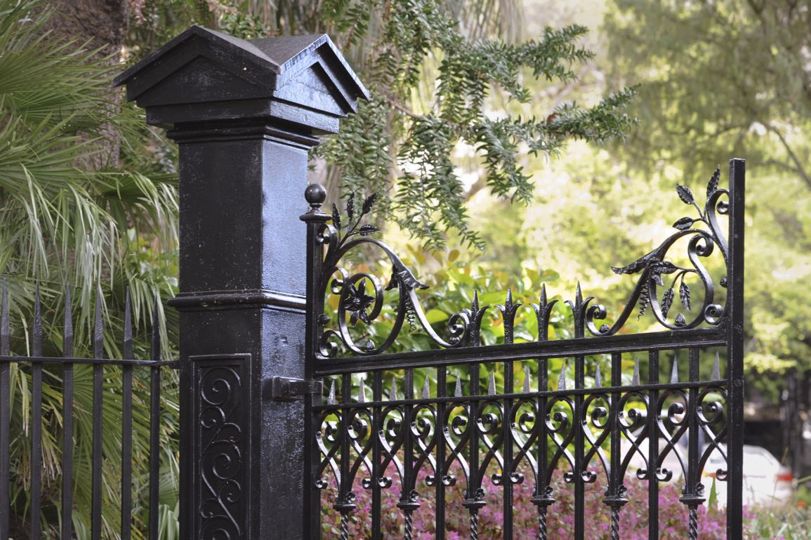

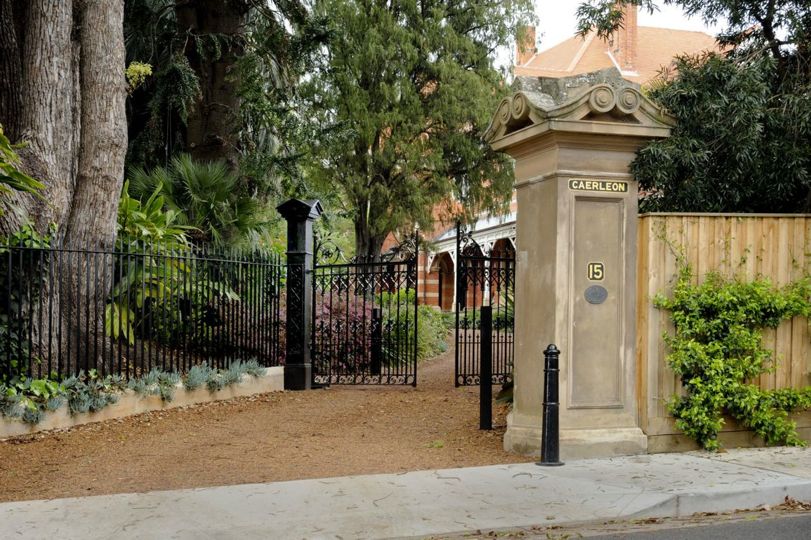

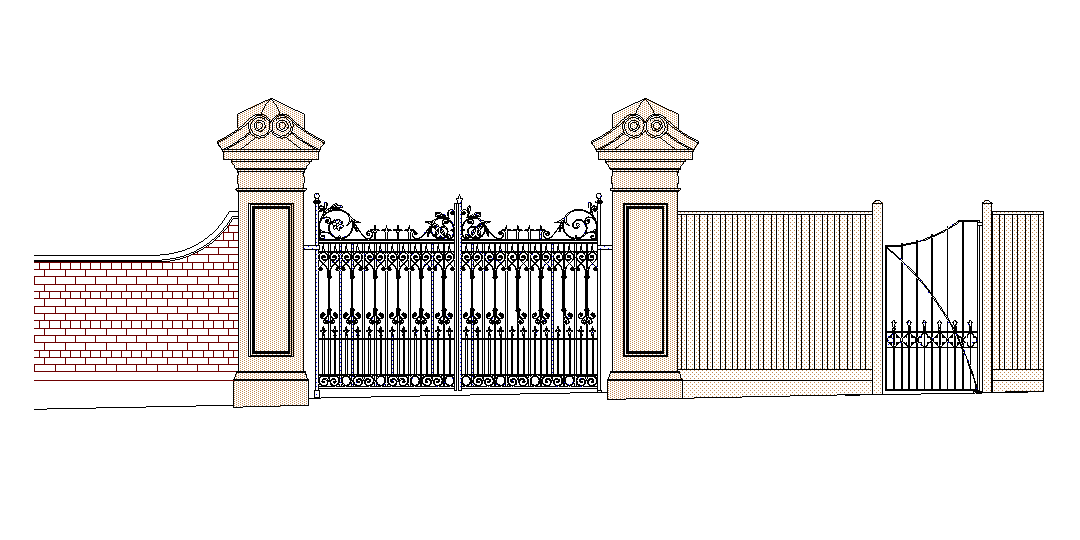

The property had beautiful gates hung off sandstone
gateposts. Sadly the opening was too narrow for a vehicular
turning circle, especially if approaching from the west. We
moved one of the gateposts and relocated the gates further
up the drive. New gateposts were required so we designed new
cast iron posts with a palisade back to the original
gateposts.
Significant trees and their roots required careful design to
limit disturbance.
Gates were beautifully restored by Guido Gouveneur and the
new posts were cast in Wagga Wagga.
Photos, Anthony Browell
Heritage advice, Weir + Phillips, James Phillips & Alice Fuller
Landscape design, Will Dangar
Arboreal advice, Ross Jackson
Structural Engineer, Andrew Simpson, SDA
Built by Sandlik Constructions, Paul Western
Metalwork by Guido Gouveneur, Wrought Artworks
-

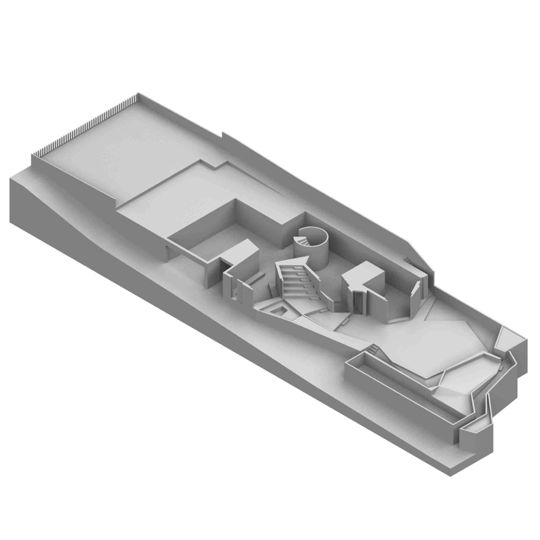

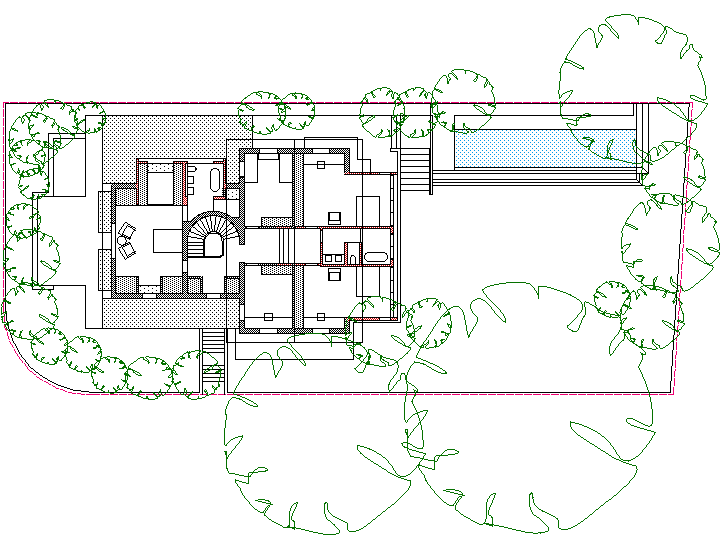

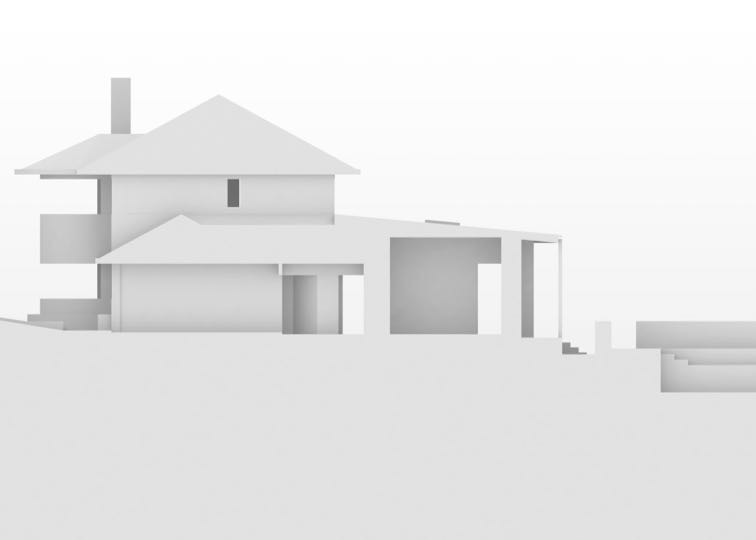

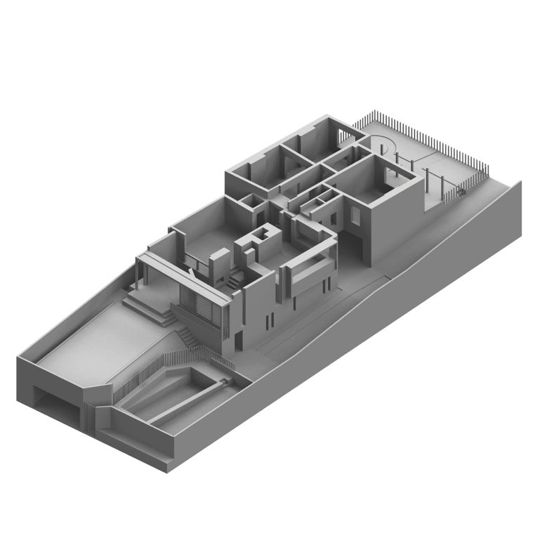

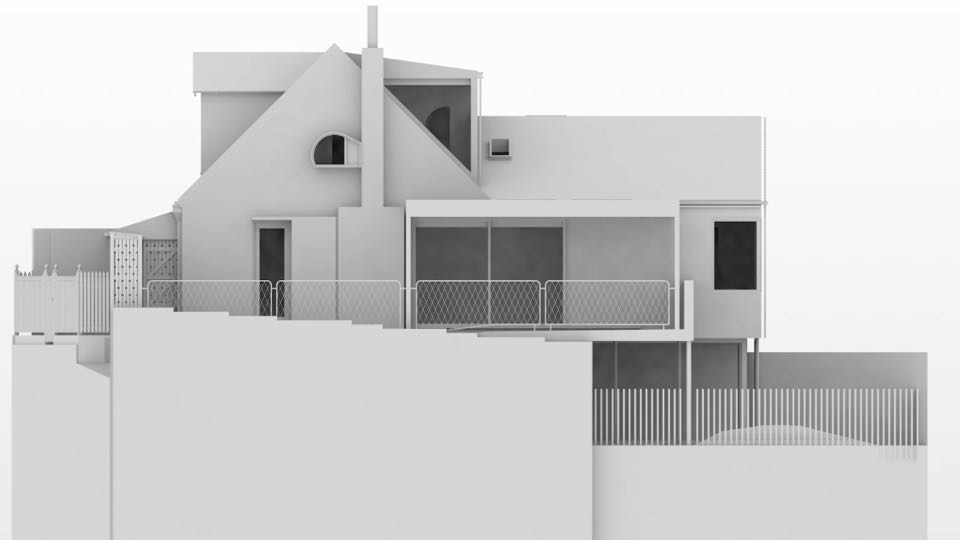

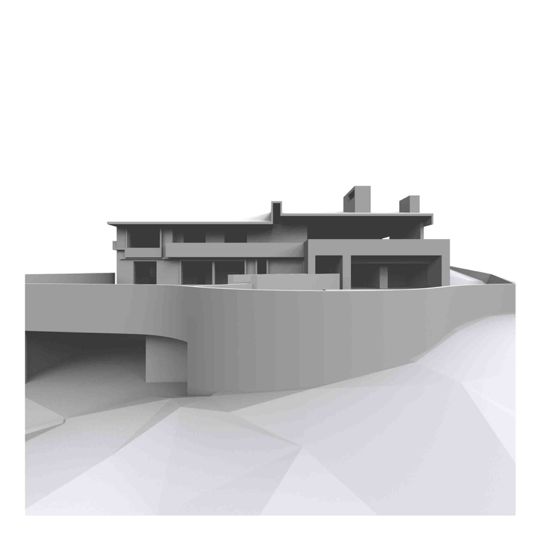

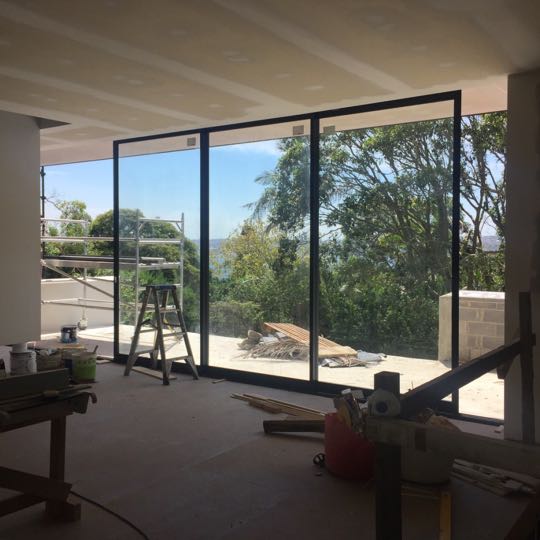

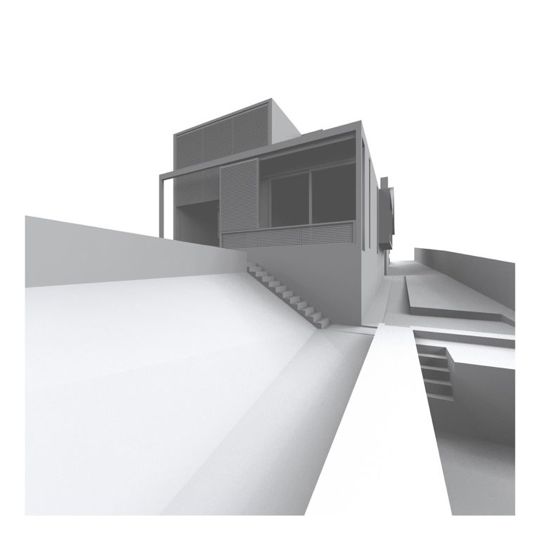

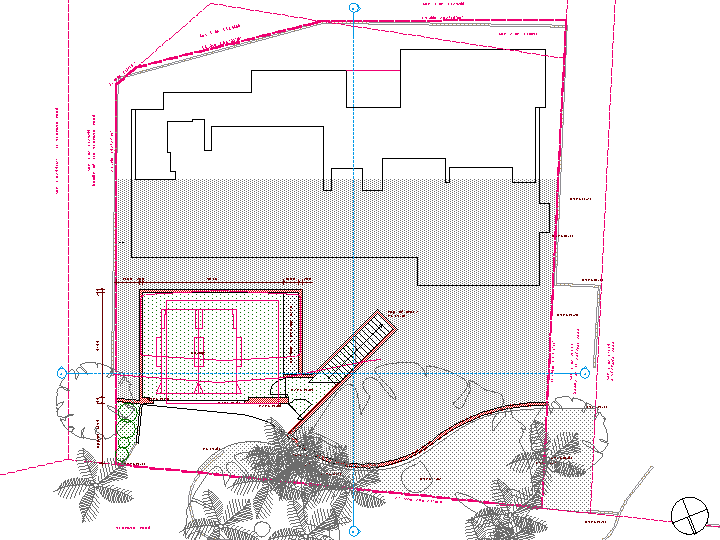

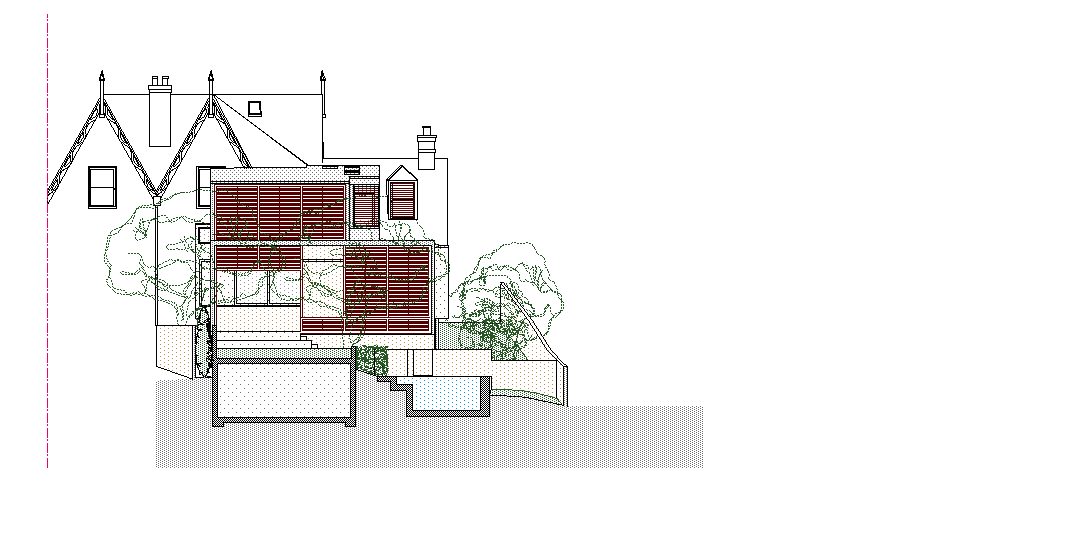

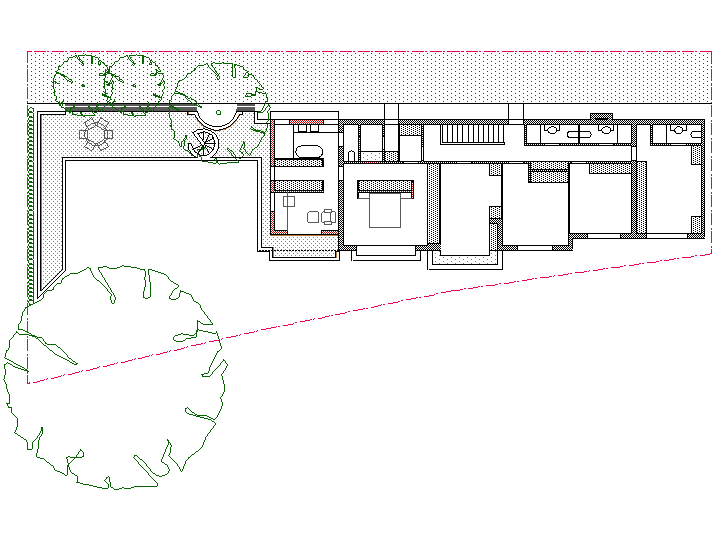

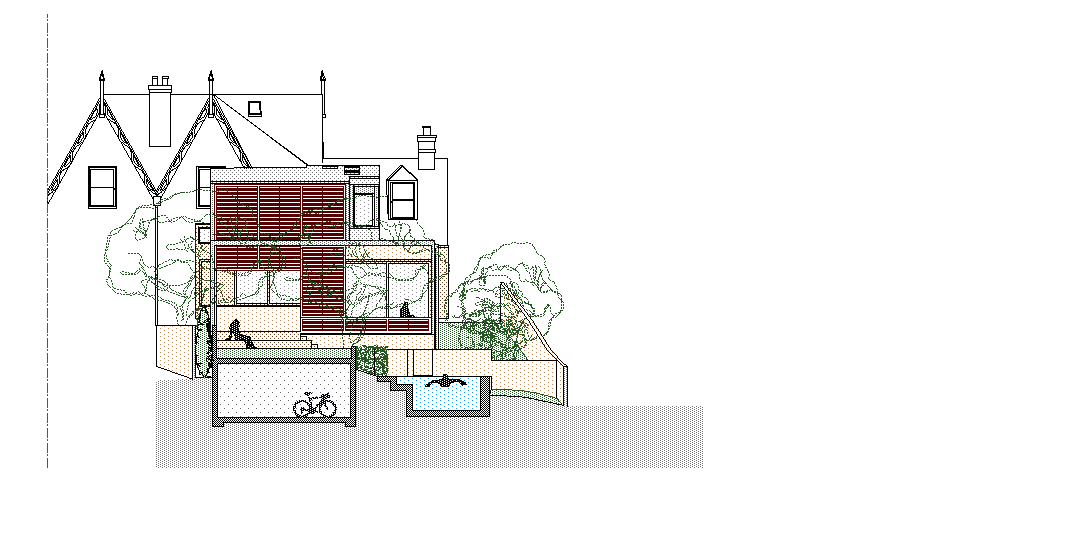

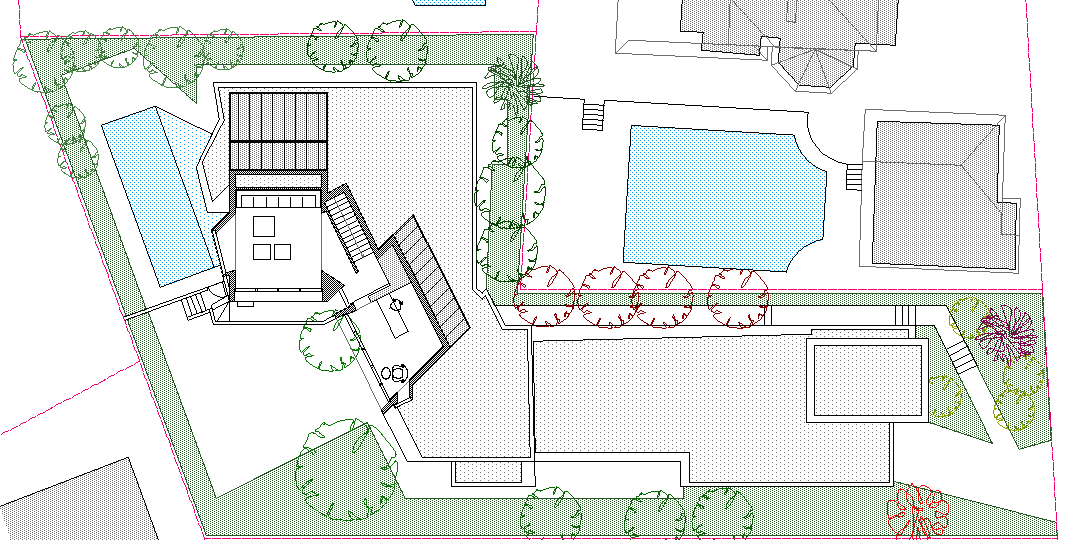

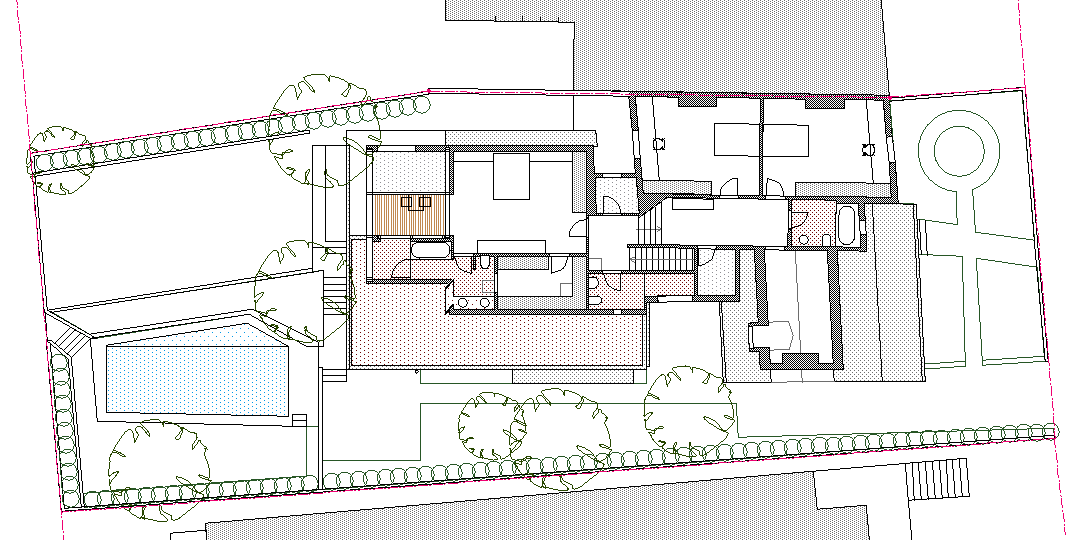

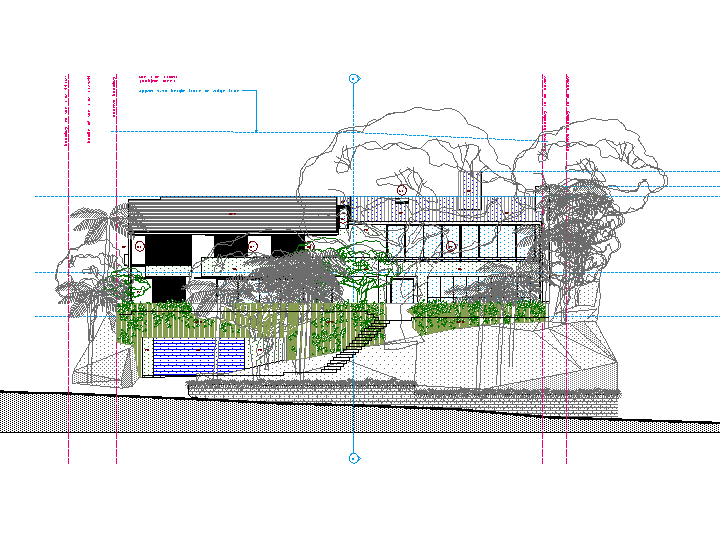

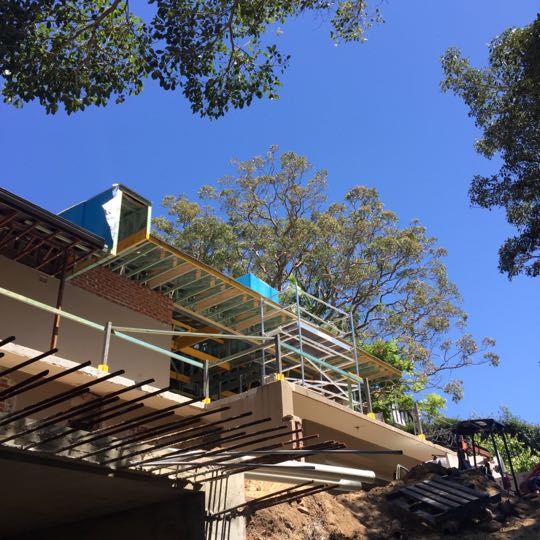

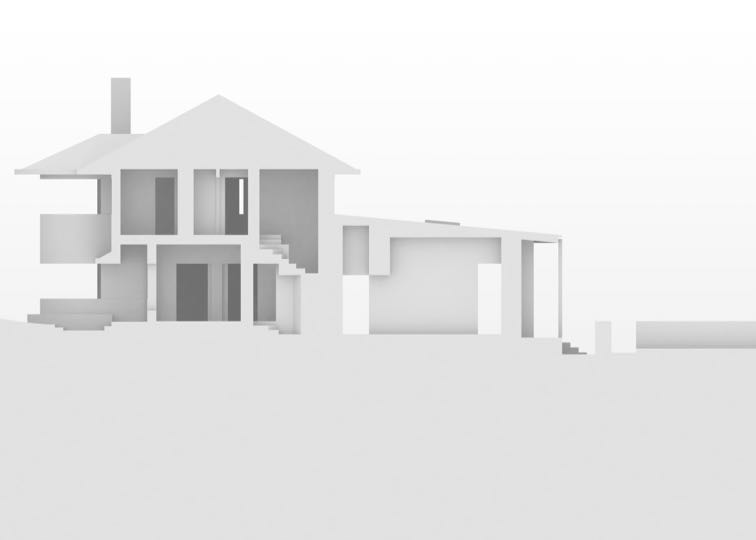

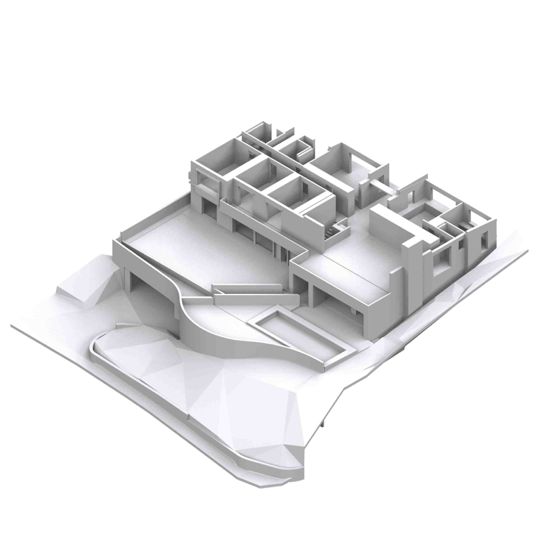

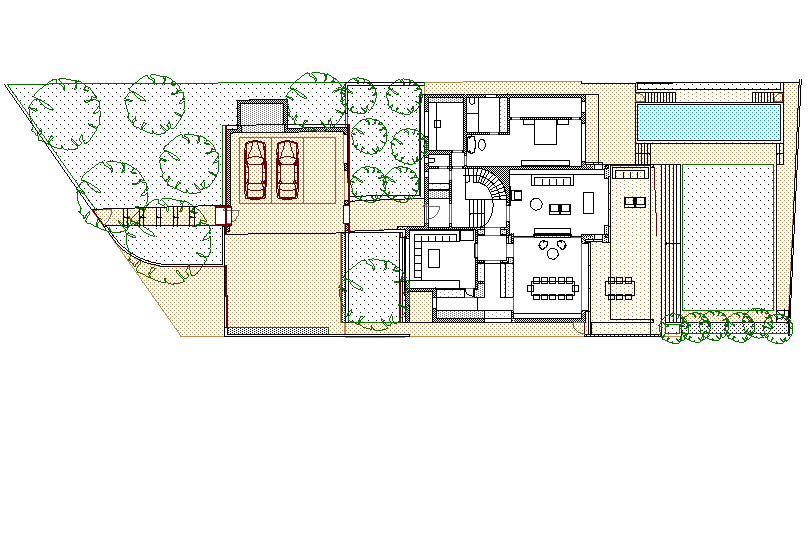

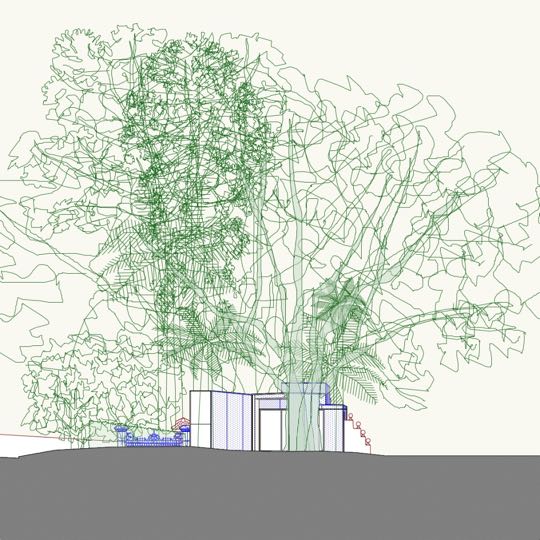

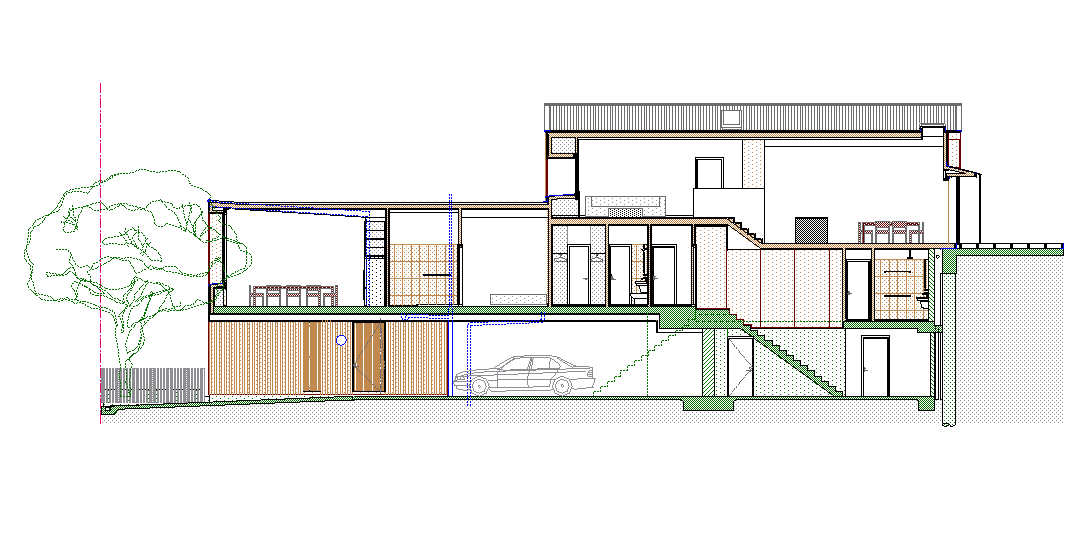

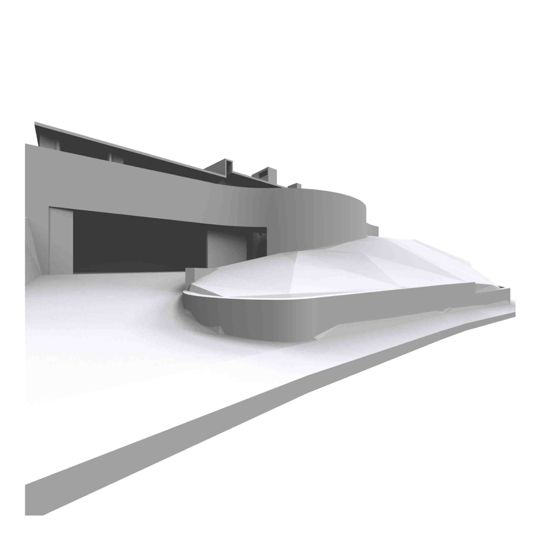

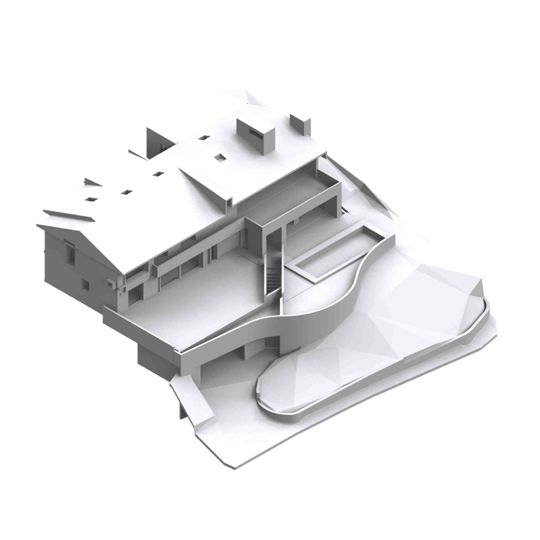

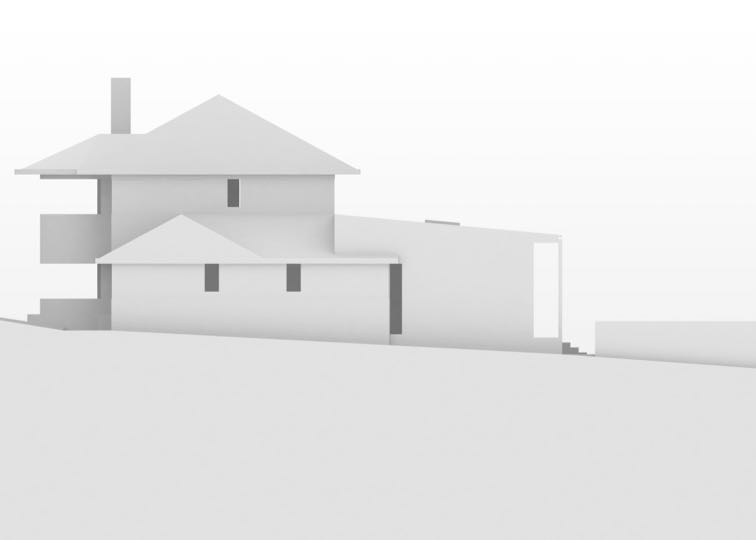

House RV, Bellevue Hill
Subtractions & alterations to a house
Additions & alterations to the garden

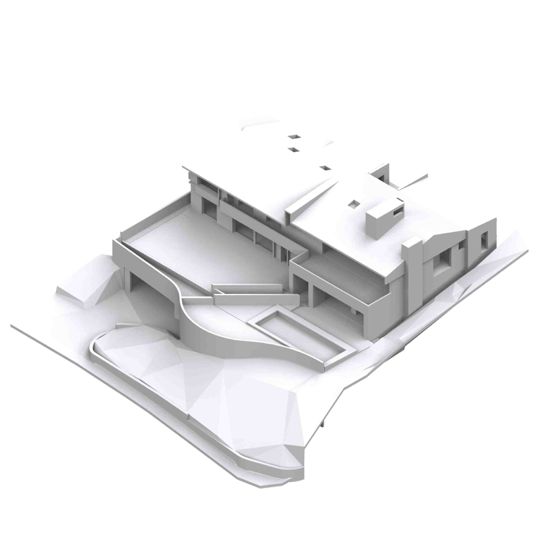

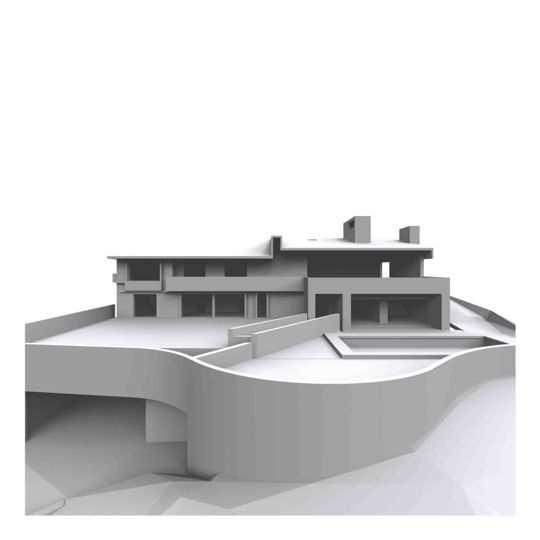

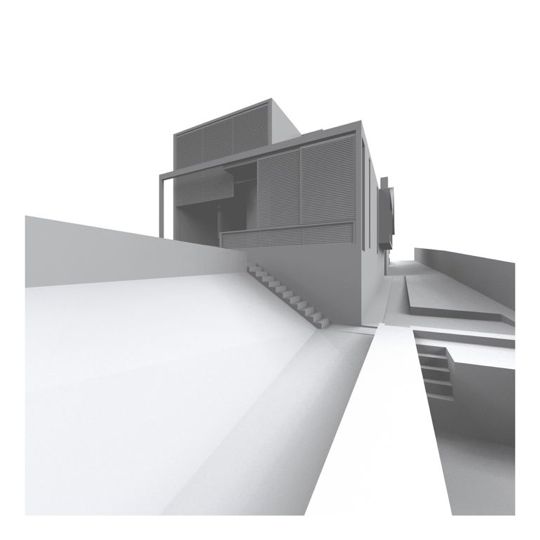

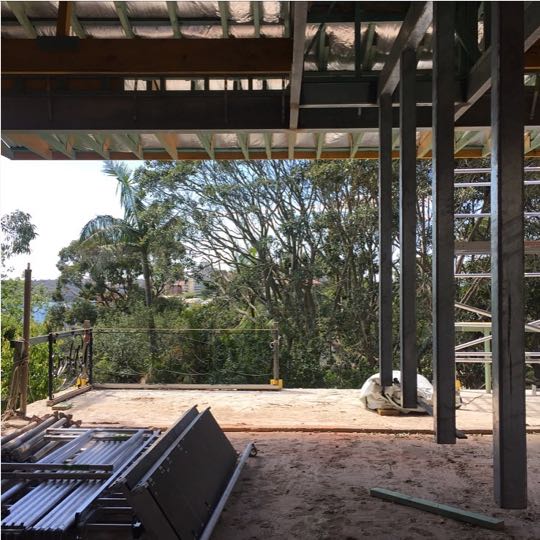

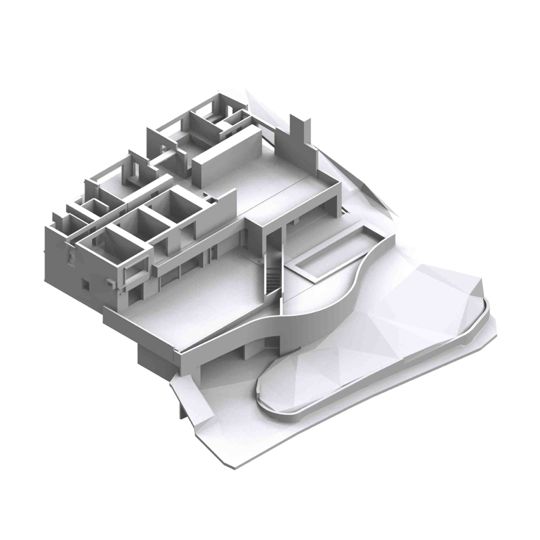

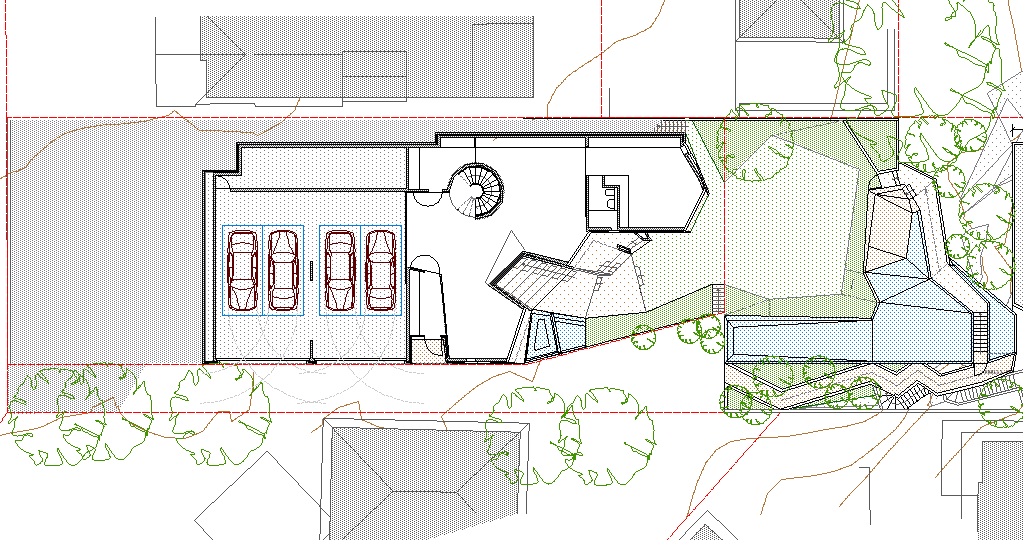

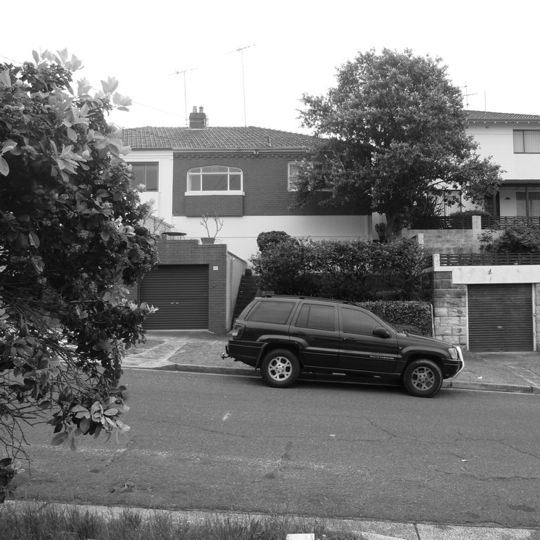

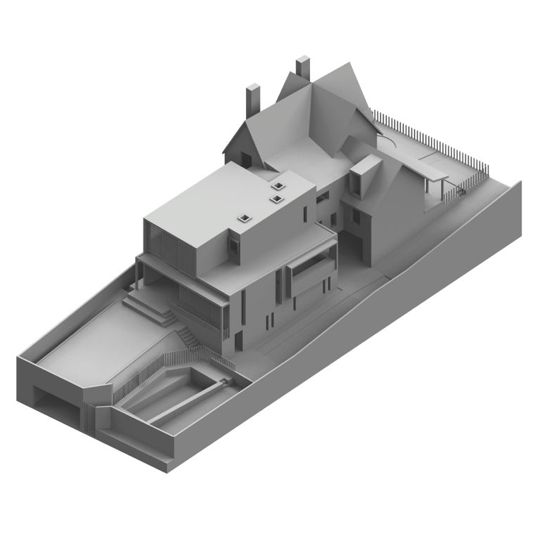

The existing house is unremarkable and sits over 5m above
street level. As the garage is presently located at the
level of the house, a driveway occupies most of the front
yard. There is almost no rear yard.
The objective of the project is to make a silk purse out of
a sow's ear. The advantage of the existing house is that it
is out of the ground and is in reasonable structural
condition. All work required on the house will directly

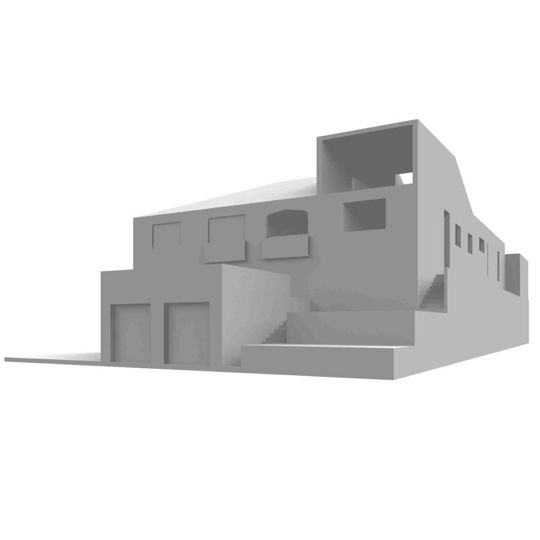

improve finishes and amenity. Moving the garage to street
level allows the area of the driveway to become garden. The
existing garage itself can be converted into a loggia
servicing the pool area. Minor structural adjustments to the
house improve layout and amenity.

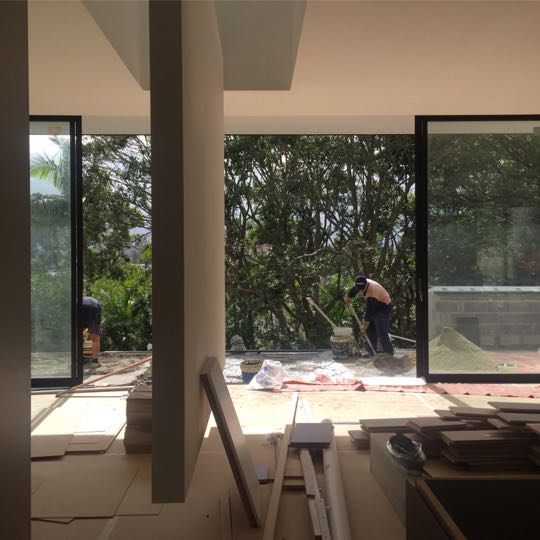

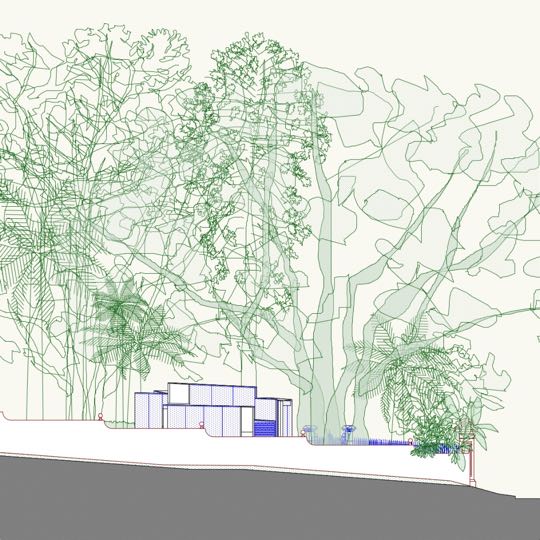

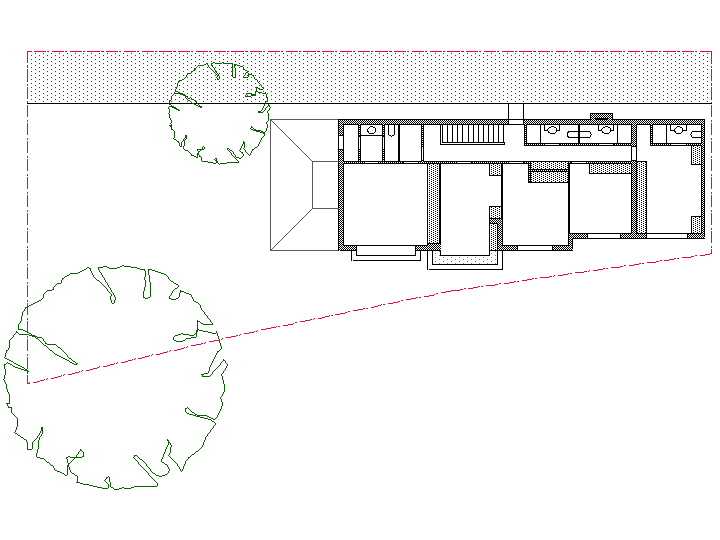

Whilst harbour views are available from the upper living
room level, the main asset of the site are two large fig
trees. A Port Jackson fig is located on the slope down to
the street and a Hills fig is located in the Council area
in front of the property. The upper level is located at
the level of the canopies and proposed work takes
advantage of this condition.
Landscape Design, Plus Minus Design & Narelle Sonter
Arboreal advice, Ross Jackson
Preliminary Engineering advice, Cantilever Engineers
-

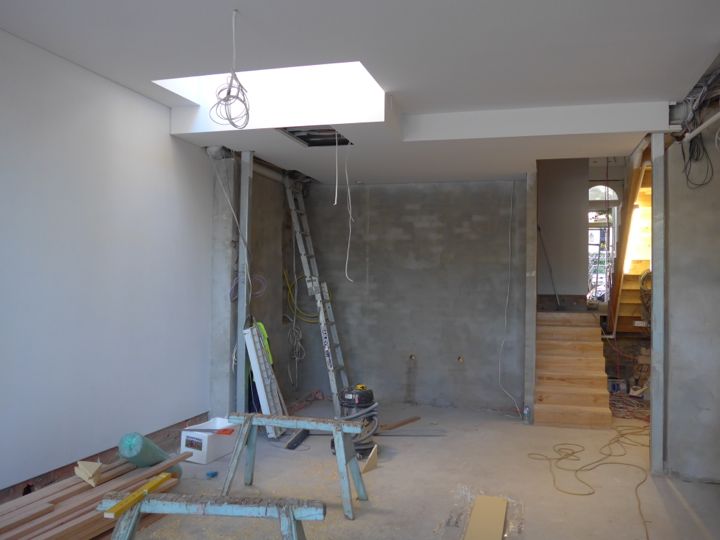

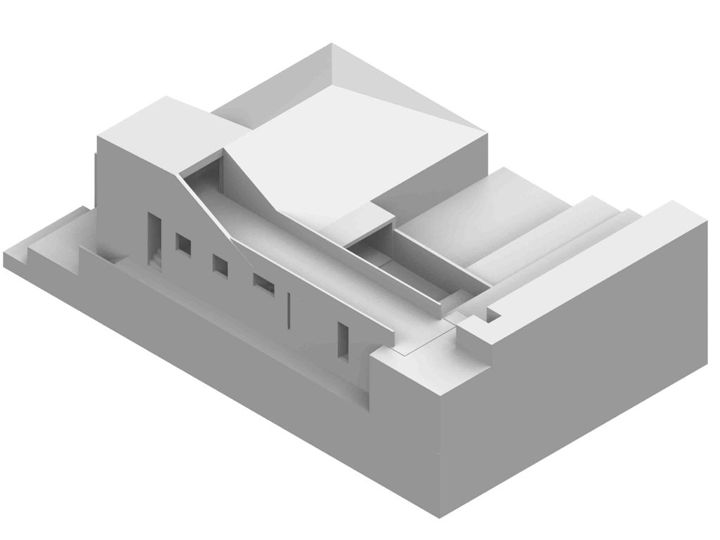

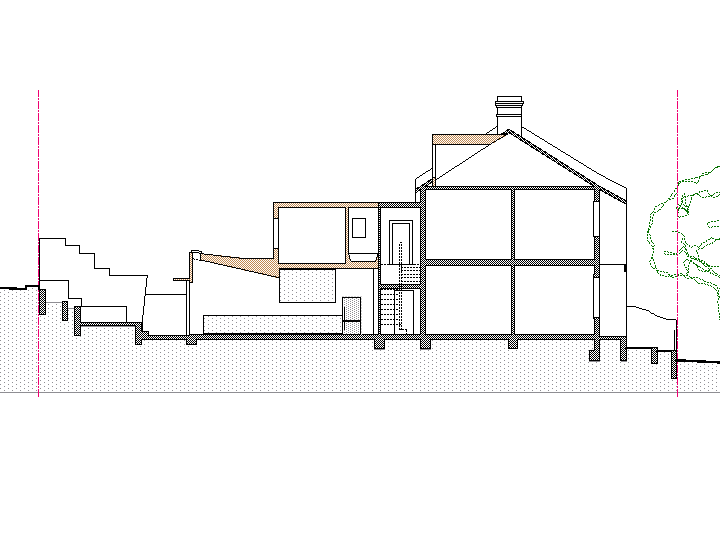

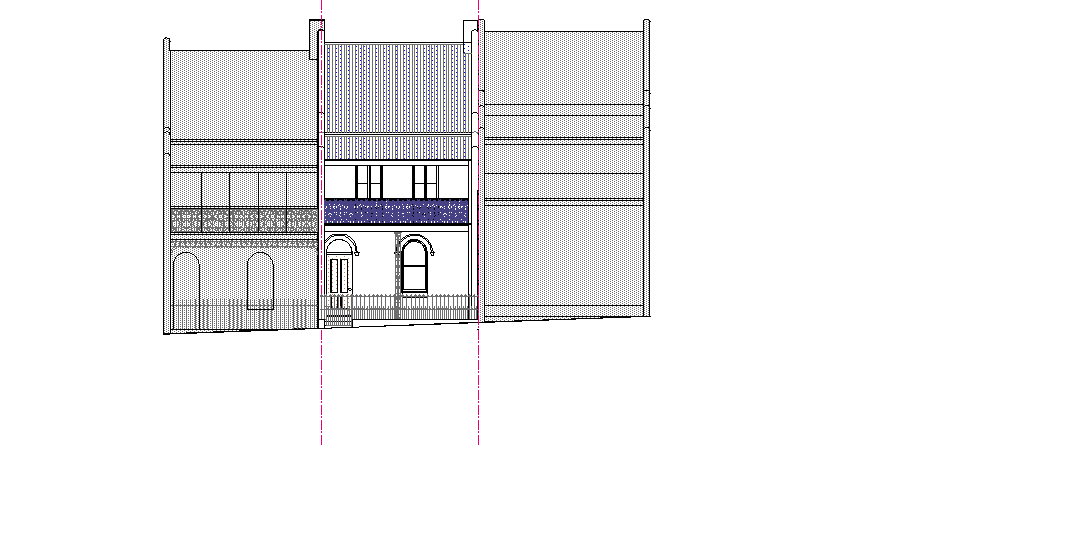

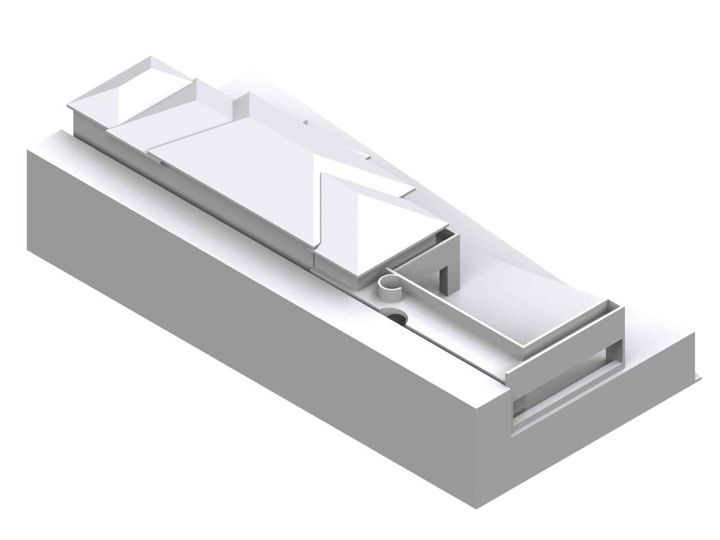

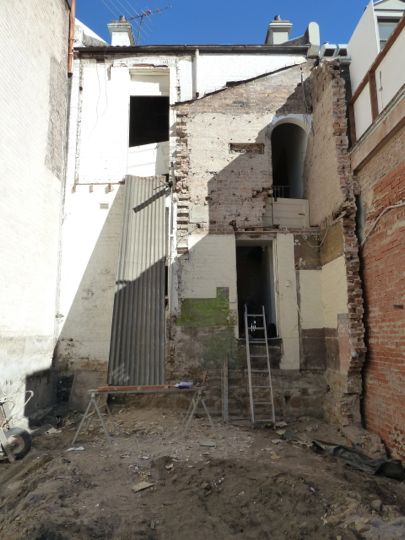

House BV, Paddington
Additions & alterations to a terrace house
Our client involved us in the search for a property.
The final layout is almost identical to the first sketch
made prior to purchase.
The original house was thought to have been constructed in
the early 1880s. It had been the subject of alterations and
additions at the rear.

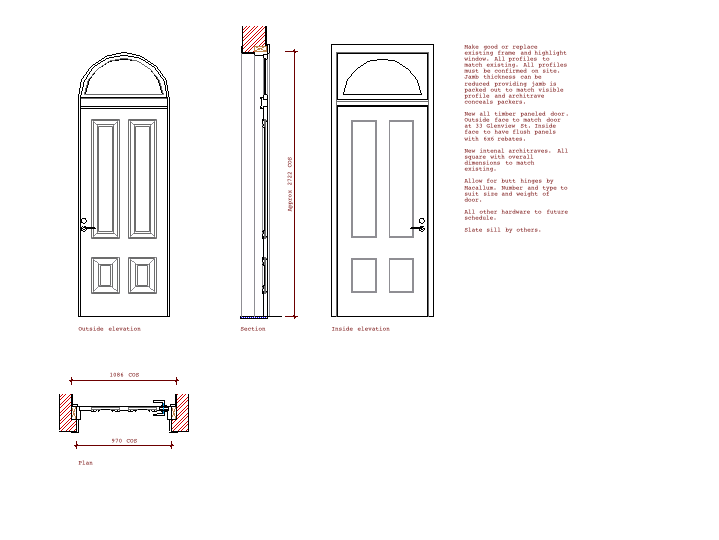

The proposal restores the facade and retains the general
layout of the main part of the house. The first floor rear
extensions has been reconstructed to match the original. The
remainder of the house is being constructed to a
contemporary standard.

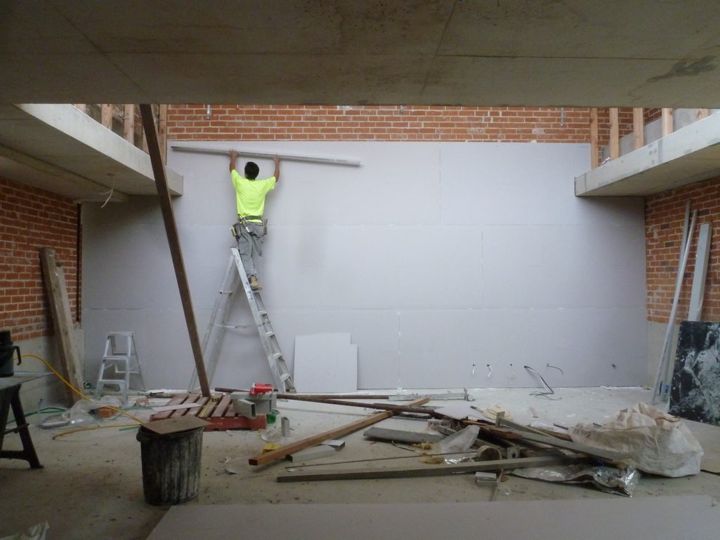

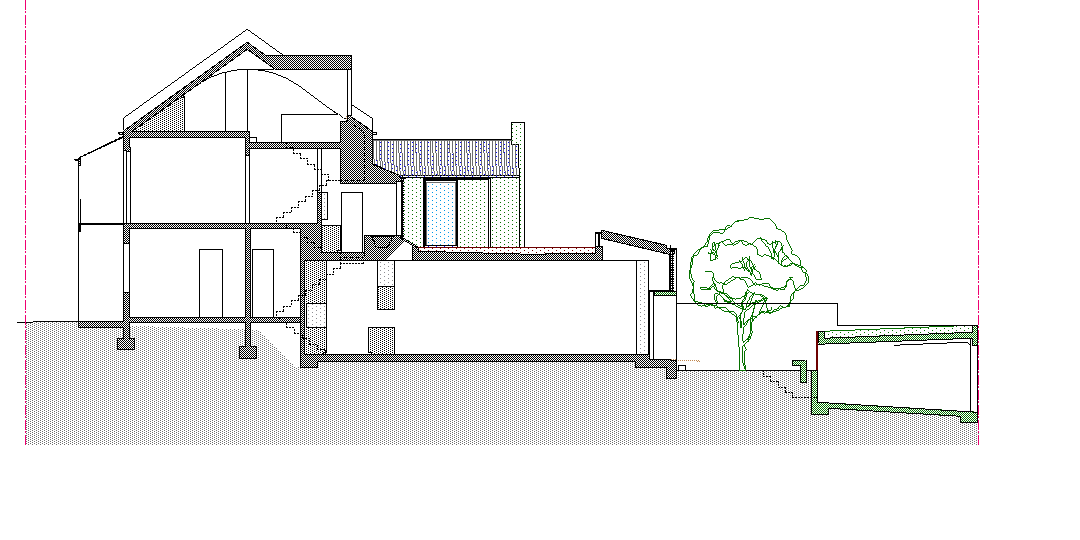

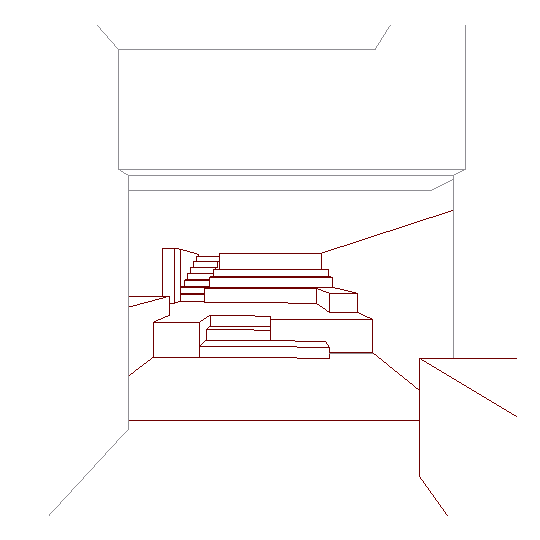

The house steps down the site to connect to the garden. The
section brings daylight to the centre of the plan. Every
centimetre is exploited.
Our clients have been building it themselves with the
considerable assistance and experience of builder and
carpenter Barry Hesline.
-

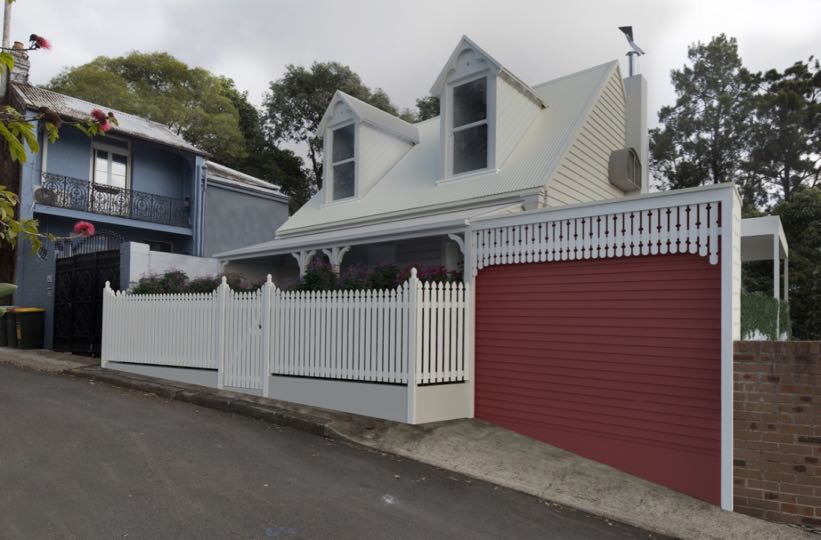

Cottage, Glebe
Additions & alterations to a cottage in Glebe
-

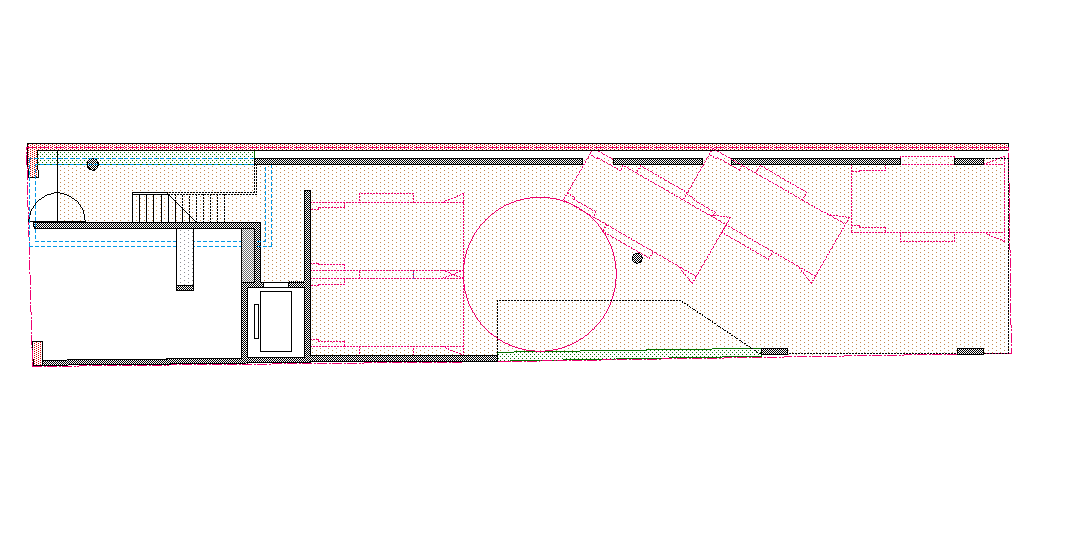

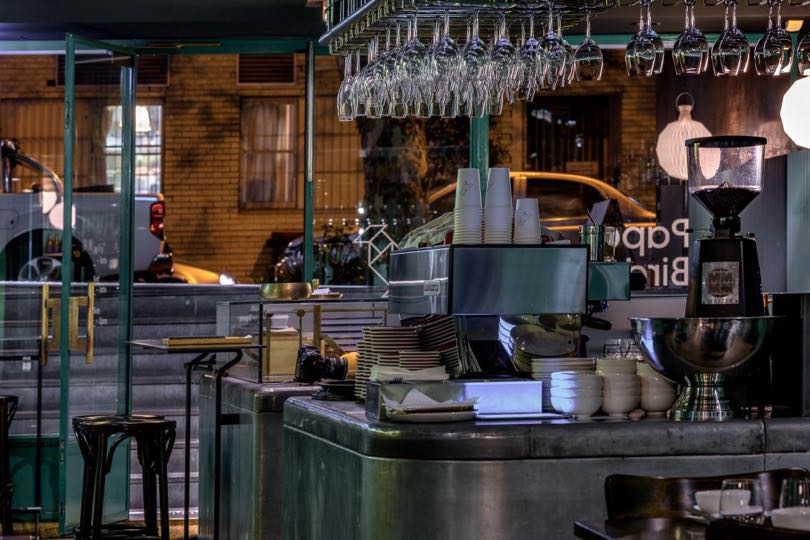

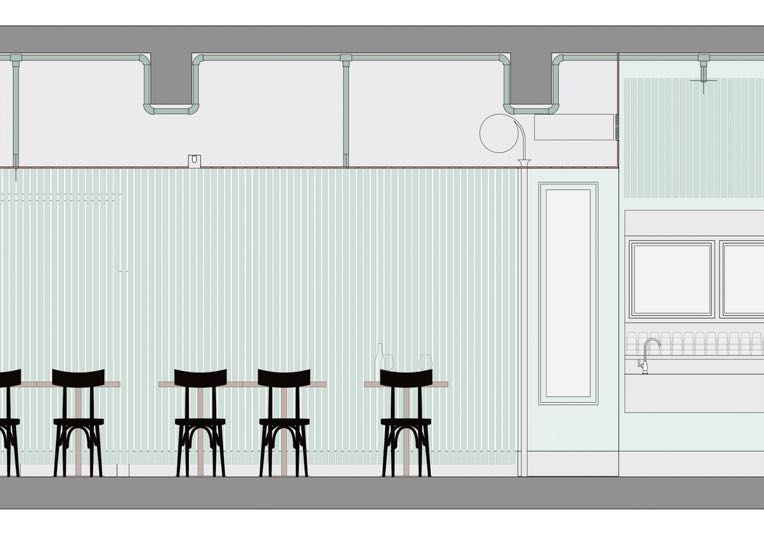

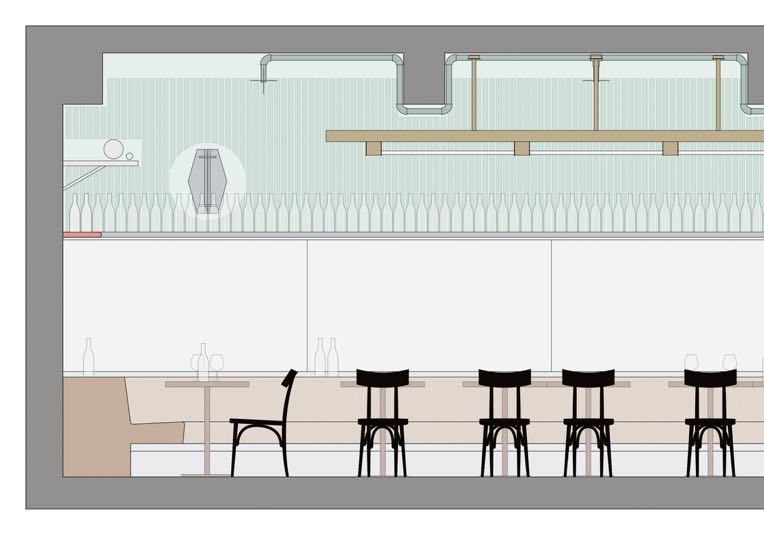

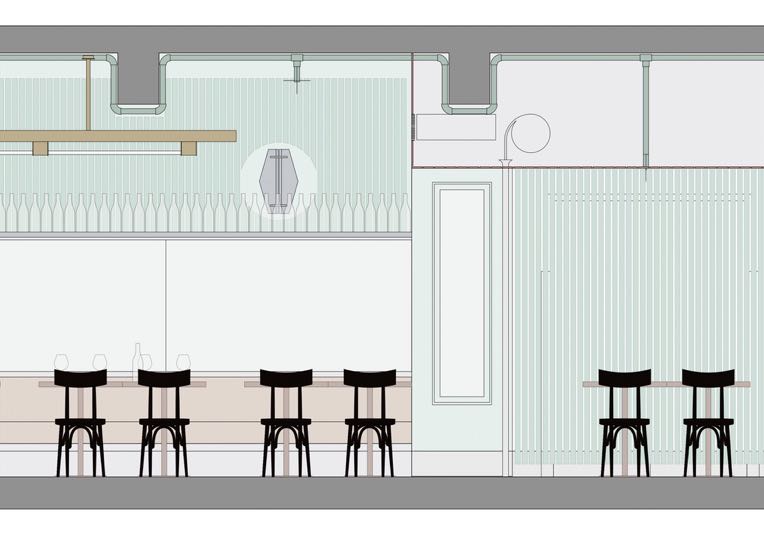

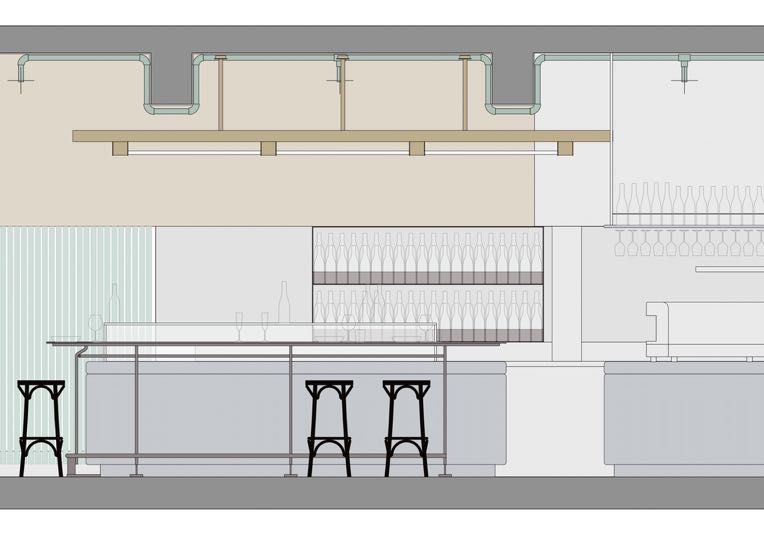

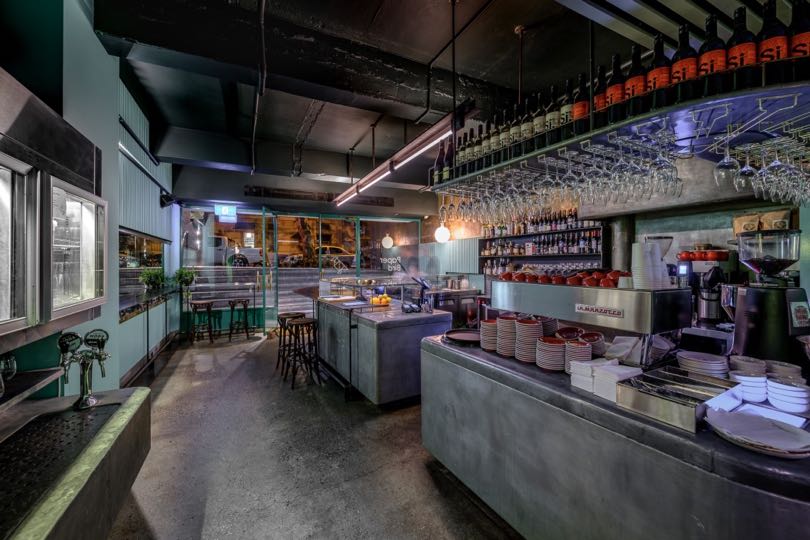

Paper Bird

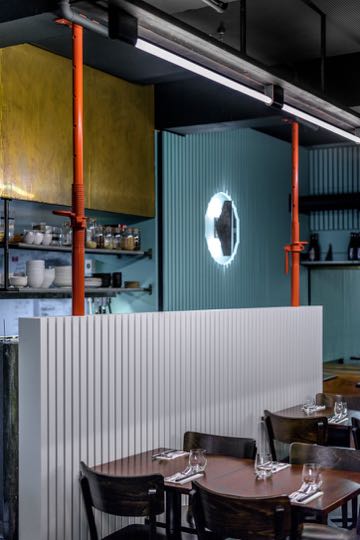

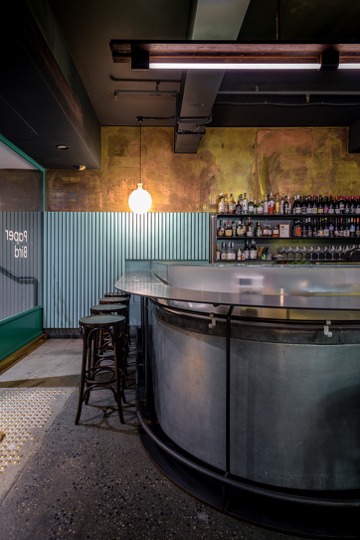

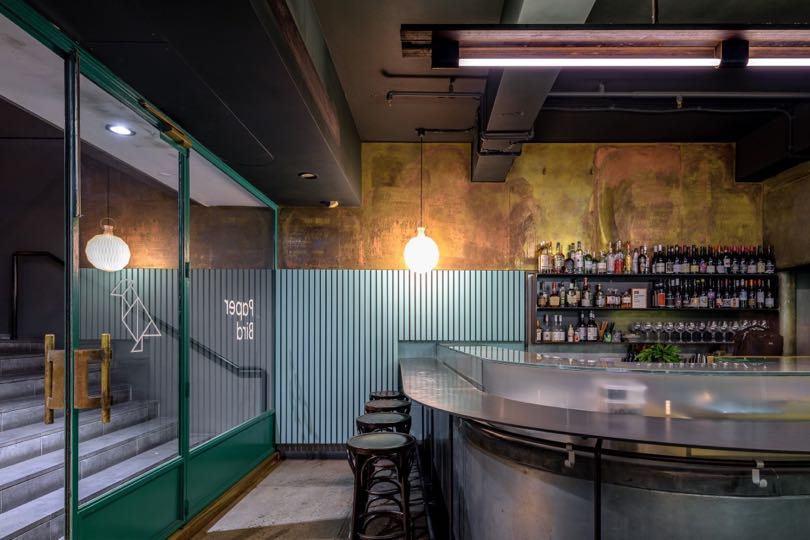

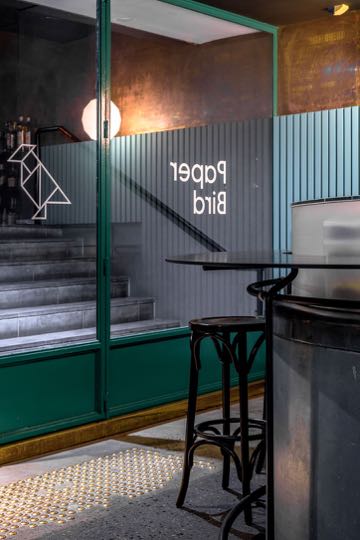

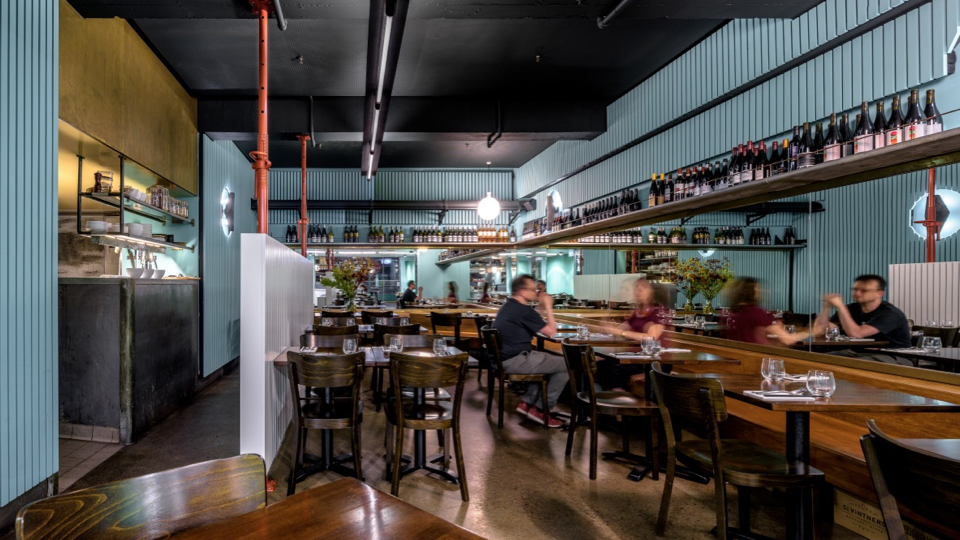

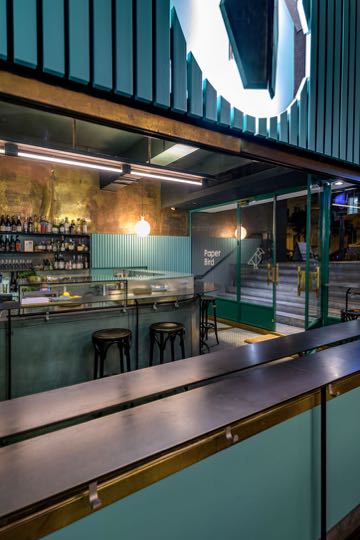

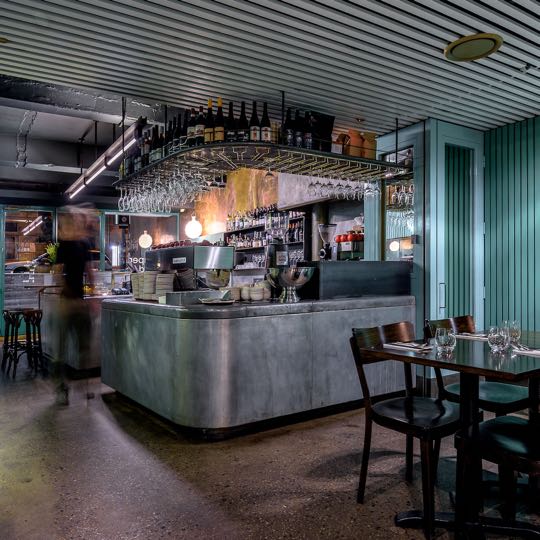

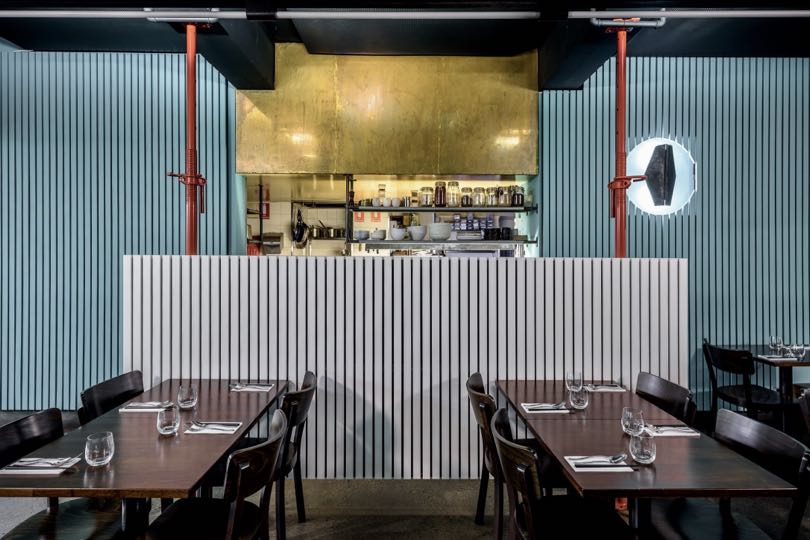

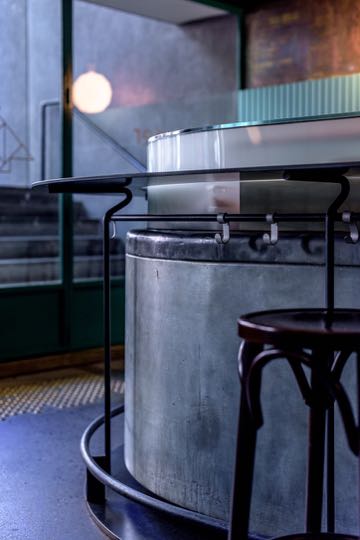

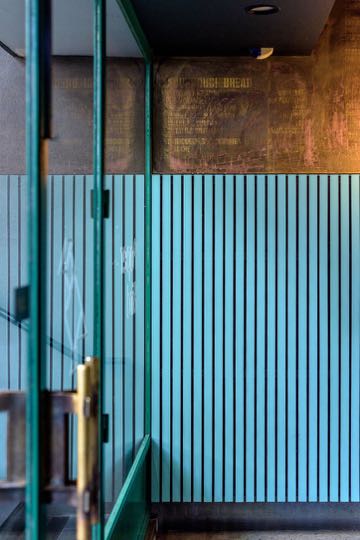

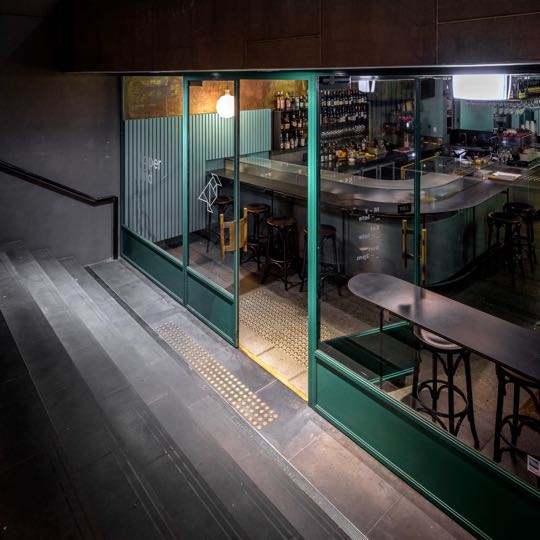

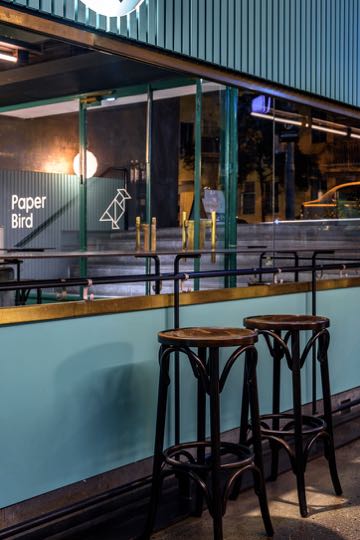

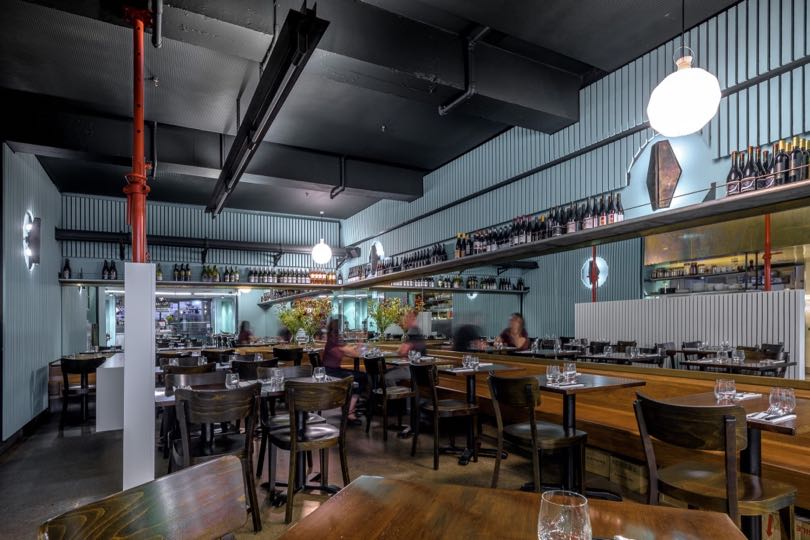

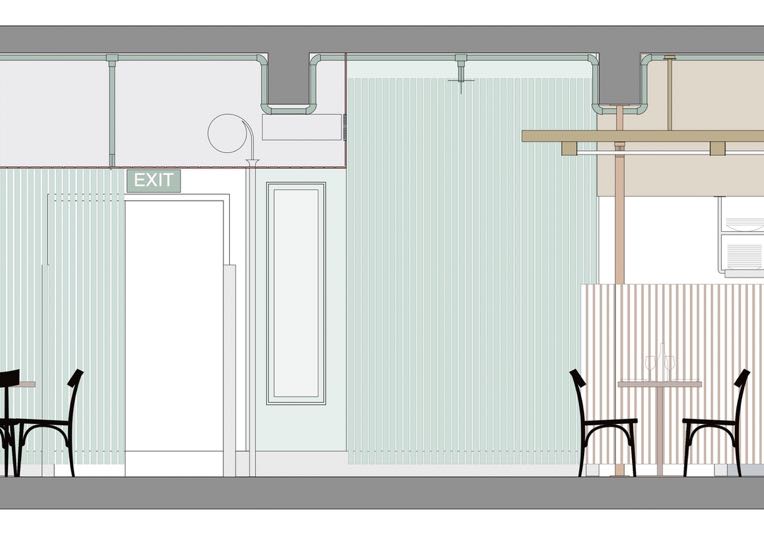

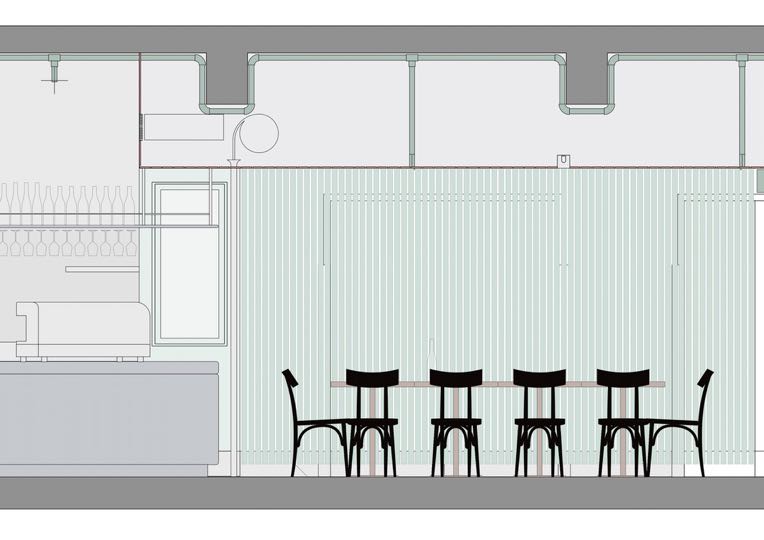

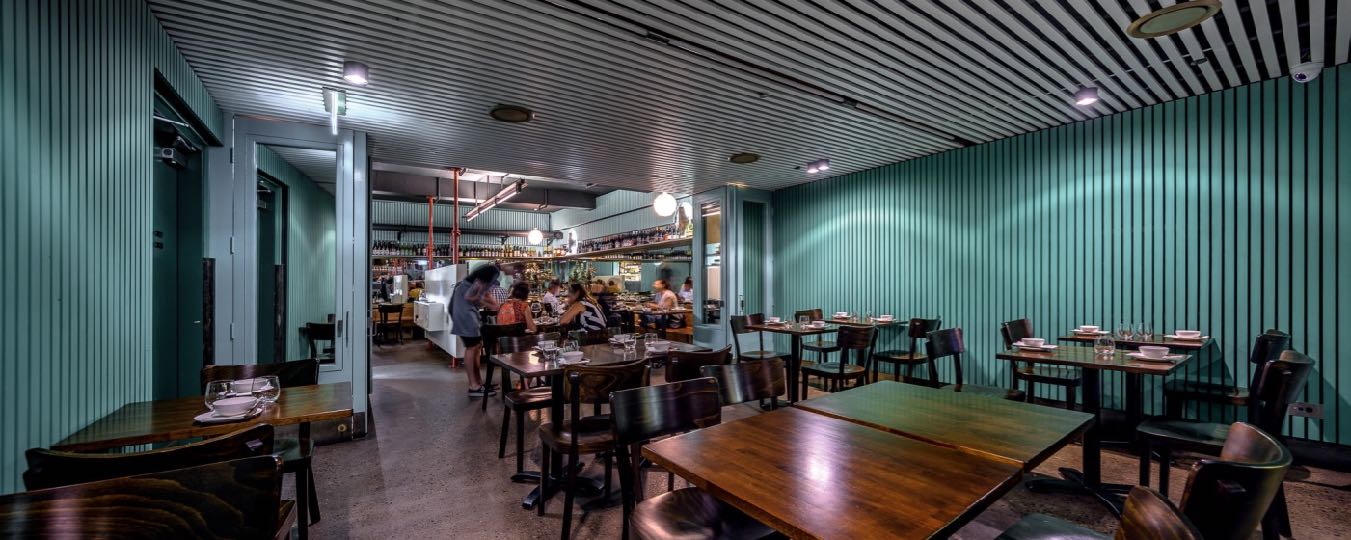

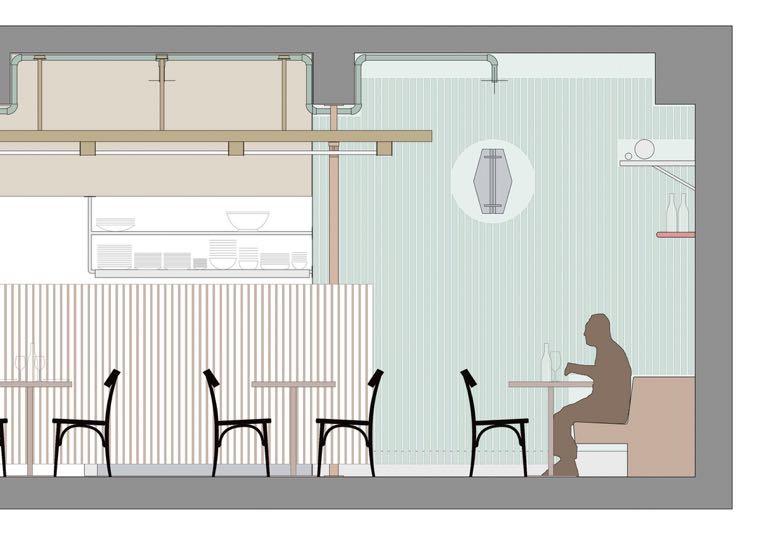

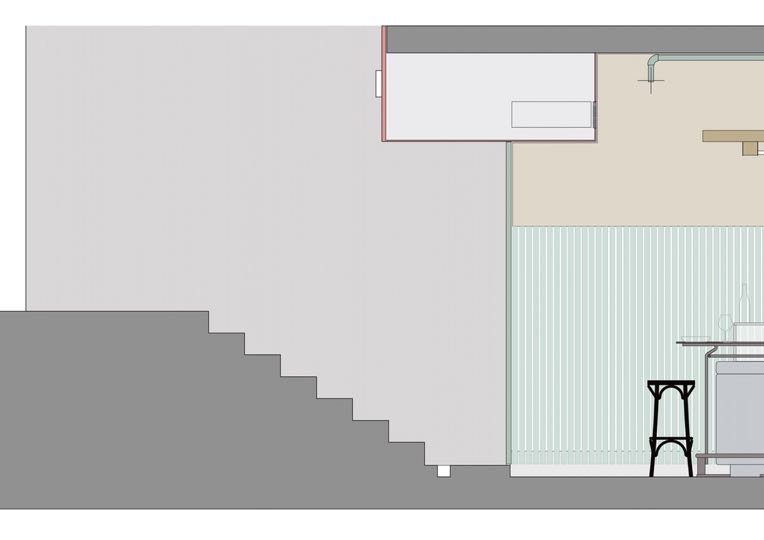

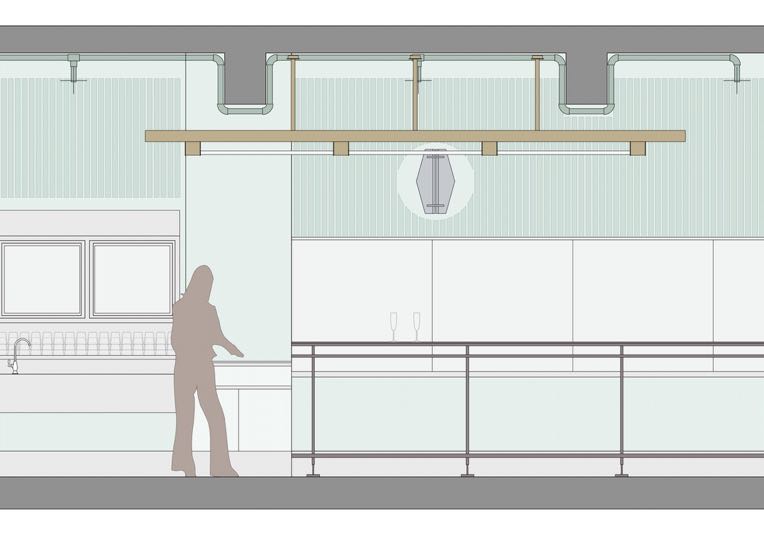

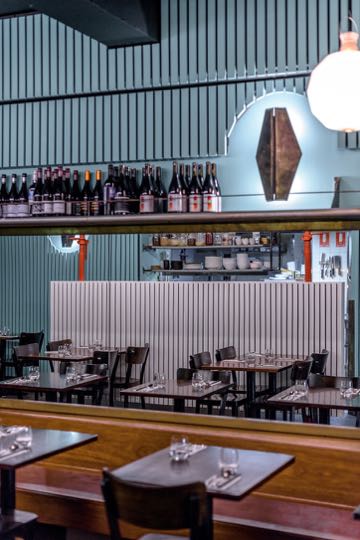

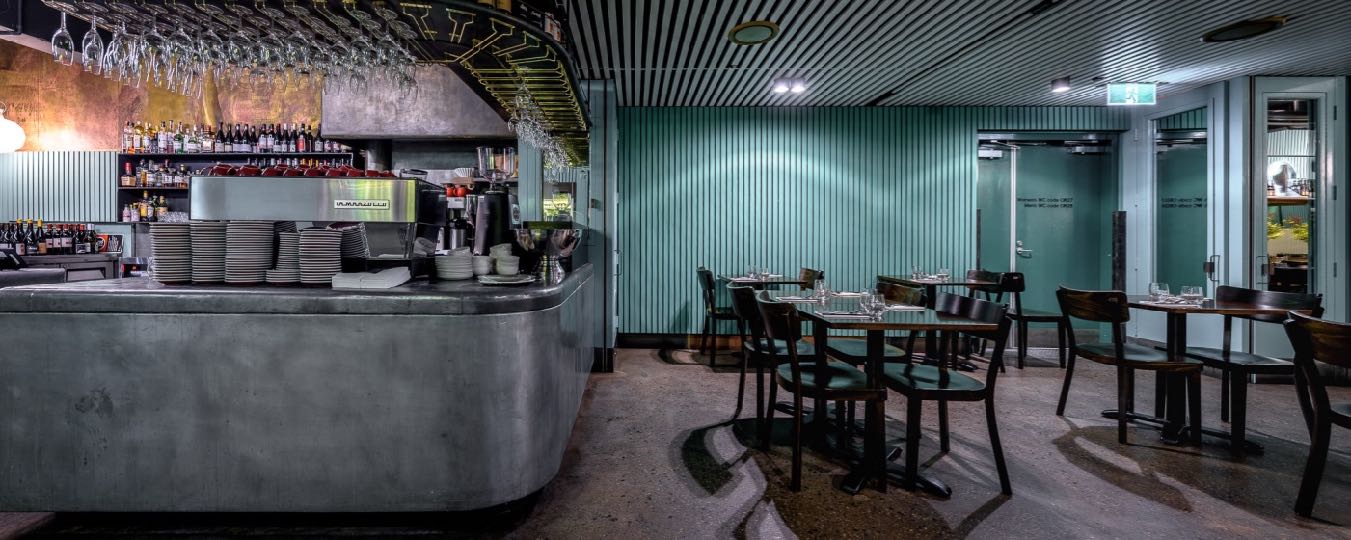

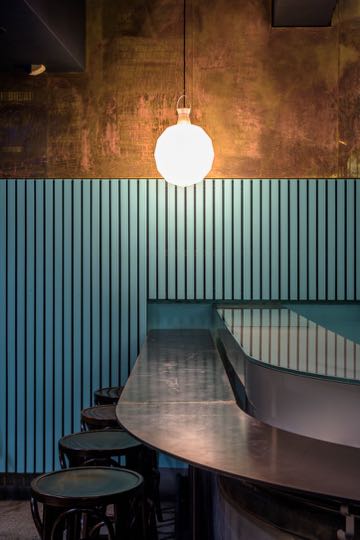

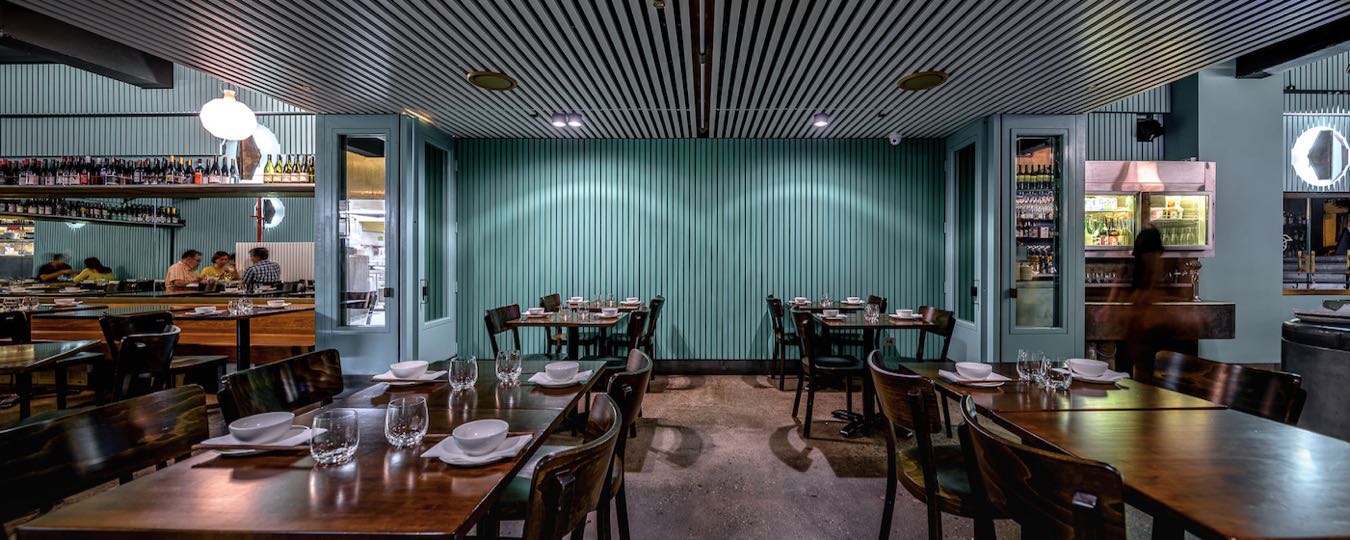

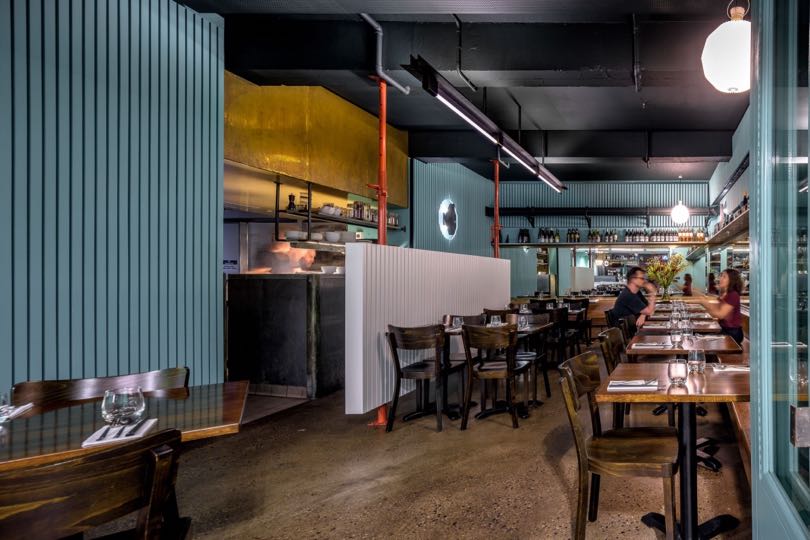

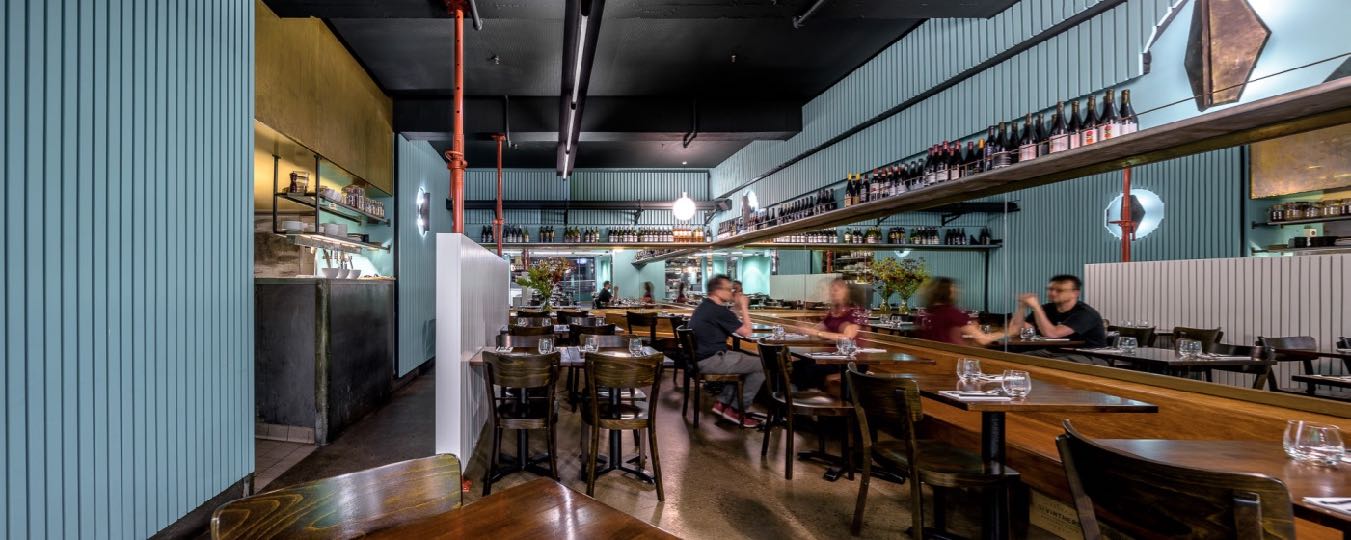

The team from restaurant Moon Park took over a space
previously operated by Bourke St Bakery and designed by Meacham
Nockles McQualter. We agreed that a good fit out should not go into
landfill simply for the sake of novelty and so tweaked the space to

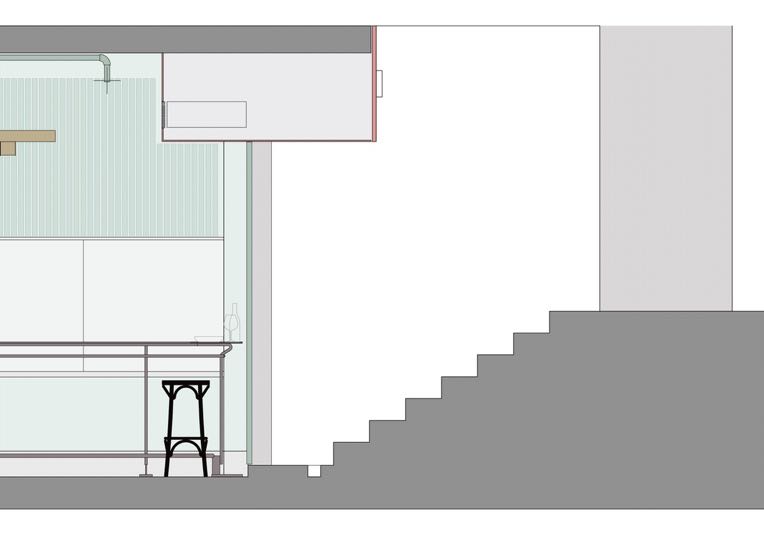

suit new requirements. A fine steel bar was added to the existing
counter, the kitchen was screened, acoustic treatment was installed,
existing lighting supplemented and furniture from Moon Park re-used.
The new colour scheme, inspired in part by Dancheong traditional
colours, was specified with Lymesmith.
Colours, Lymesmith & Plus Minus Design
Acoustics, Sebastian Giglio
Structural Engineering, SDA Structures
Steelwork, Macro Projects
Builder, Hospitality Fitout Specialists
Photos, Ben Guthrie
-

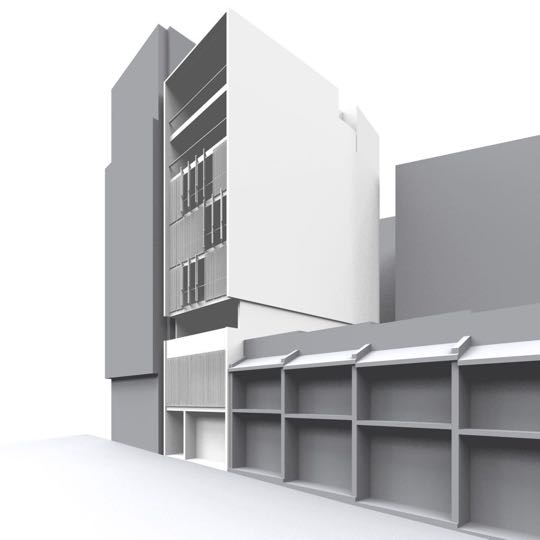

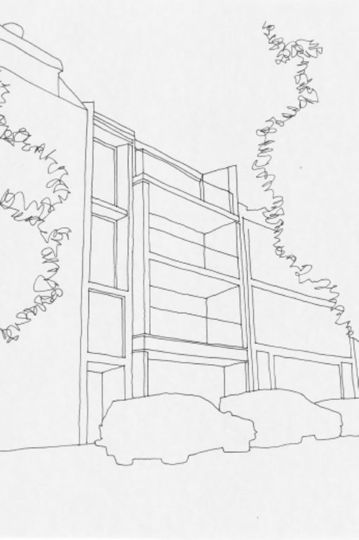

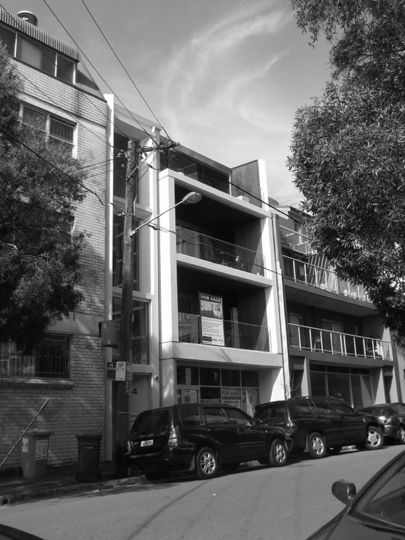

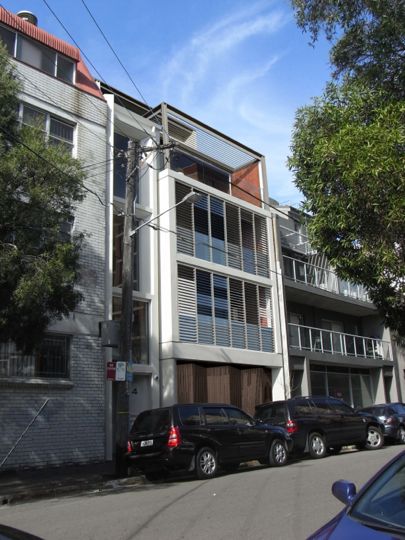

Buckingham St Apartments
Additions & alterations to a small apartment building.
Two new apartments added.
-

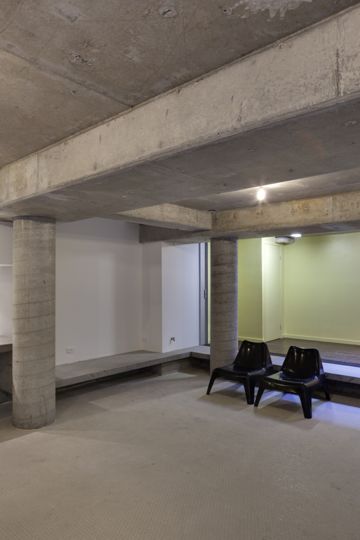

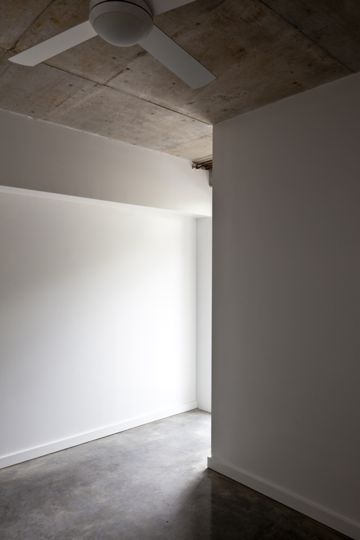

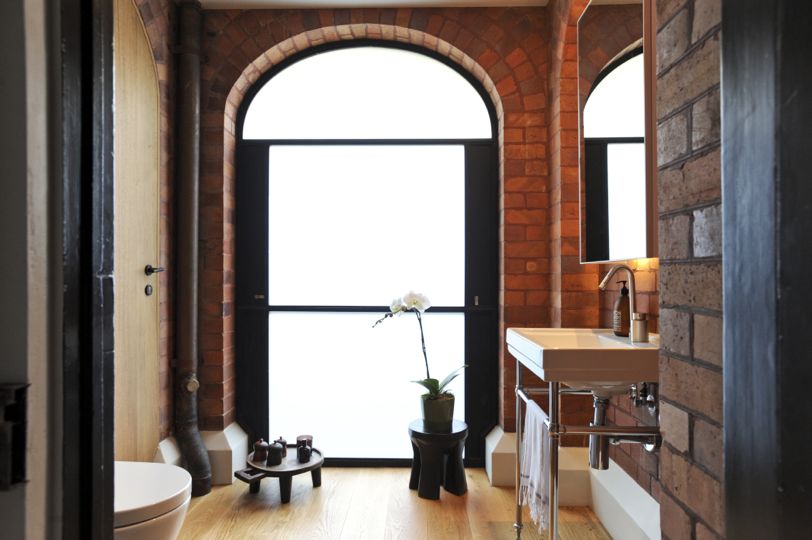

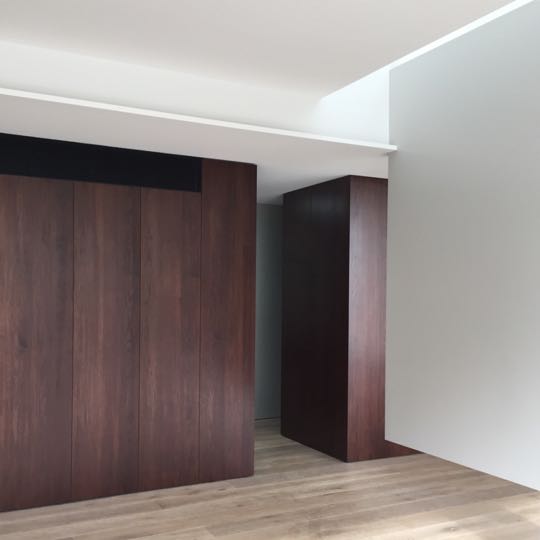

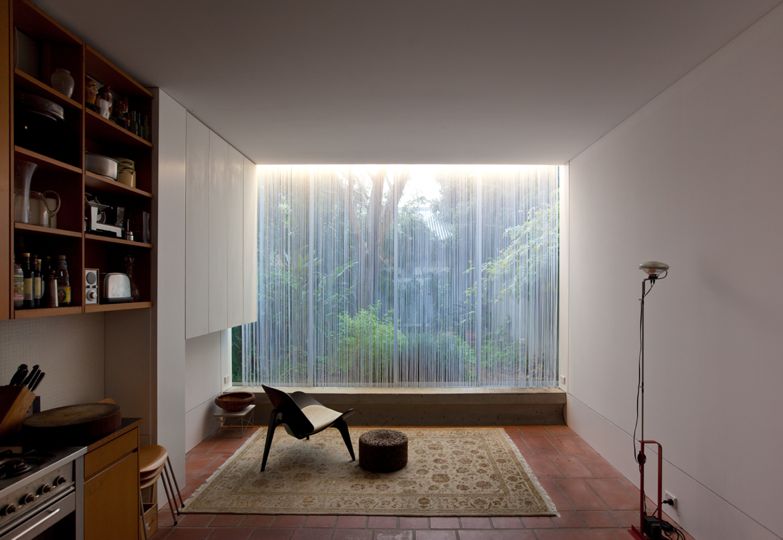

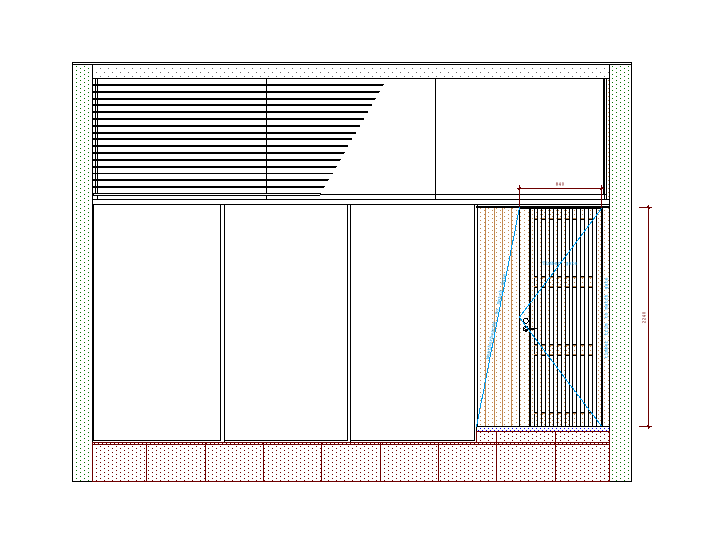

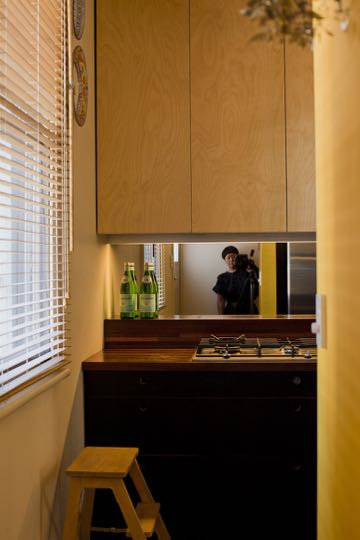

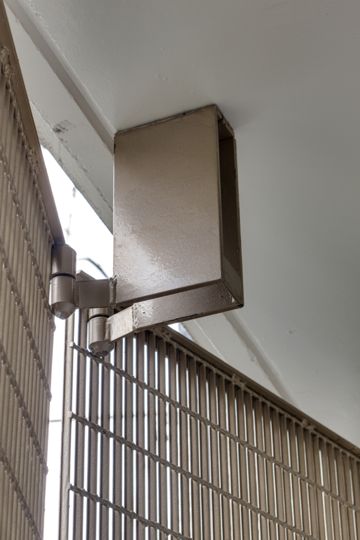

Surry Hills Apartment
Conversion of the ground floor & sub-floor area of an
apartment building into a new apartment & home office

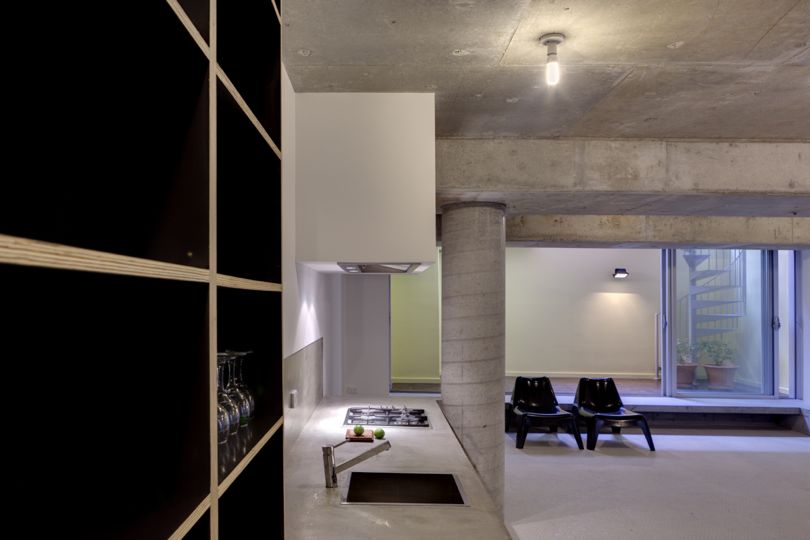

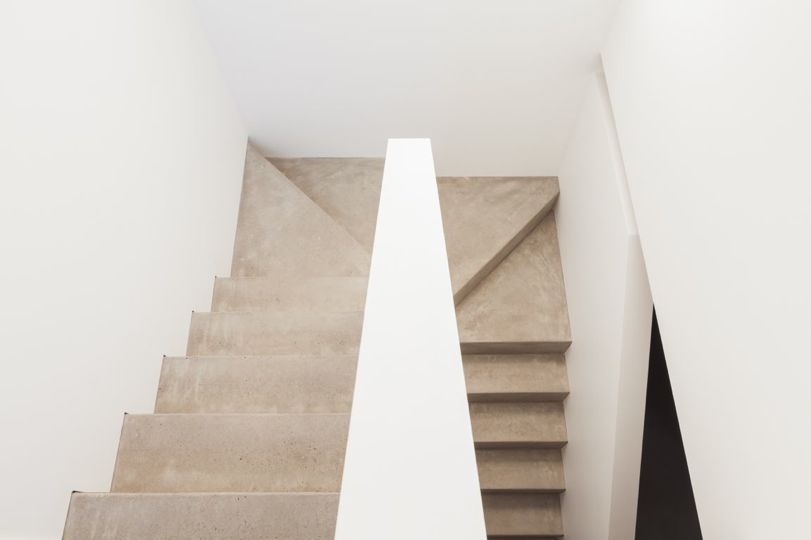

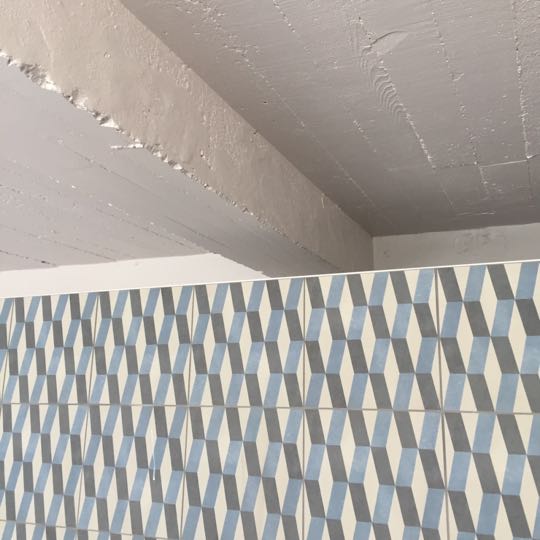

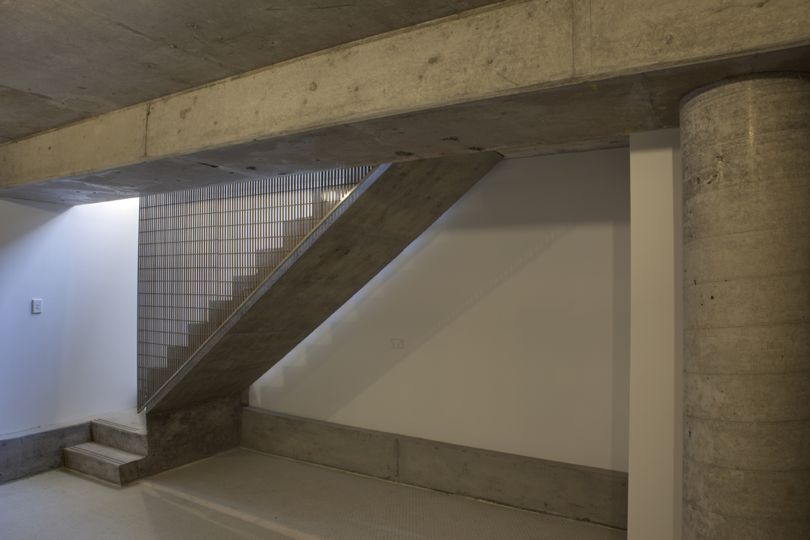

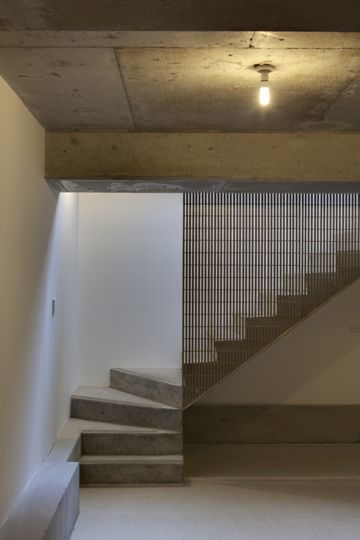

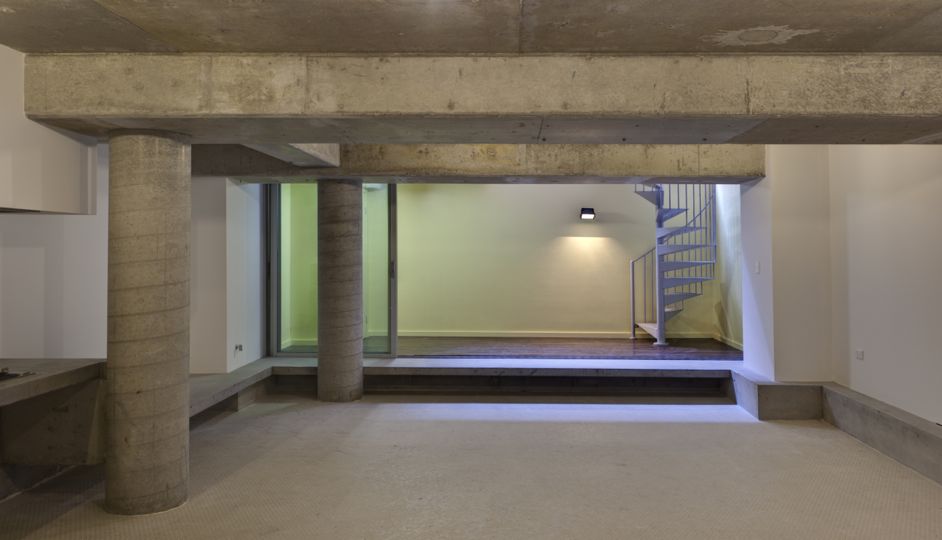

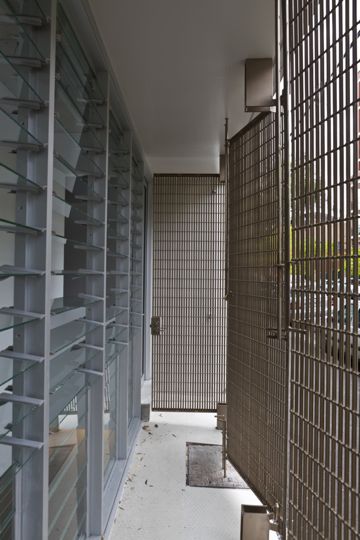

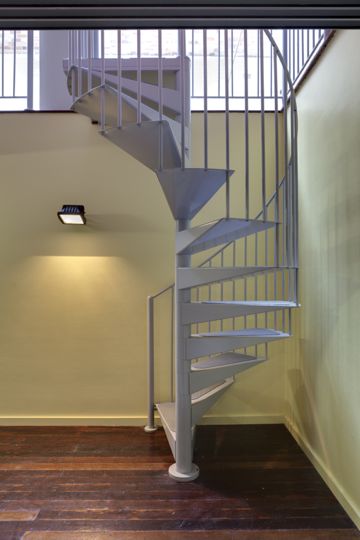

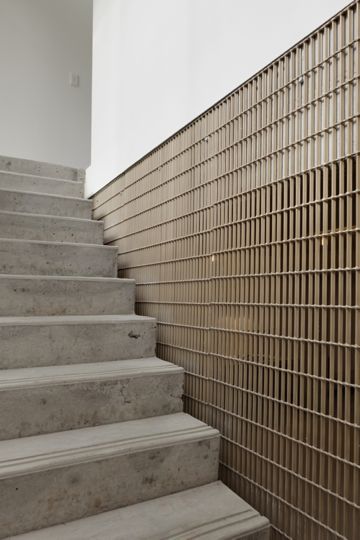

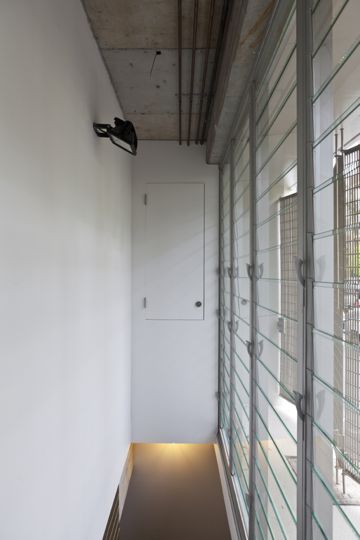

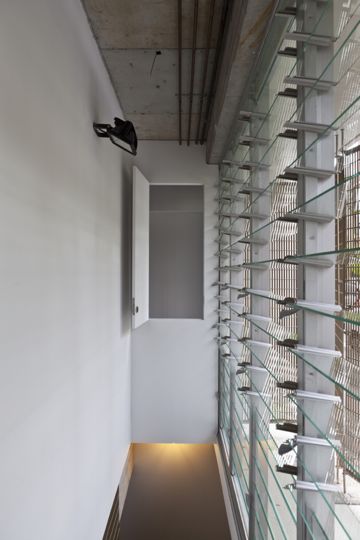

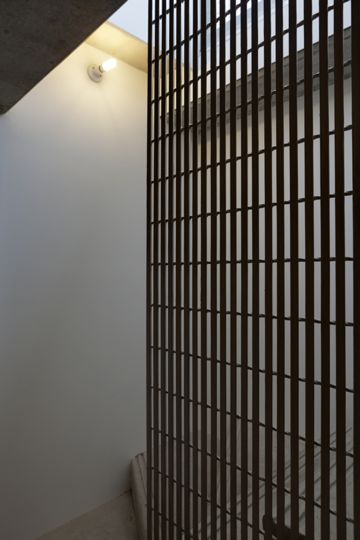

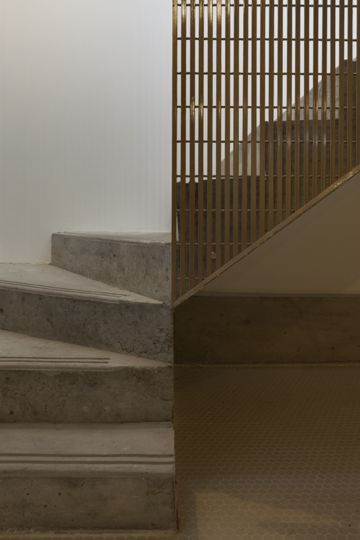

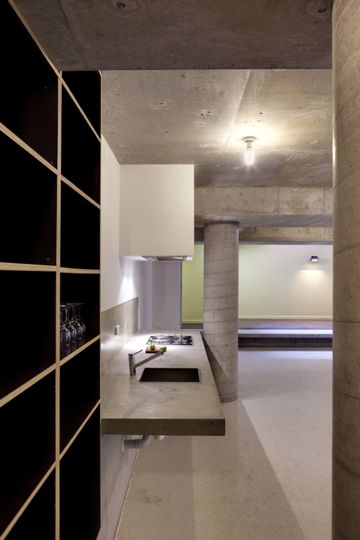

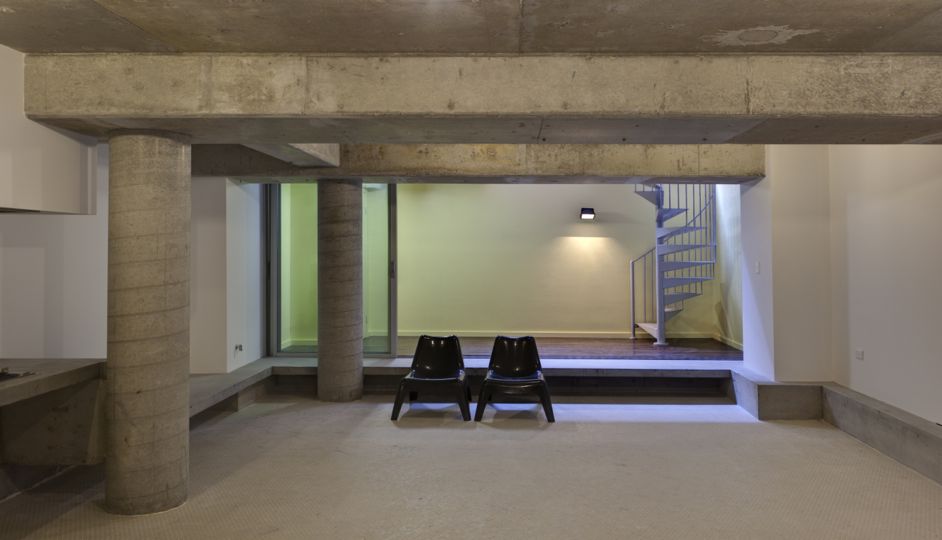

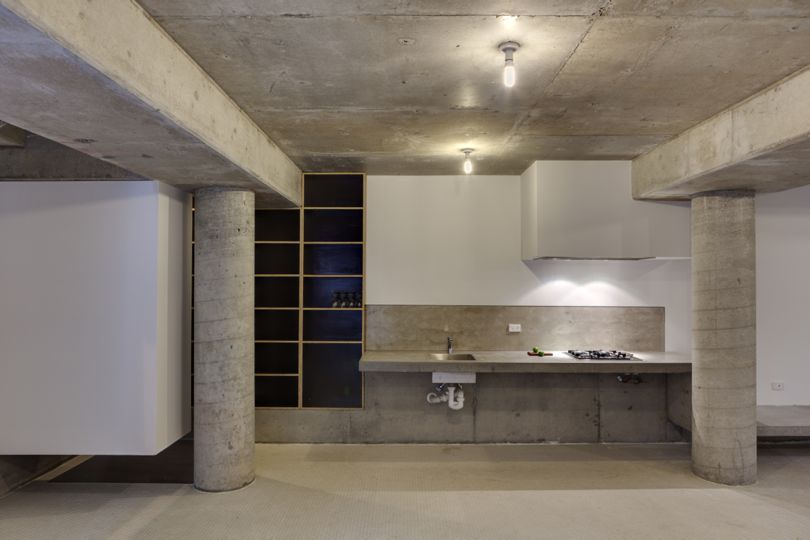

Perhaps counter-intuitively, the living rooms were placed
below ground. This allowed bedrooms at the ground level to
borrow light and ventilation across a stair void and a
sunken courtyard. There are two front doors which allow
bedrooms to be double as home office space with their own

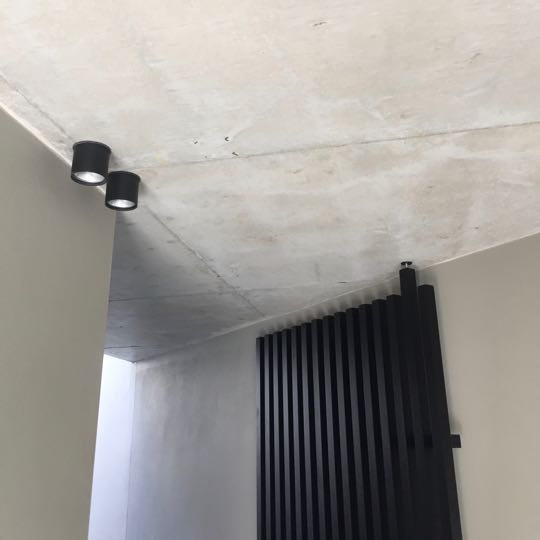

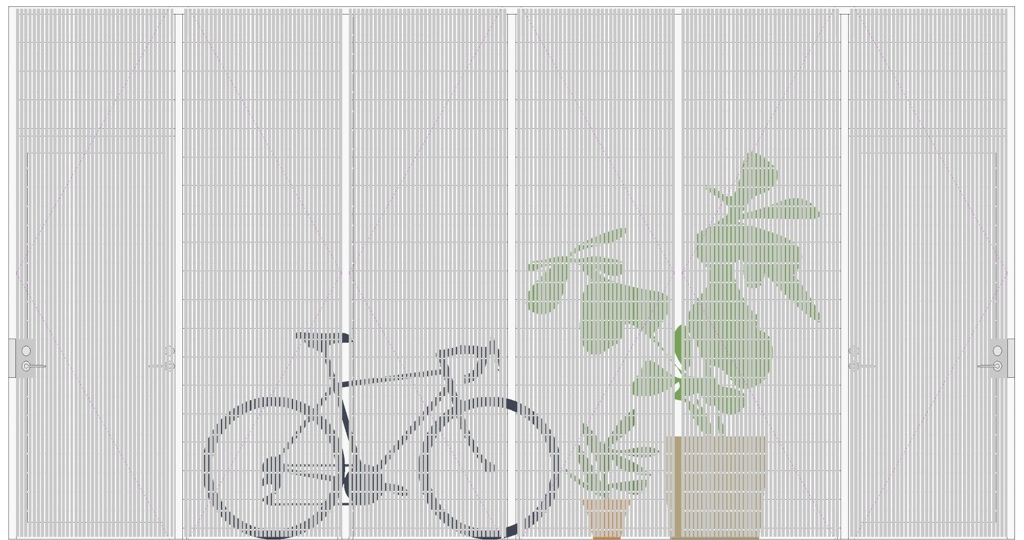

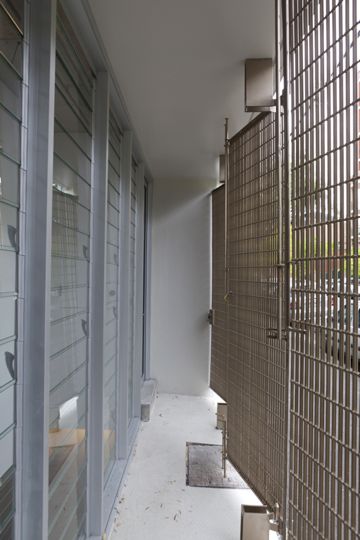

entry. A steel screen provides security, privacy and
ventilation.
Photos, Jason Lam
-

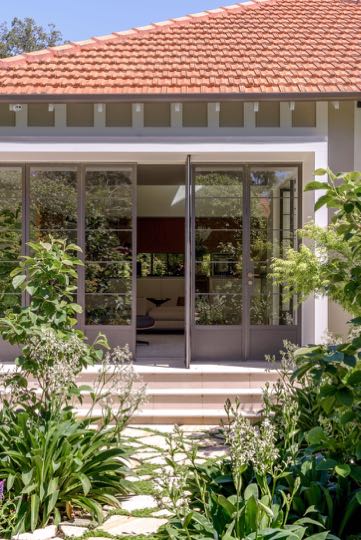

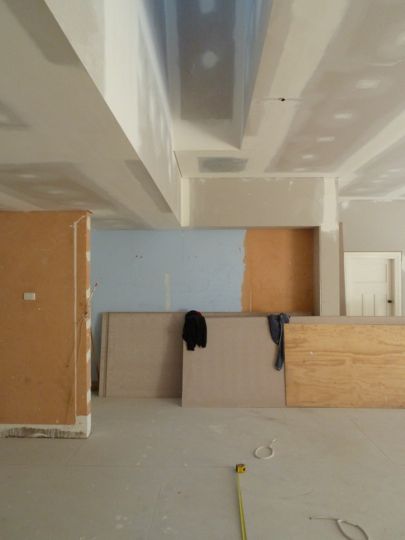

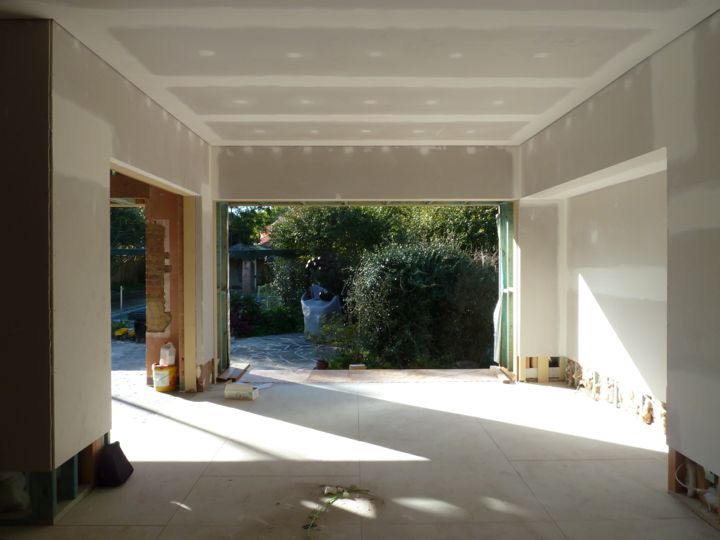

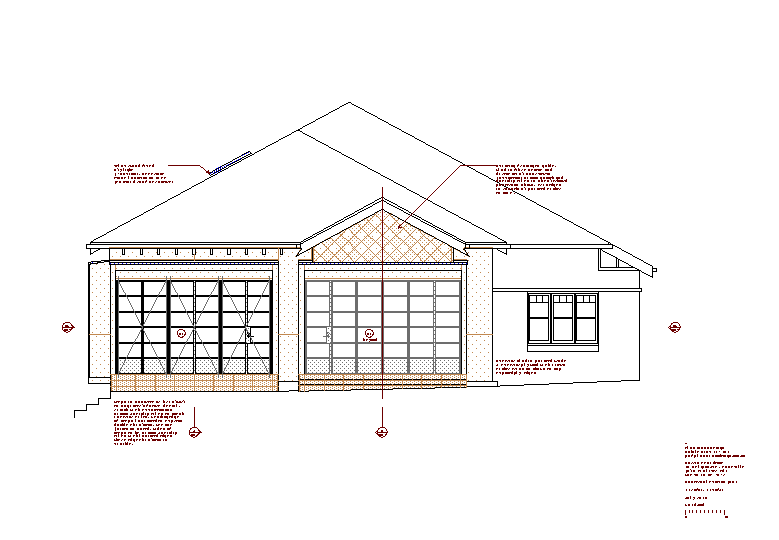

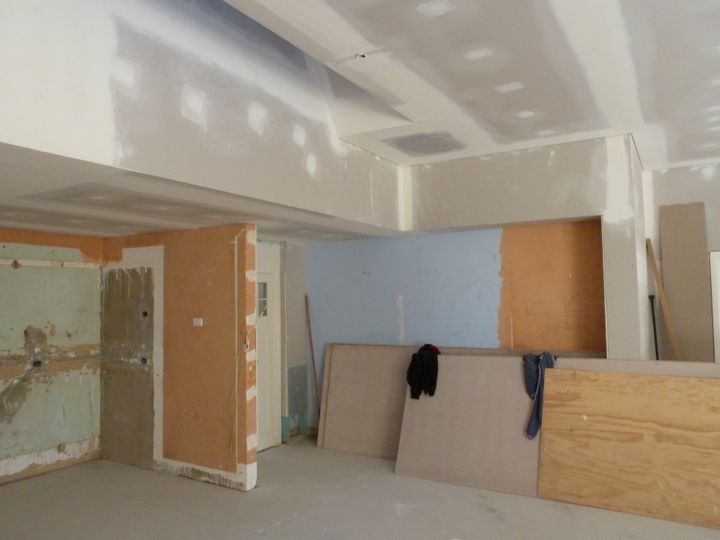

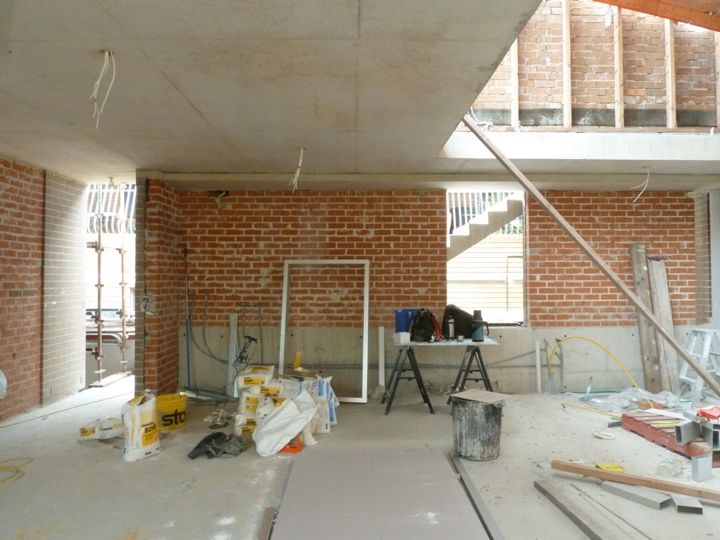

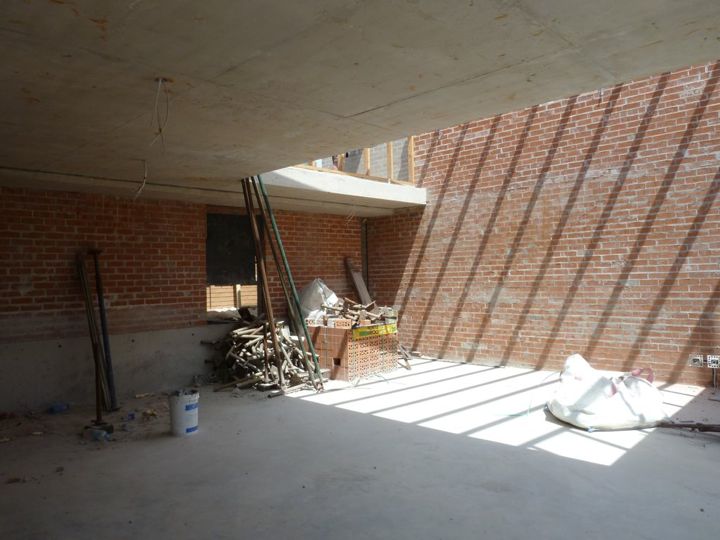

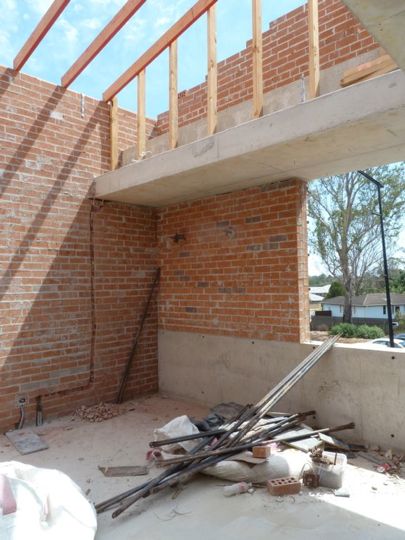

Harris House, Roseville
Additions & alterations to the rear of a Federation house

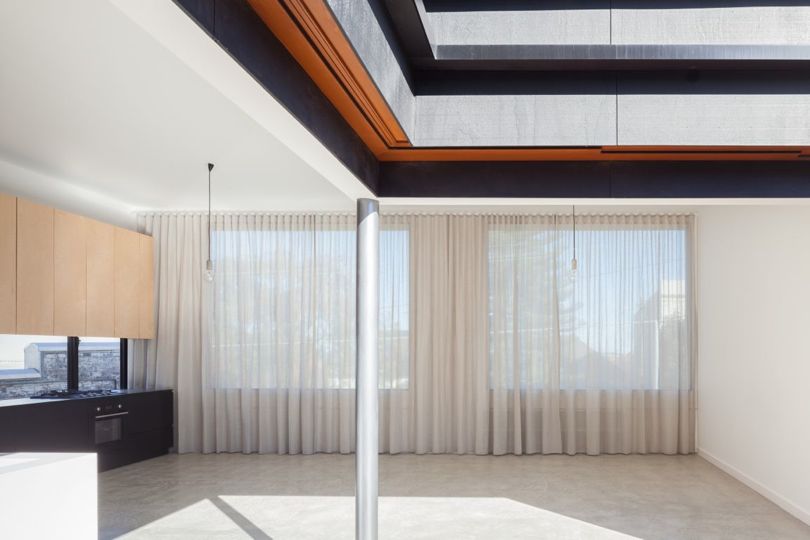

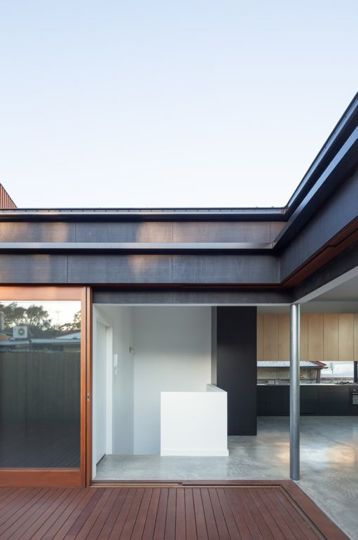

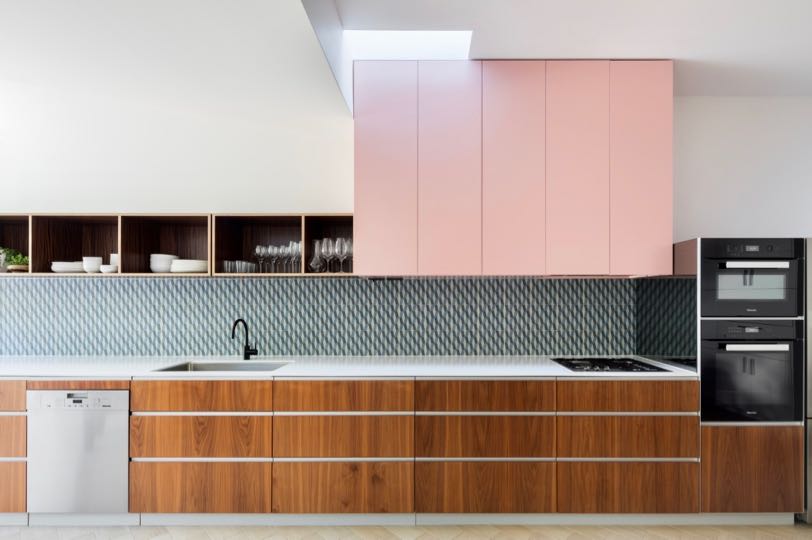

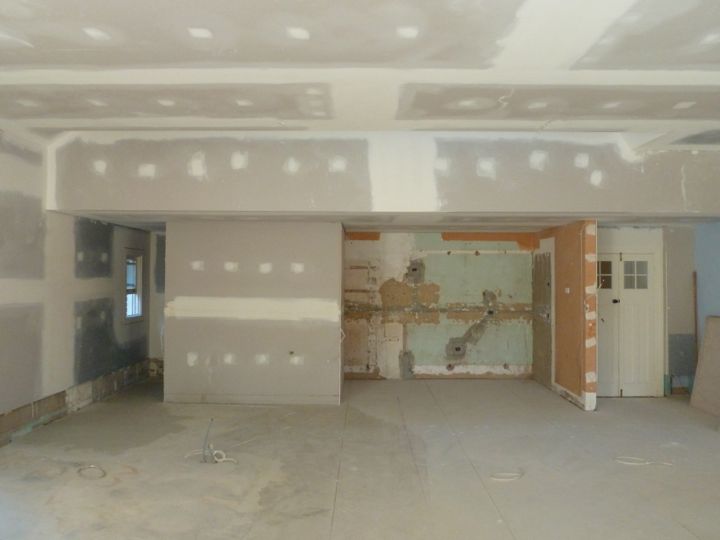

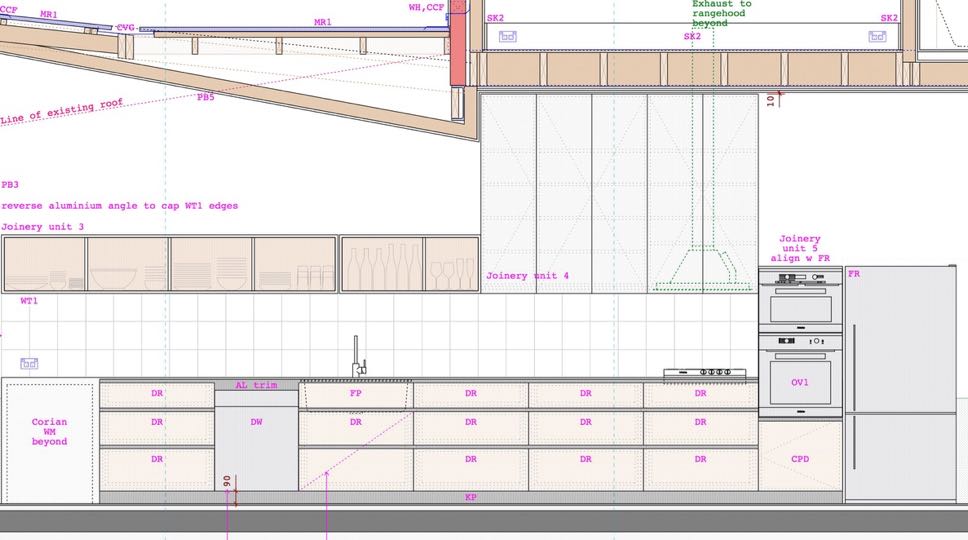

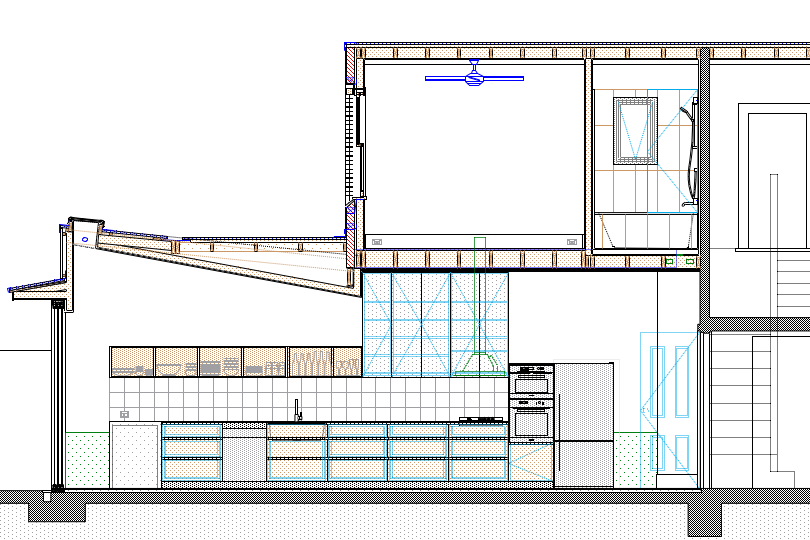

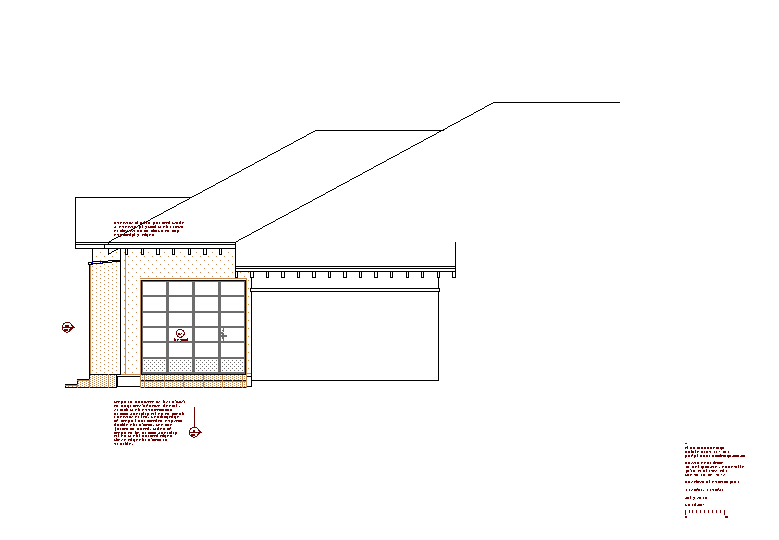

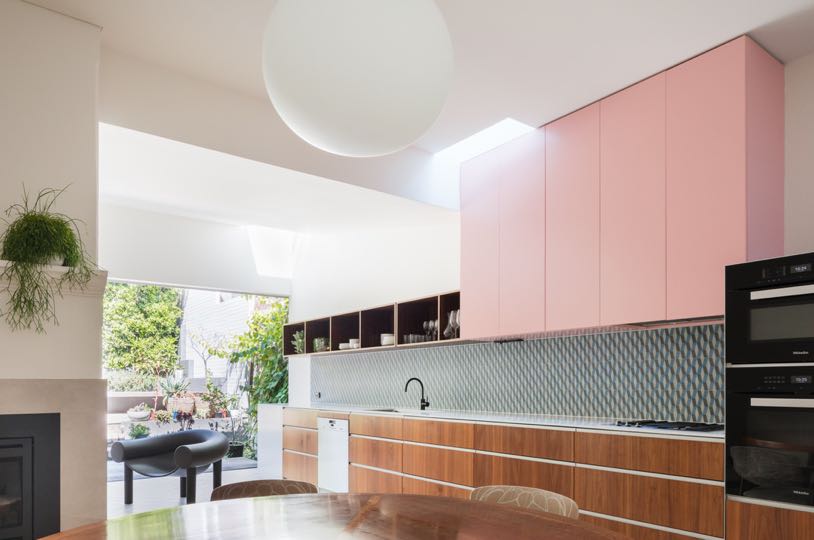

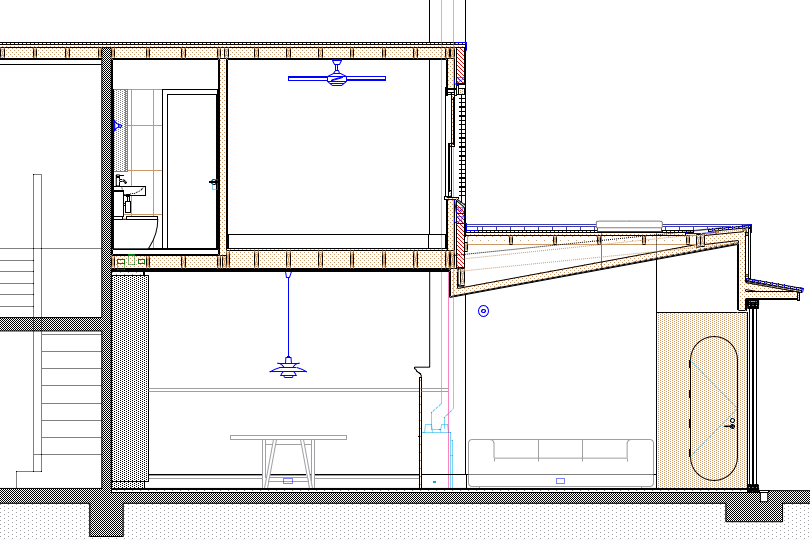

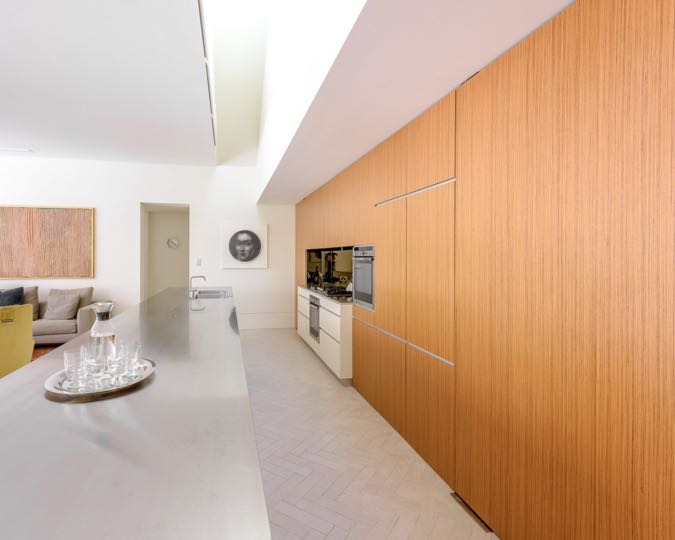

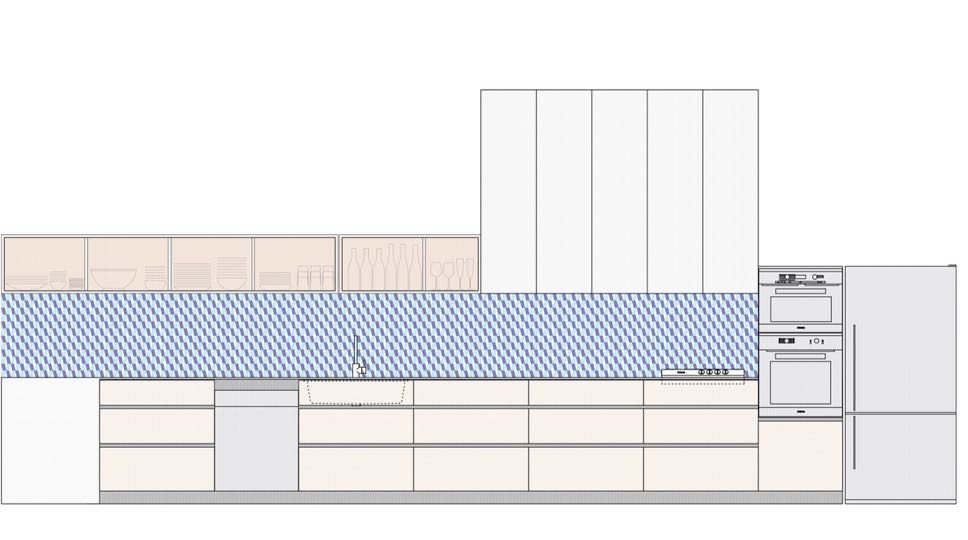

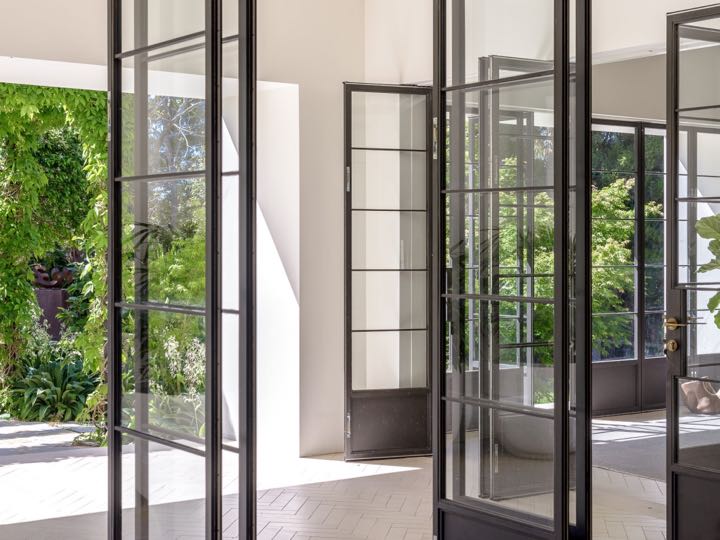

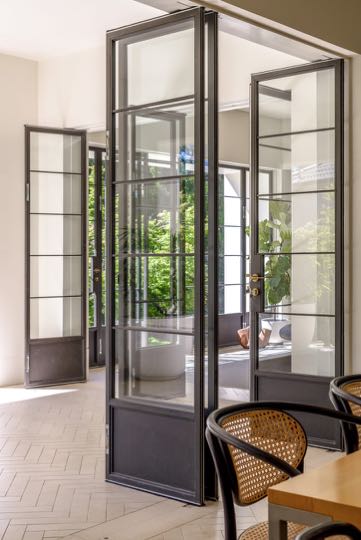

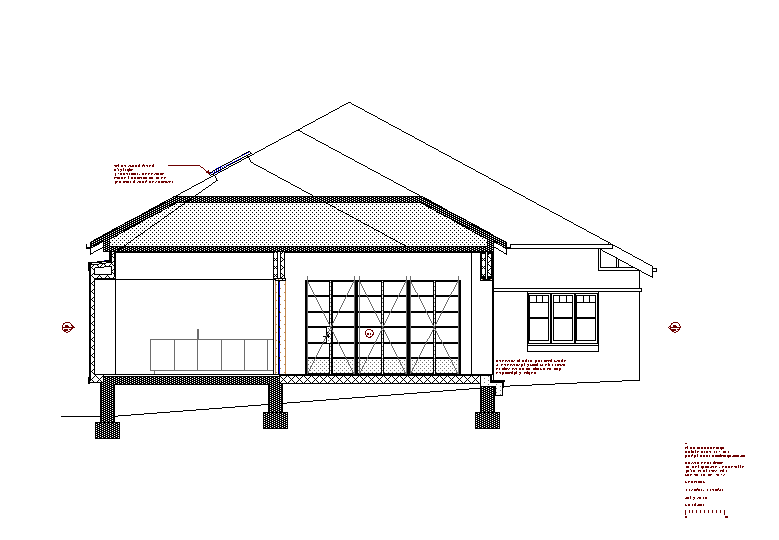

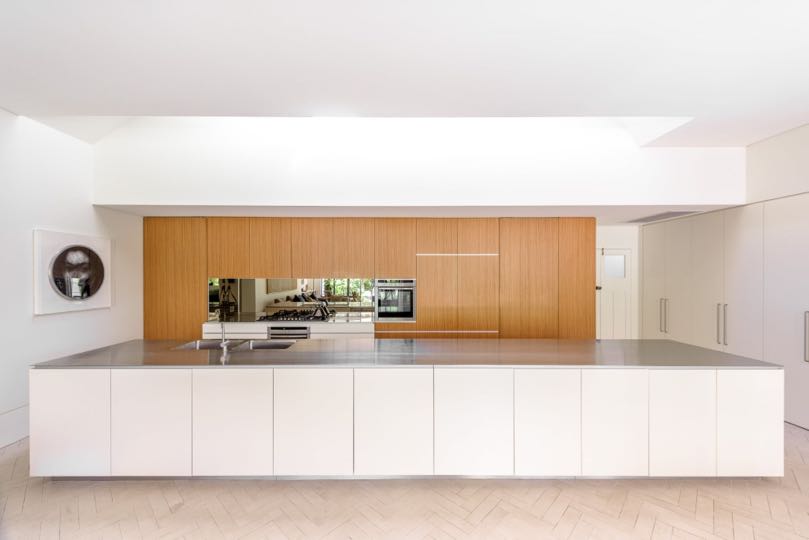

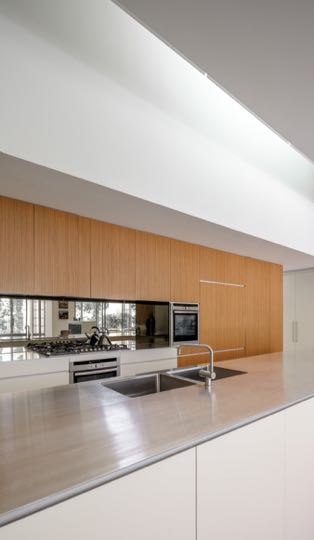

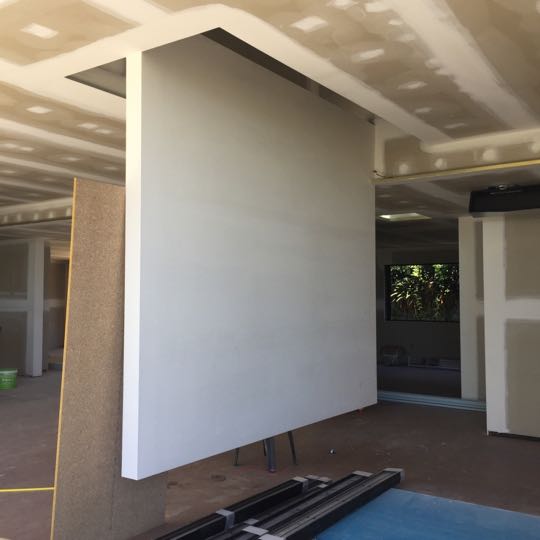

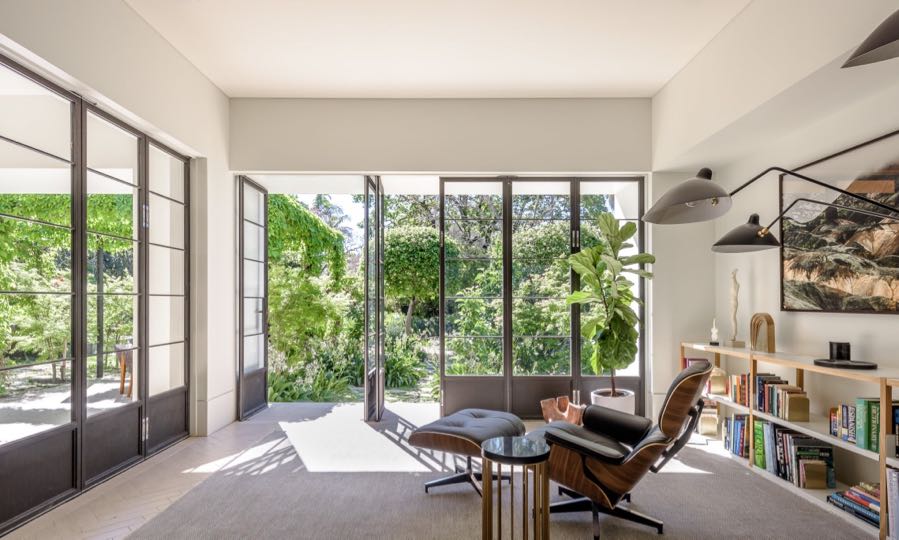

A long skylight over the kitchen brings light to the centre

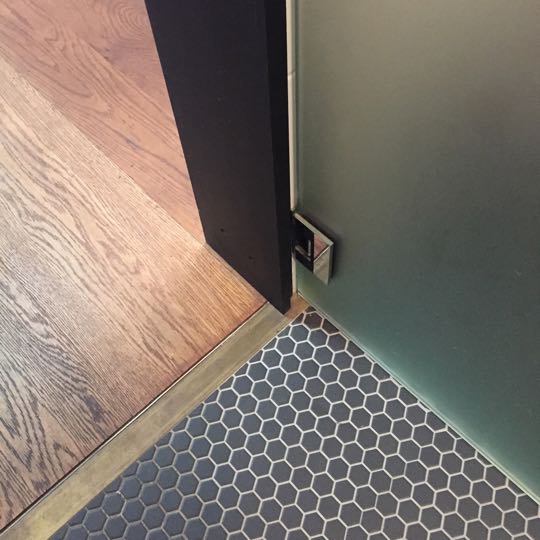

of the plan. Pivot doors open to a covered terrace and to
the yard.
Photos, Ben Guthrie

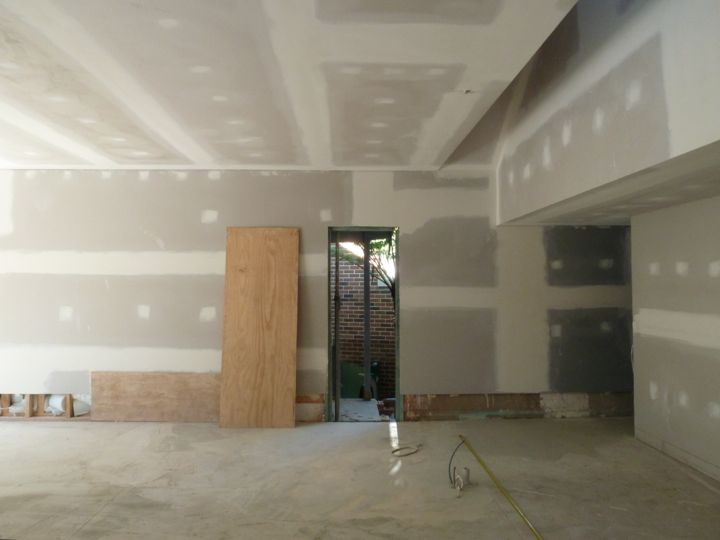

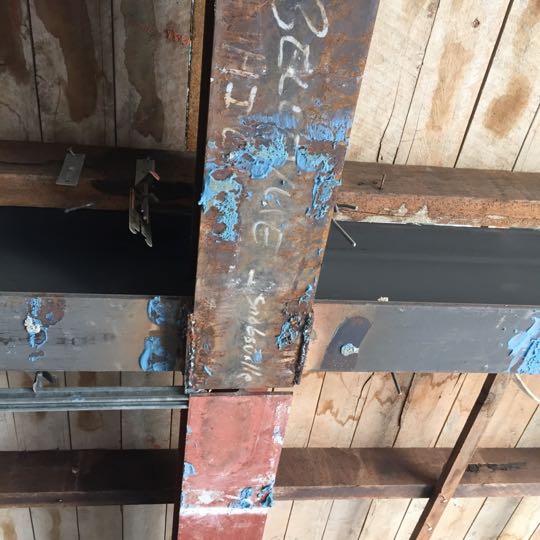

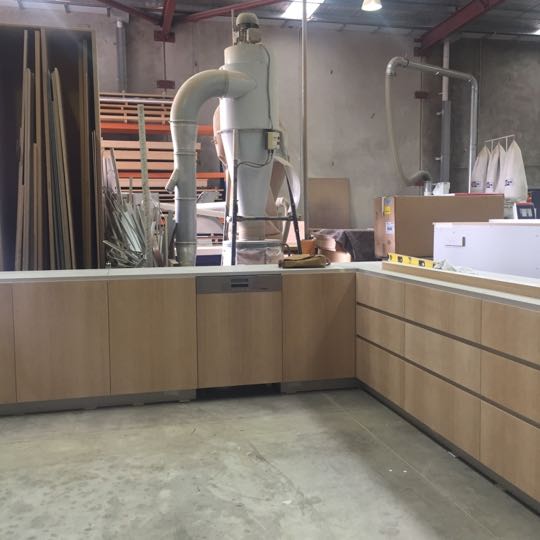

Site photos, Phillip Arnold
Interior Design, Isabelle Harris
-

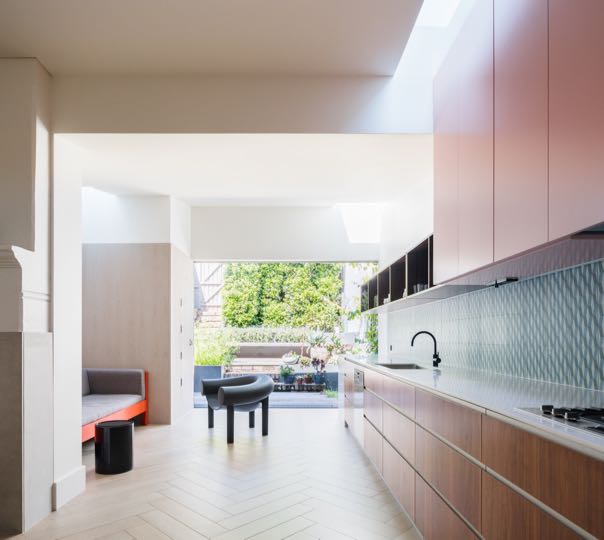

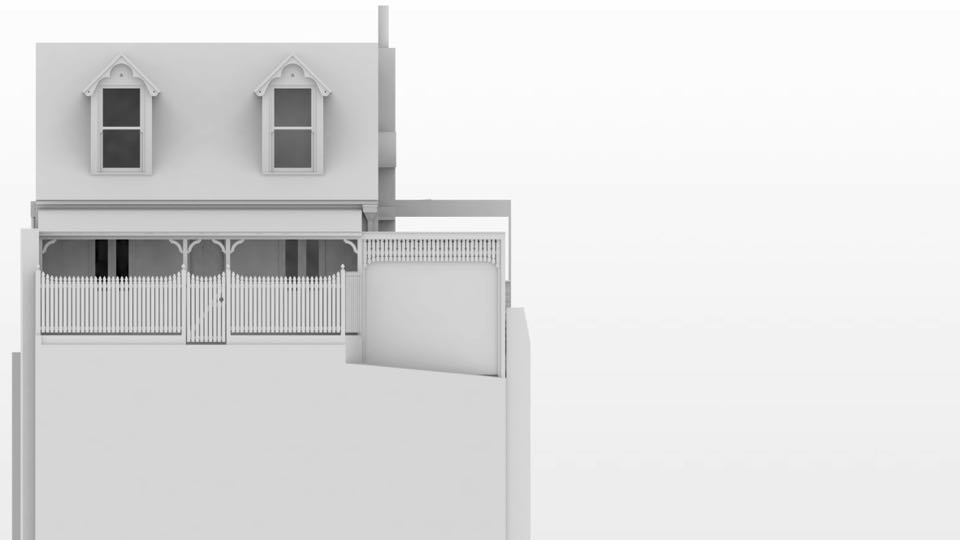

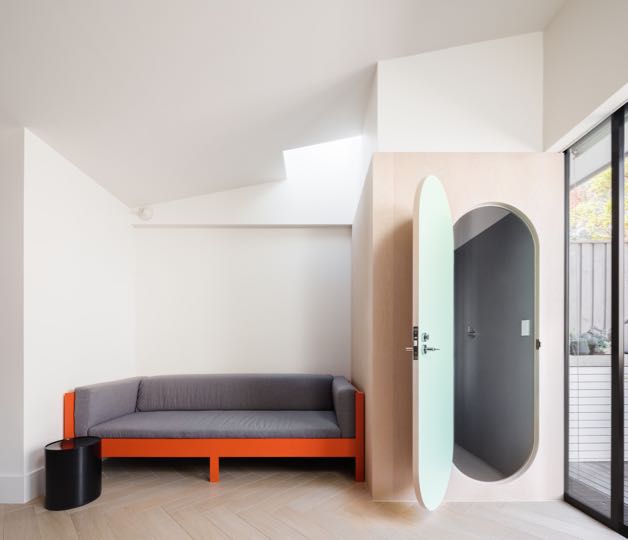

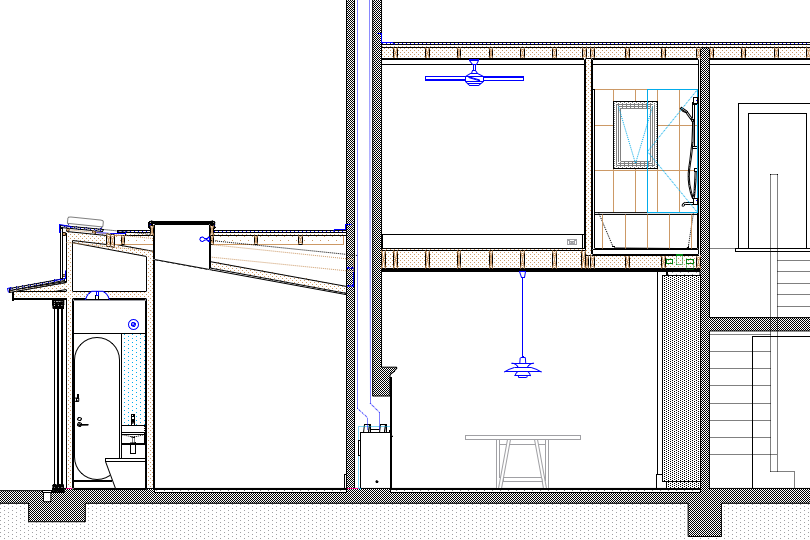

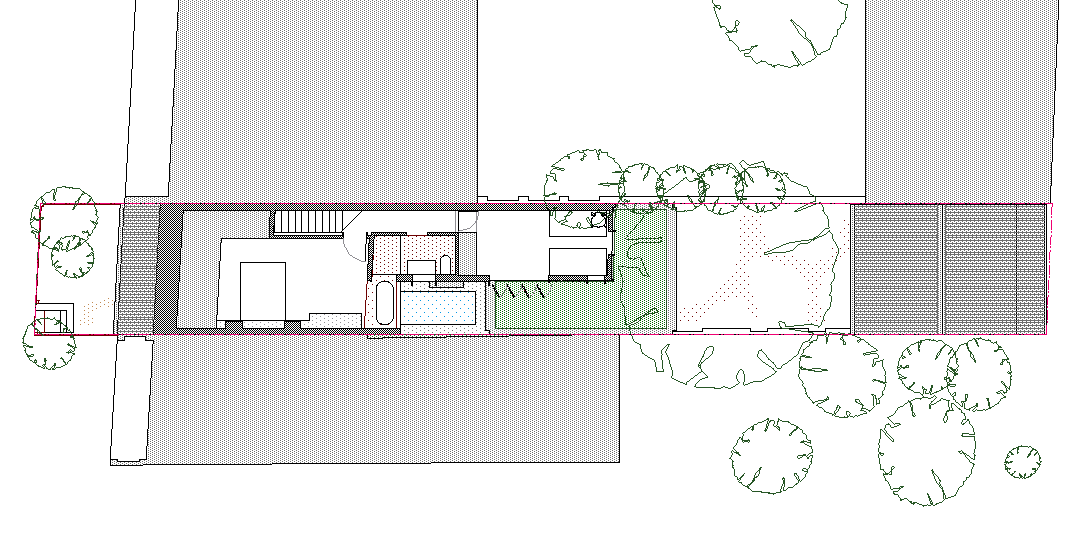

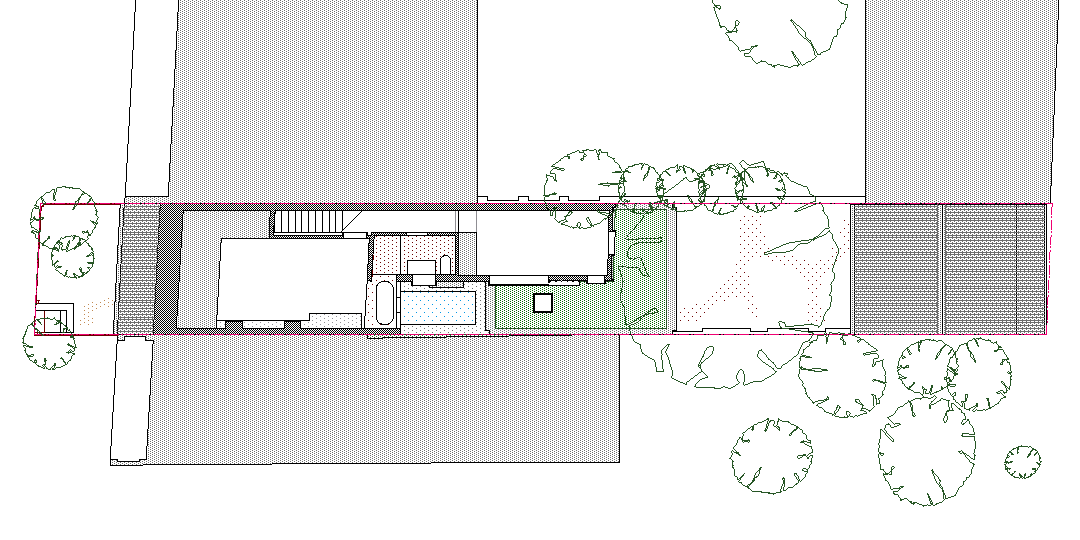

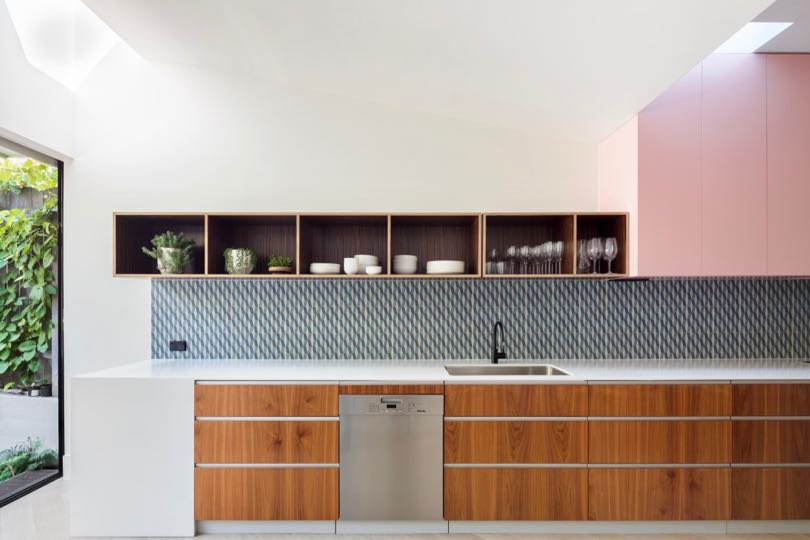

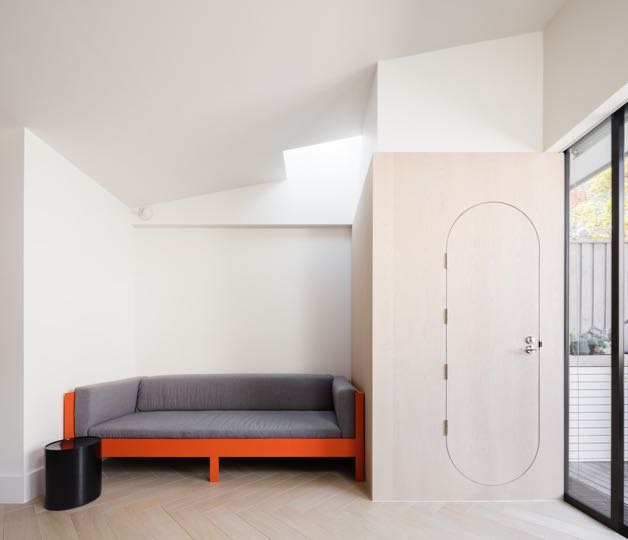

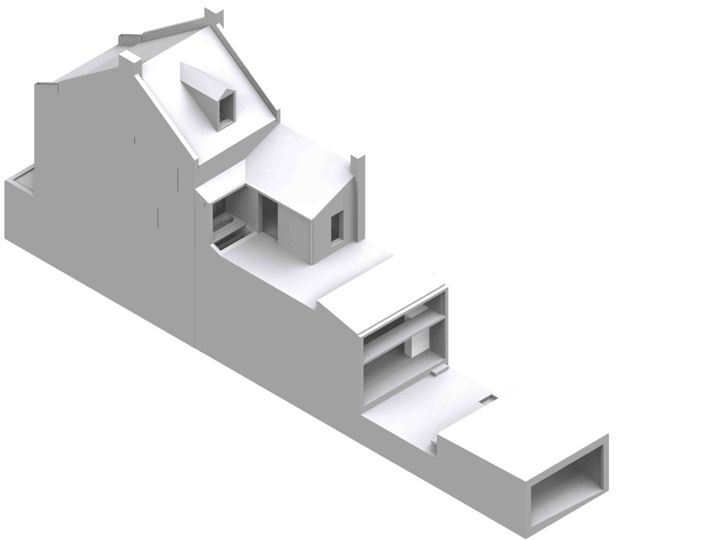

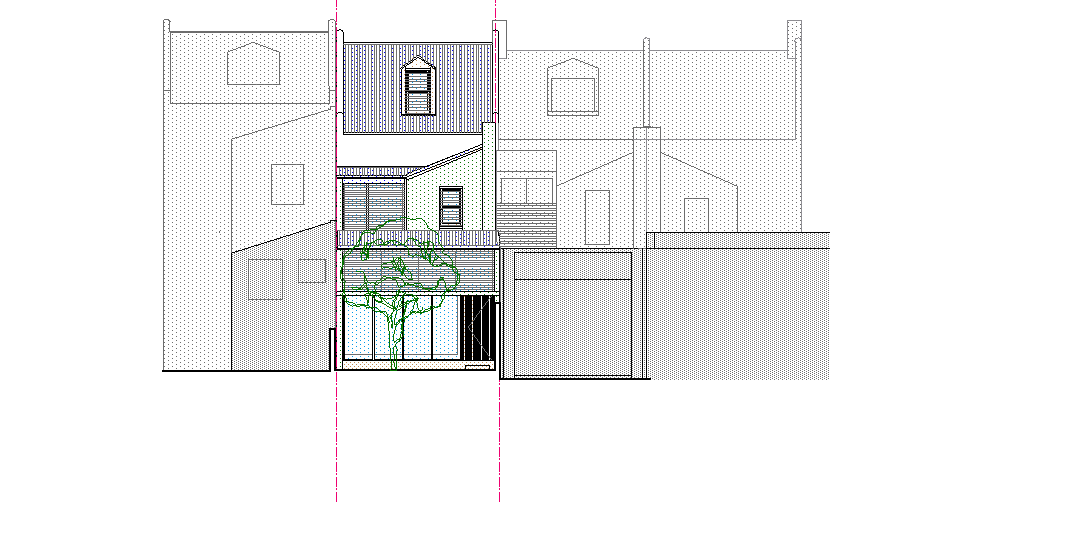

House YP, Glebe
Additions & alterations to the rear of a terrace house

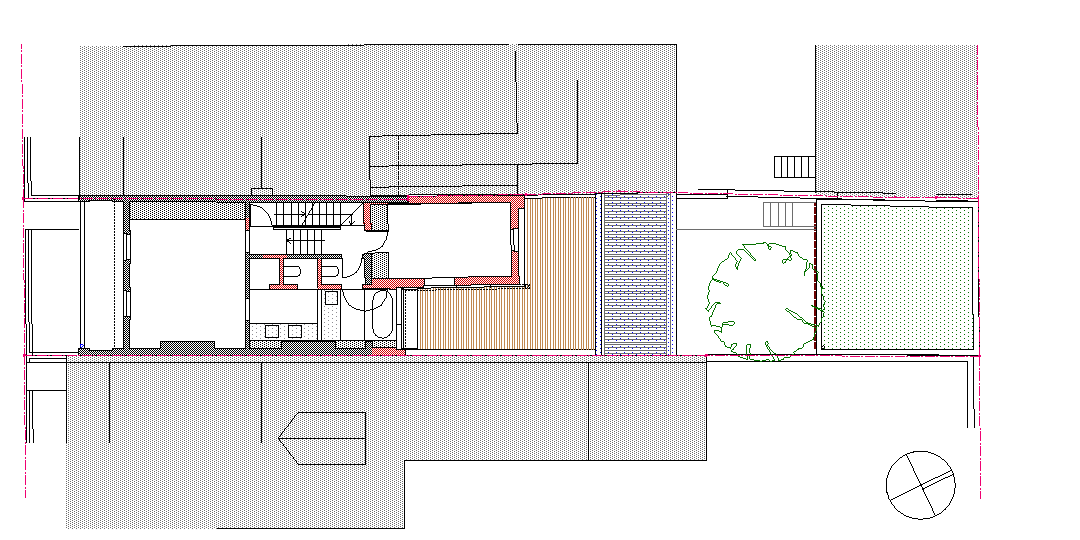

All work is proposed to ensure maximum benefit for the
budget. No work, except for a dormer, is proposed to the
front of the house including the existing stair. New
openings are arranged to provide maximum benefit. The rear
doors slide past a small WC to fully open to the yard. A
small courtyard is proposed to the retention of an existing window
to the front of the house, and to provide cross ventilation
and daylight in the centre of the house.
Photos, Katherine Lu, Phillip Arnold
Structural Engineer, Damian Hadley, Cantilever Engineers
Built by Wales Built, Mike Wales & Grant Cornwall
-

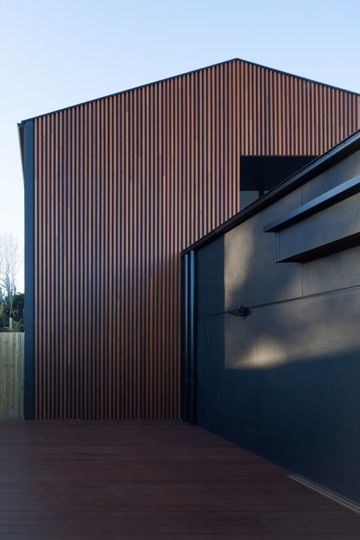

House HR, East Lindfield
Additions & alterations to a house in East Lindfield
-

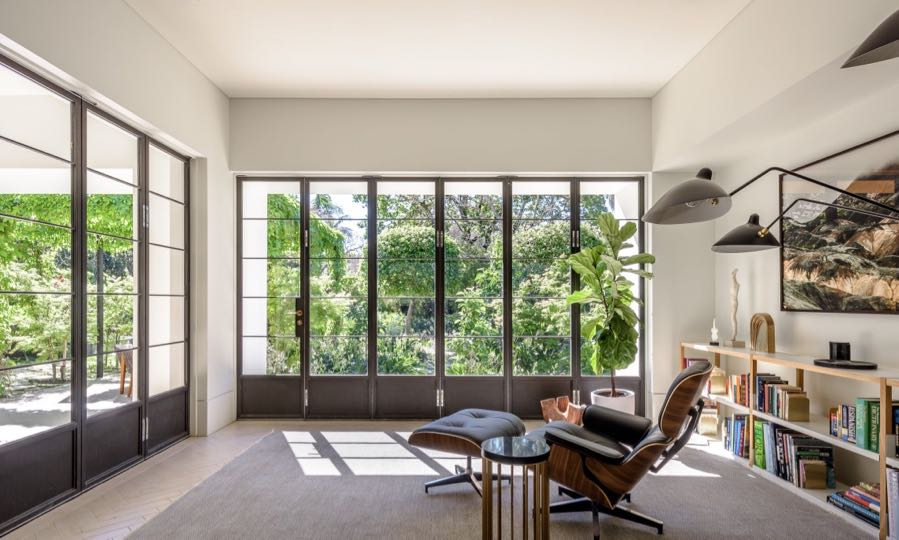

House CH, Woollahra

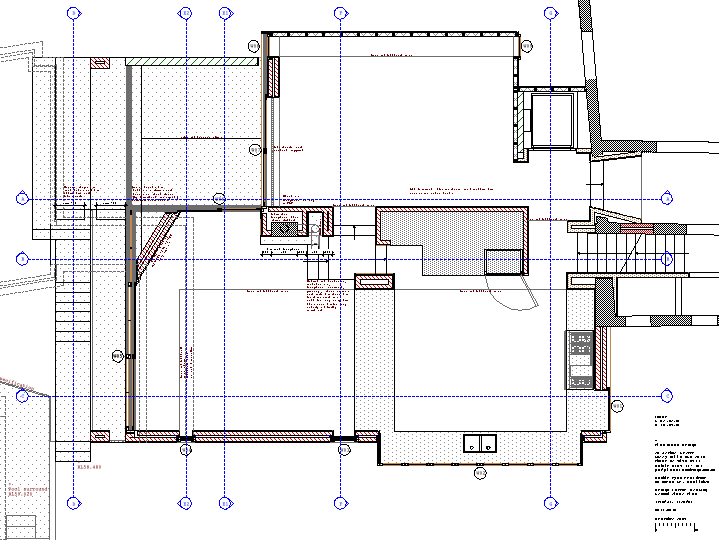

Our client did not want an open plan, but wanted new rooms to respond
in size and scale to the existing house.

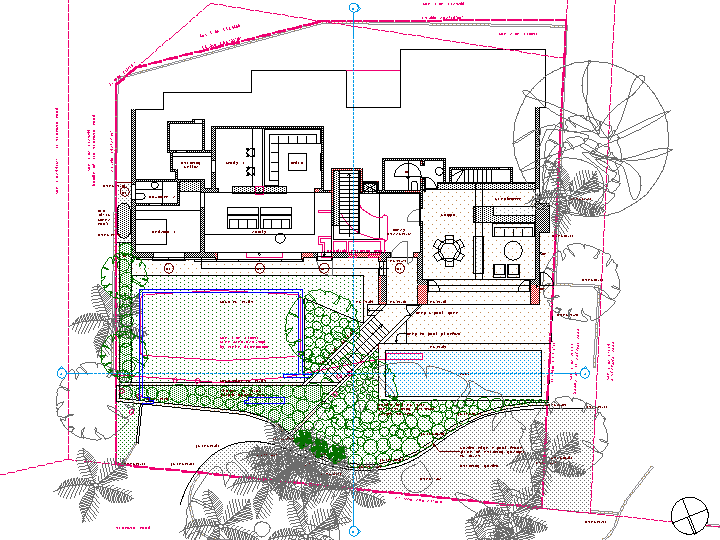

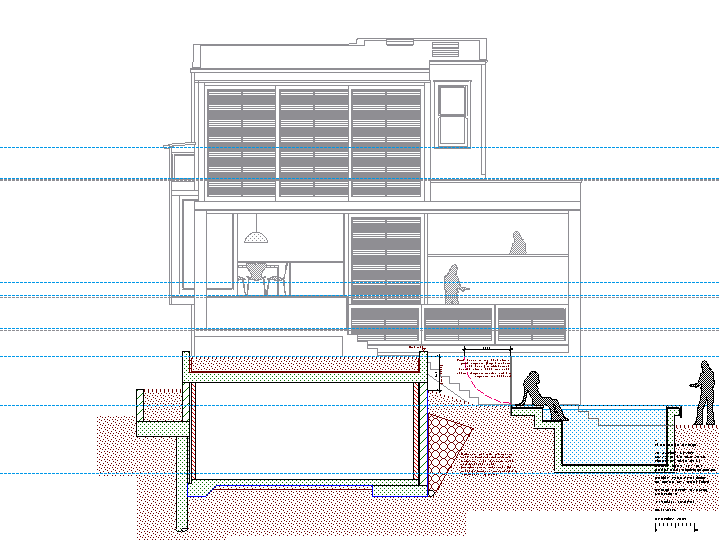

The yard was more than 3m lower than the principle rooms. The
addition gradually steps down to a lawn above a new garage. The level
change between this lawn and the pool allows the pool fence to be set
lower than the level of the lawn.
Structural Engineer, Richard Yates, James Taylor & Associates
Builder, Wales Built, Mike Wales & Nick Deegan
-

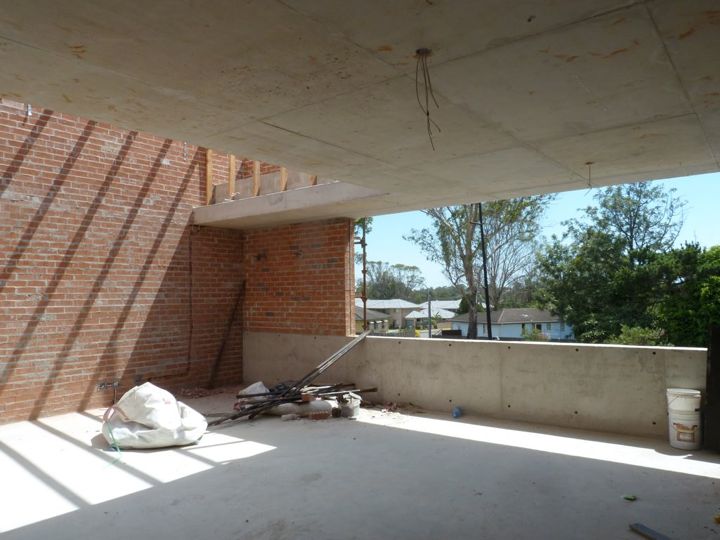

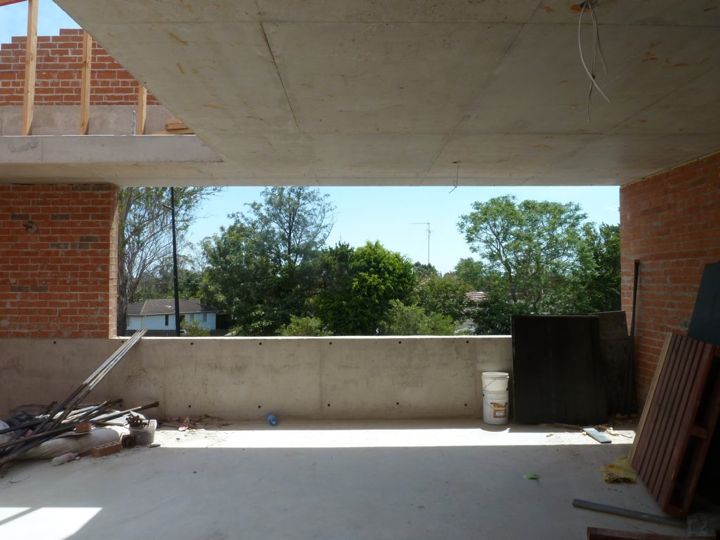

House AM, Gladesville

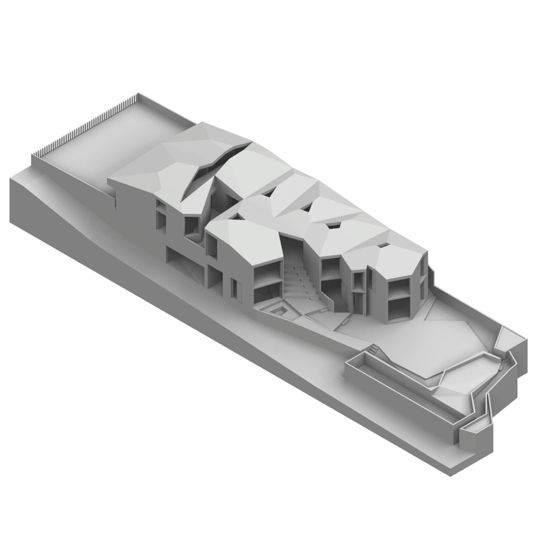

New dwelling
Our client required a family home, but he also wanted to
display powerful motorbikes and effectively wanted a
nightclub at the lower level.

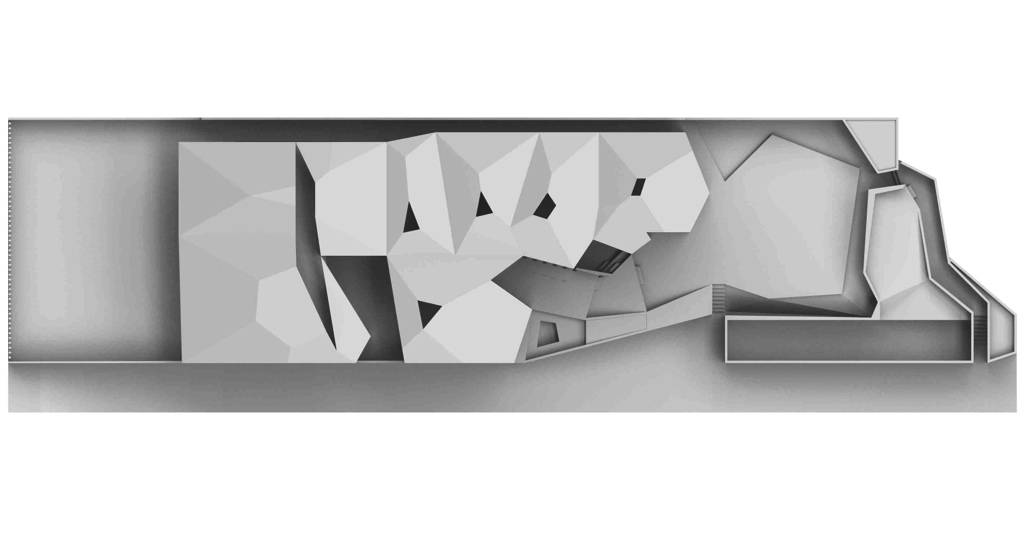

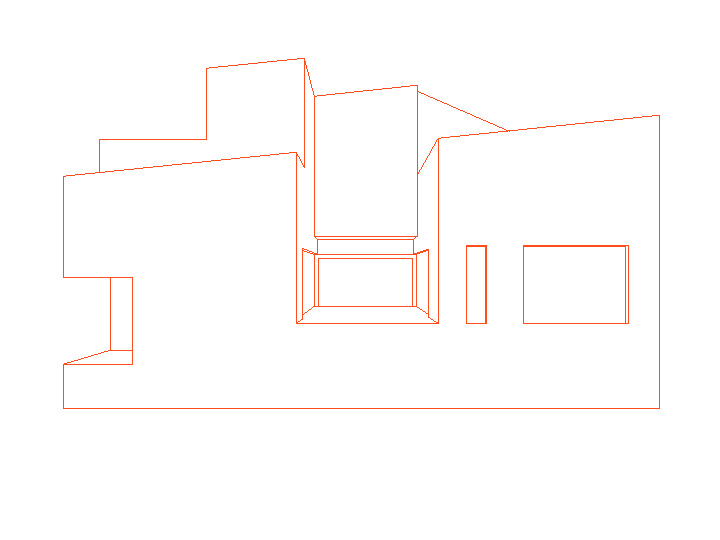

The house was designed to be constructed out of insulated
pre-cast wall panels with in-situ floor and roof slabs.

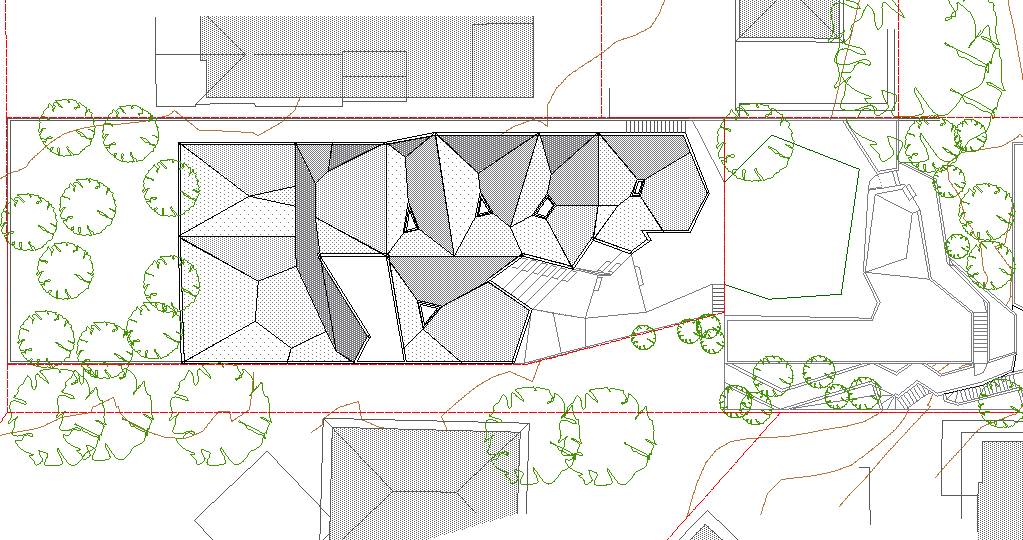

The view to the Parramatta River is to the South. Skylights
were introduced to provide Northern light and to illuminate
the folded roof plane. Courtyards provide direct access to
external areas, away from inclement weather. Principle south
facing windows are fixed single panes to limit obstruction
from the view. The arrangement of the rooms directs one's
gaze to the view but also allows conventional furniture
arrangements.
-

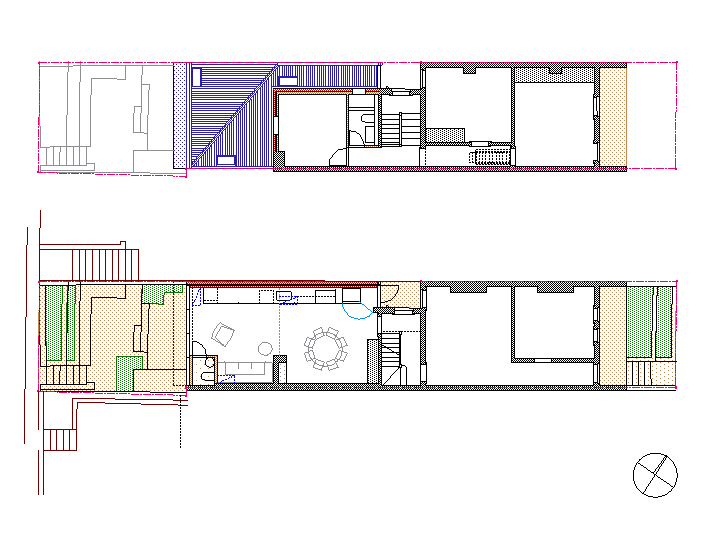

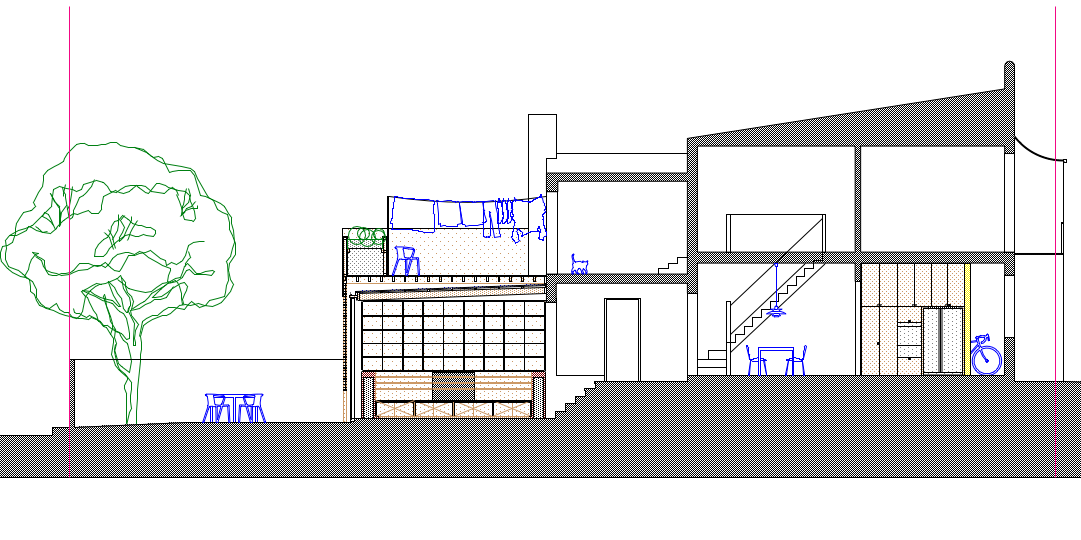

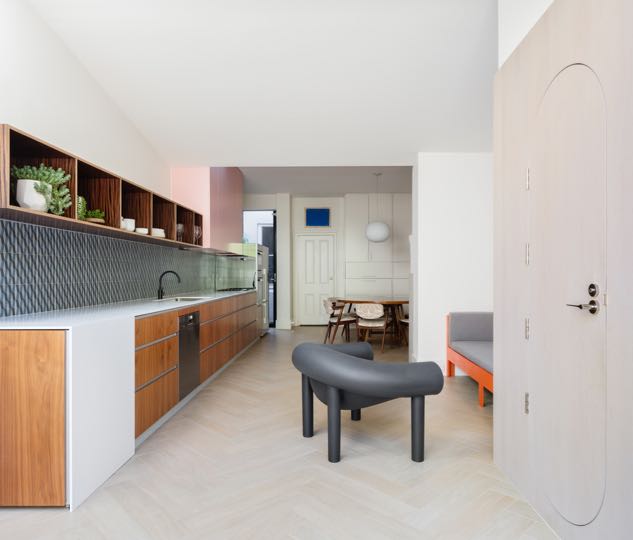

Australia St, Newtown
Alterations to a terrace in Newtown

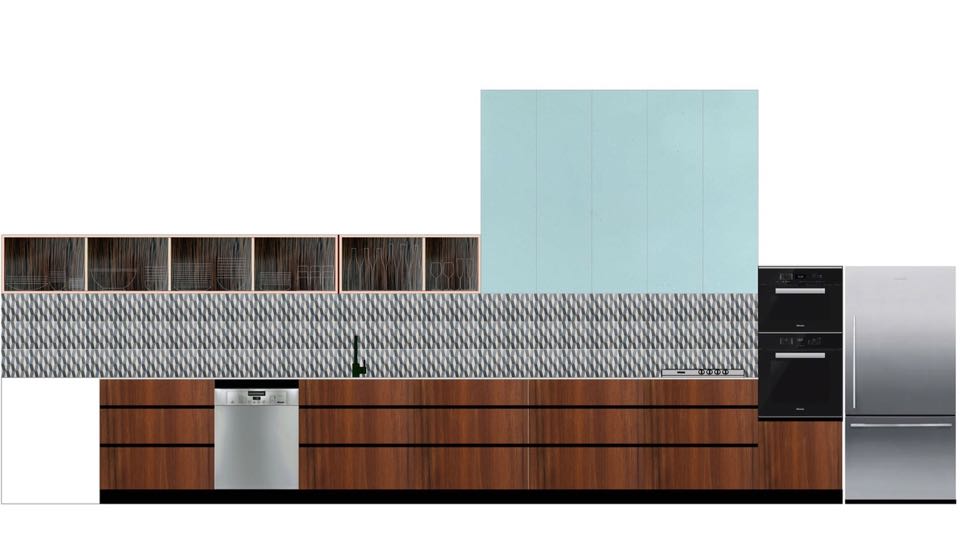

The house was large enough, but was pokey and badly connected to the
yard. It did have a roof deck with views across the roofscape of

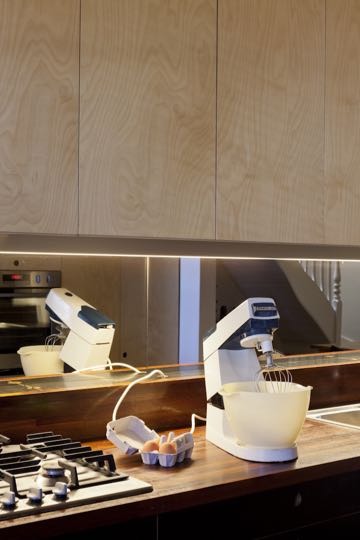

Newtown. We moved the kitchen to the front room to better connect
the front door and street, dropped the living room to the garden
level and opened it to the yard. It had been suggested that the roof
deck might be converted to another bedroom, but this exceeded my
clients’ requirements and once deleted, planning controls would not
permit its reconstruction. It’s a beautiful, private spot.
Photos, Joy Lai & Phillip Arnold
Structural Engineer, Cantilever Engineers
Built by Wade Larratt
-

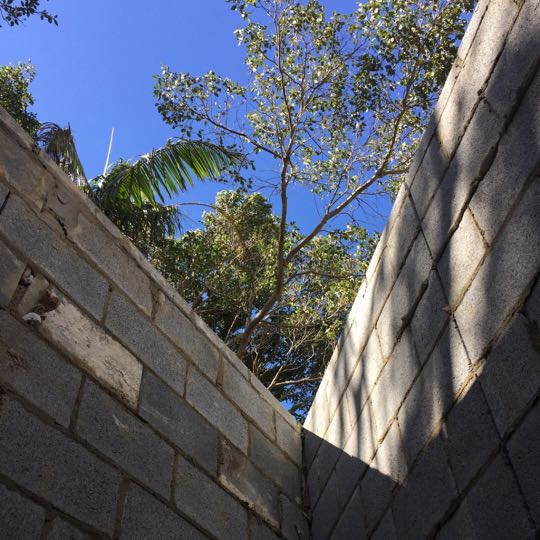

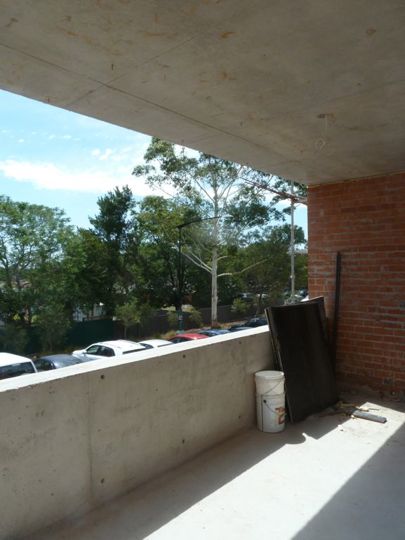

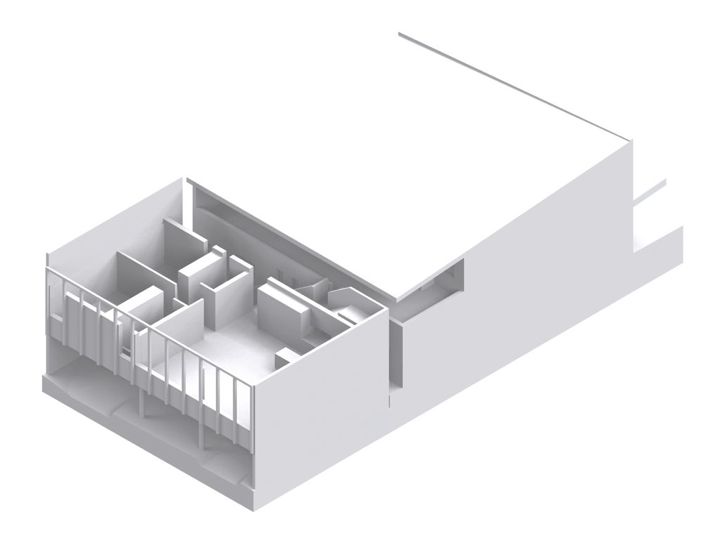

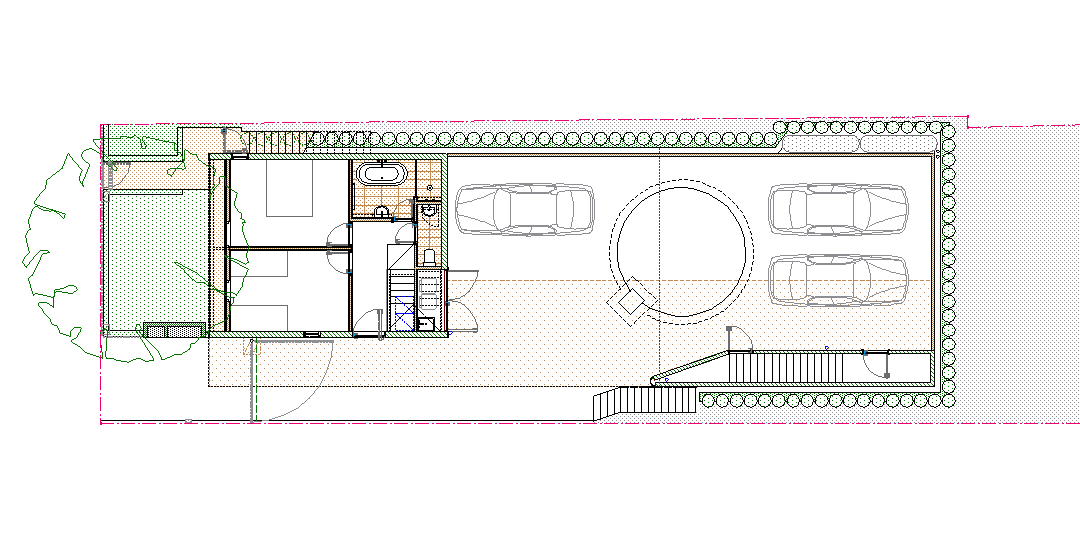

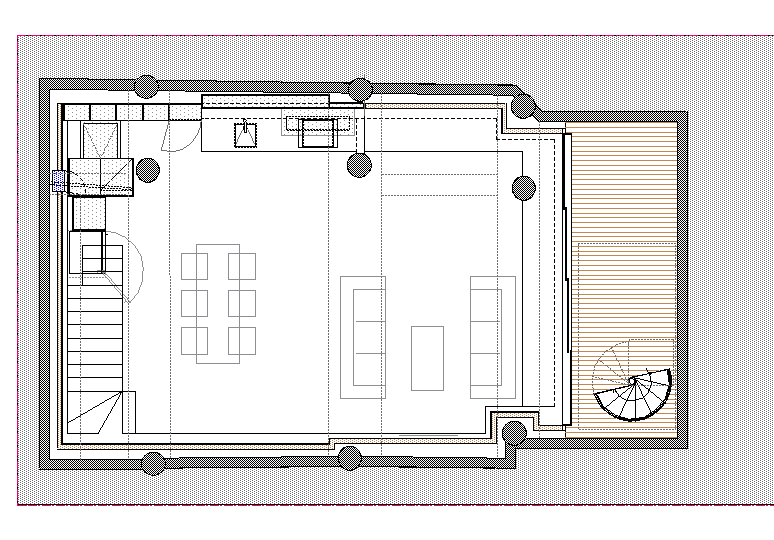

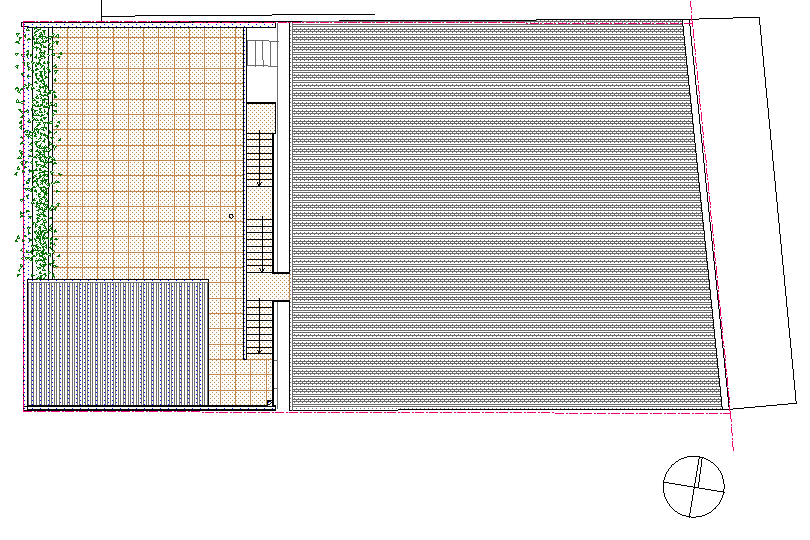

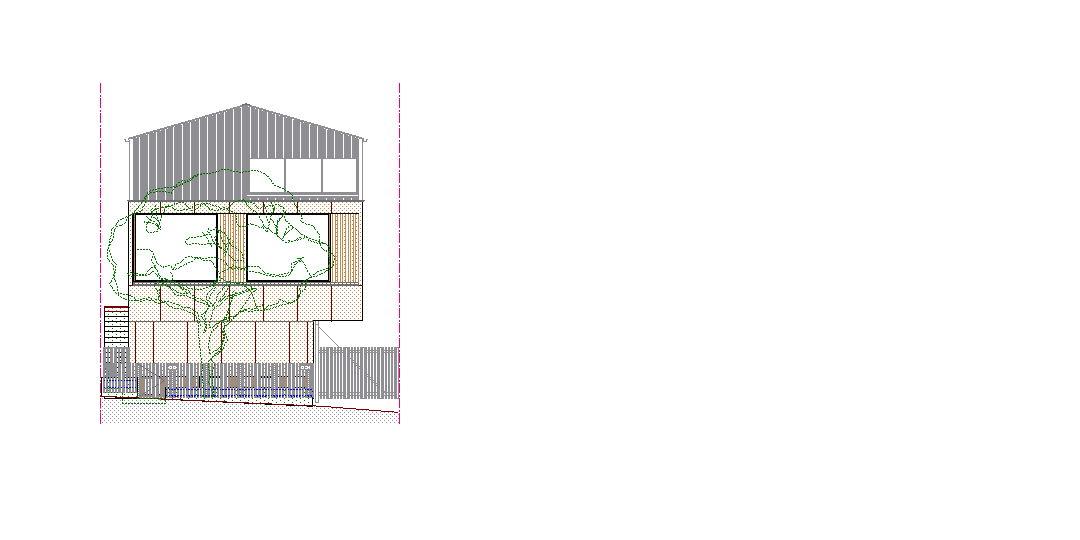

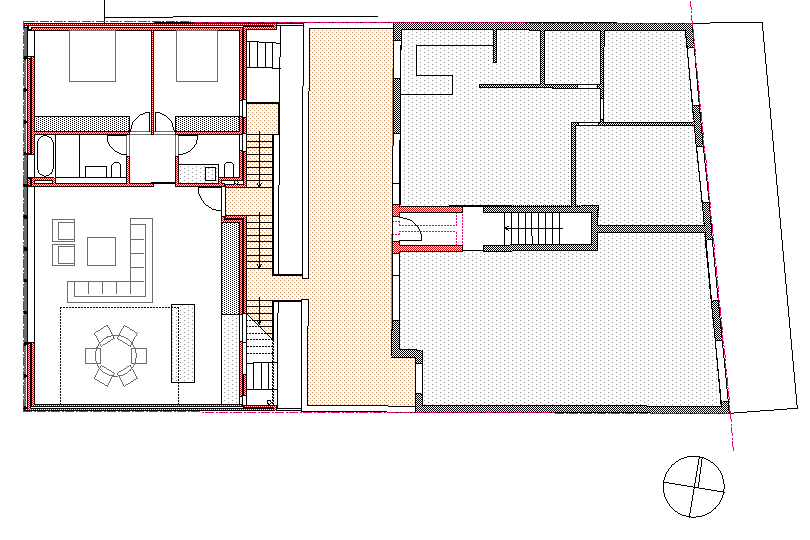

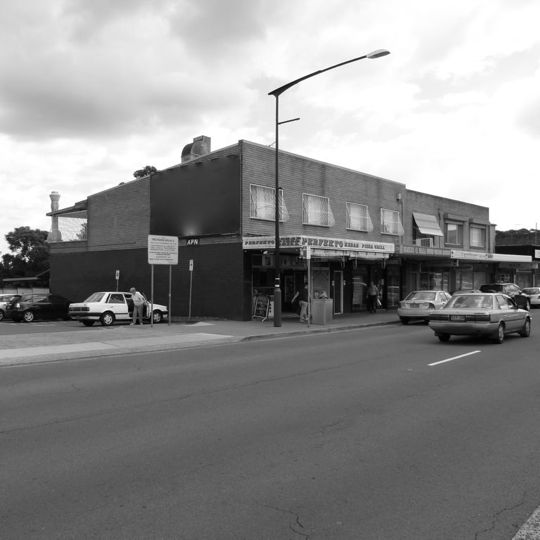

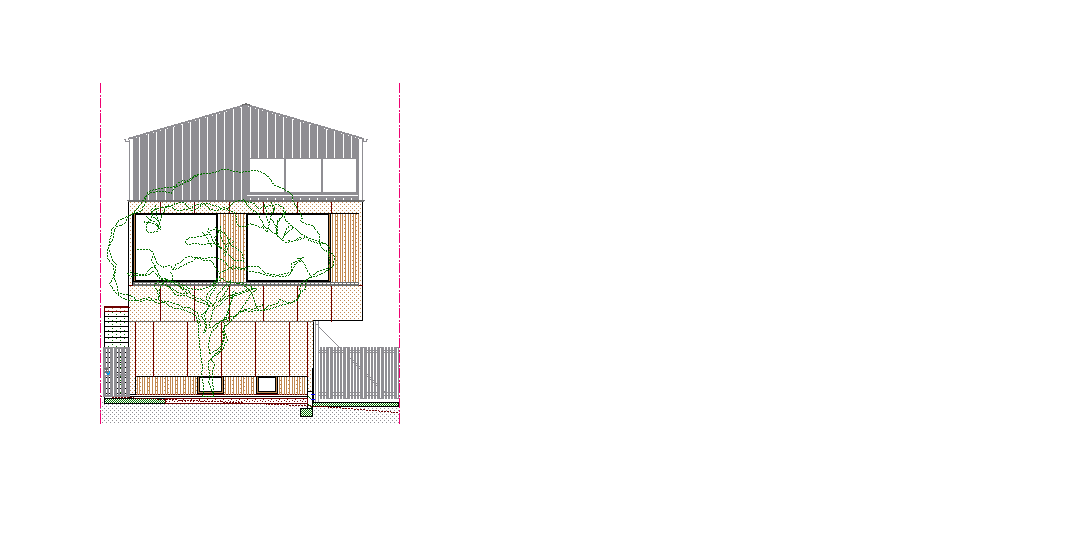

Carpark Dwelling, Marayong
A new dwelling above a carpark behind some shops
The existing building has 2 apartments above a accountancy
office and a pizza shop. A new apartment is proposed above
the existing carpark at the rear. The windows off the new
living space look directly into the canopies of nearby
trees. A roof terrace above the apartment provides
additional amenity to all apartments.
-

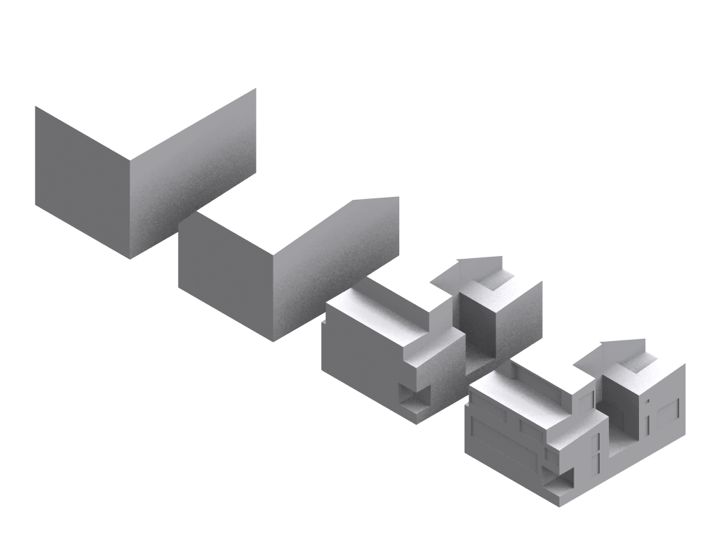

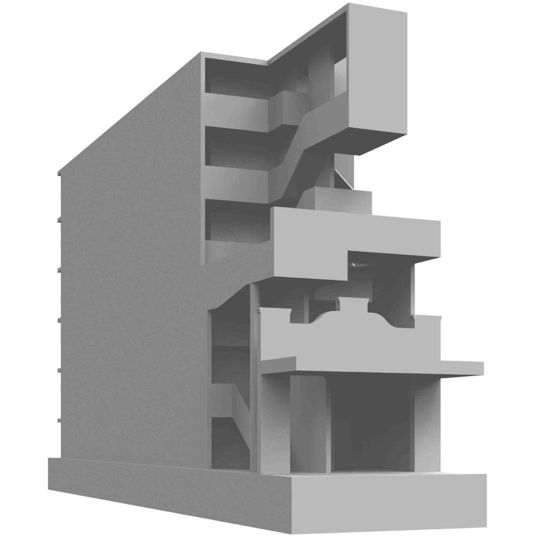

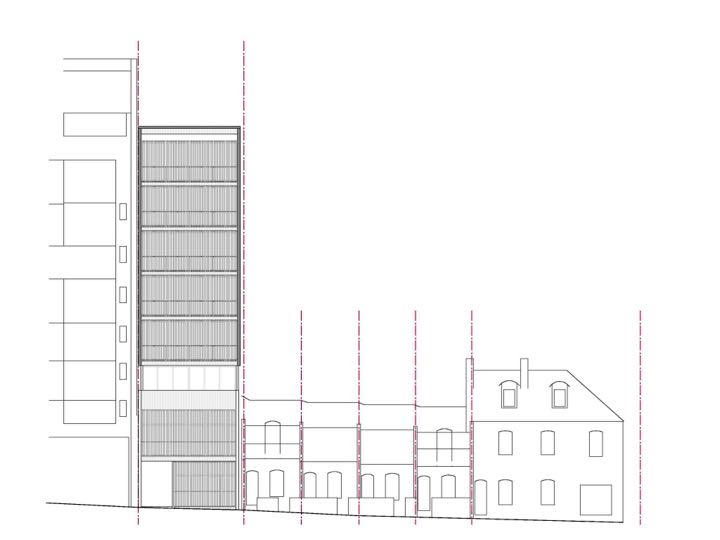

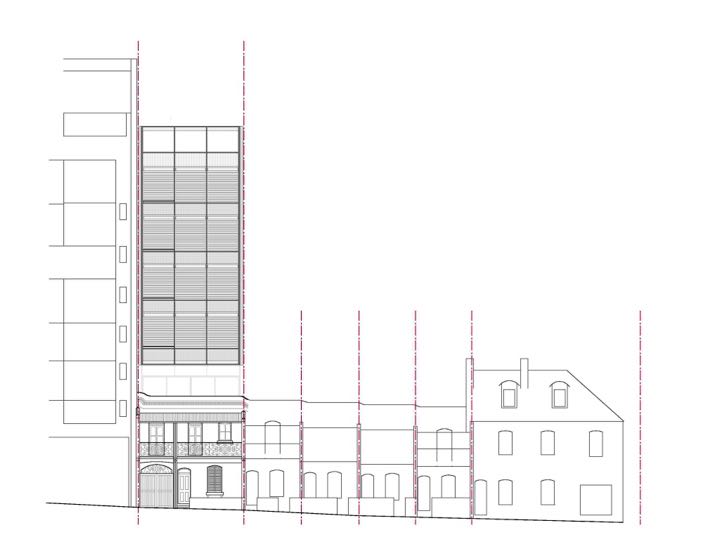

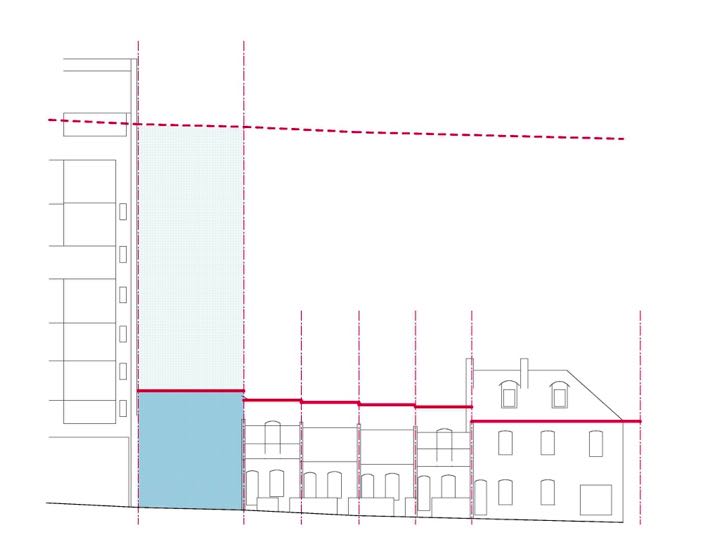

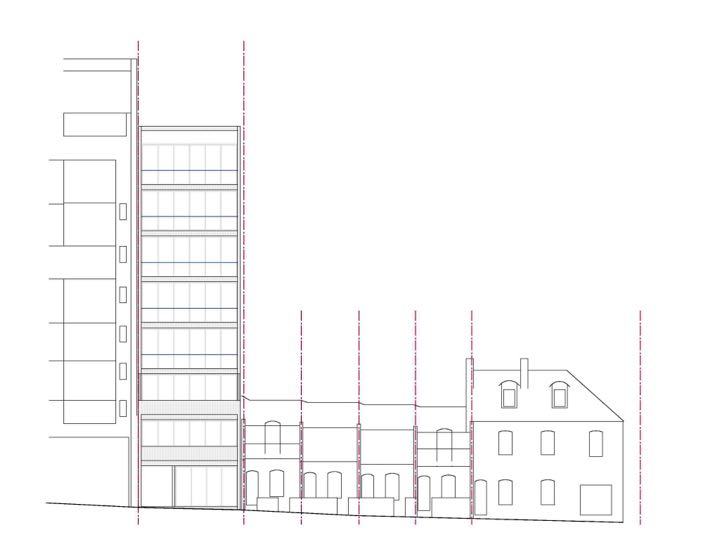

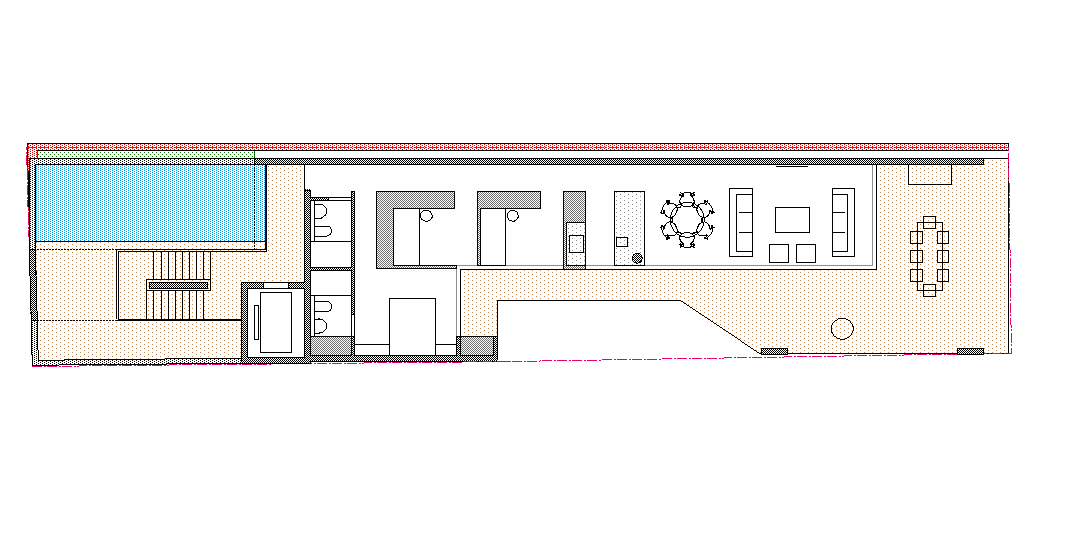

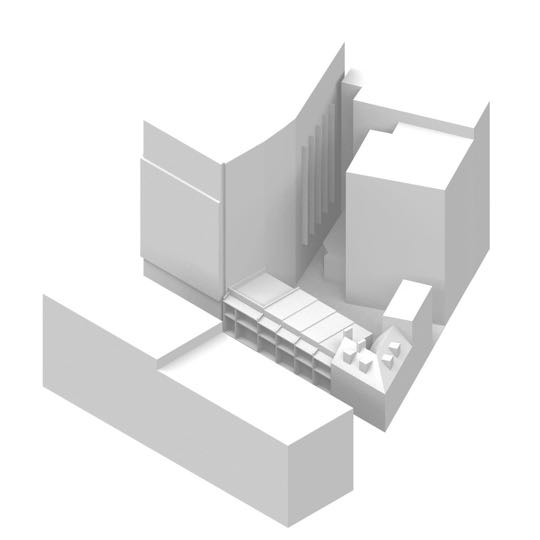

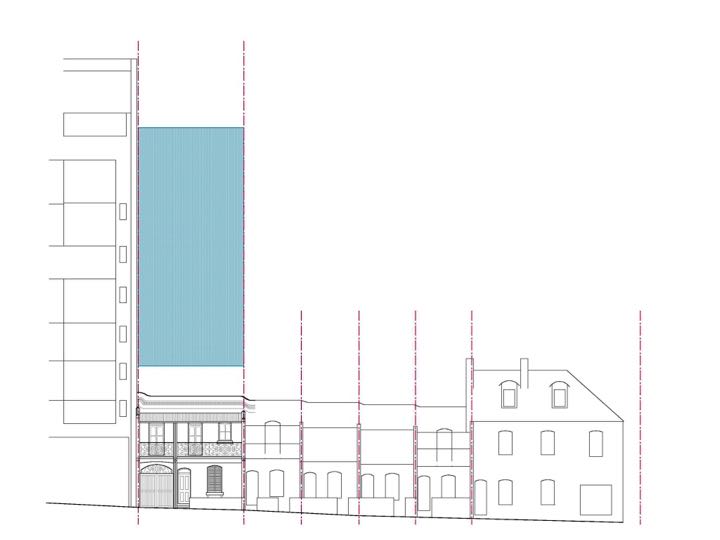

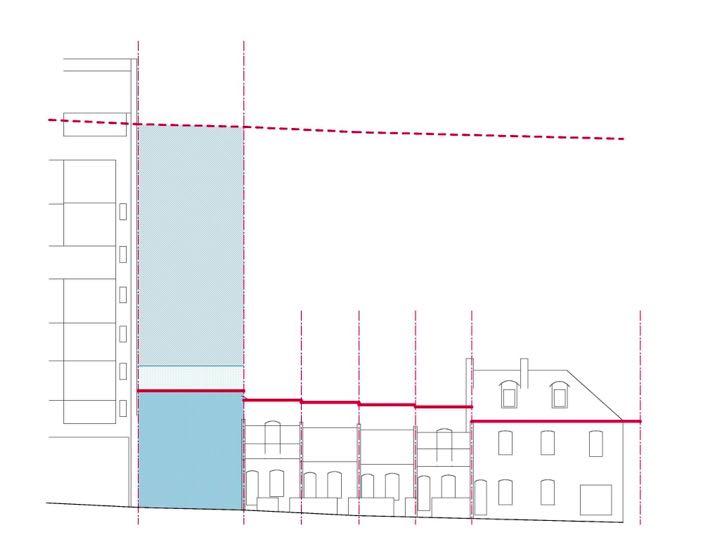

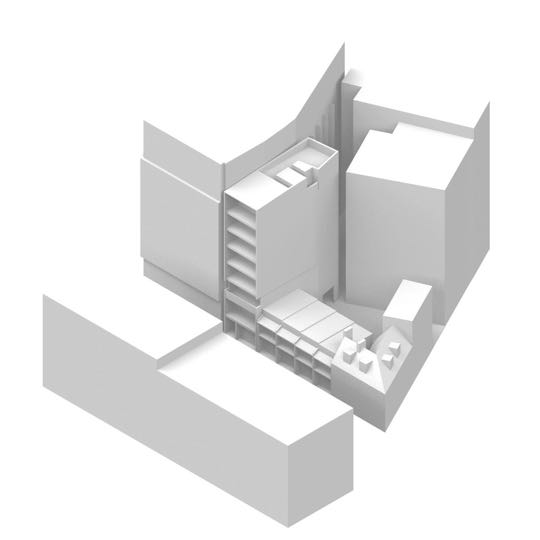

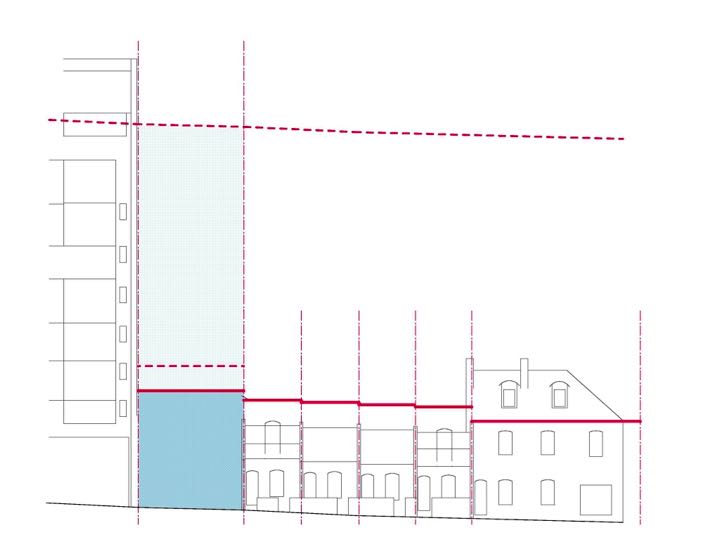

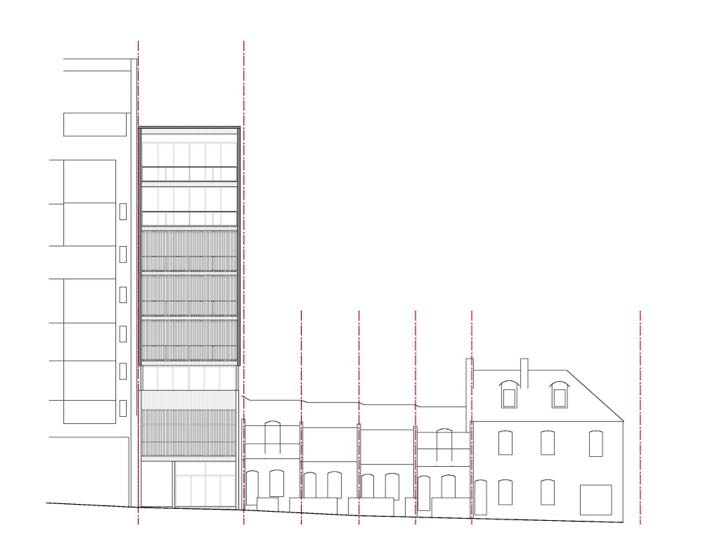

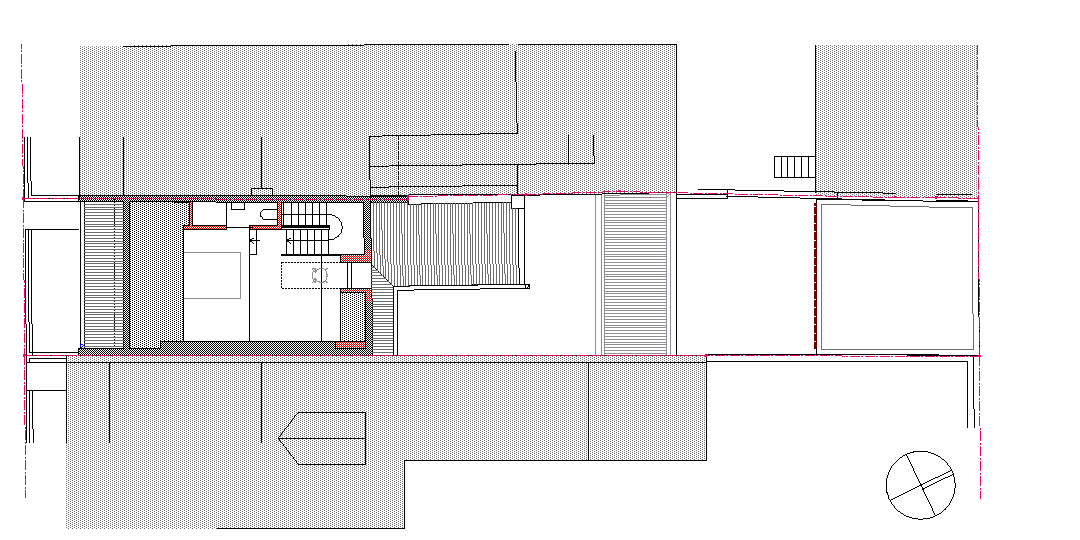

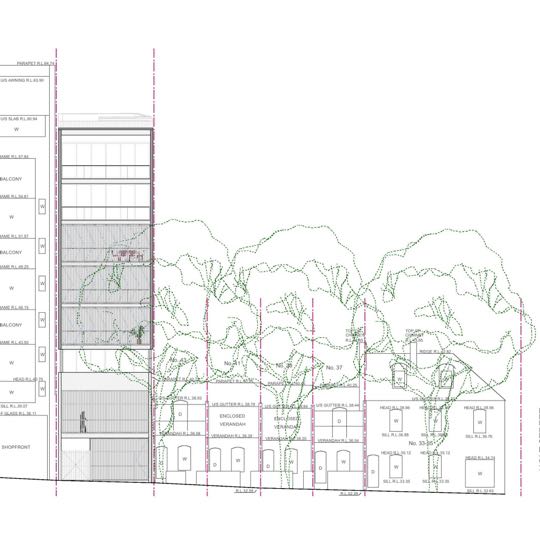

Terrace and Tower
-
-

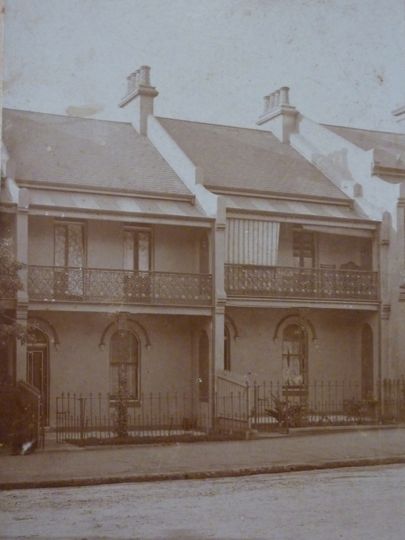

Existing
-
Height limit
-
Street frontage height
-
Break between terrace and tower
-

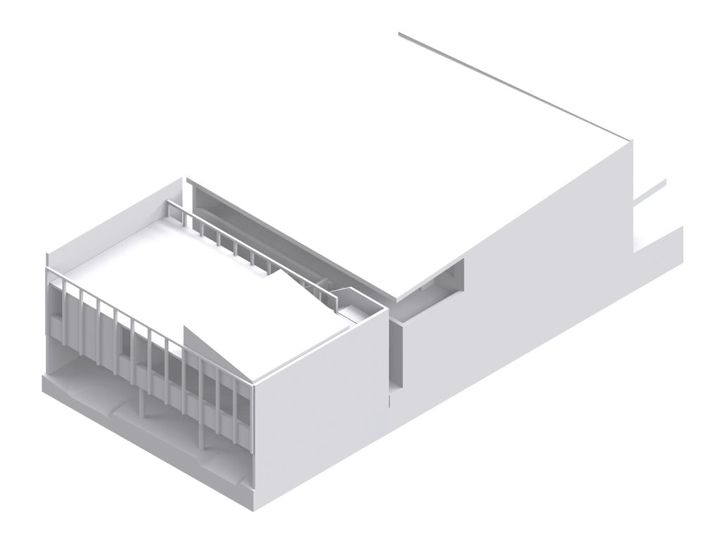

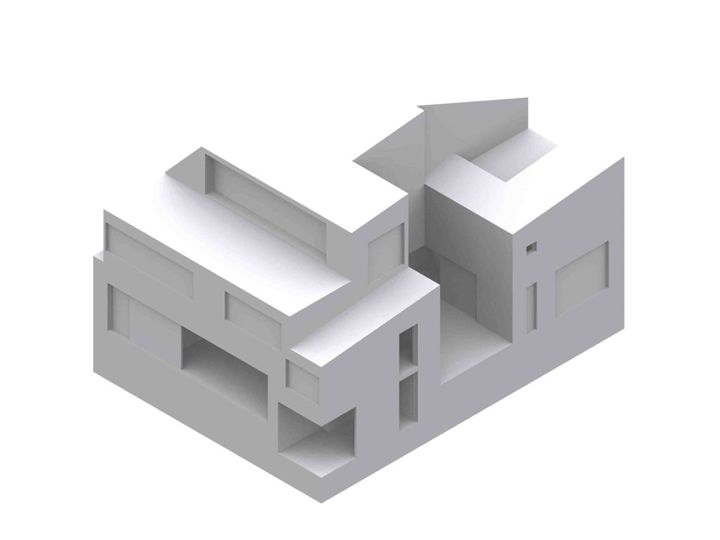

Terrace and tower
-
Terrace and tower
-
Option 1
-
Option 2
-
Option 3
-
Option 4
-
Option 5
-
Option 6
-
Option 7
-

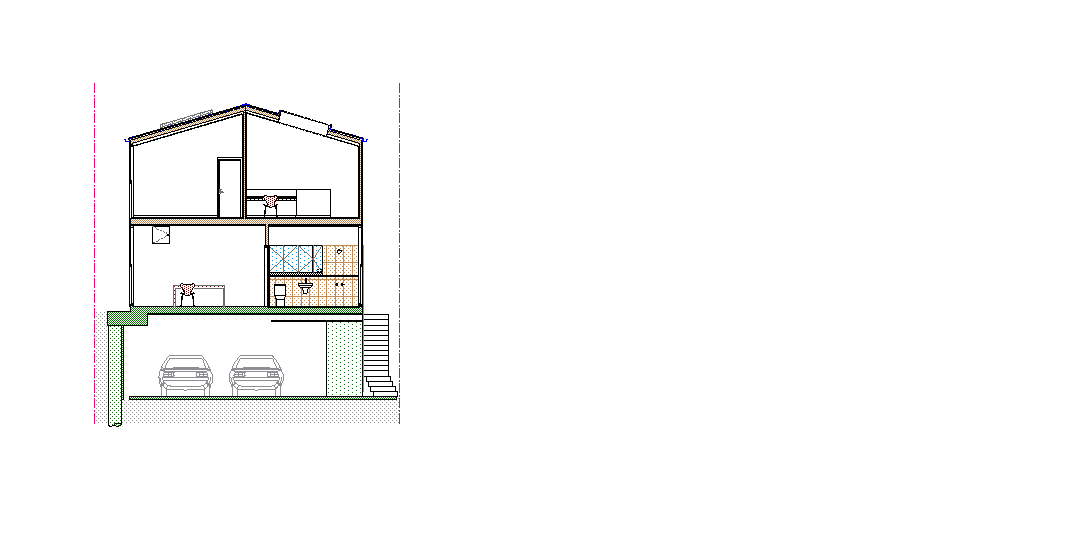

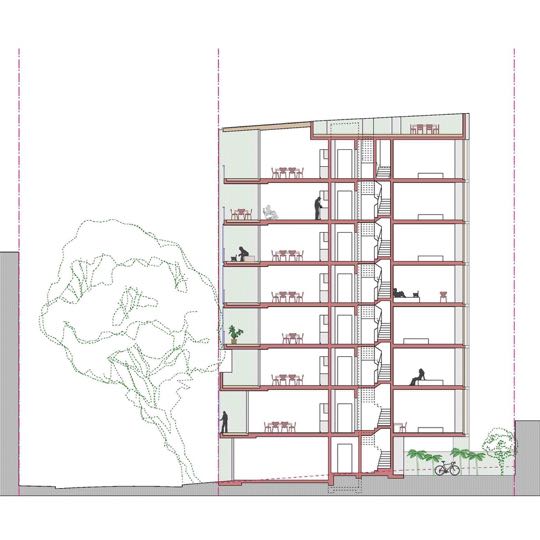

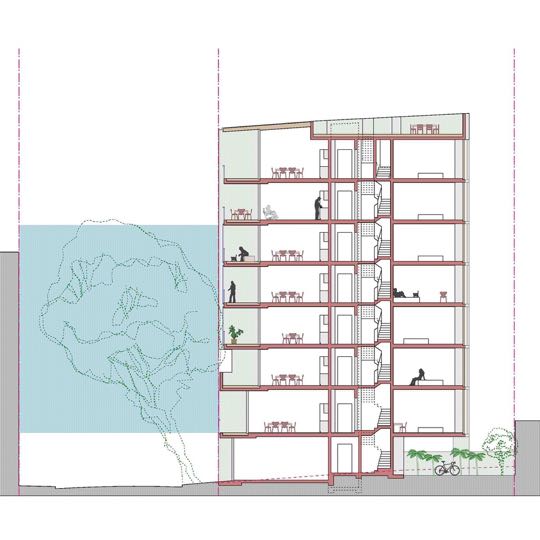

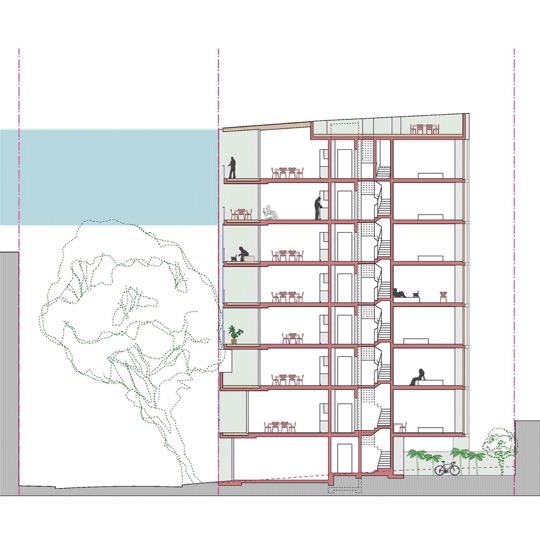

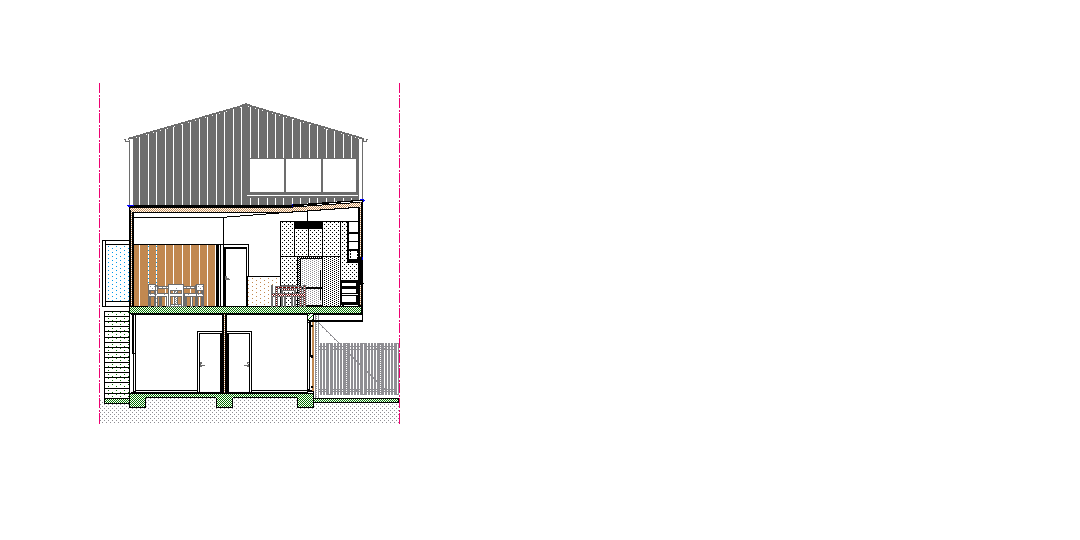

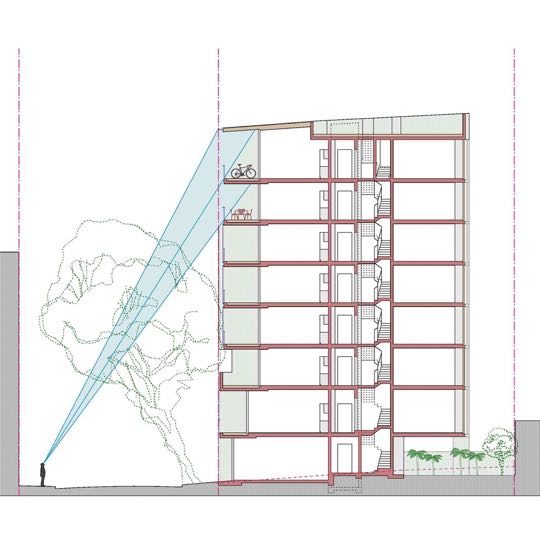

Section
-

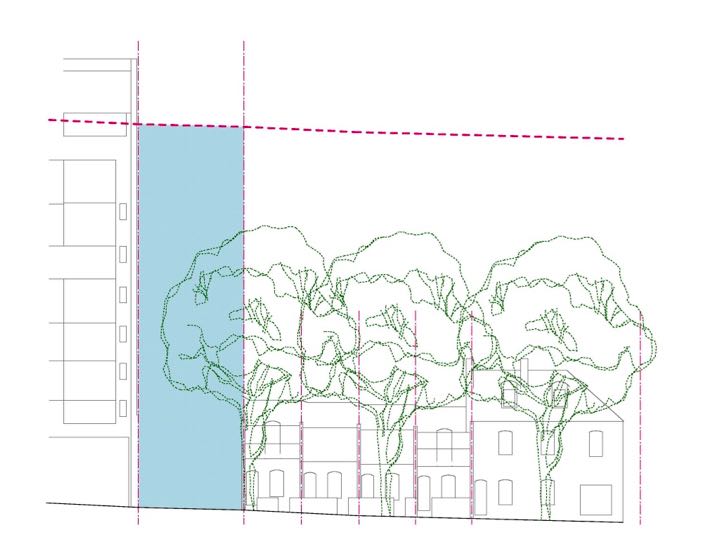

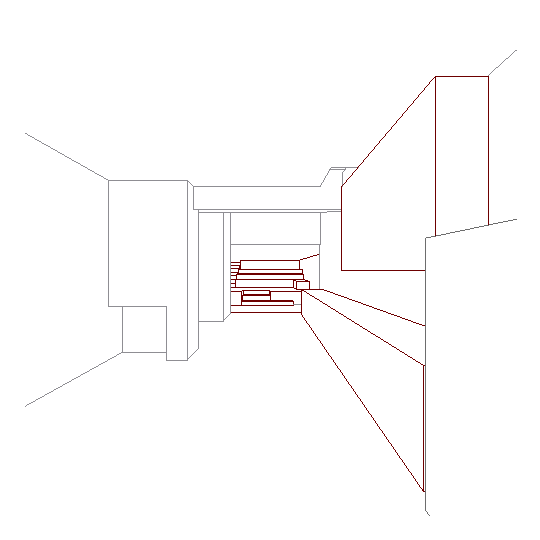

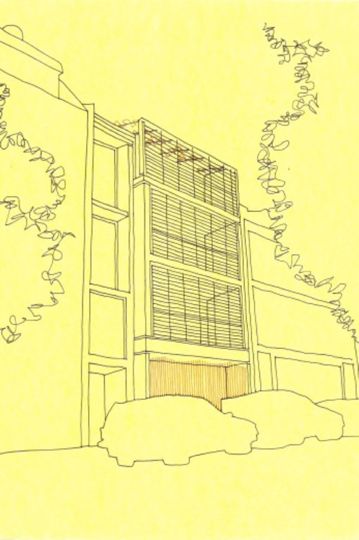

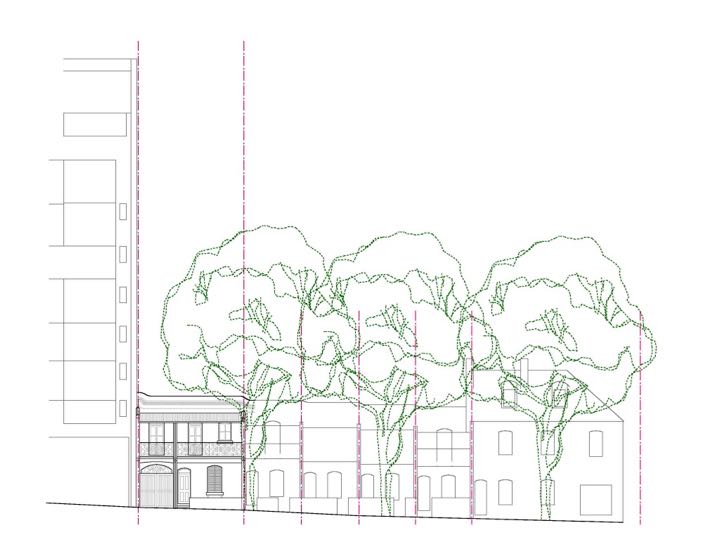

View from street
-

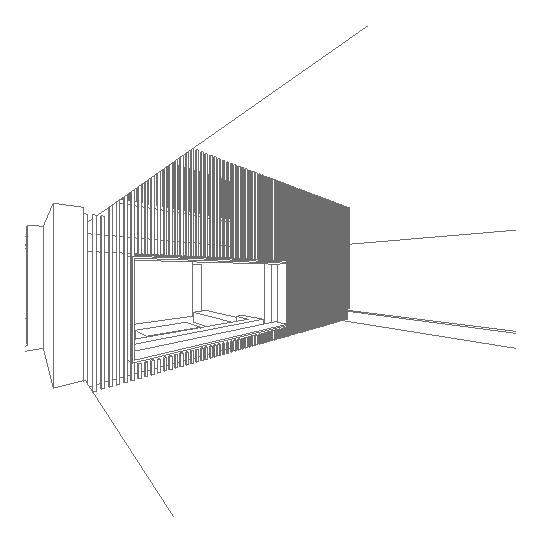

View into tree canopy
-
View to skyline
-
Existing
-
Proposed
-
-
-
-
-
-
We participated in a competition for a small apartment building
on a terrace house site. We won the competition. The project is not
proceeding.
-

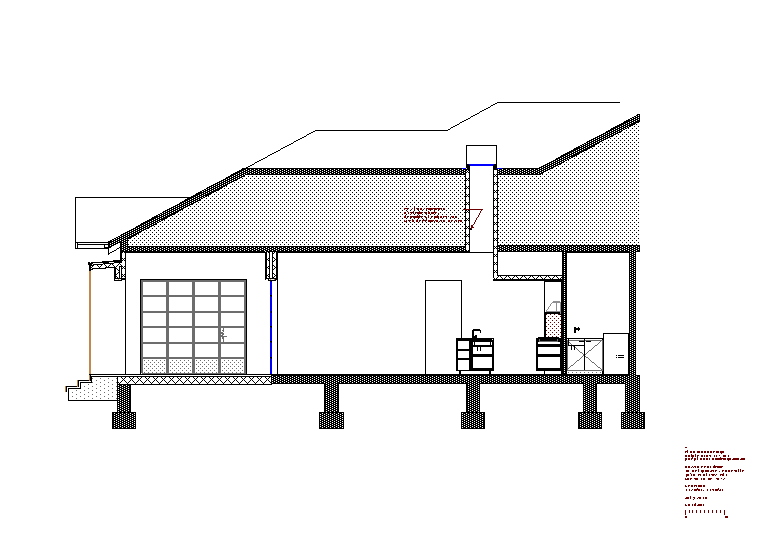

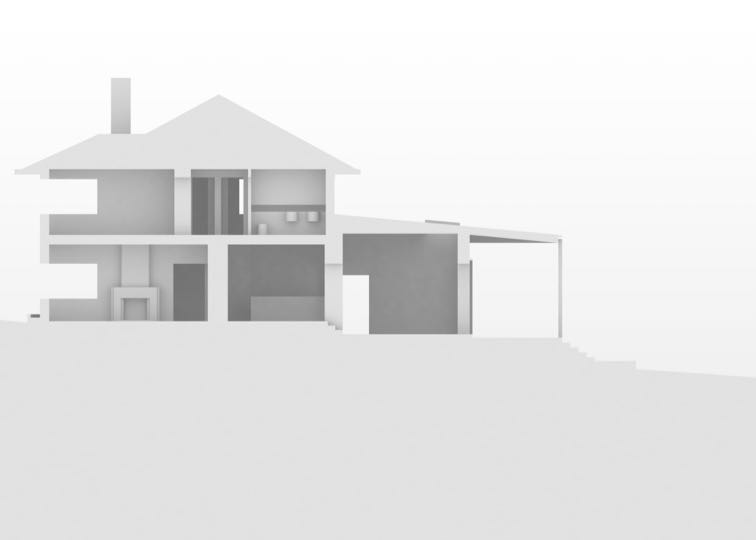

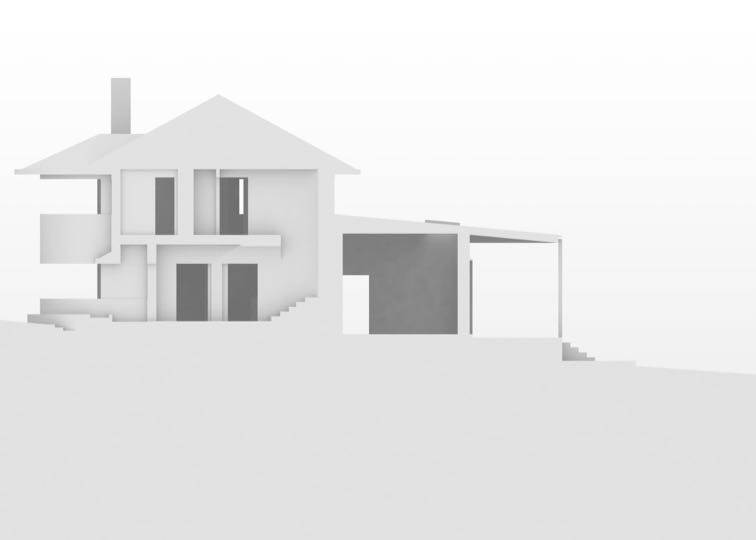

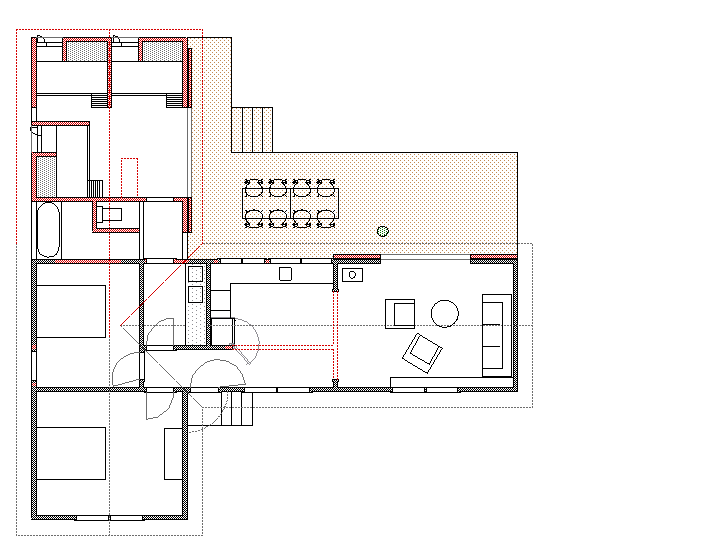

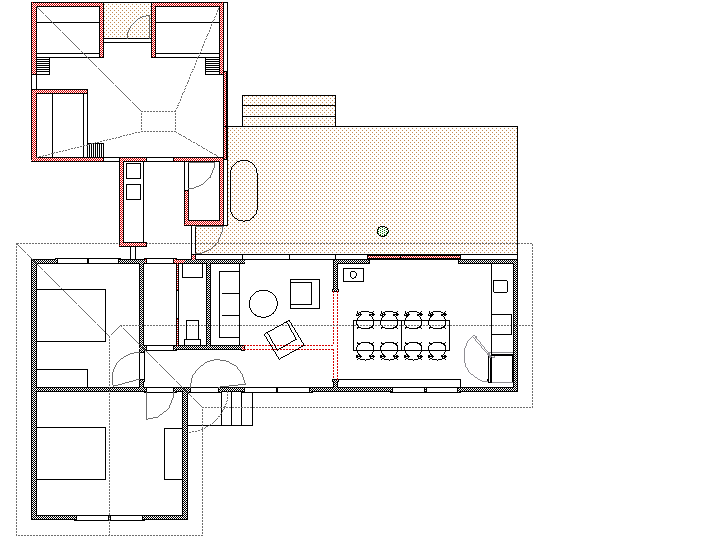

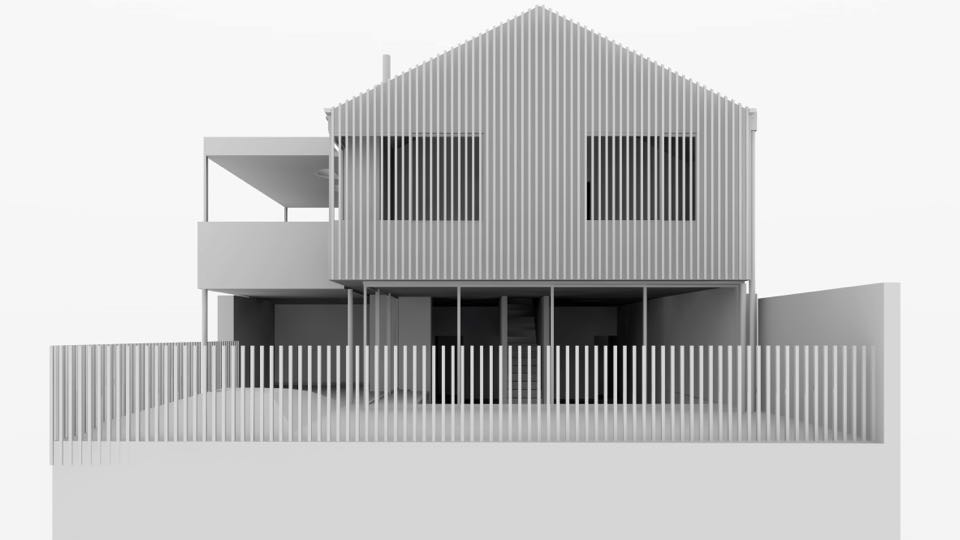

Bunk House, Bullaburra
-

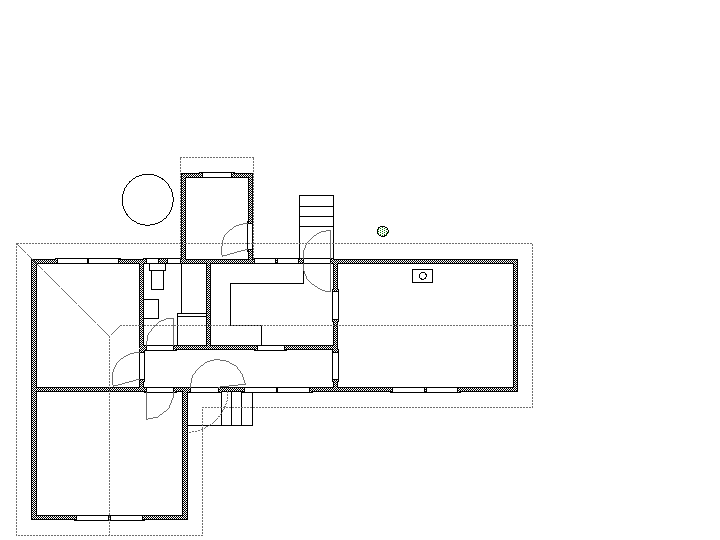

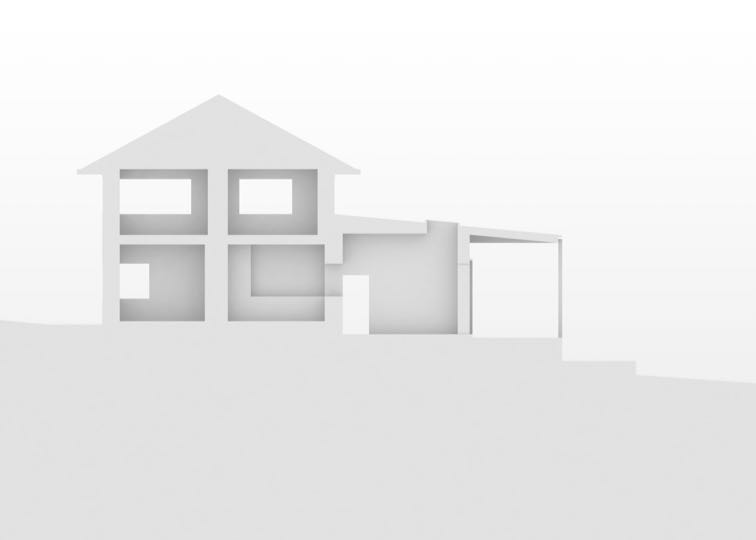

Existing
-

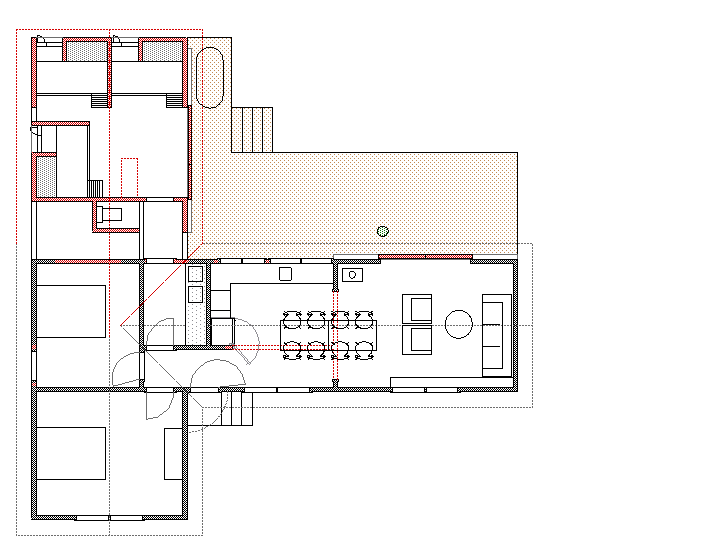

Option A
-
Option B
-
Option B
-
Option B
-
Option C, winter
-
Option C, summer
-
Option C
-
Option C
-

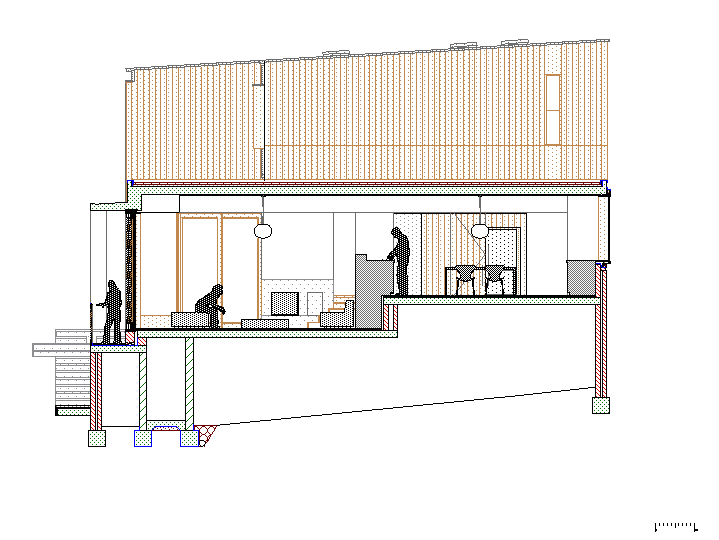

Option D

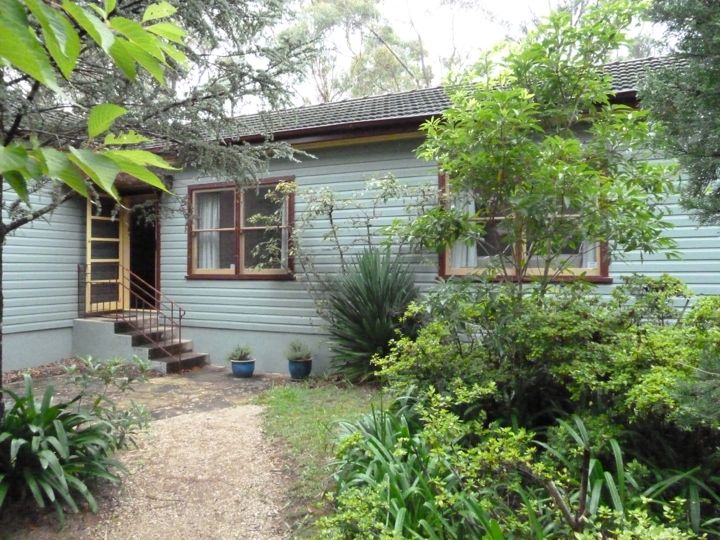

Additions & alterations to a cottage in the Blue Mountains

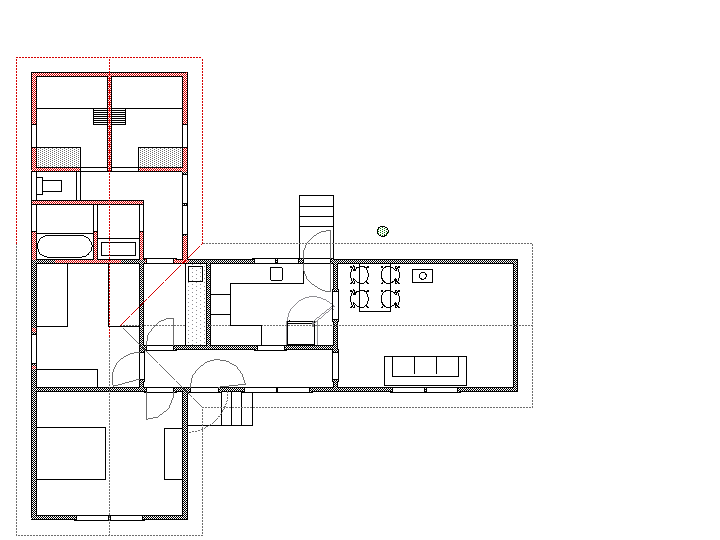

An existing cottage adapted to suit the requirments of a
large blended family on a budget. Rather than multiple extra
bedrooms, a new family room is proposed lined with bunk-beds
for 6. An existing second bedroom is back-up for guests,
study or sick kids. Further alterations are carefully
considered to ensure maximum benefit for expenditure.
-
House HT, Bellevue Hill
Additions & alterations to a house
Minor adjustments improve the arrangement of living spaces
and improve the relationship to the well established gardens
on all sides of the house.
-

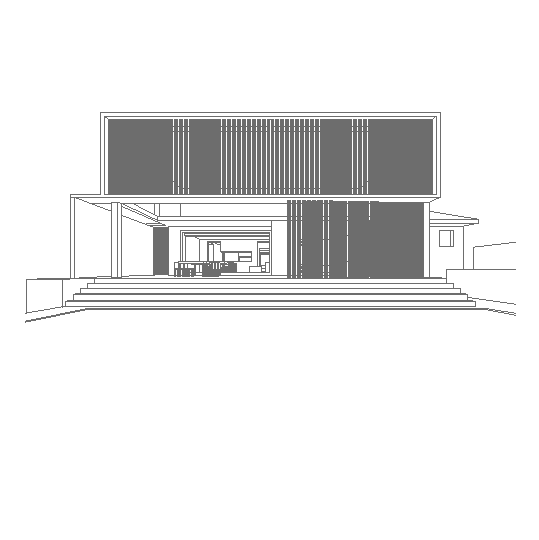

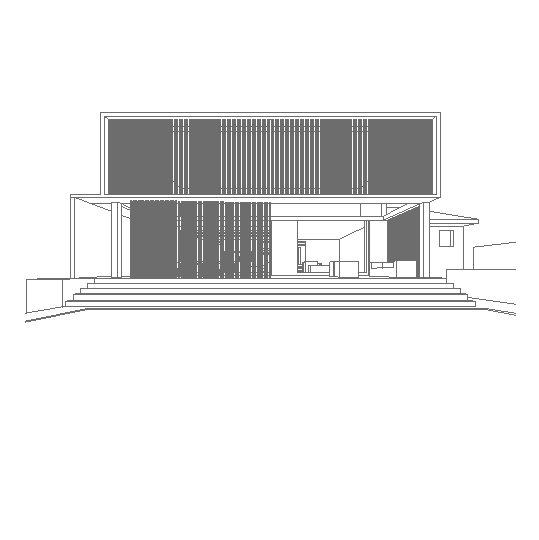

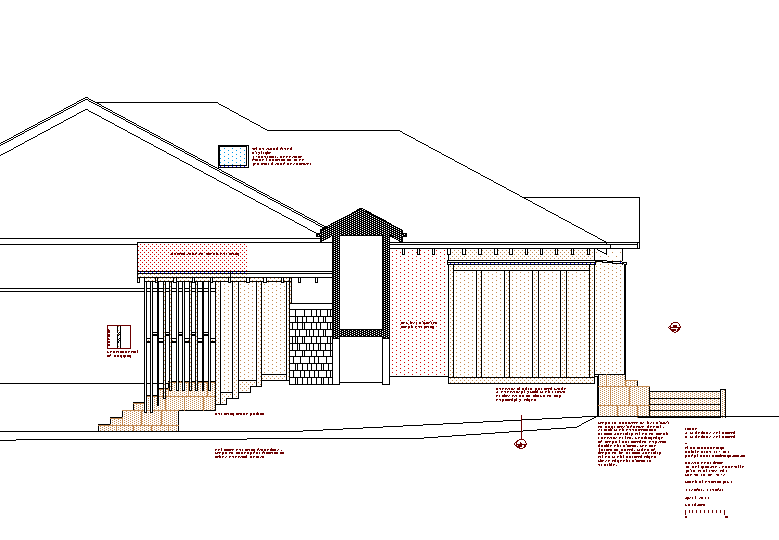

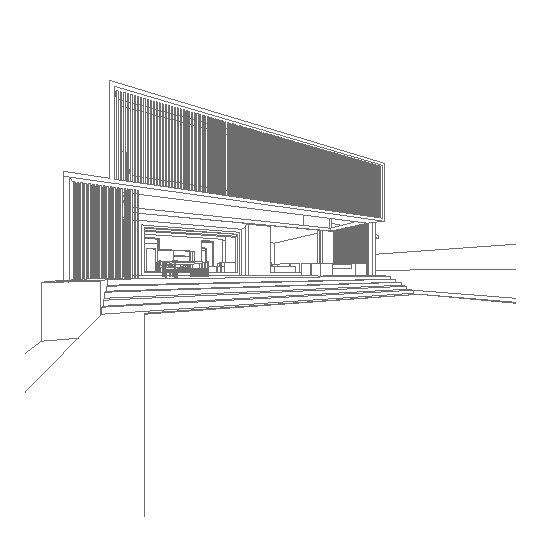

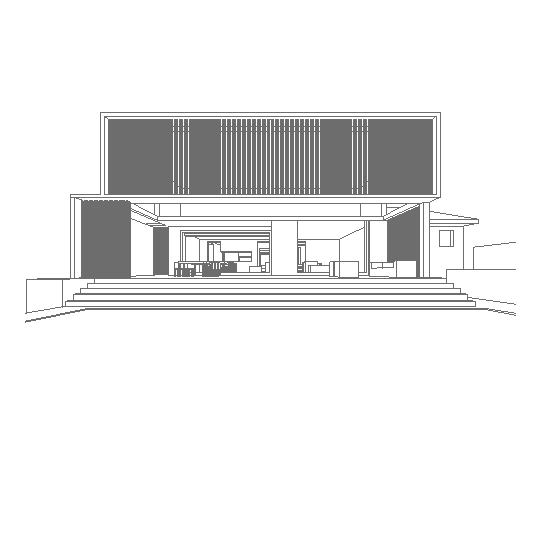

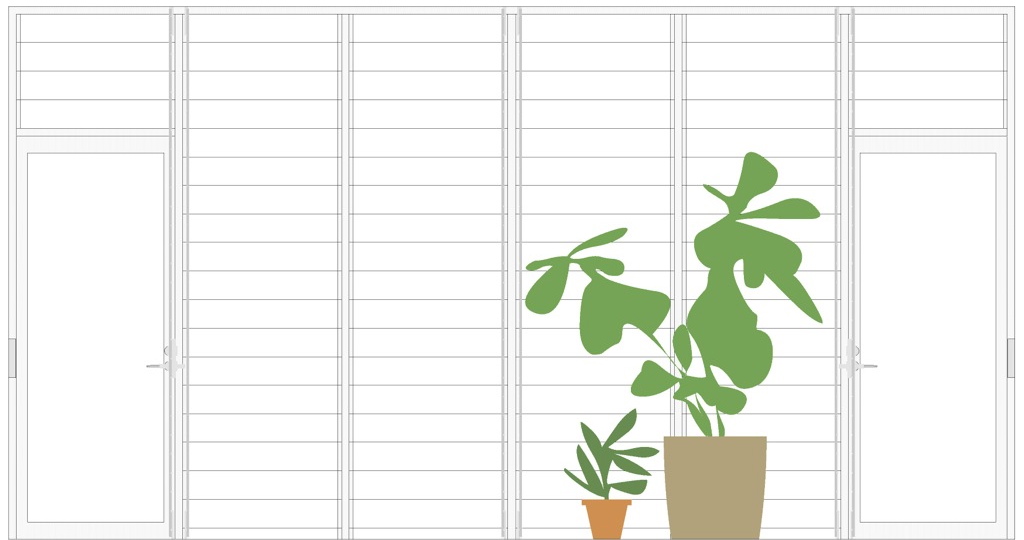

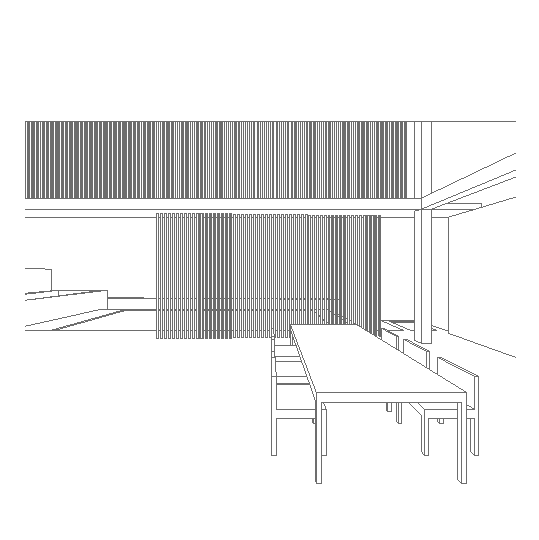

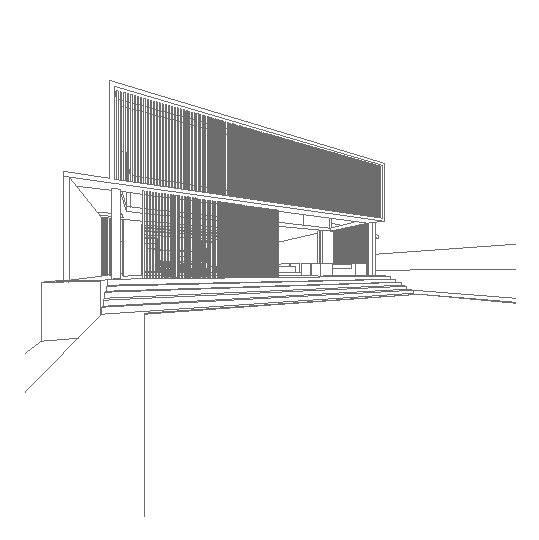

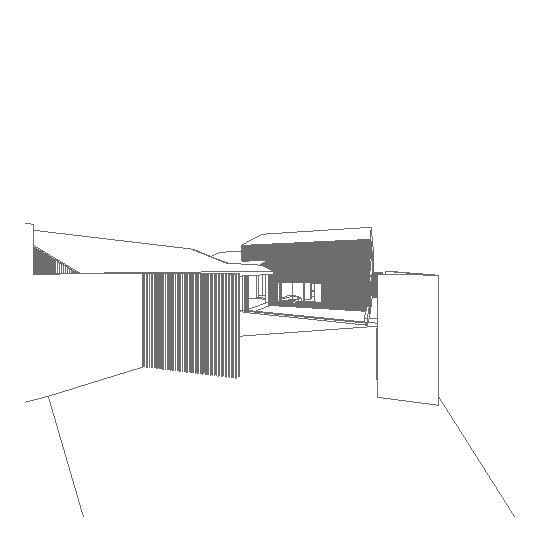

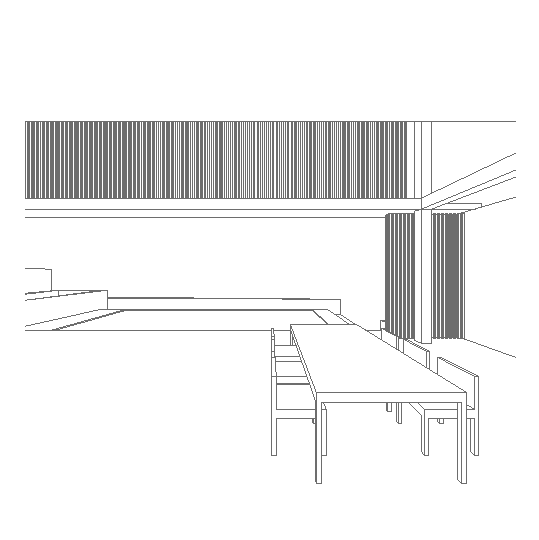

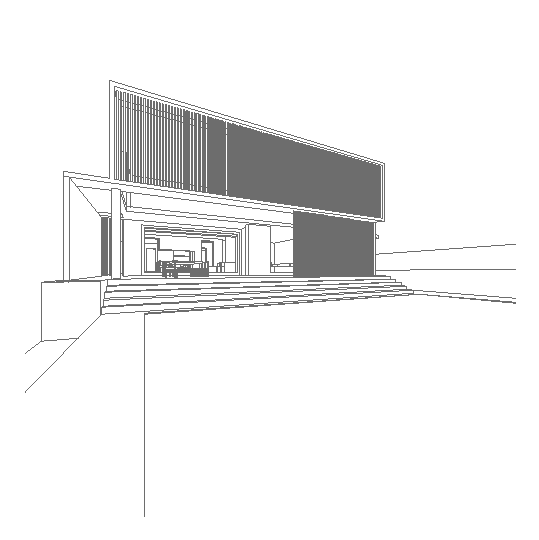

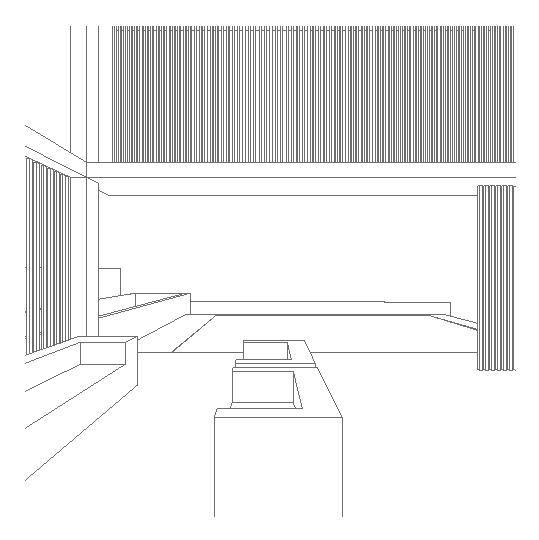

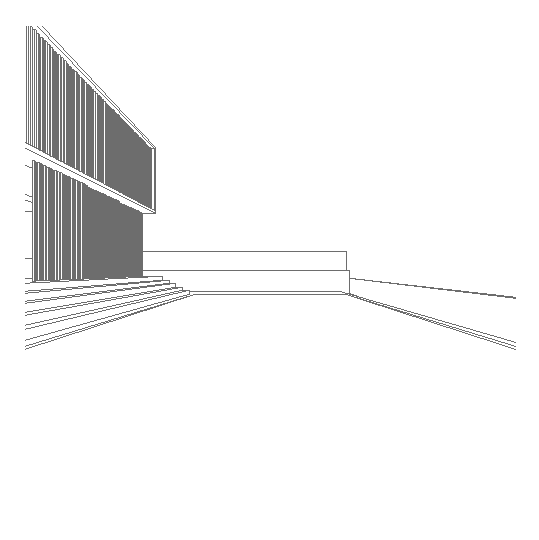

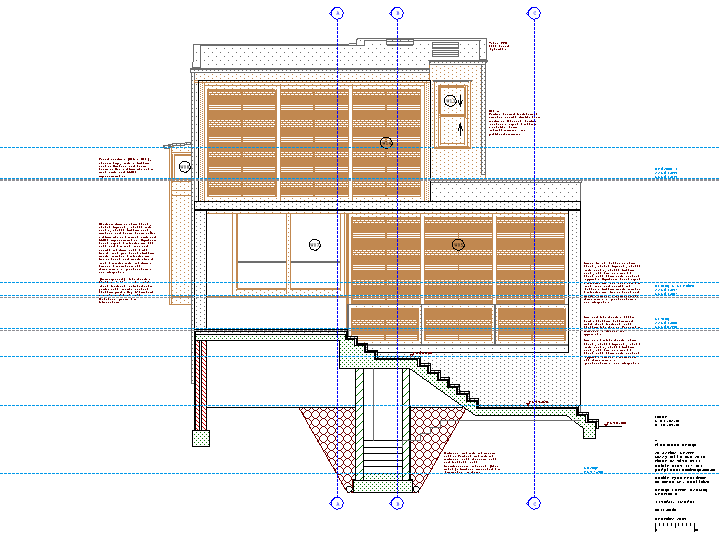

Vaucluse Road, Vaucluse
Alterations to a house & garden

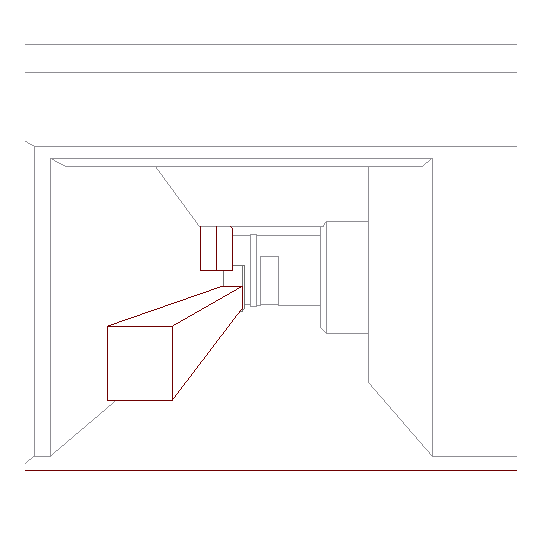

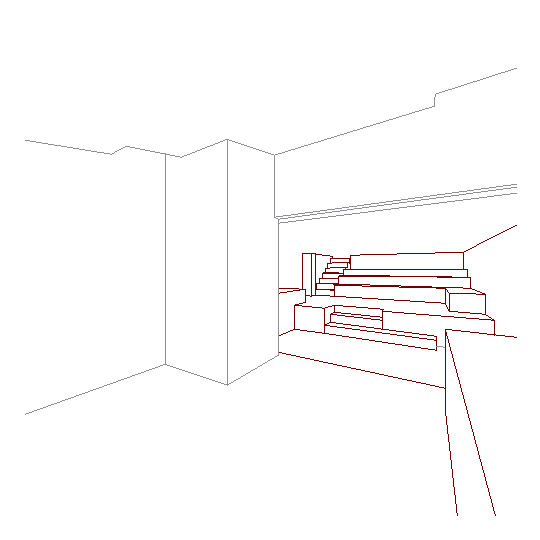

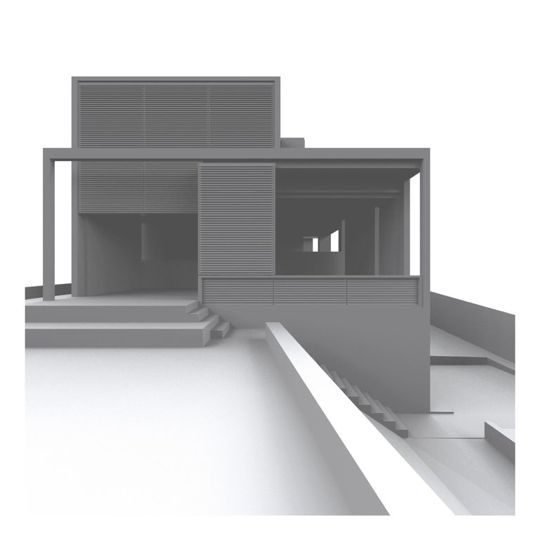

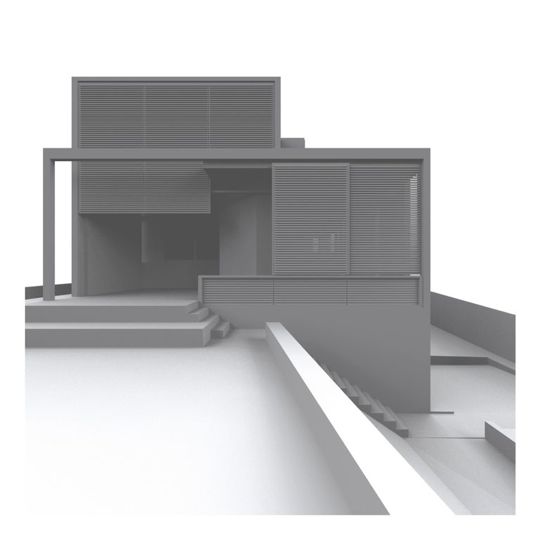

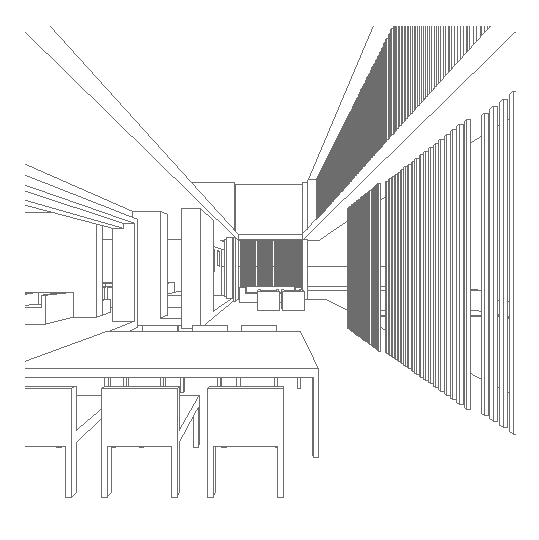

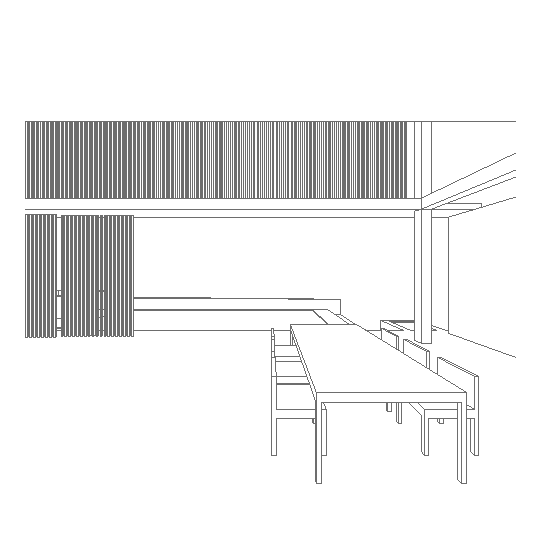

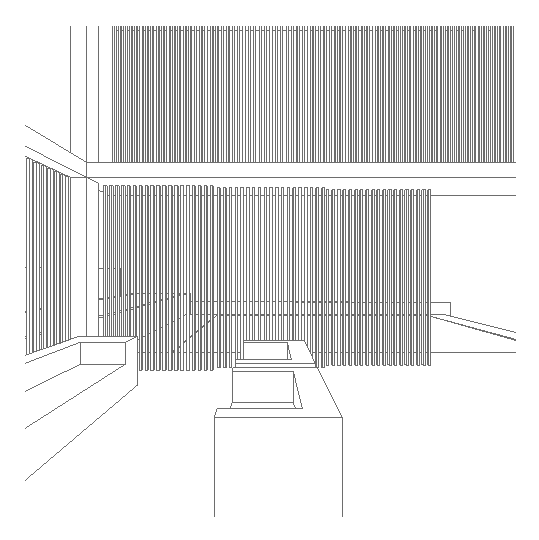

Proposed alterations to improve the relationship of the
house to the garden and the views to the harbour. A system
of sliding screens are proposed to manage the Western sun.
All work is designed to emphasise the view and to remove

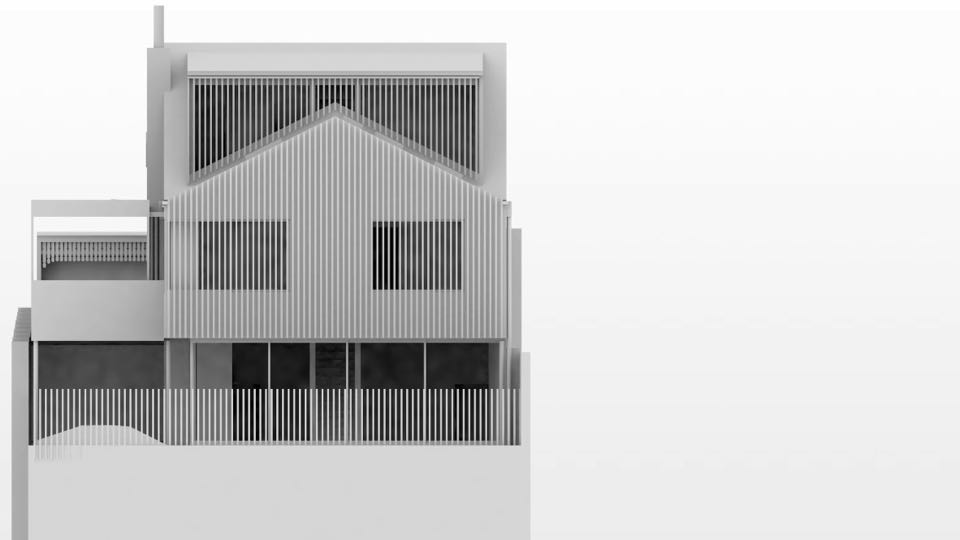

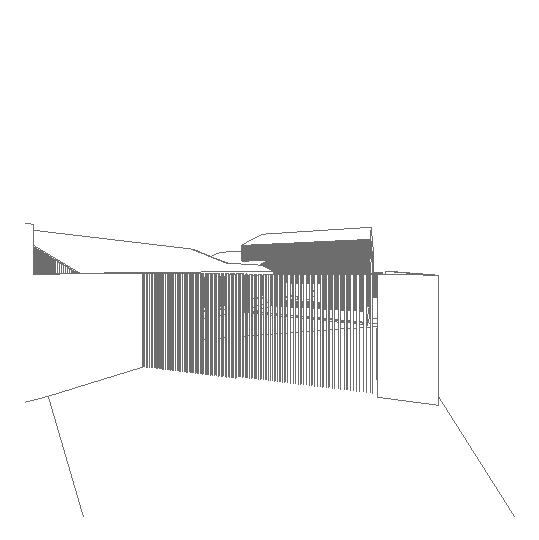

visual distractions. A series of screens to the front of the
house improve the appearance and manage privacy to the
street.
-

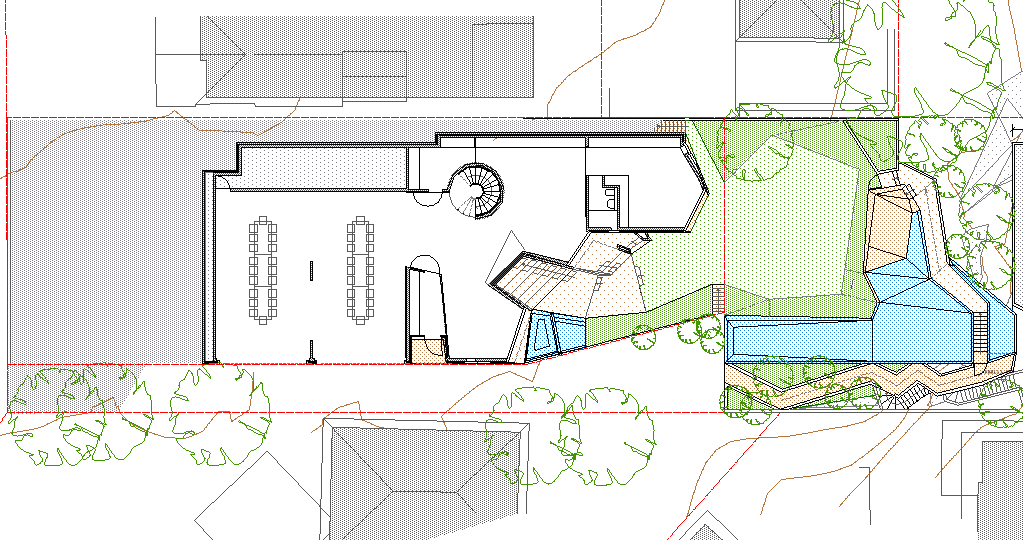

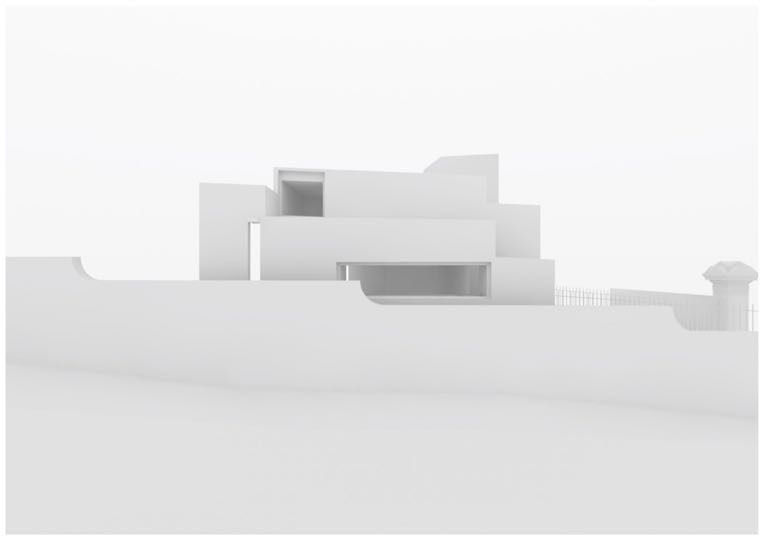

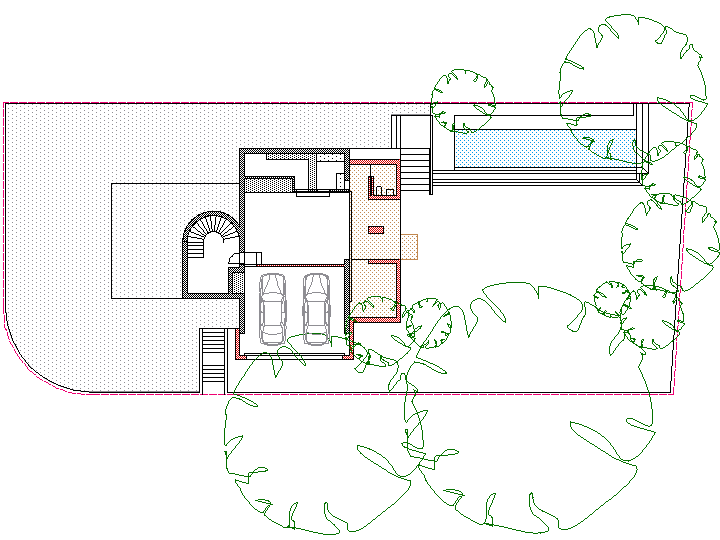

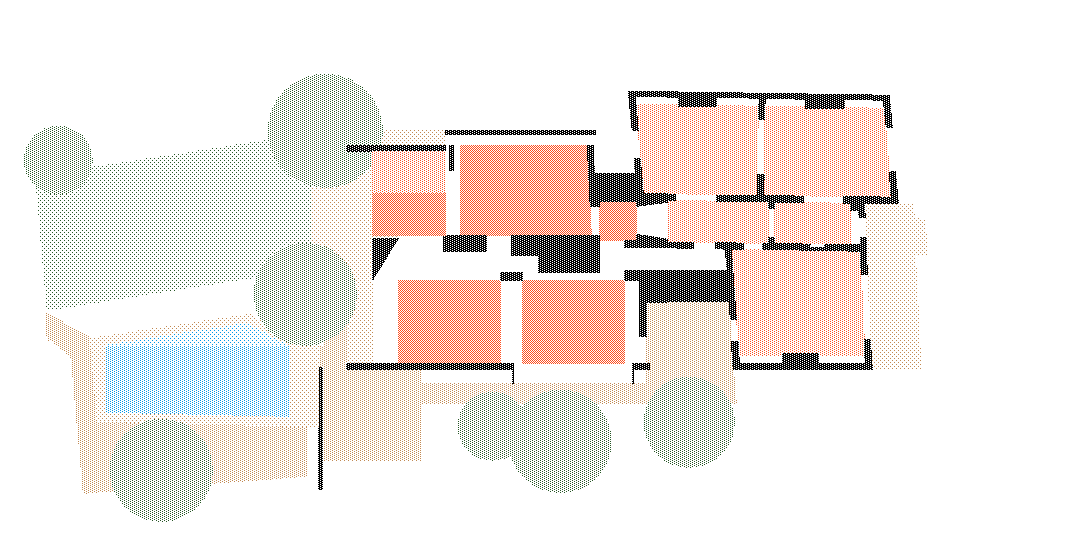

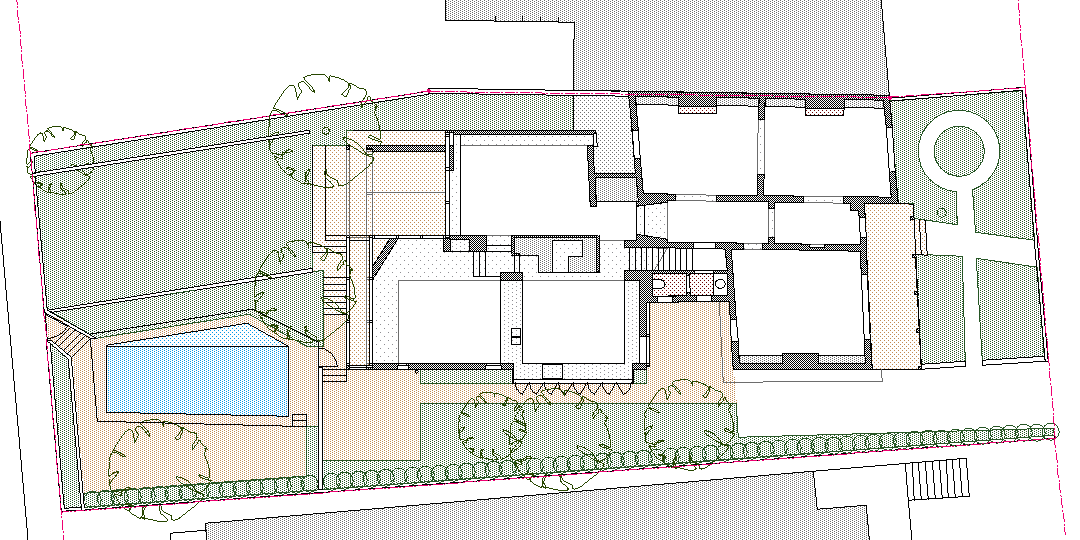

Point Piper House & Garden
-

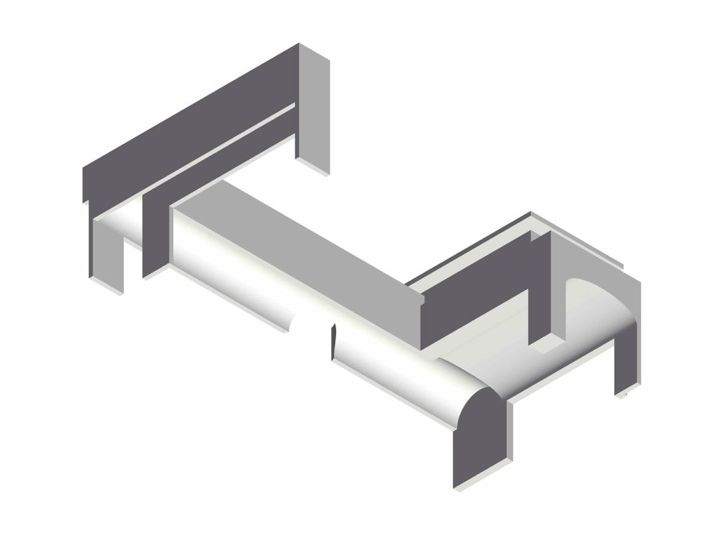

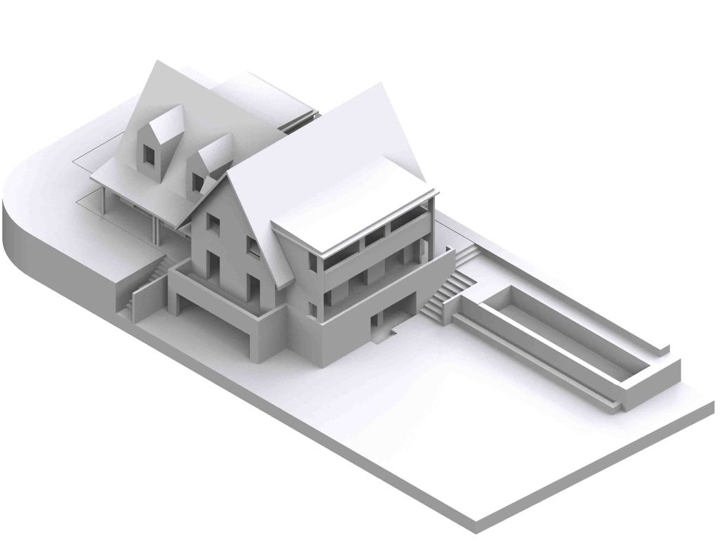

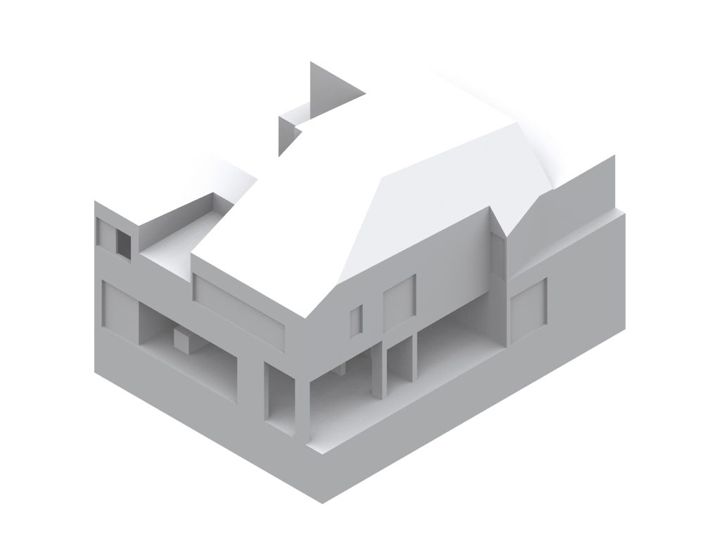

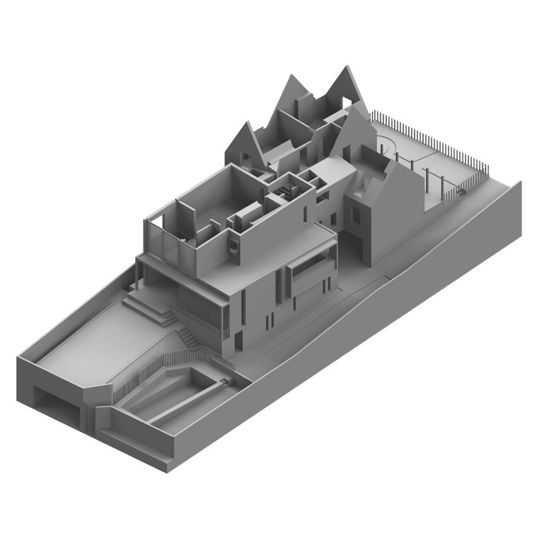

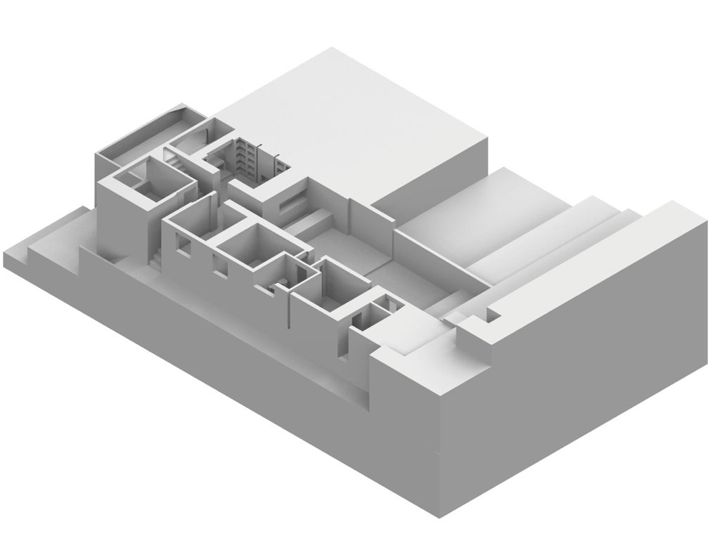

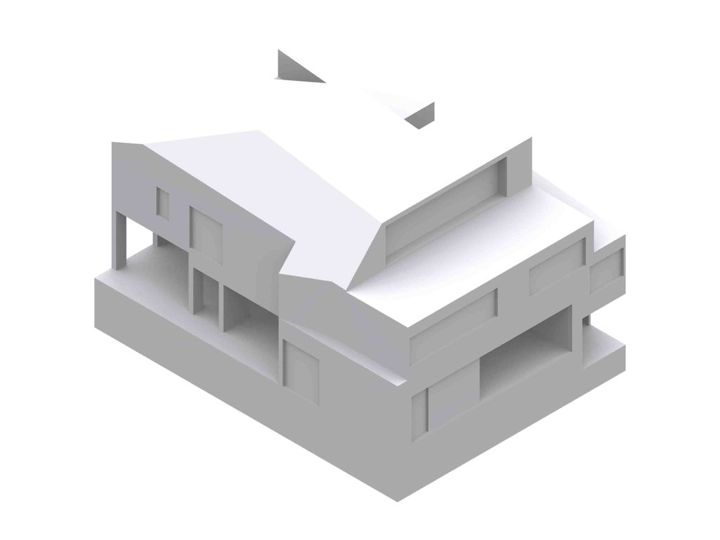

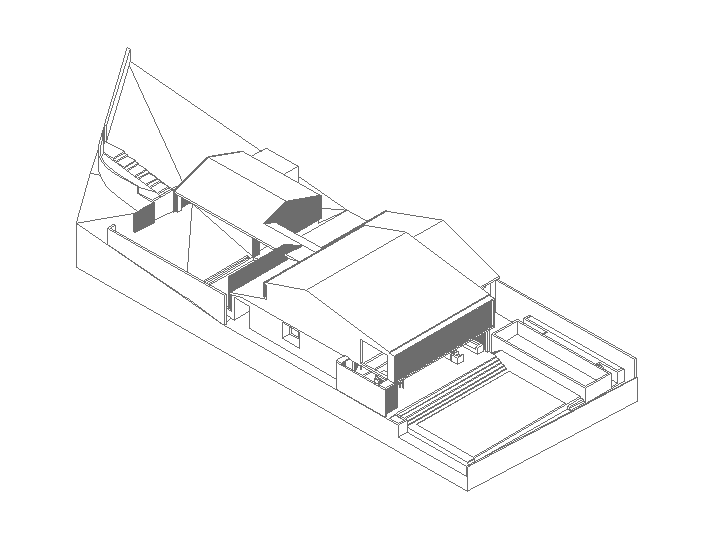

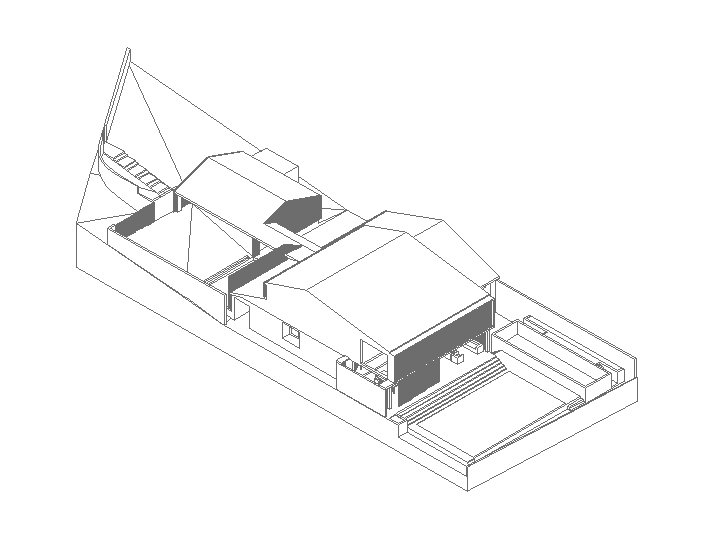

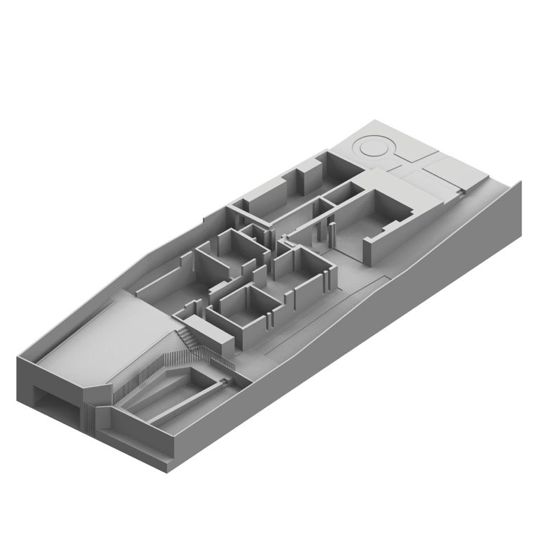

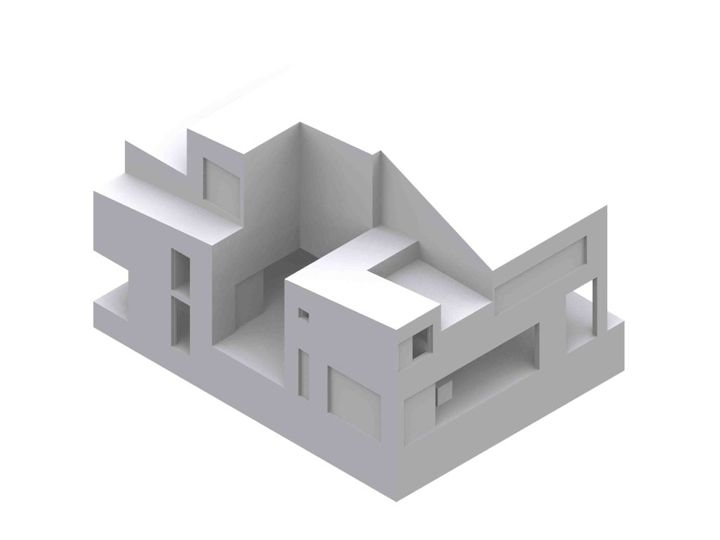

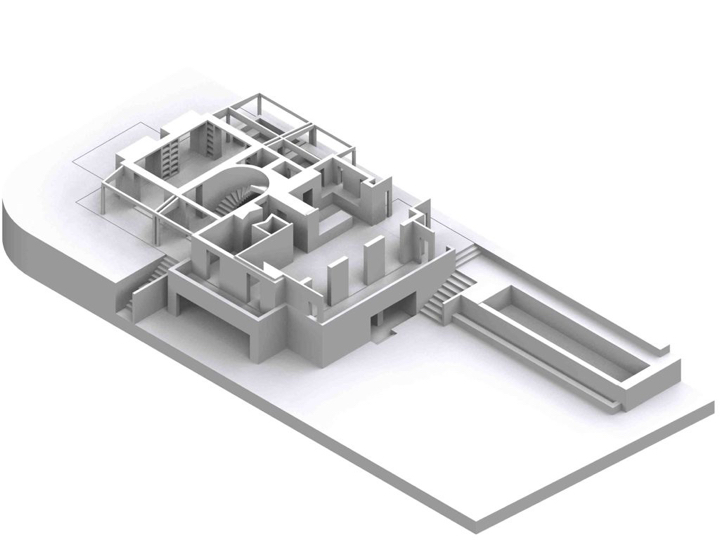

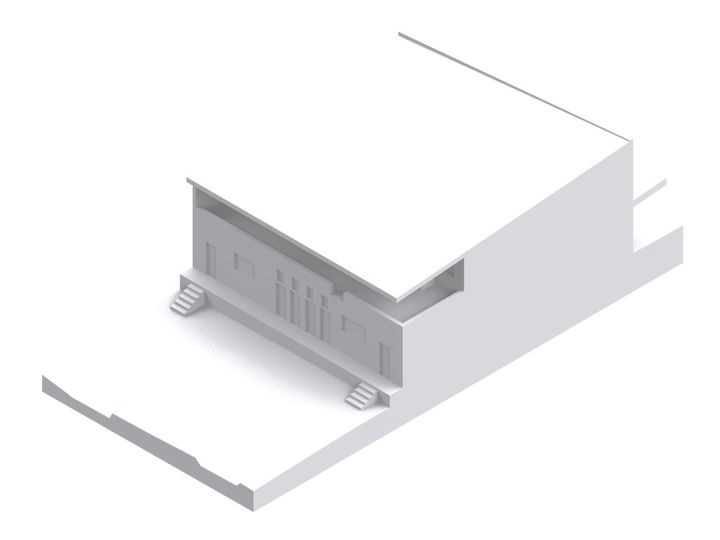

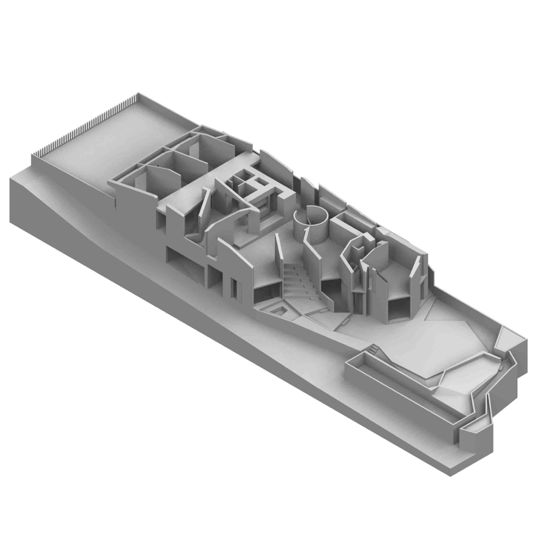

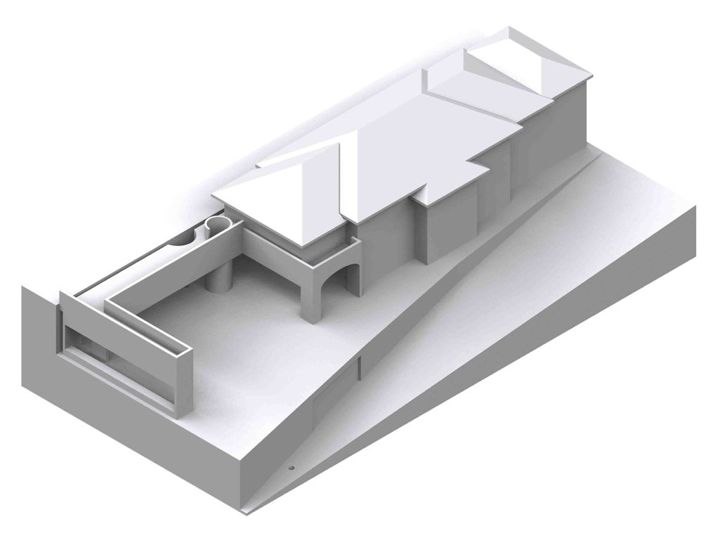

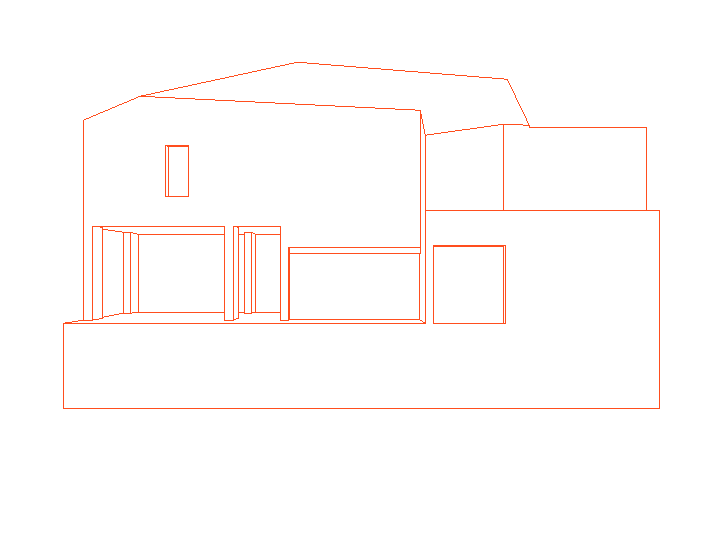

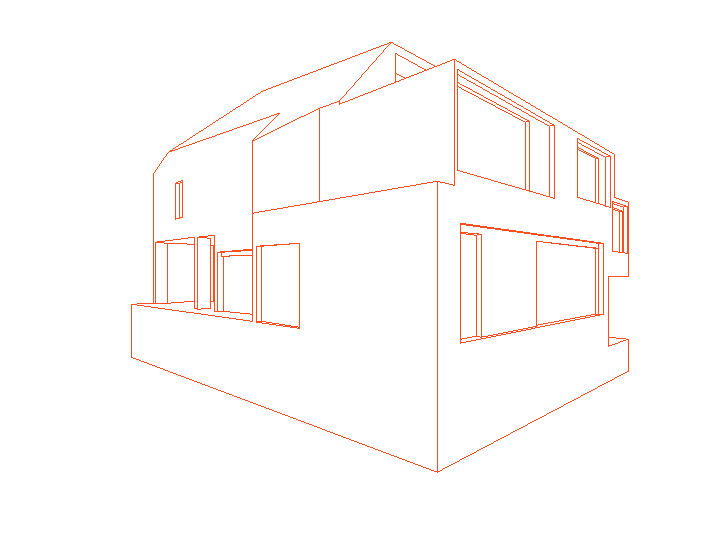

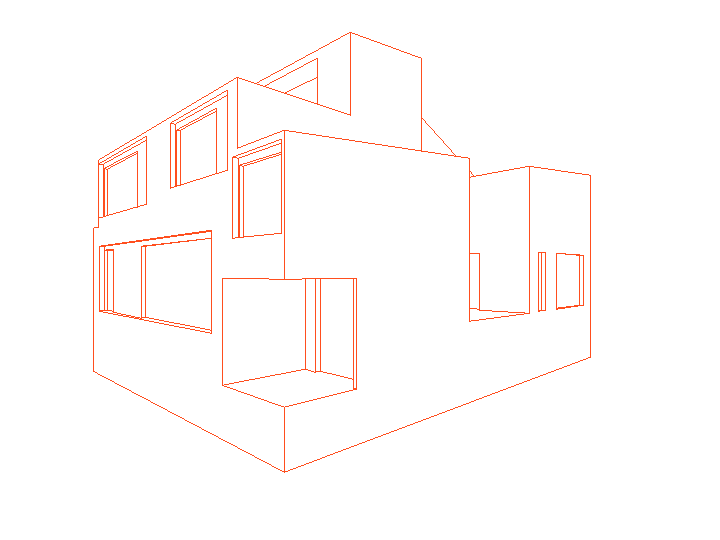

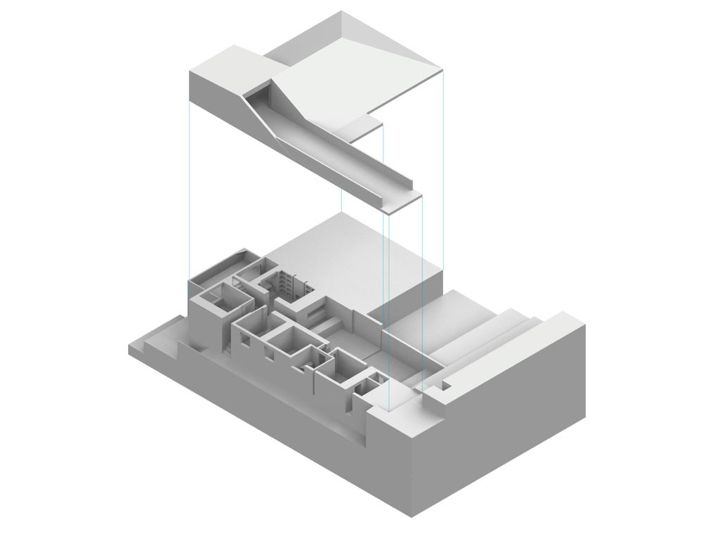

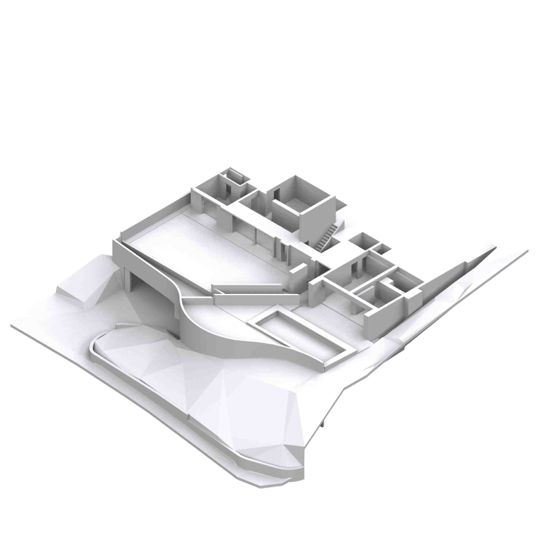

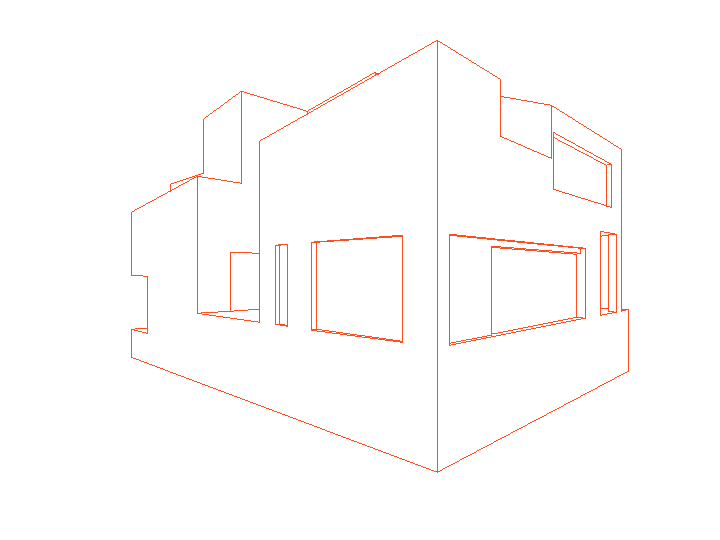

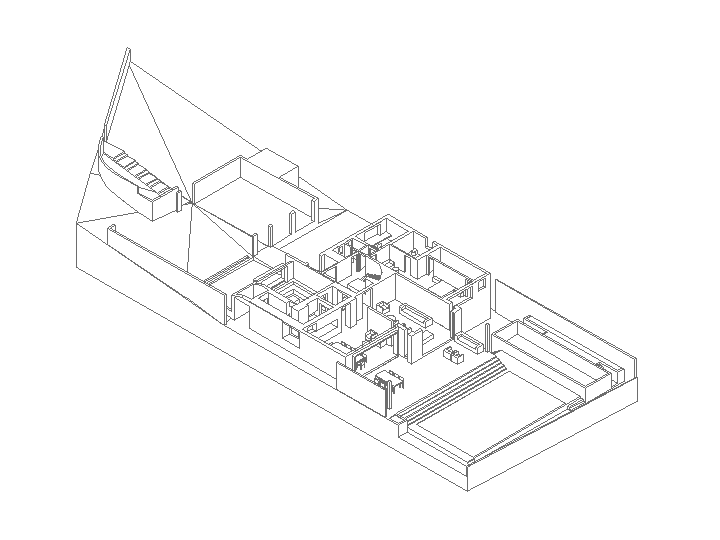

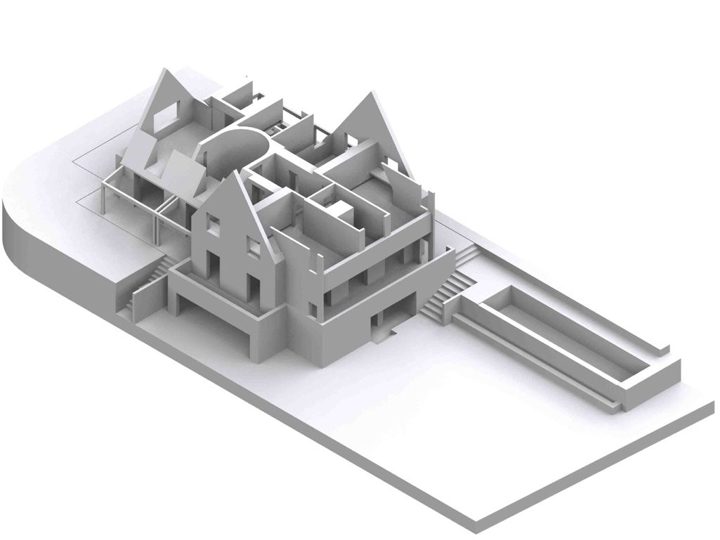

North East Isometric
-
South East Isometric
-

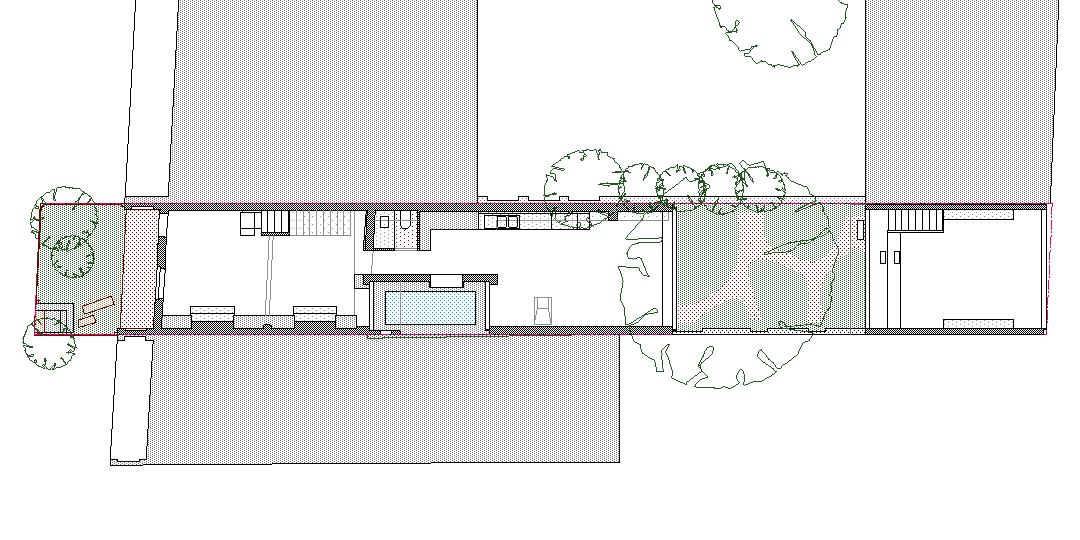

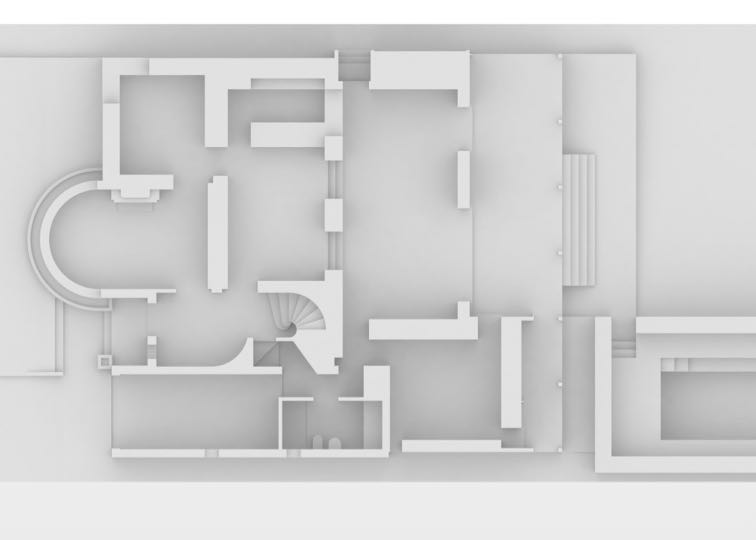

Ground Floor, Existing
-

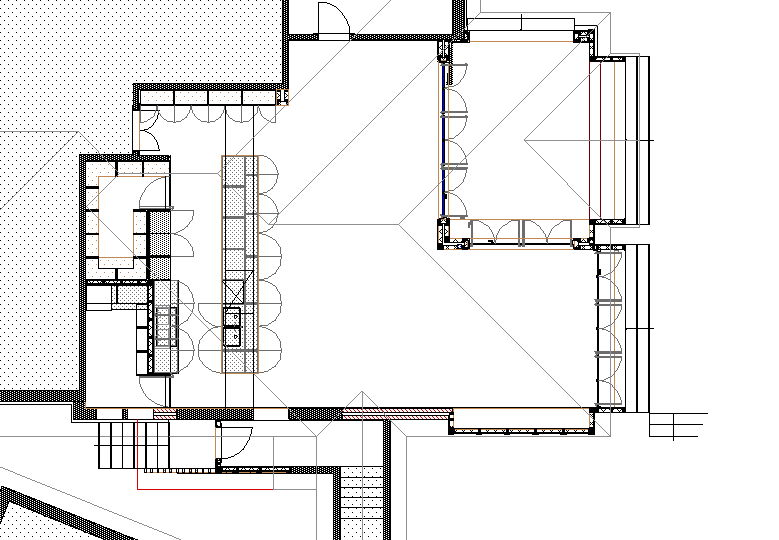

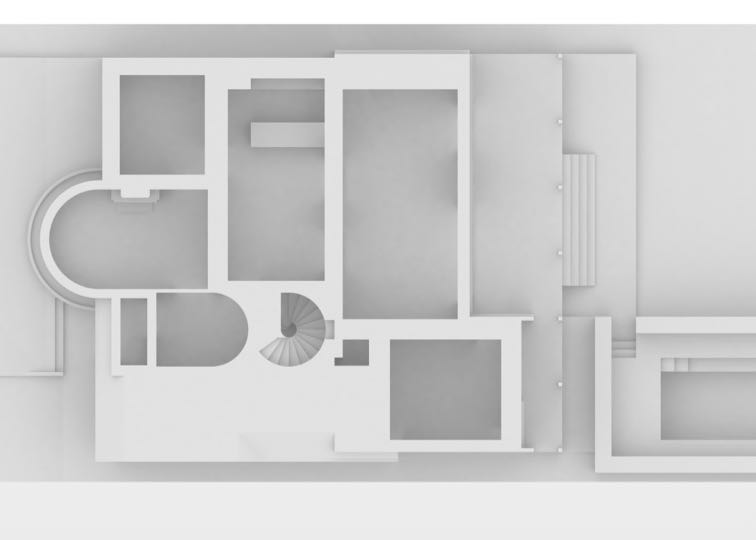

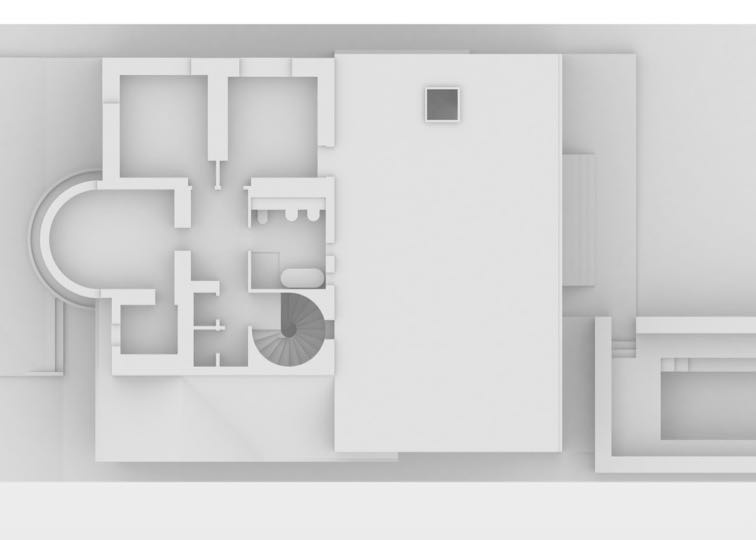

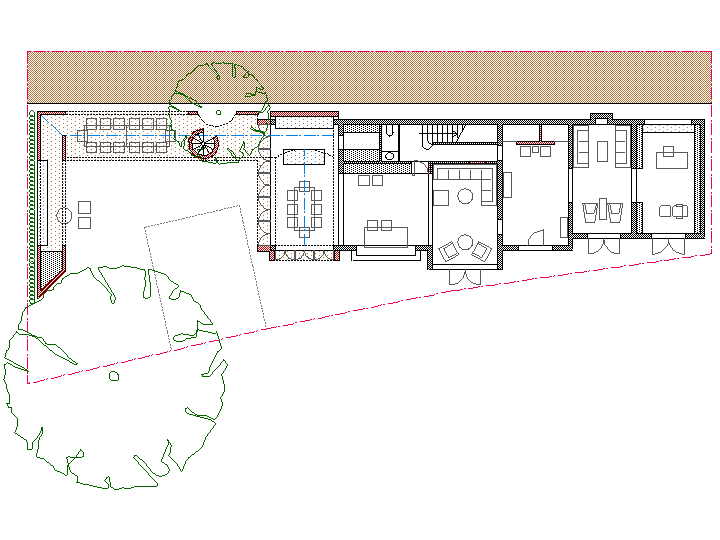

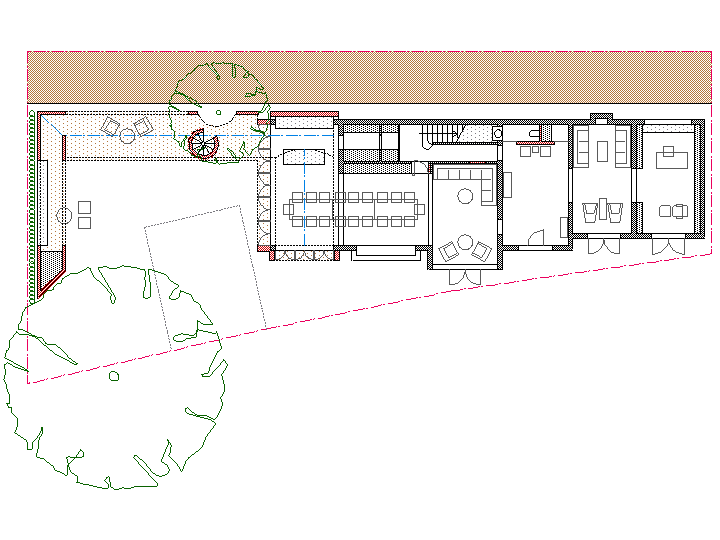

Ground Floor, Proposed
-
Ground Floor, Proposed
-
First Floor, Existing
-
First Floor, Proposed
-
-
-
-
-
-
-

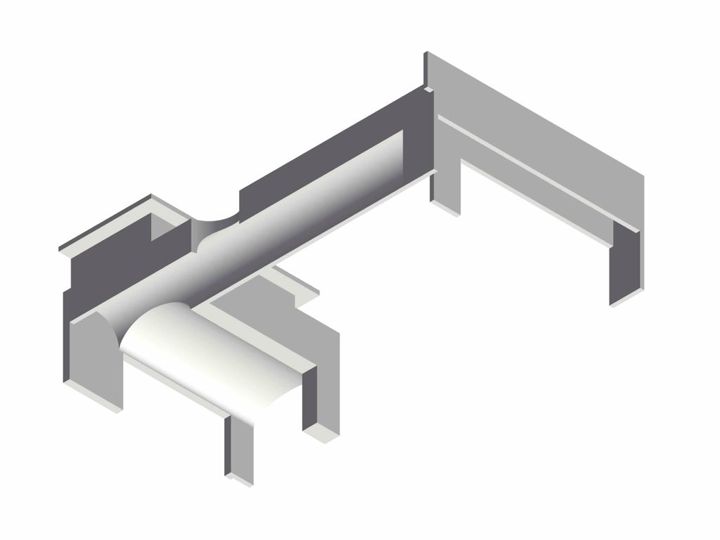

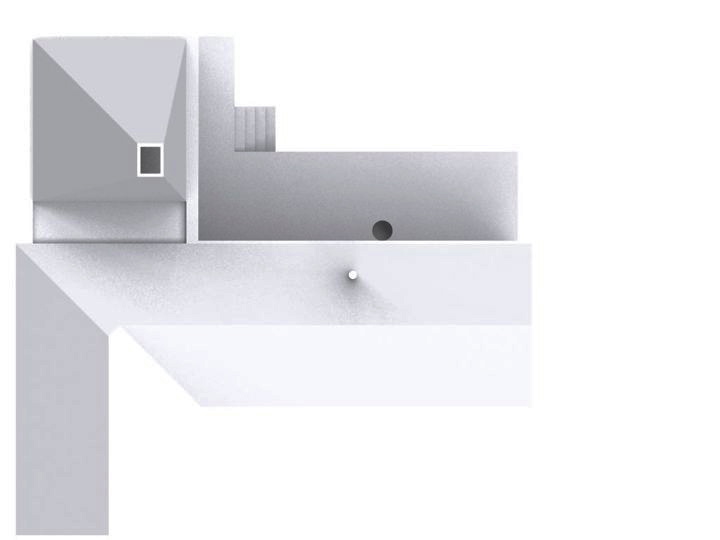

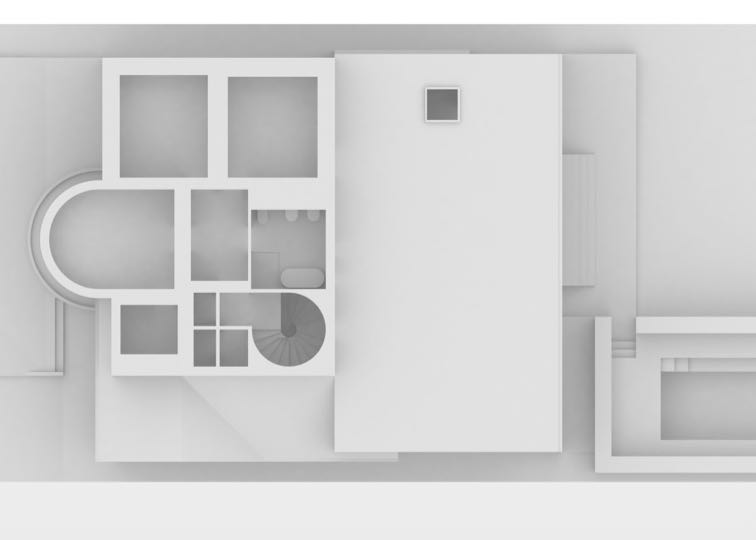

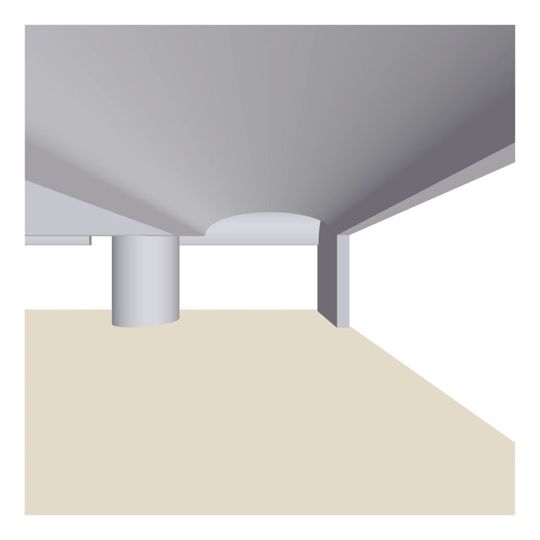

Soffit View
-
Soffit View

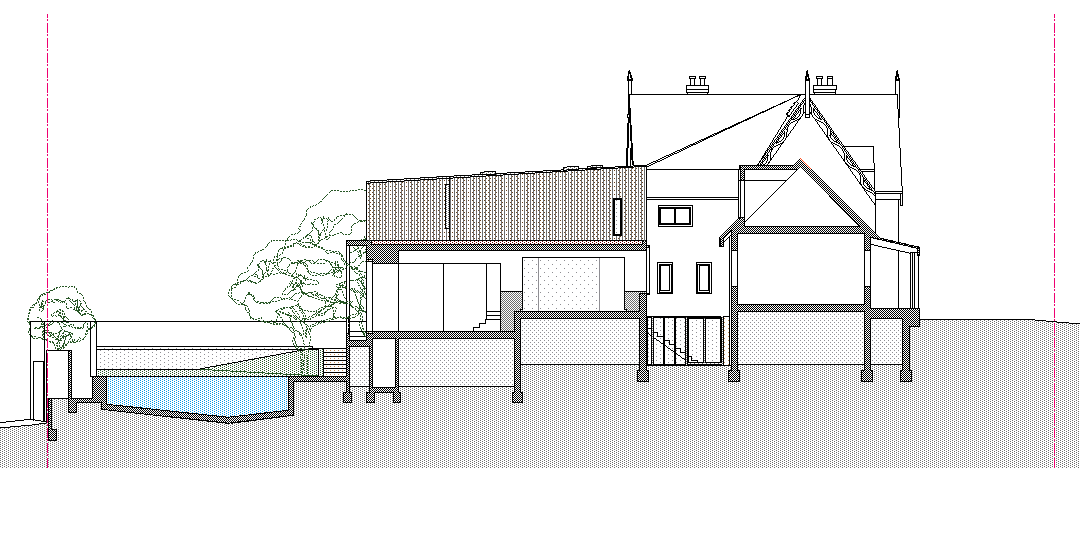

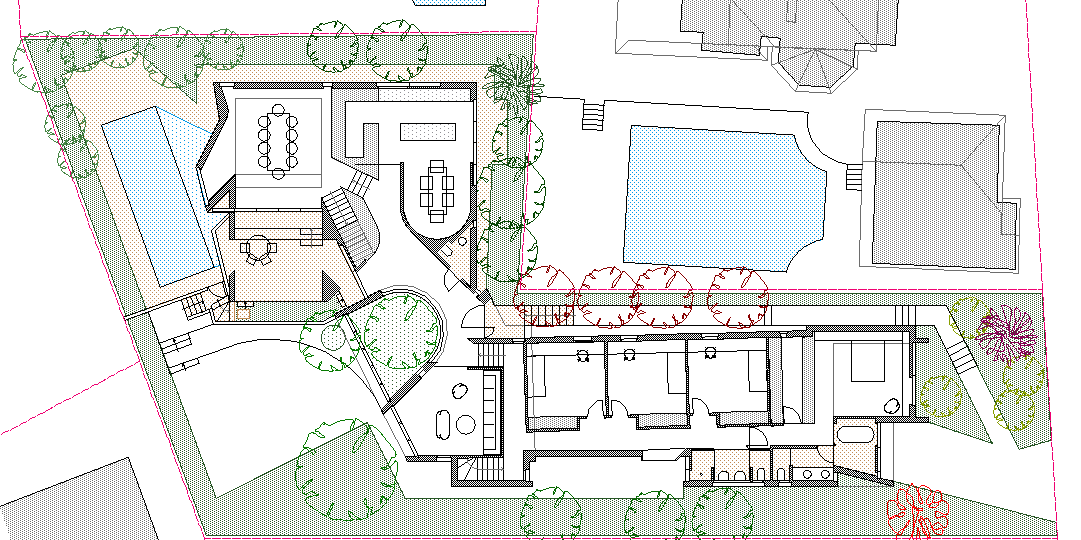

Additions & alterations to a house & garden

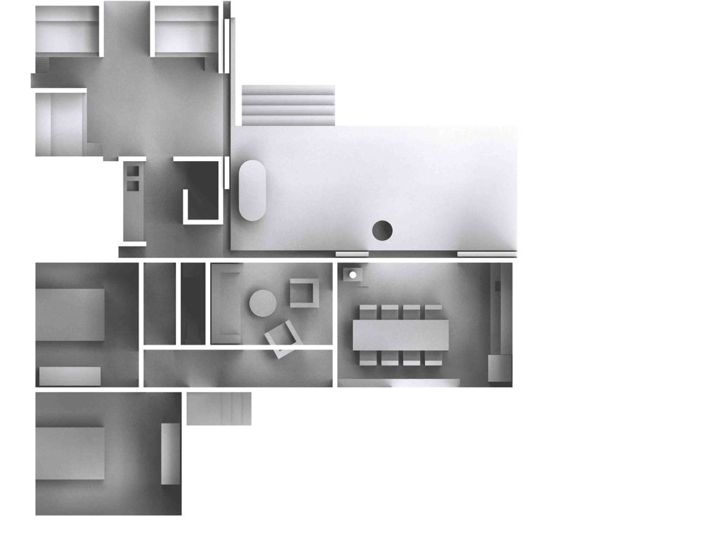

A cloister to a garden.
The cloister controls the foreground
view, connects to an upper level in the yard, and provides
shelter. The furniture layout suggests how to occupy rooms
that are arranged enfilade.
-

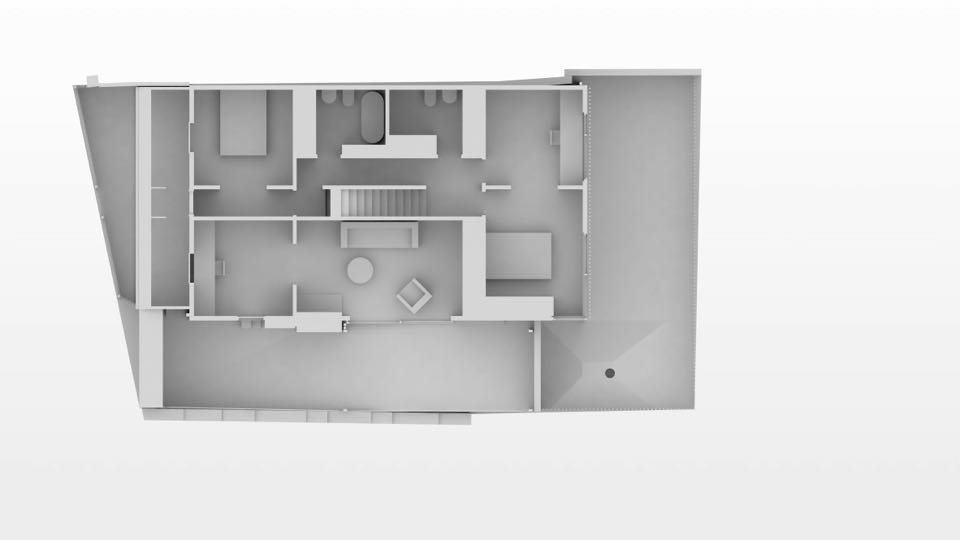

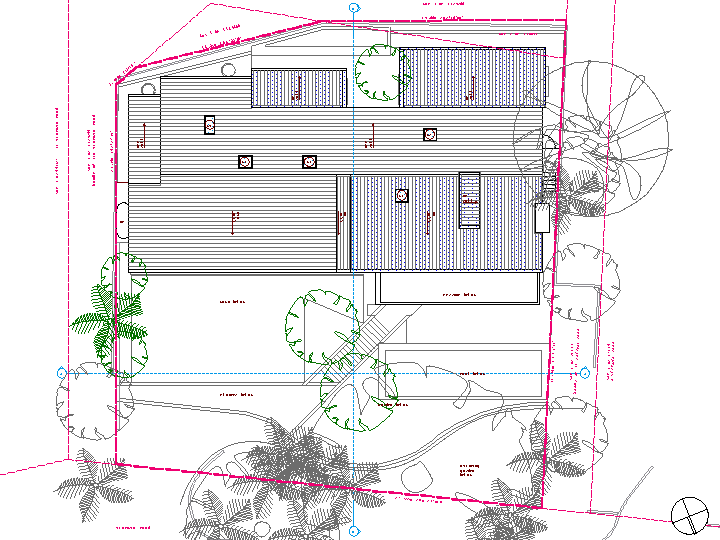

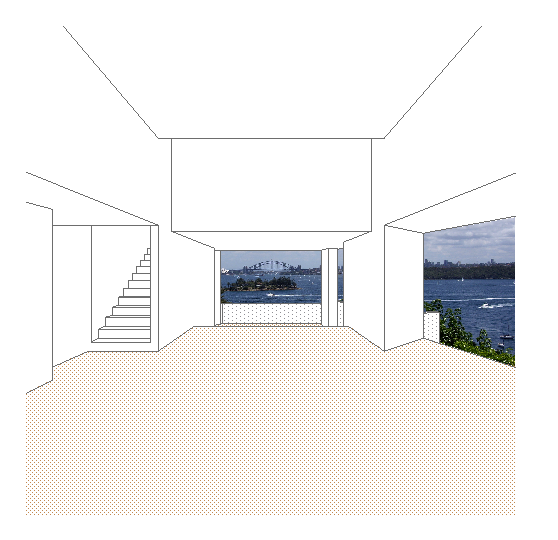

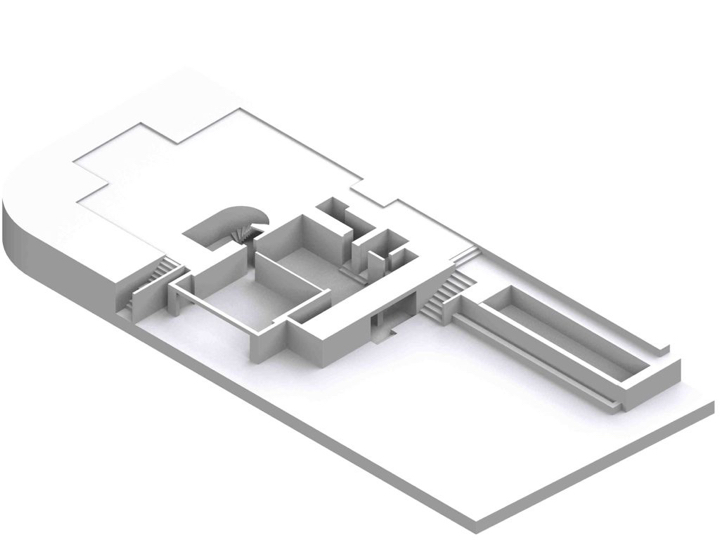

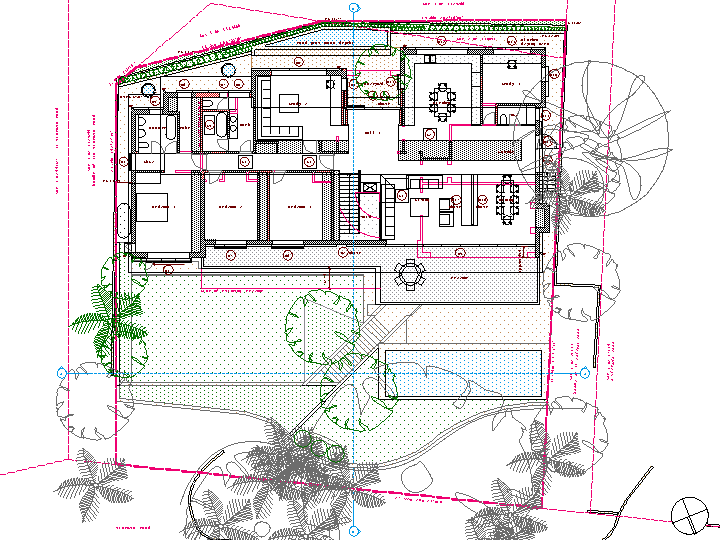

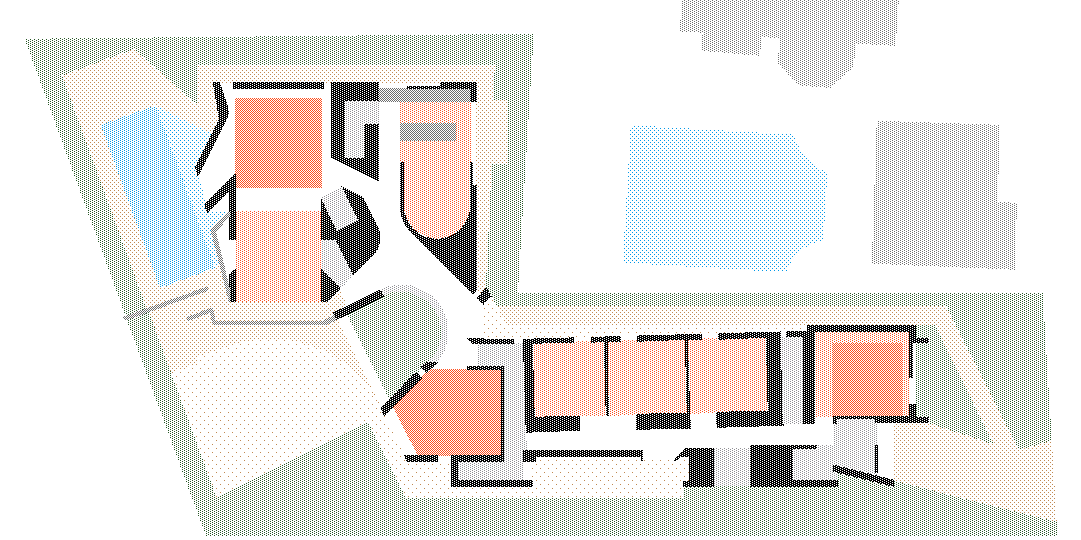

Queens Ave, Vaucluse

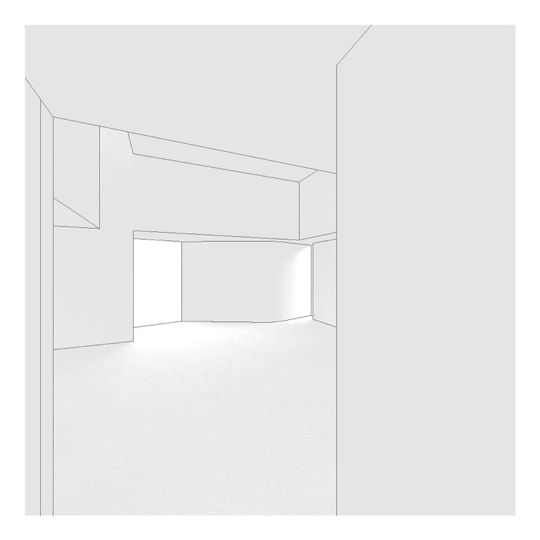

New home

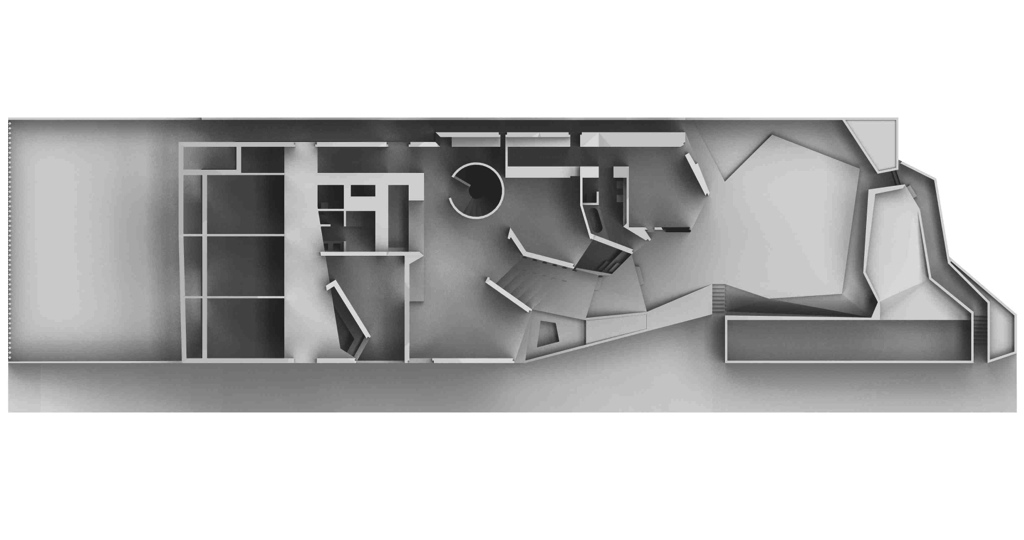

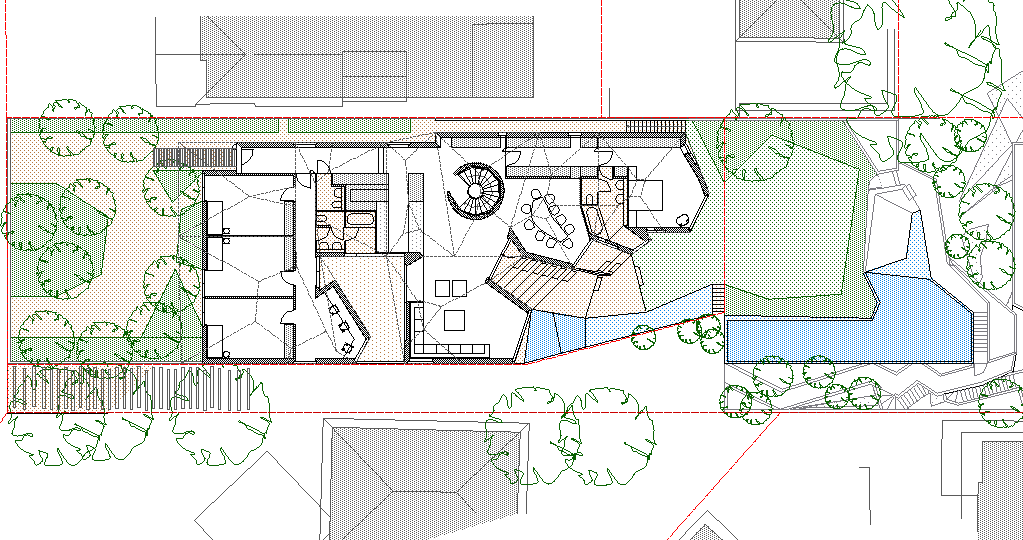

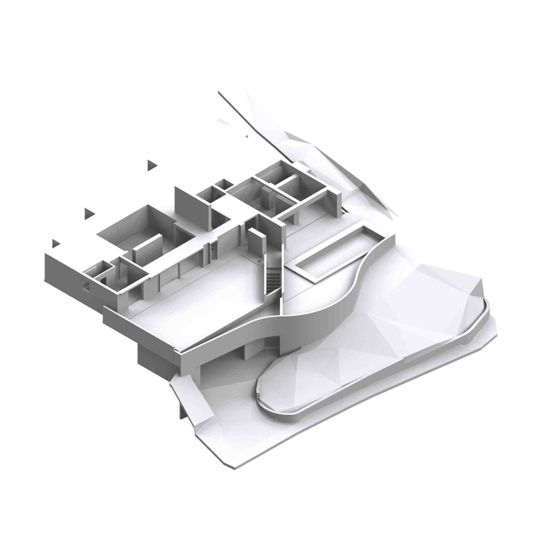

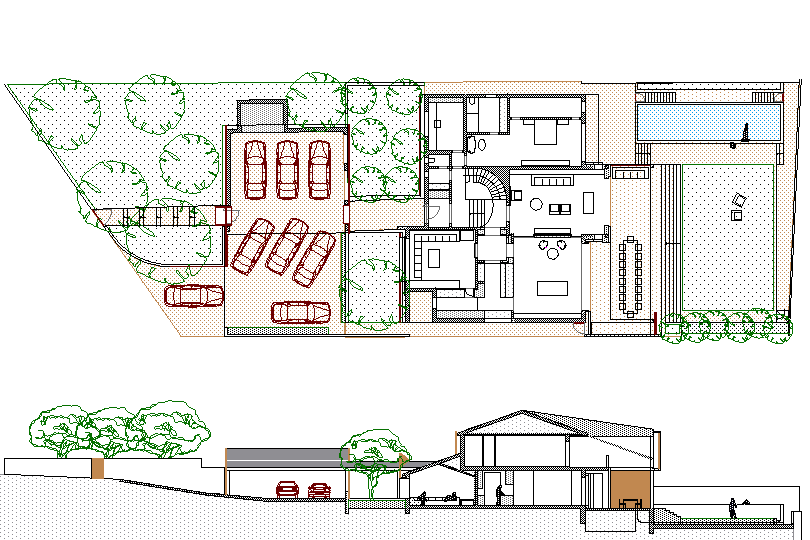

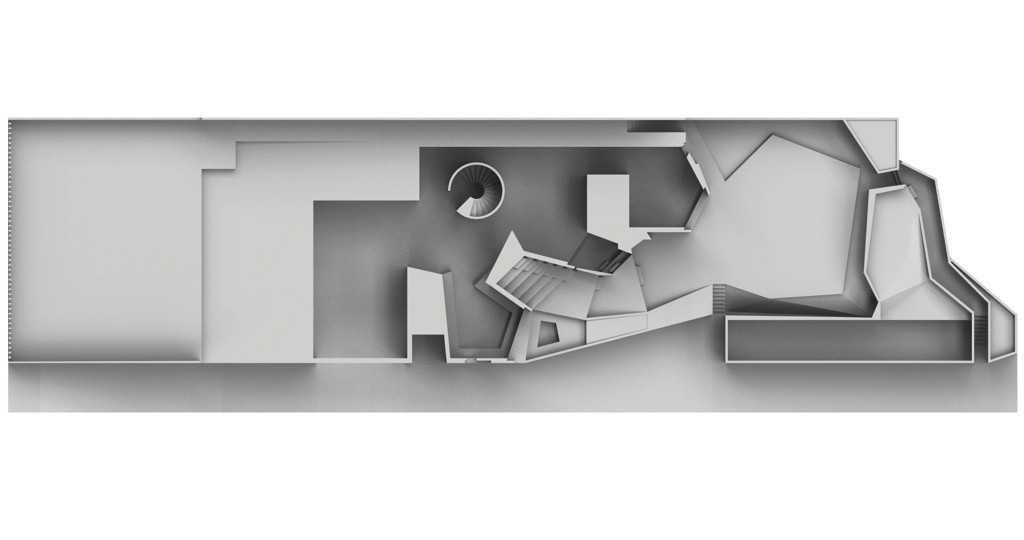

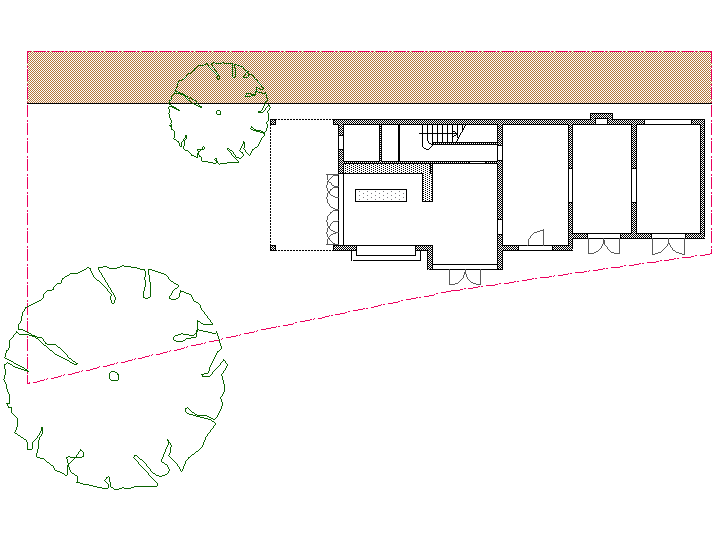

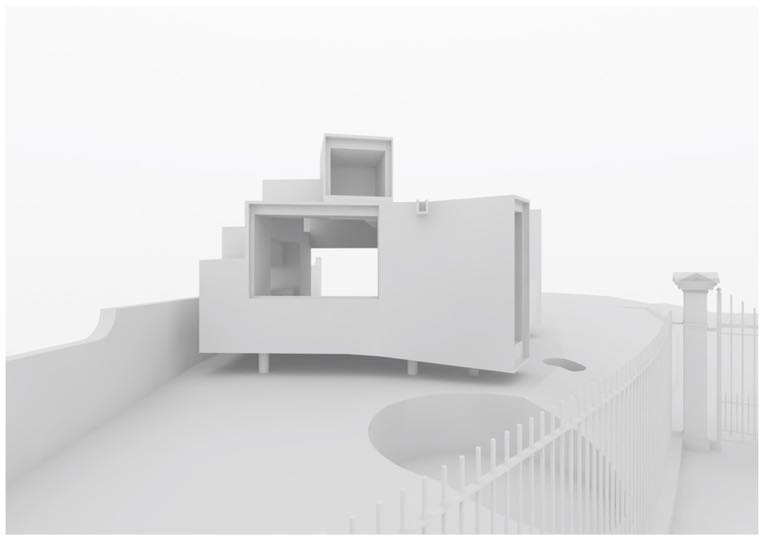

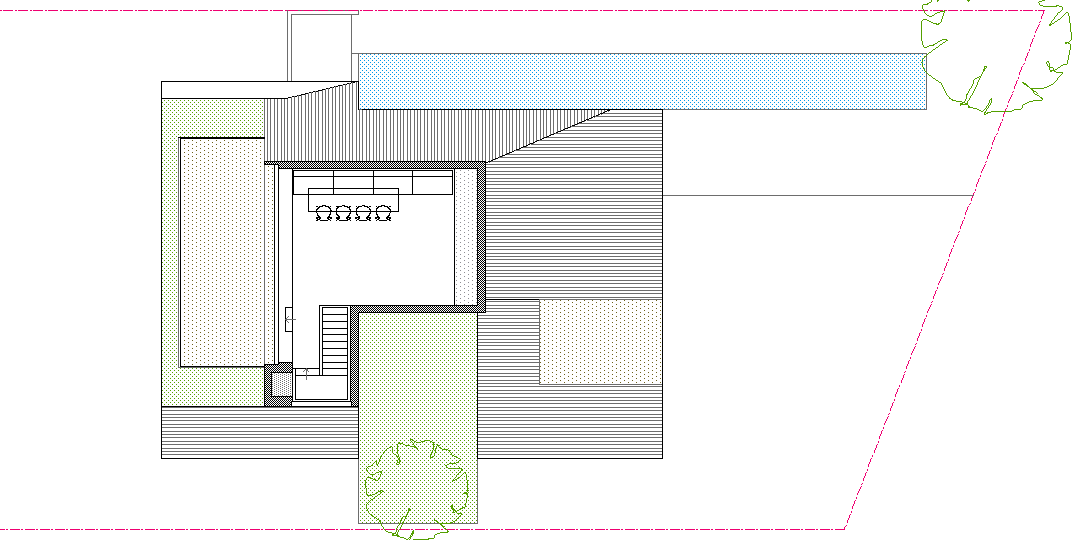

An irregular site. A sequence of spaces arranged around a
winter garden leads one to a room with views to the bridge
and harbour. The rooms are arranged to allow for quiet
corners and discovery.
-

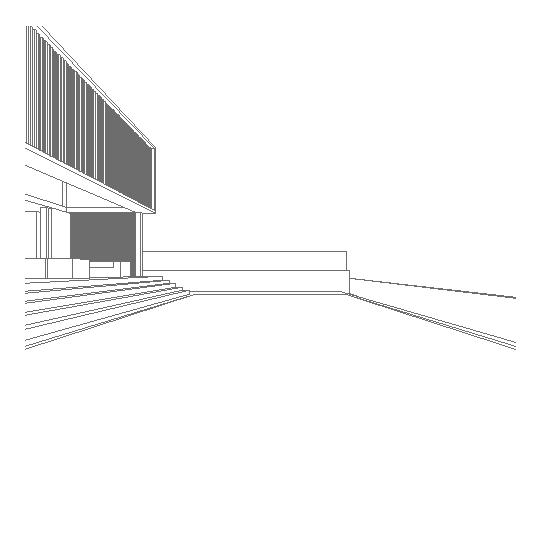

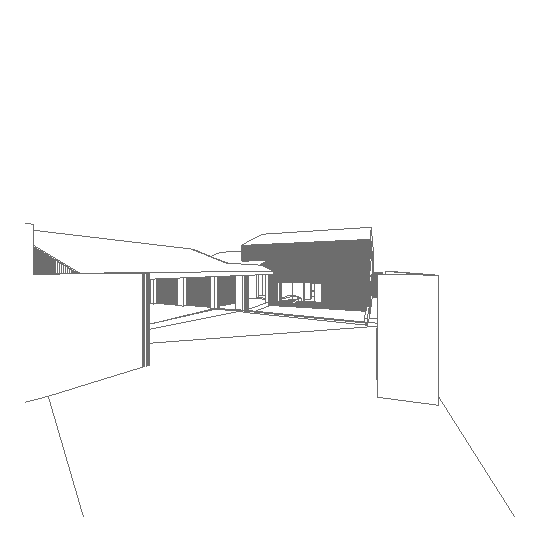

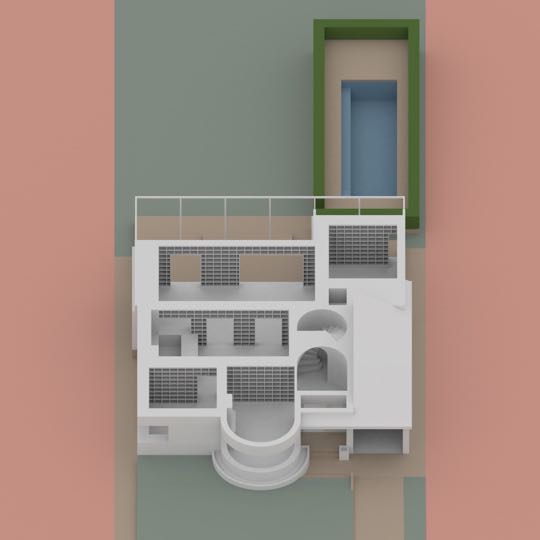

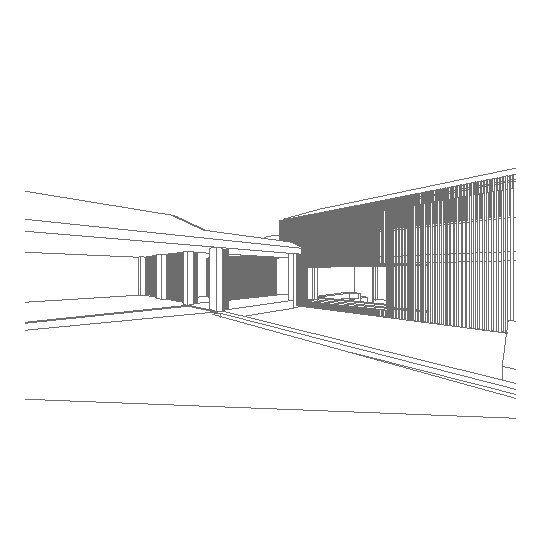

Wentworth Rd, Vaucluse
New home

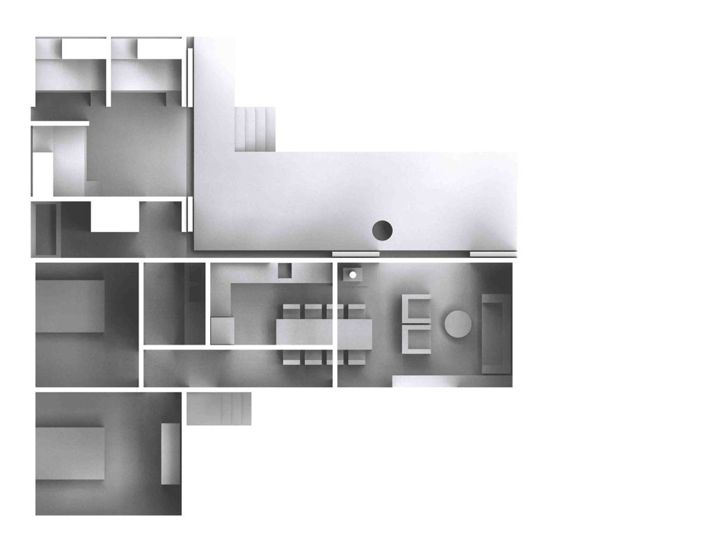

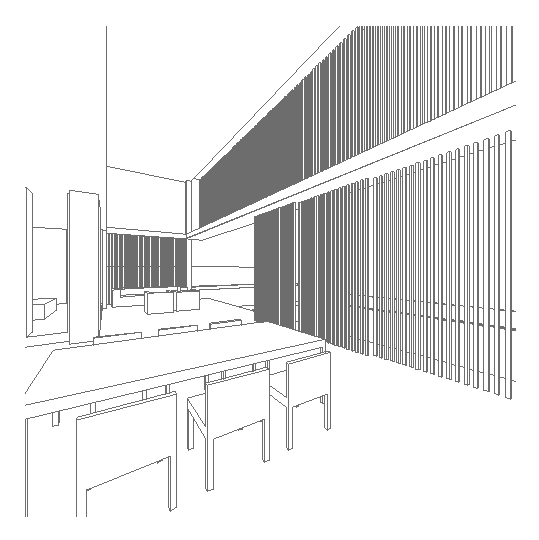

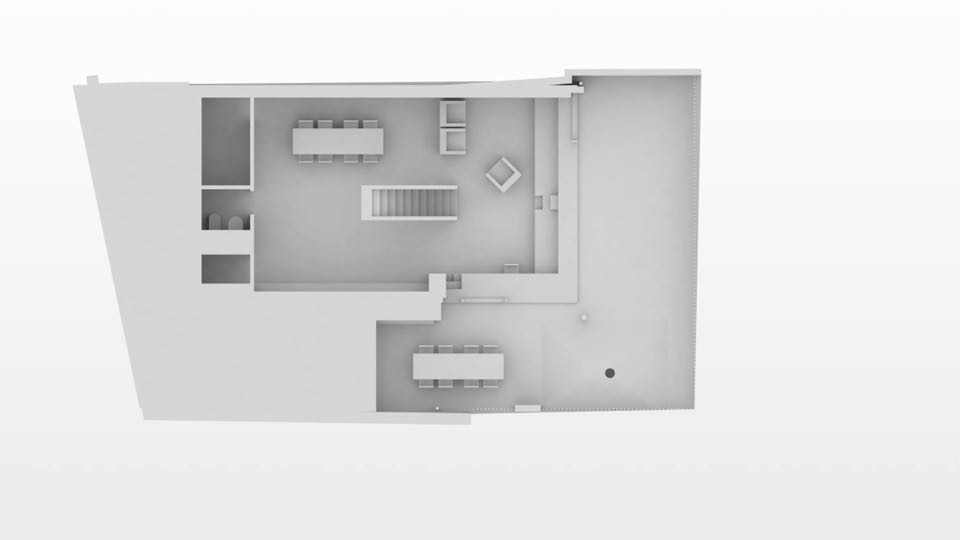

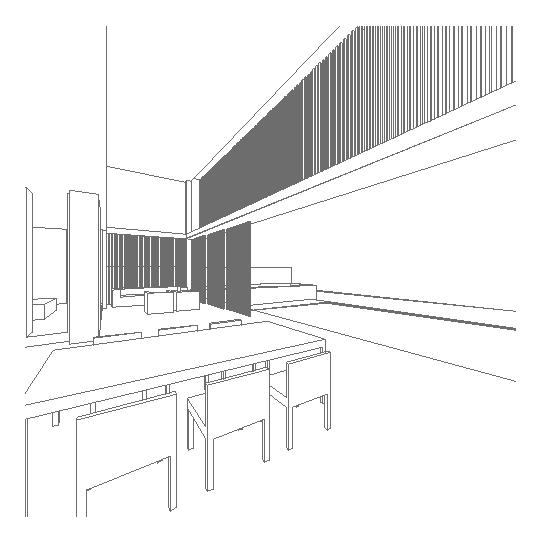

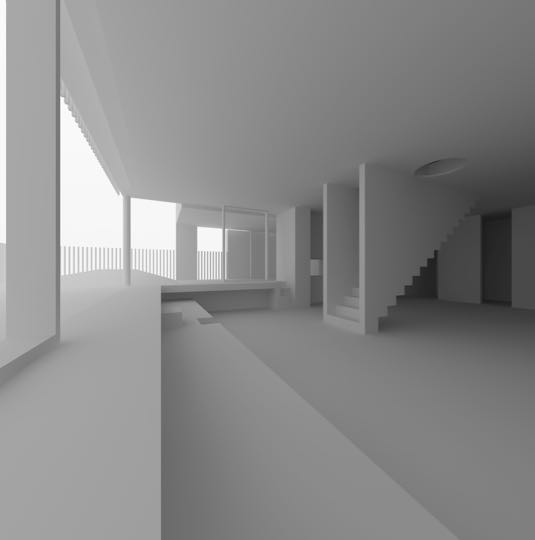

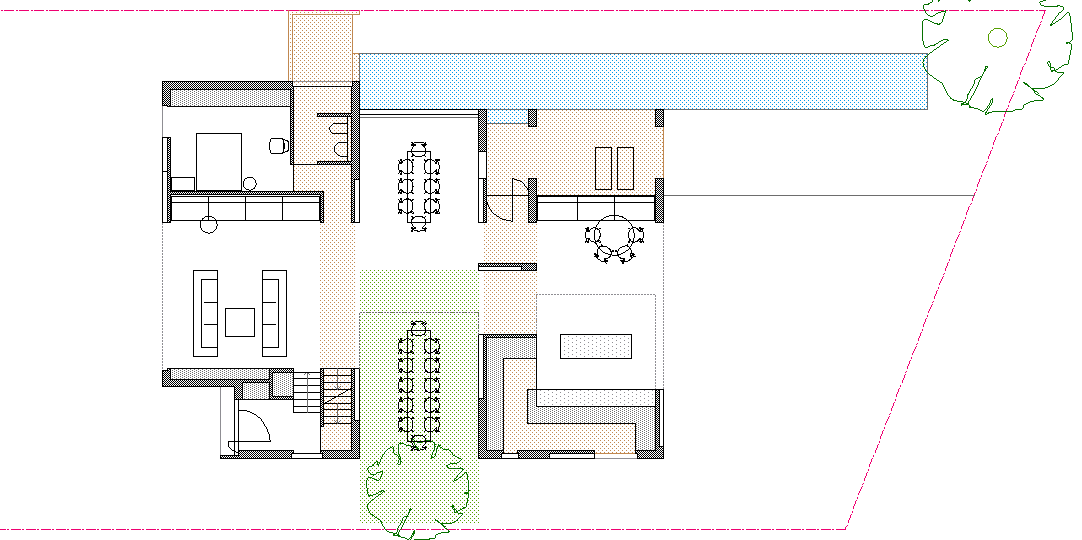

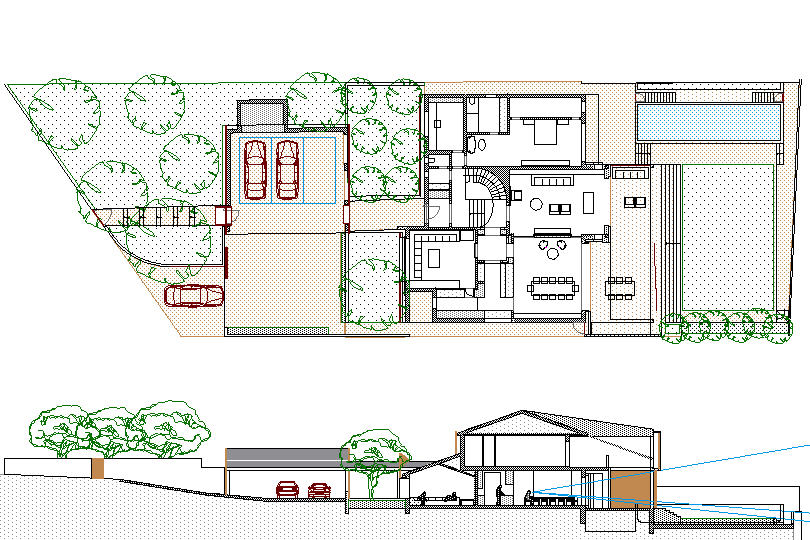

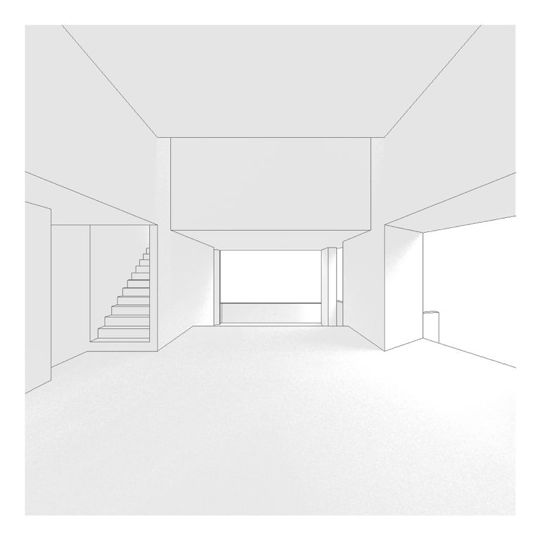

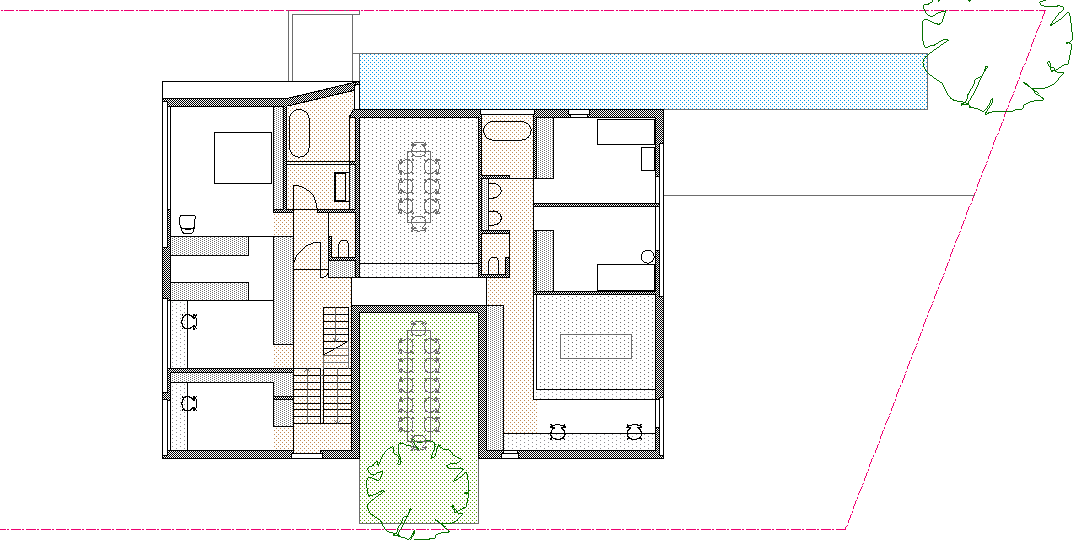

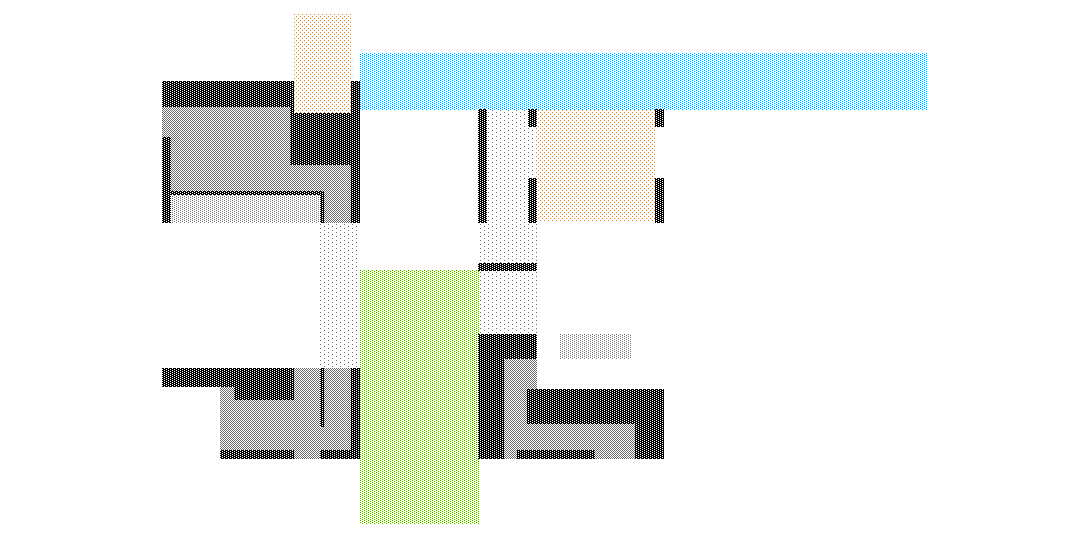

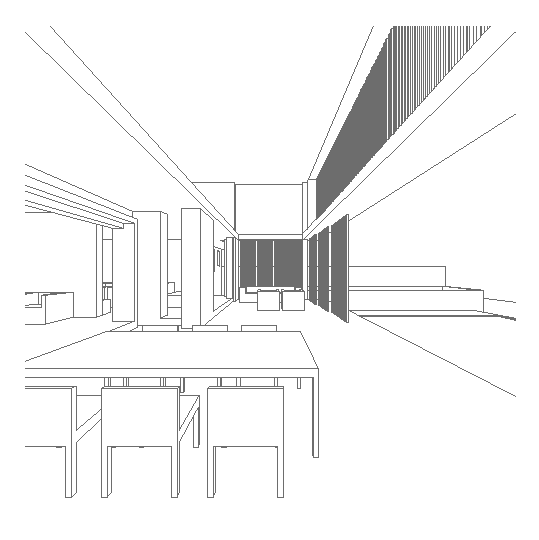

The ground floor is arranged as a sliding sequence of rooms
arranged around a courtyard. A system of sliding doors allow
these rooms to remain somewhat separate or to be opened up
to form an almost cruciform space opening to the North, the
courtyard and the yard. On the forth side a large fixed
window is proposed to a pool. Bedrooms are on the next level
with a bridge overlooking the dining area, and a study open
to the kitchen below. A room in the roof has views of the
harbour.
-

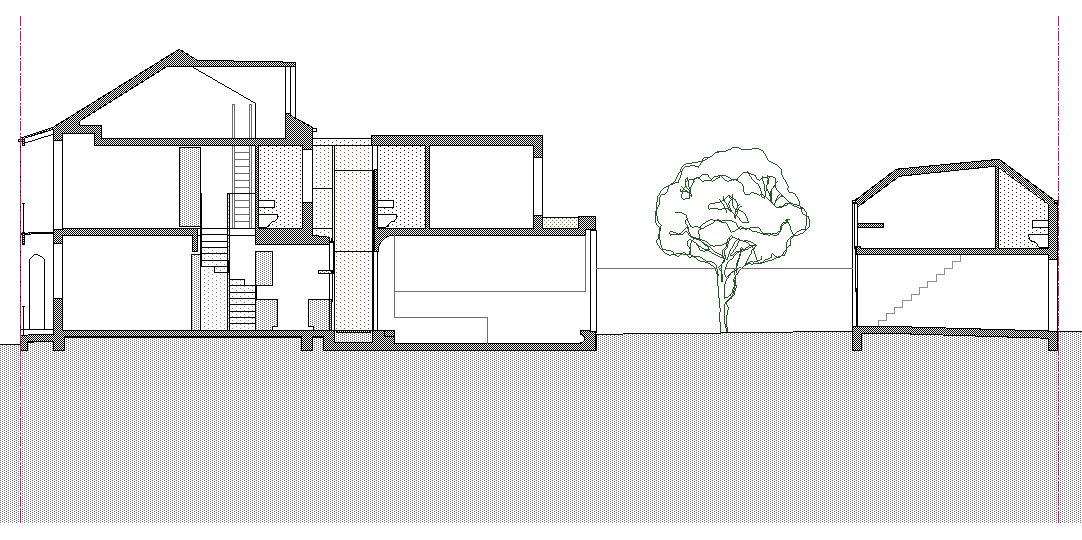

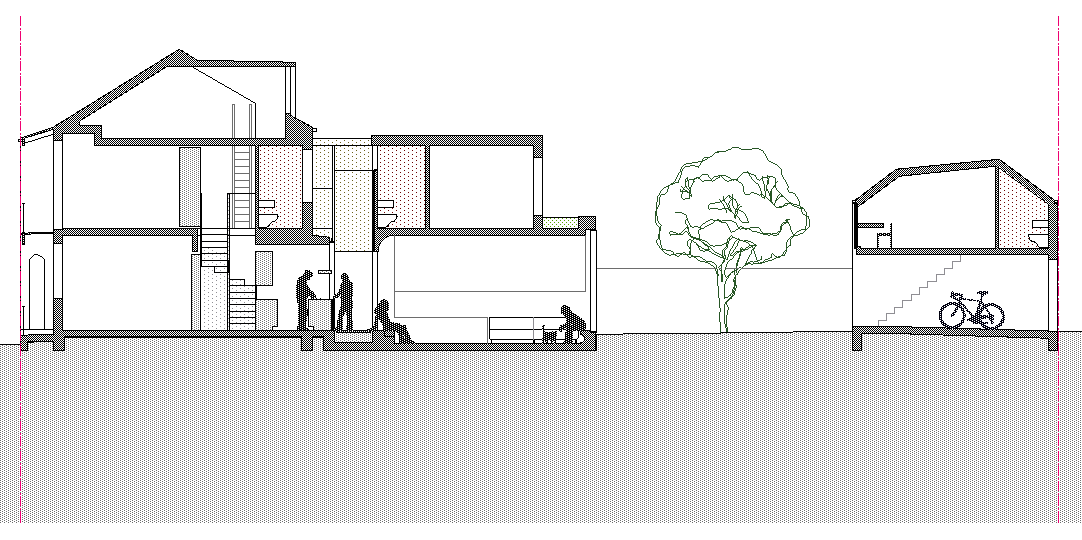

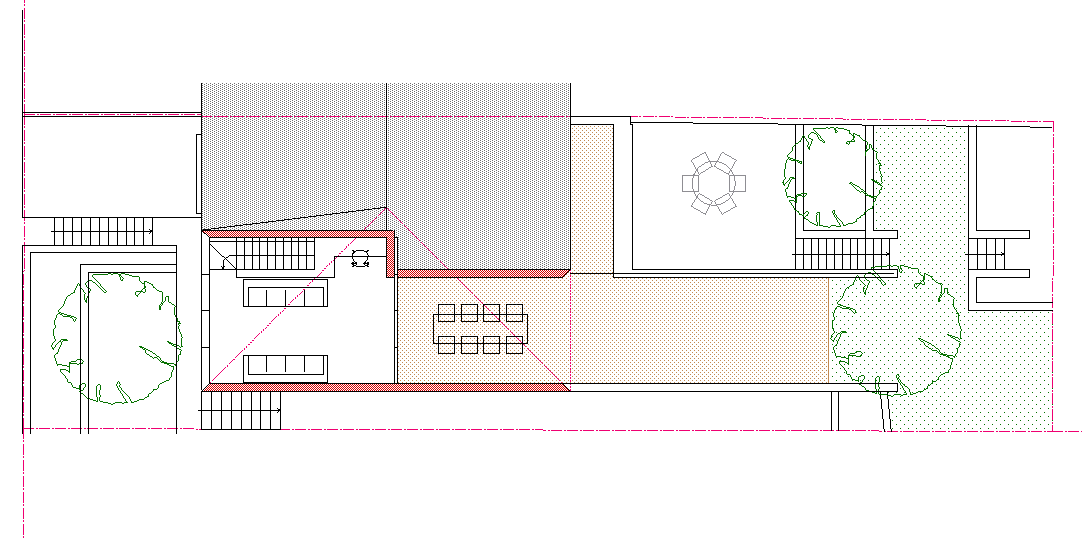

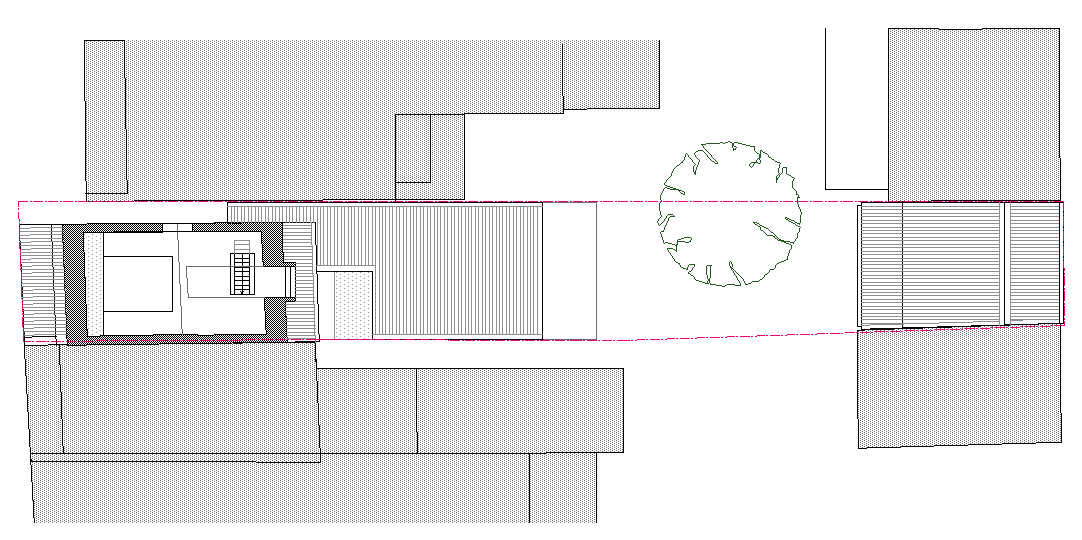

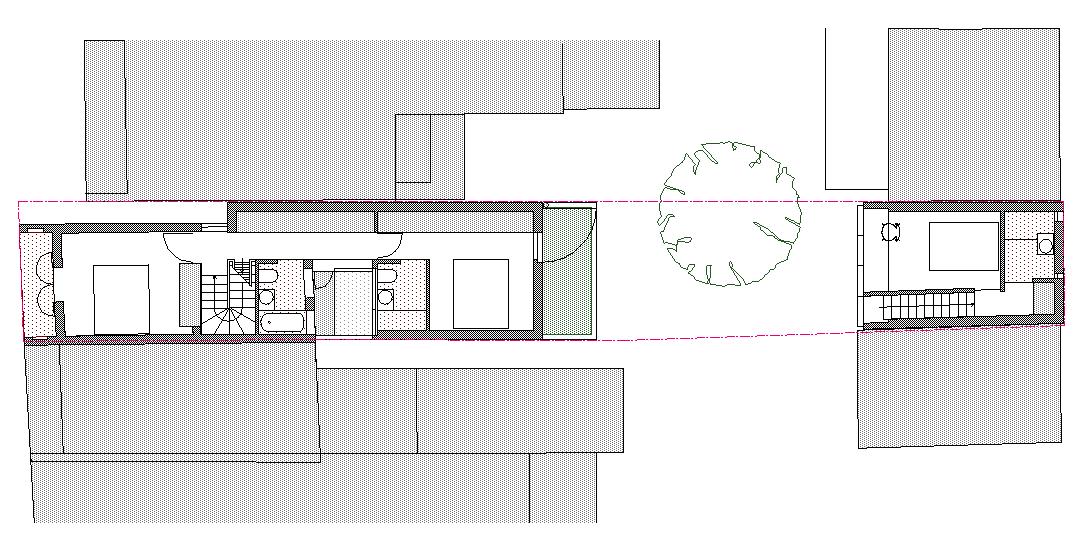

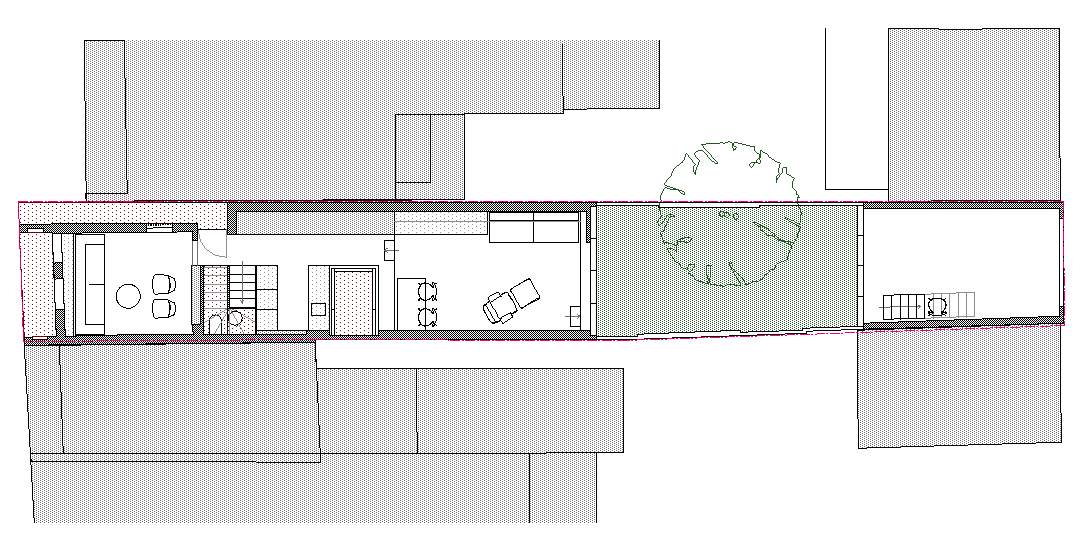

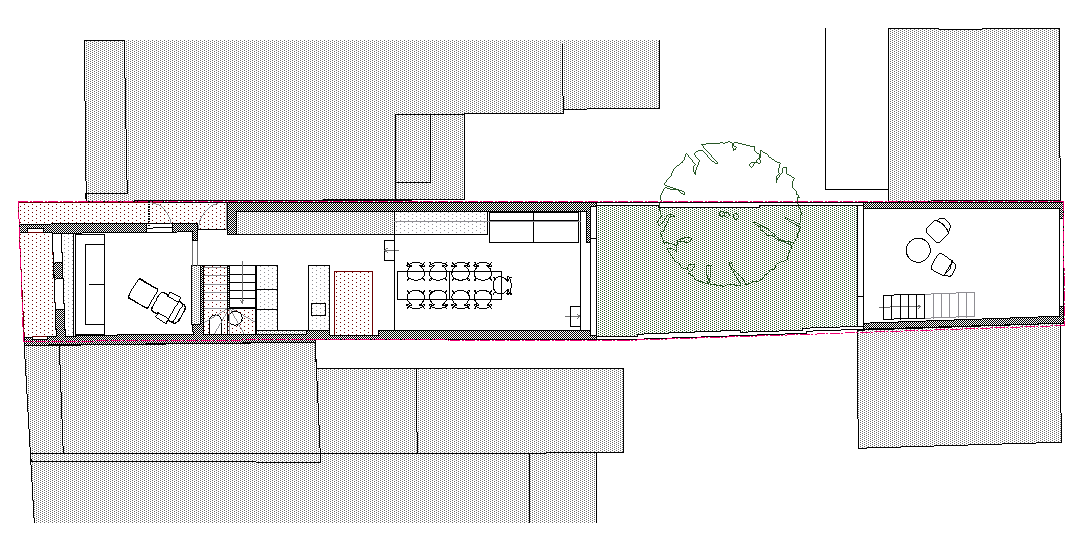

Rush St, Woollahra
Additions & alterations to a terrace house
The daughter of a former client approached us to design
alterations to a small terrace house down the street from
her parent's house. The existing terrace was very small with
several quirks including an attic accessed only via a stair
off the bathroom. We hoped to retain some of the qualities
of the existing house deliberately keeping some of the rooms
cosy and the attic accessible only via a fixed ladder. A
small courtyard separates the kitchen from the back room,
but the sash windows slide up to the level above providing
an open plan with good cross ventilation in appropriate
weather and as the occasion demands.
-

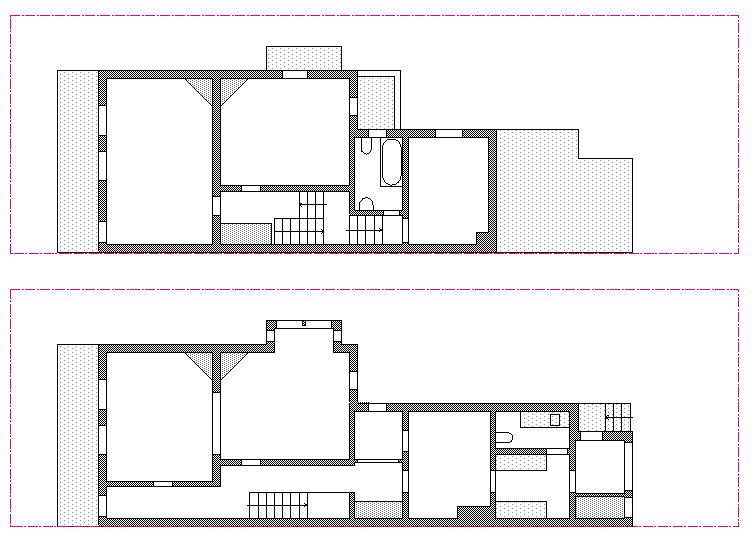

Semi, Dover Heights
-
-
-

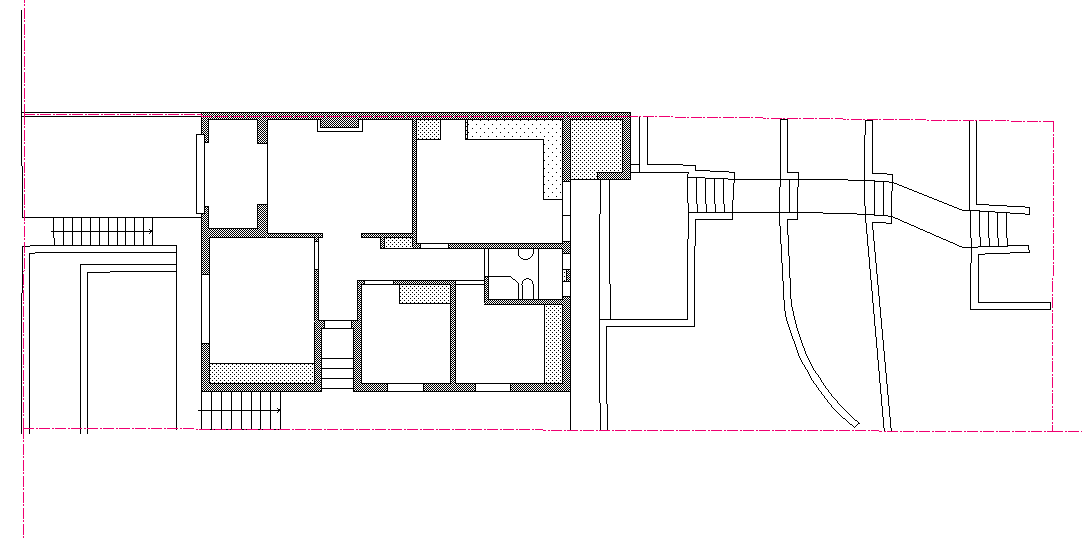

Level 1, Existing
-
Level 1, Proposed
-
Level 2, Proposed
-
-
-
Additions & alterations to a semi-detached house
The existing semi-detached house occupies a steep site. The
proposal adds a bedroom and opens the kitchen and casual
living areas to the yard to the North. A formal living room
is reorganised as a cosy sitting room. A new room in the
roof is proposed. It has views to the ocean to the south and
opens to the North to a roof terrace that connects to the
upper levels of the yard.
-

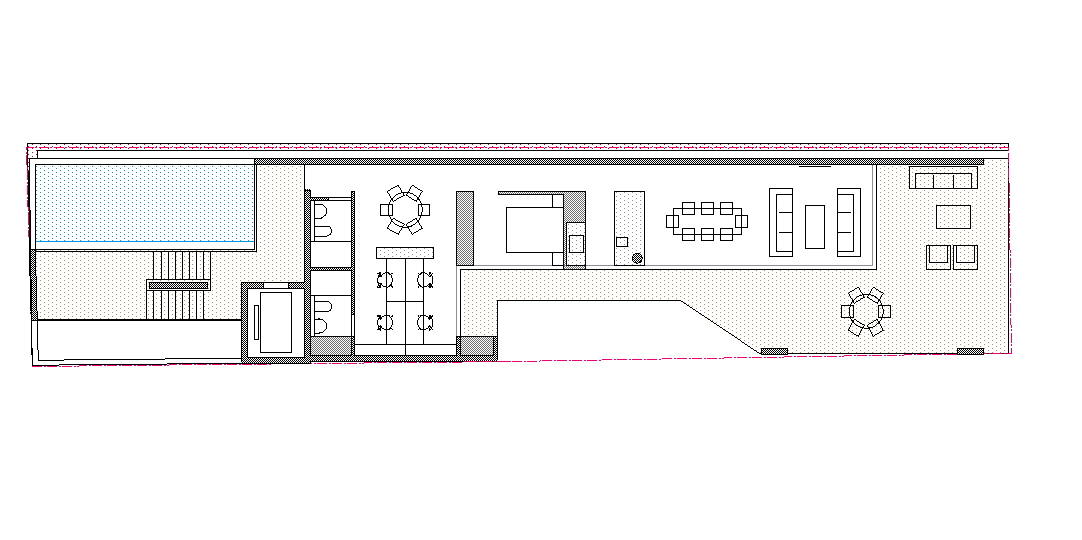

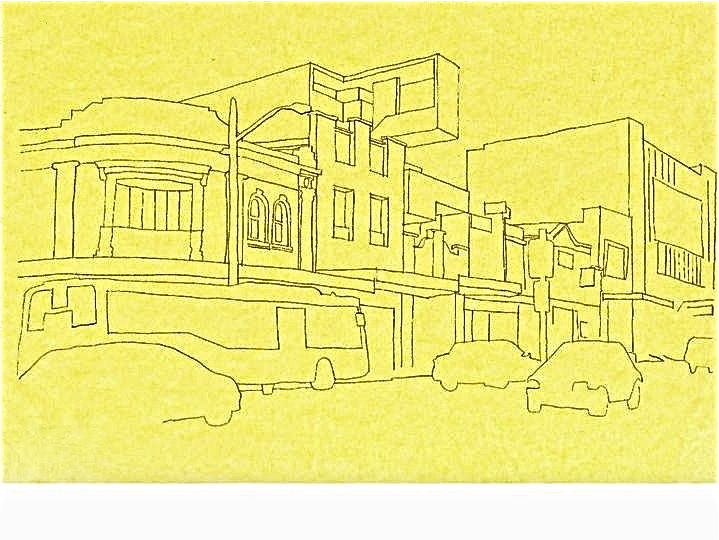

Apartments, Parramatta Road
-
Existing
-

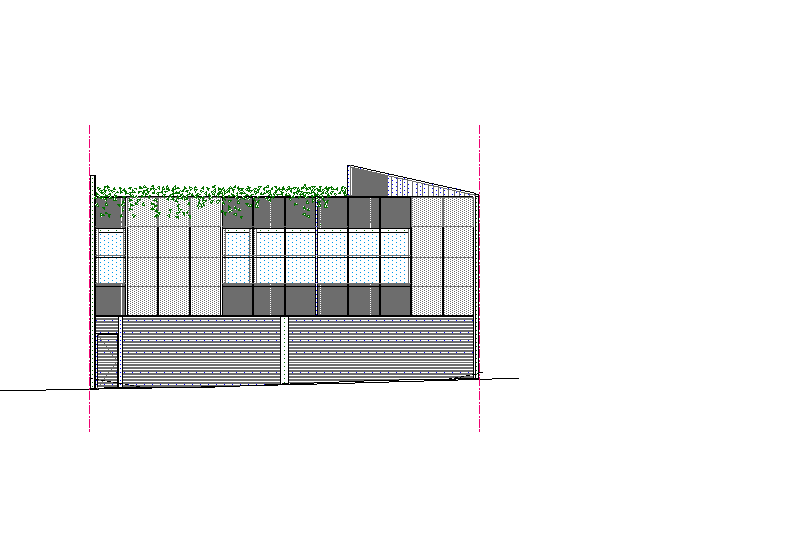

Proposed
-

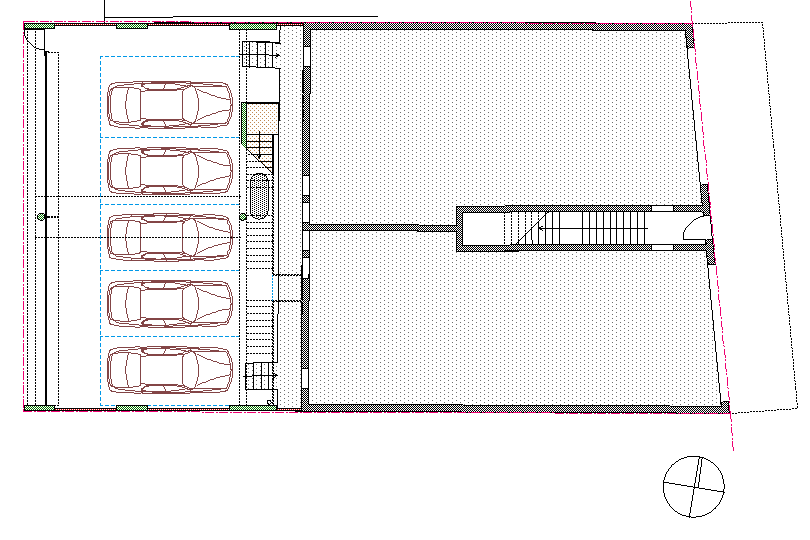

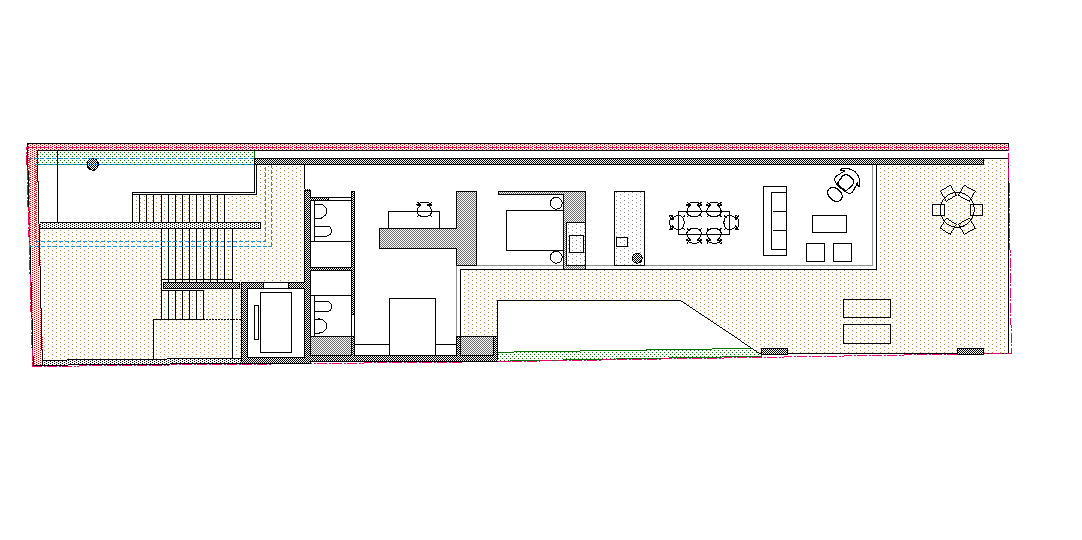

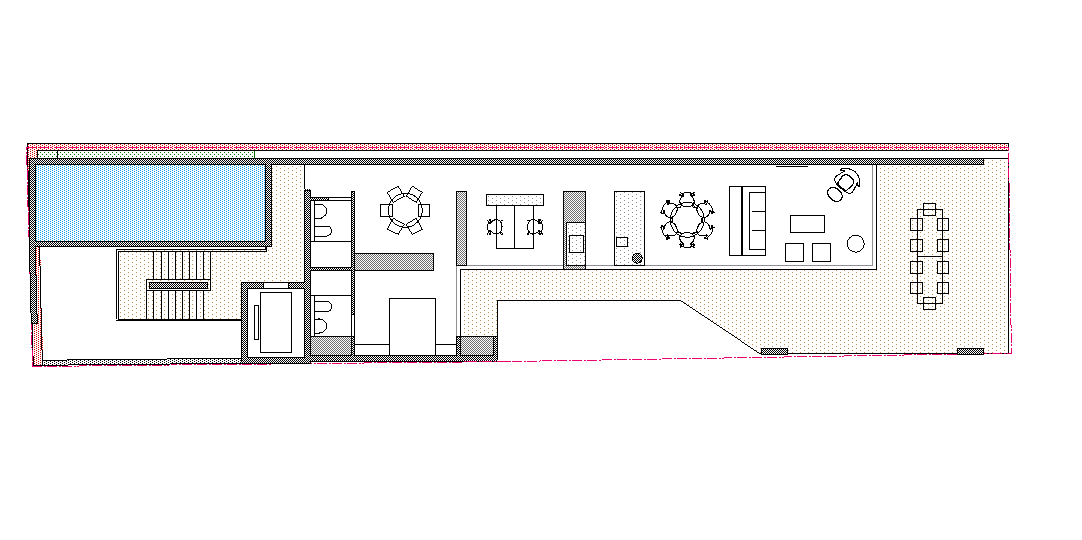

Ground Floor, Retail & Car Share
-

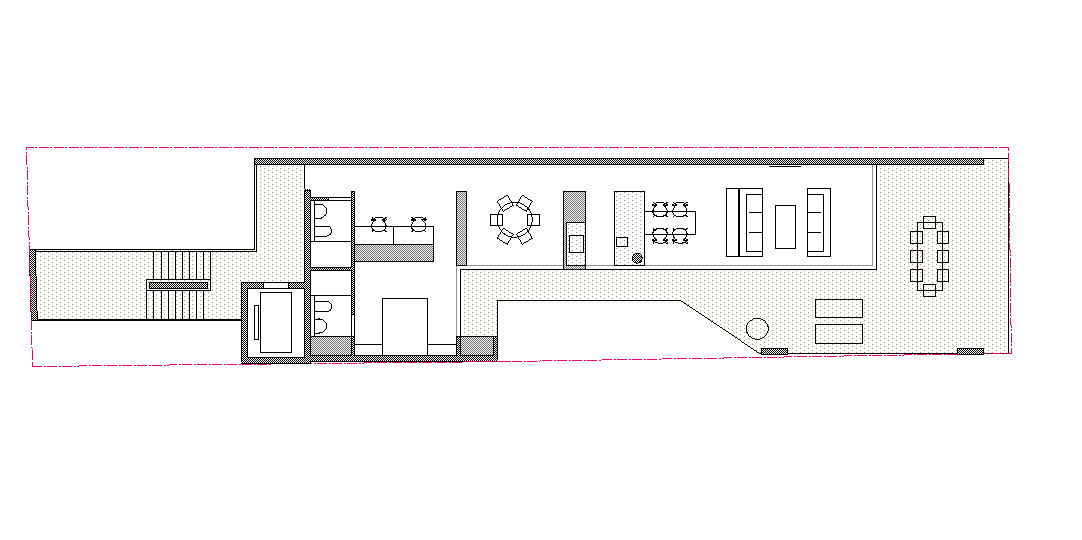

Level 2, 2 Bed & Study Option
-
Level 3, 1 Bed & Home Office Option A
-
Level 4, 3 Bed Option
-
Level 5, 1 Bed & Home Office Option B
-
Level 6, 1 Bed & Home Office Option C
-

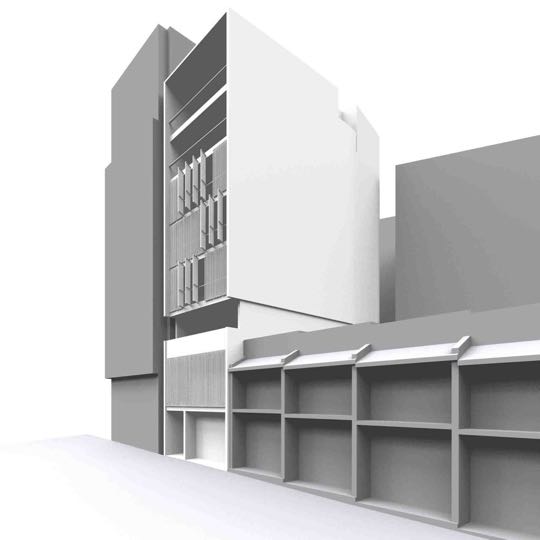

New mixed-use building
A sketch design for a busy site on the Northern side of
Parramatta Road.One large dwelling per floor, closed off
facing Parramatta Road. Each level can be configured as
office, home office, or 1-3 bedrooms using partition walls.
The access stair is used to articulate the building form to
the street.
-

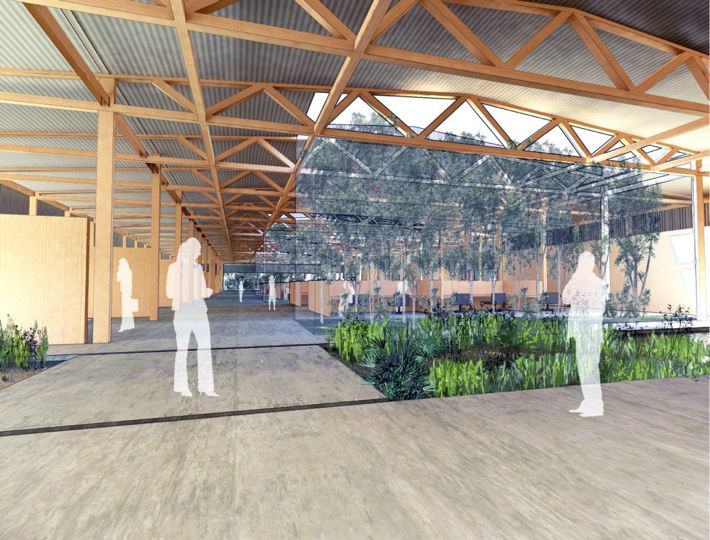

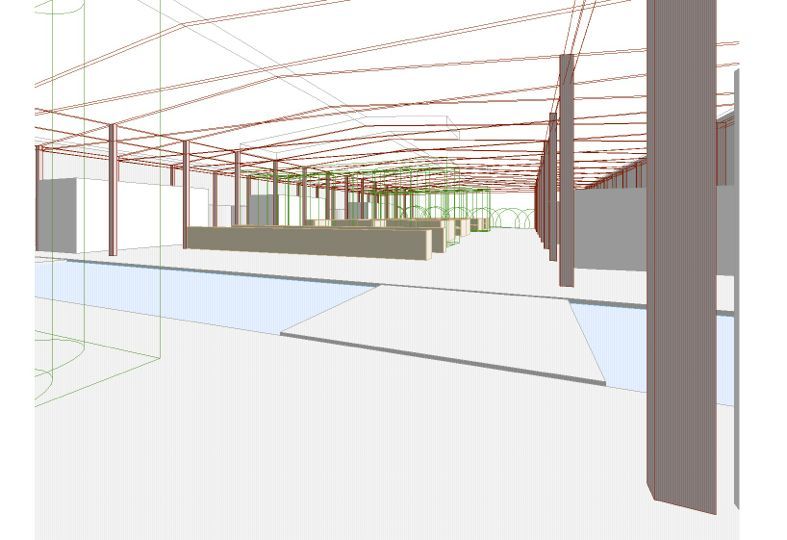

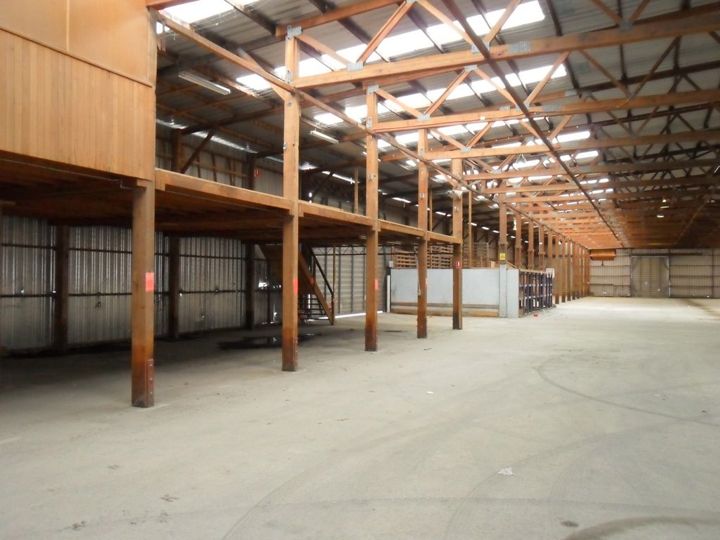

Factory / Office, Wodonga
-

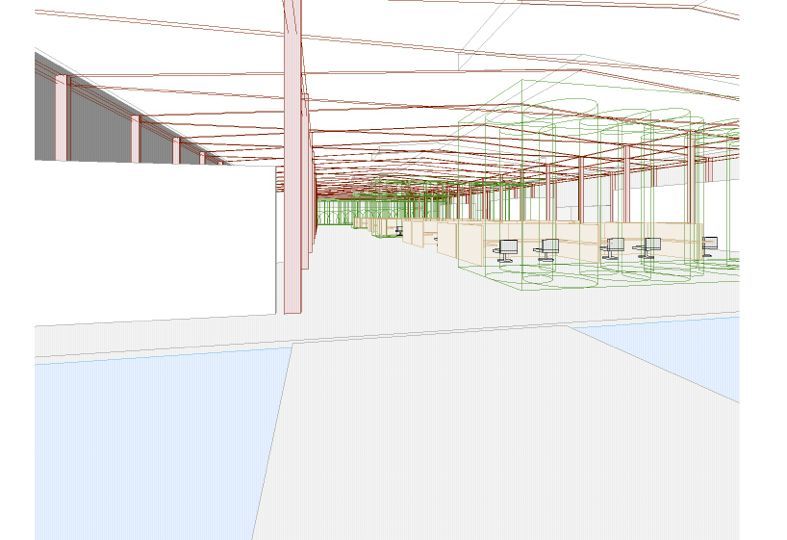

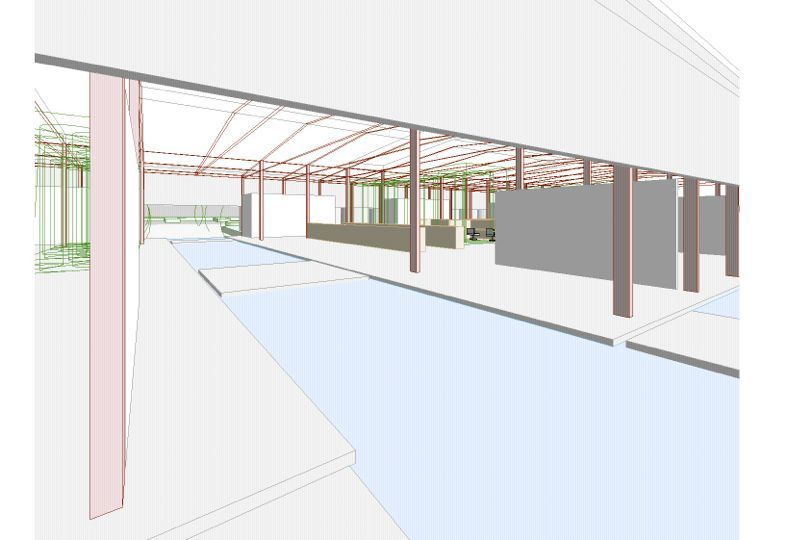

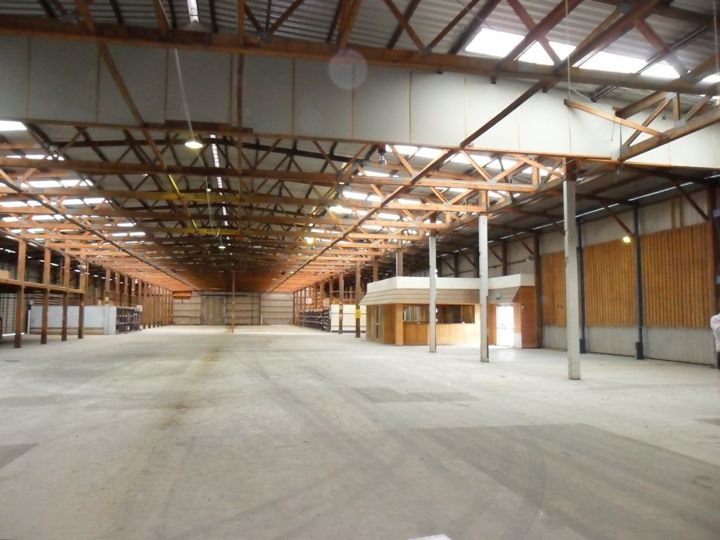

with Indi Architects, Wodonga - Existing
-
with Indi Architects, Wodonga - Existing
-

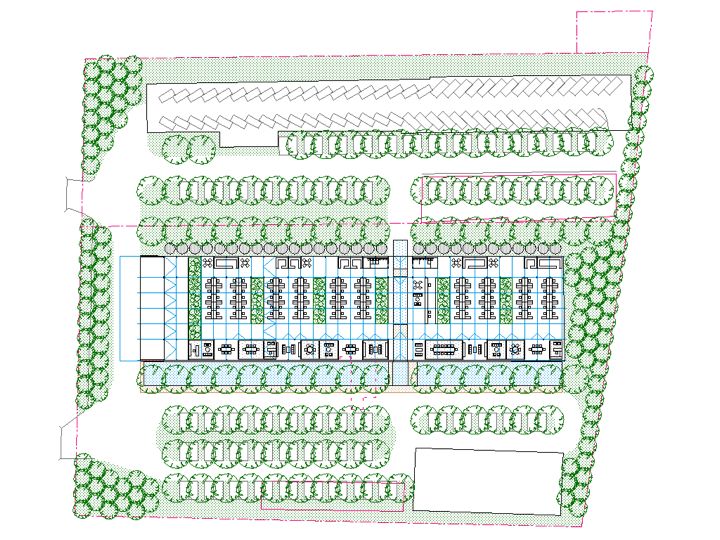

with Indi Architects, Wodonga - Plan
-

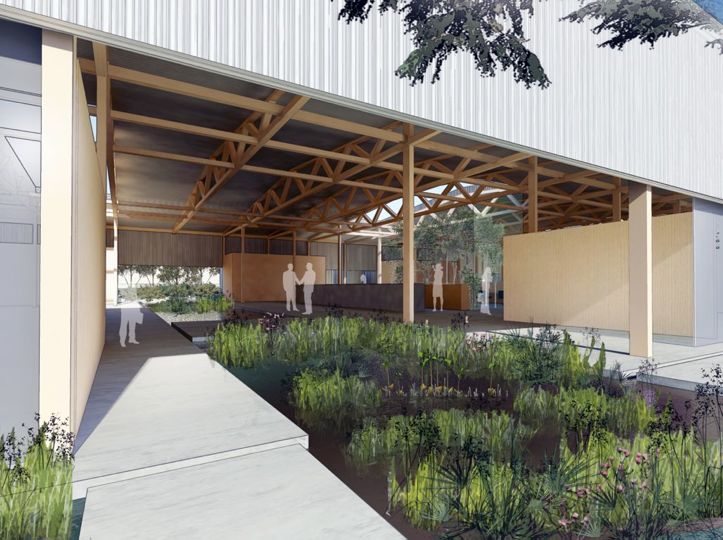

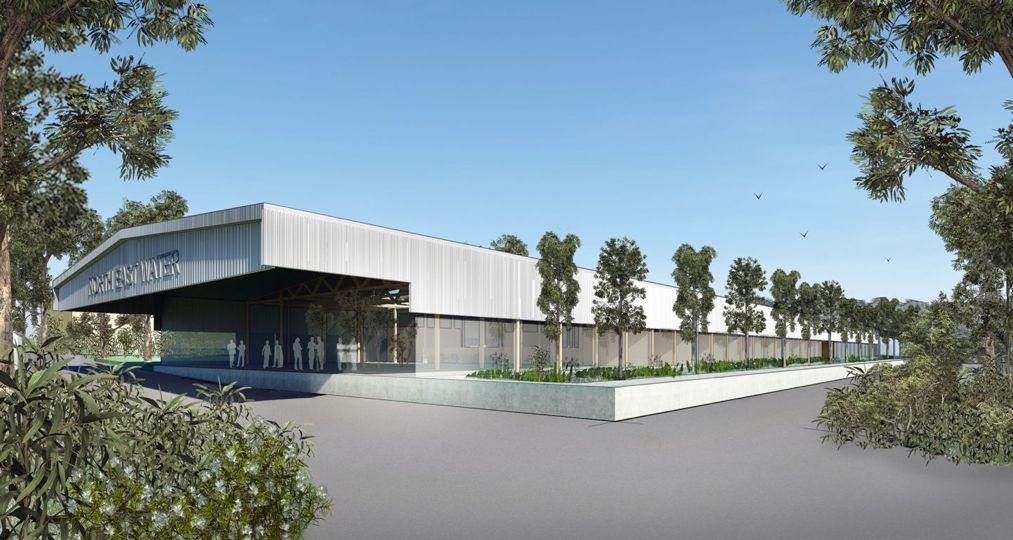

with Indi Architects, Wodonga - Montage
-
with Indi Architects, Wodonga - Montage
-
with Indi Architects, Wodonga - Montage
-

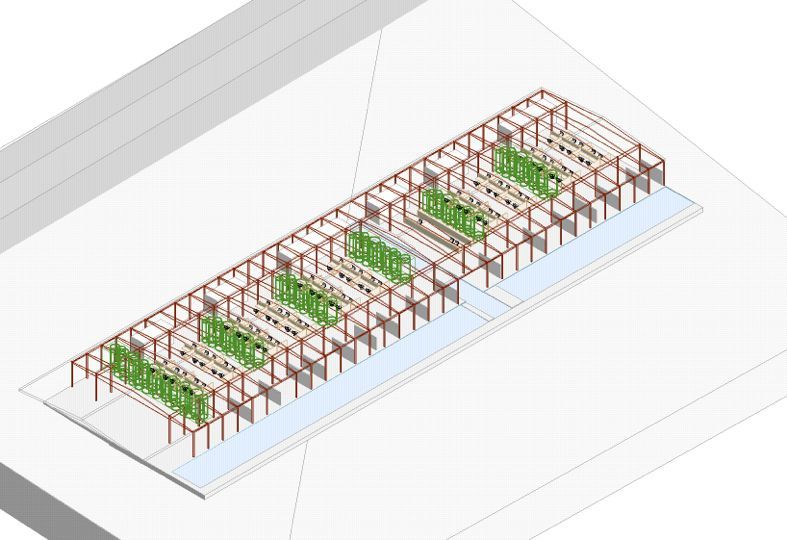

with Indi Architects, Wodonga - Isometric sketch
-
with Indi Architects, Wodonga - Sketch
-
with Indi Architects, Wodonga - Sketch
-
with Indi Architects, Wodonga - Sketch
Conversion of a factory into corporate headquarters
Expression of Interest with Indi Architects, Wodonga.
The site included factory buildings that manufactured timber
roof trusses. The existing buildings had character and were
large enough to meet the spatial requirements of the brief.
We proposed simply insulating the existing building and
upgrading services. Remaining budget would be spent on
courtyard gardens and landscaping the site.
-

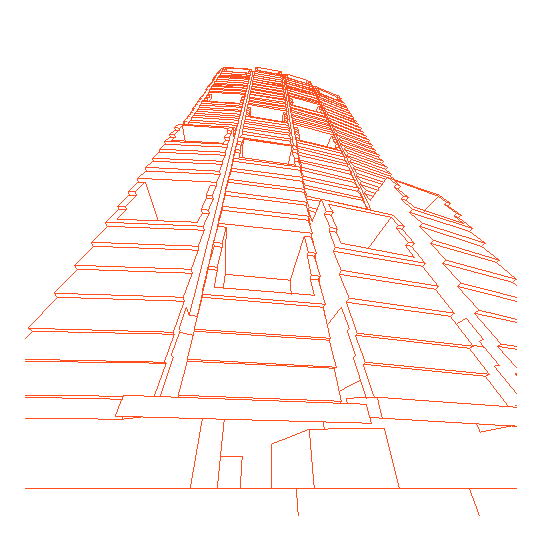

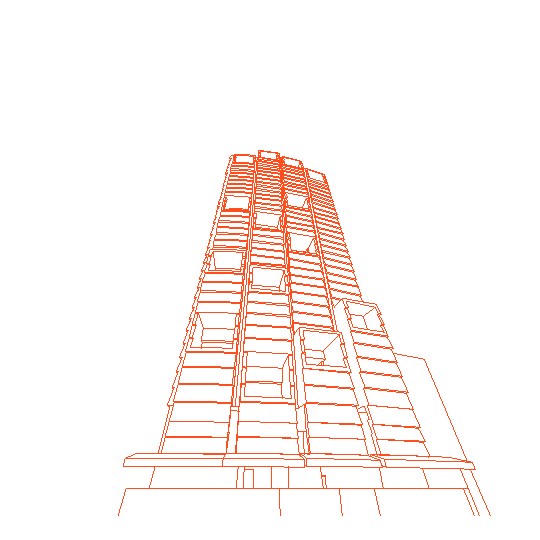

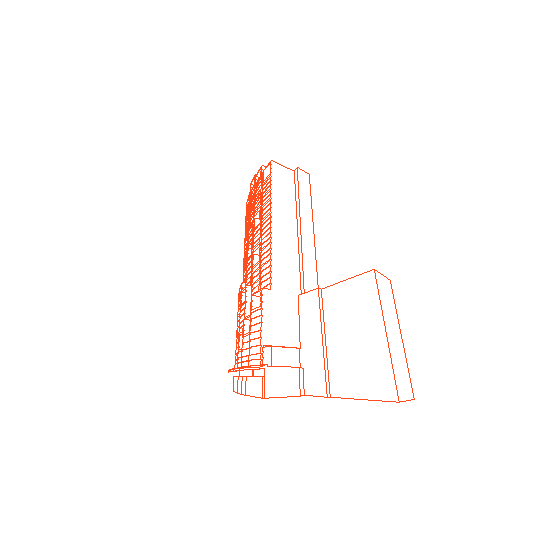

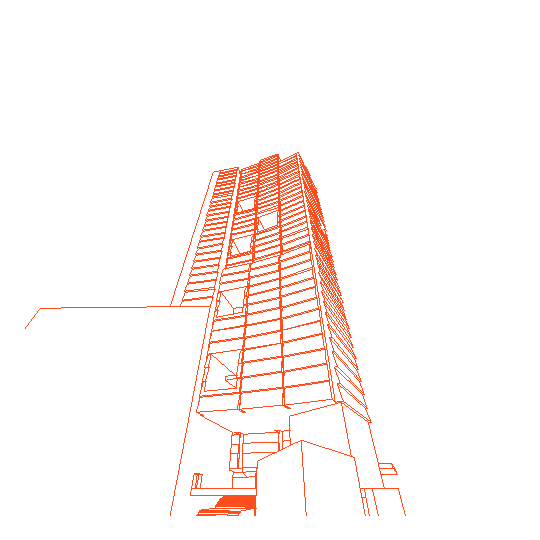

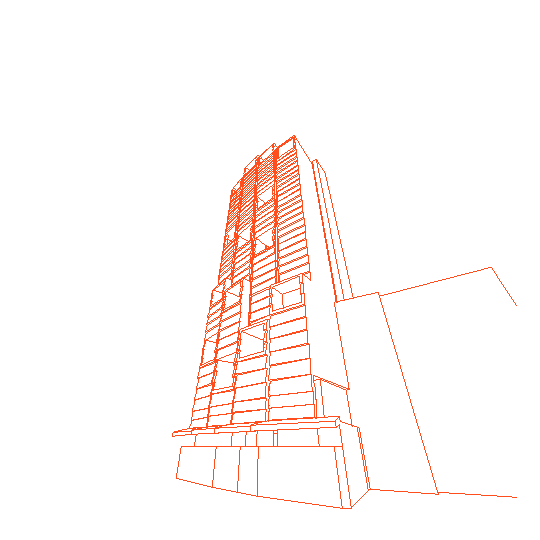

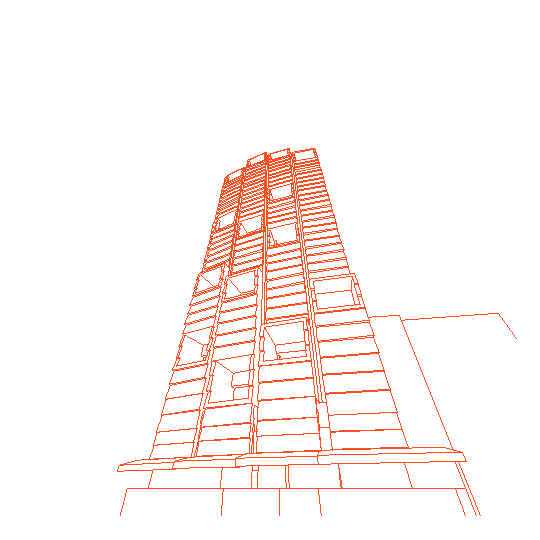

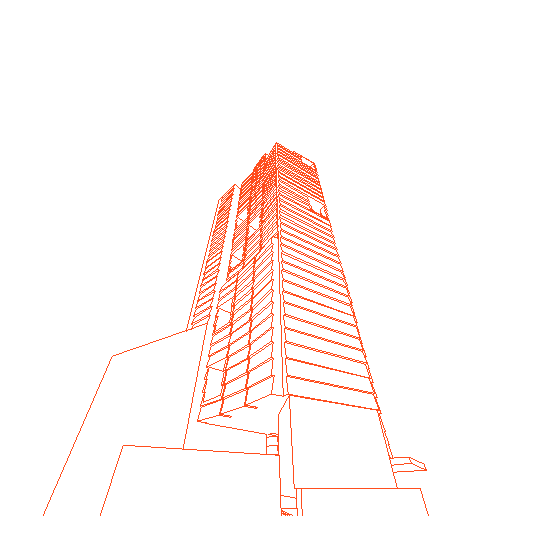

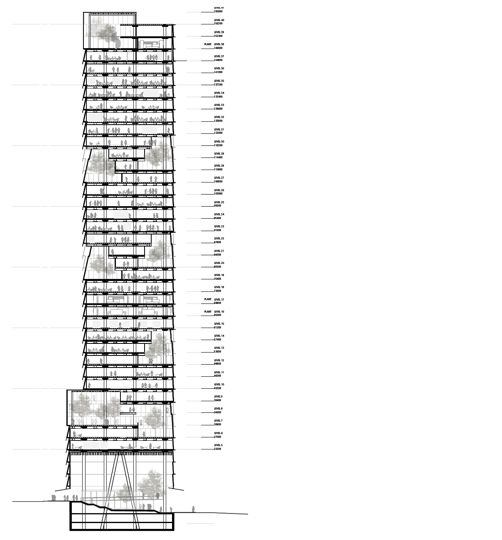

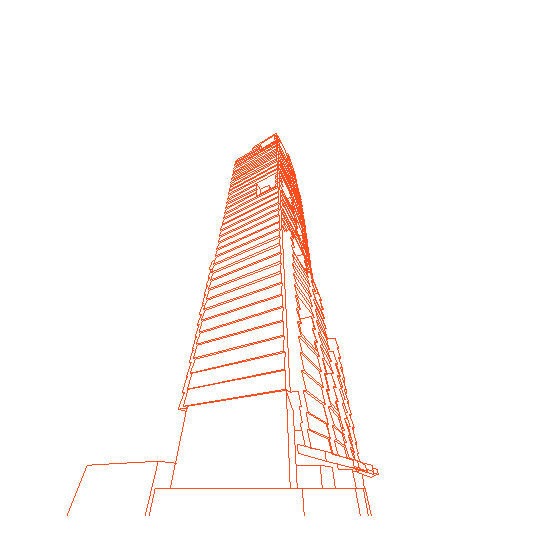

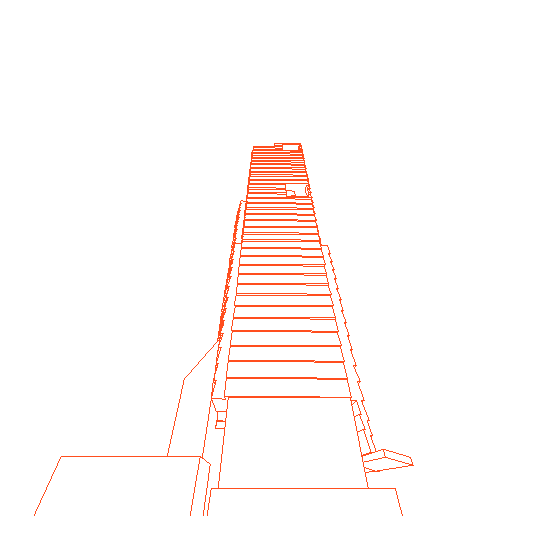

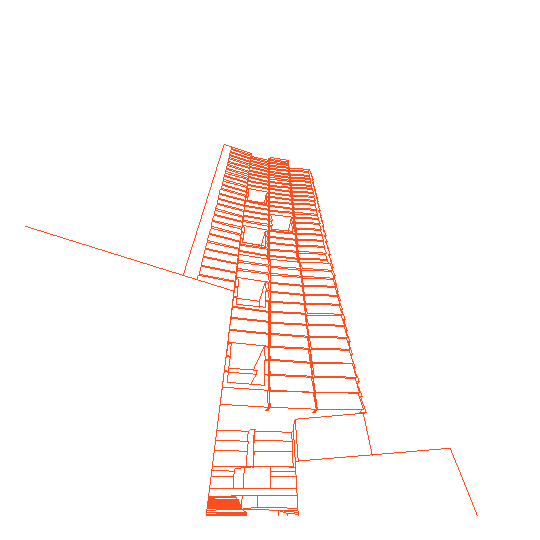

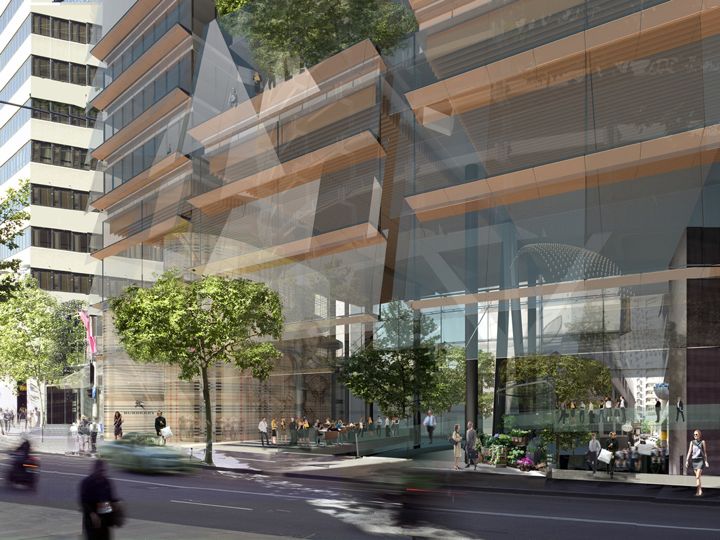

200 George St, Sydney
-

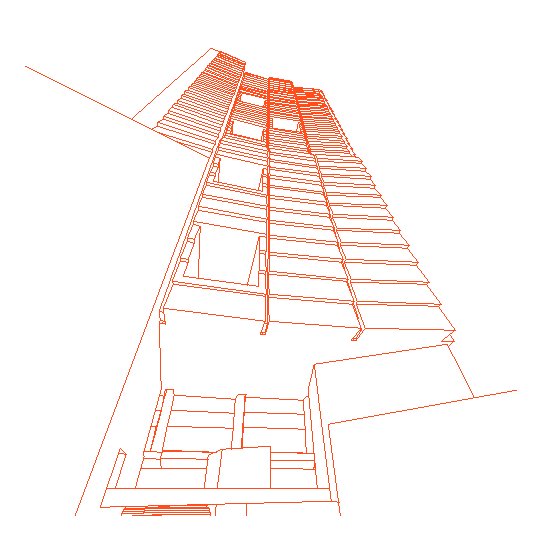

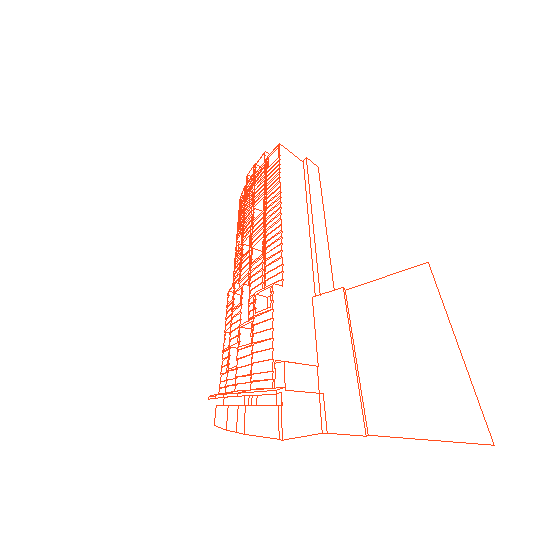

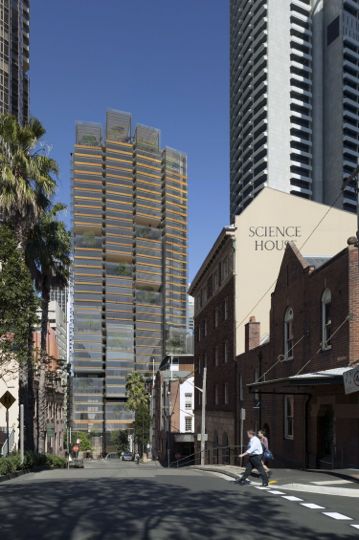

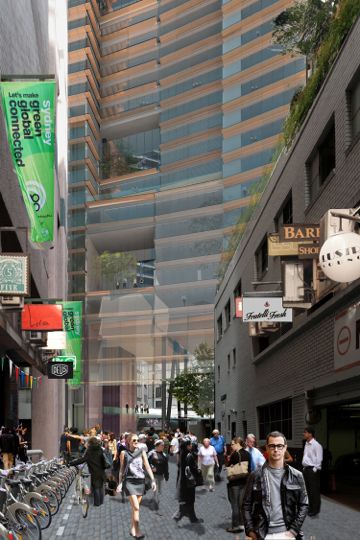

with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren
-
with Collins + Turner, MBMO & Hiromi Lauren

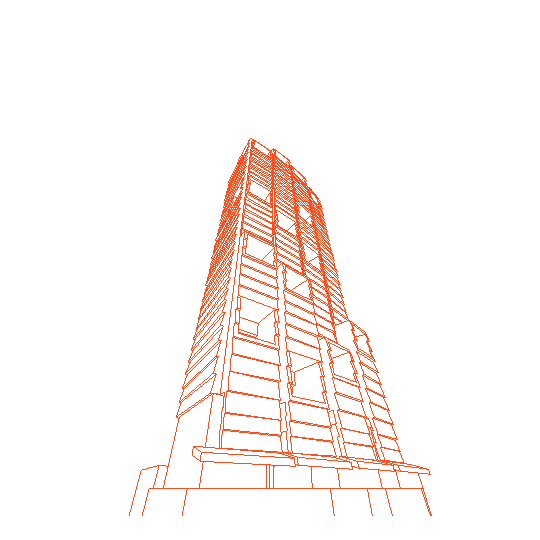

New commercial office buulding
Invited competition for Mirvac
Collins + Turner invited us to collaborate on a competition
for a 35 storey commercial office building on George St.
Engineering advice, Arups
-

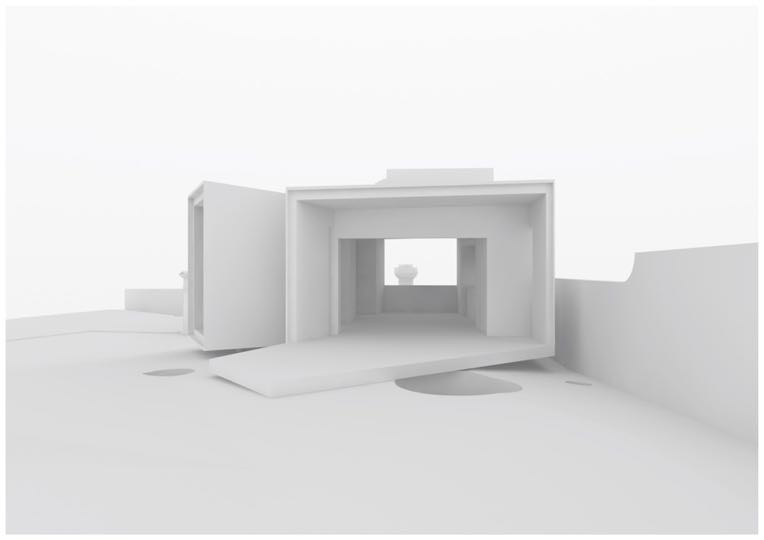

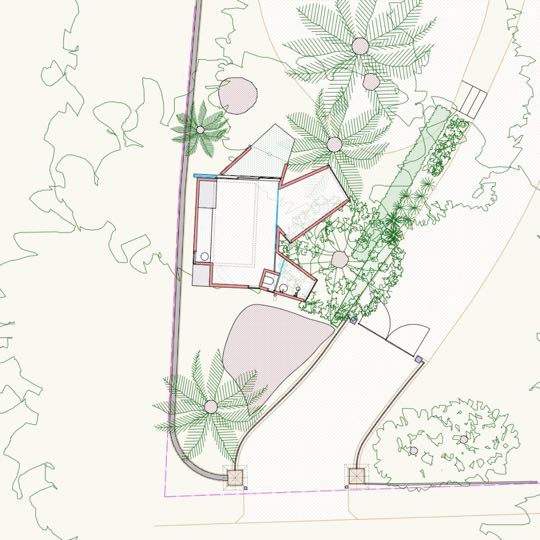

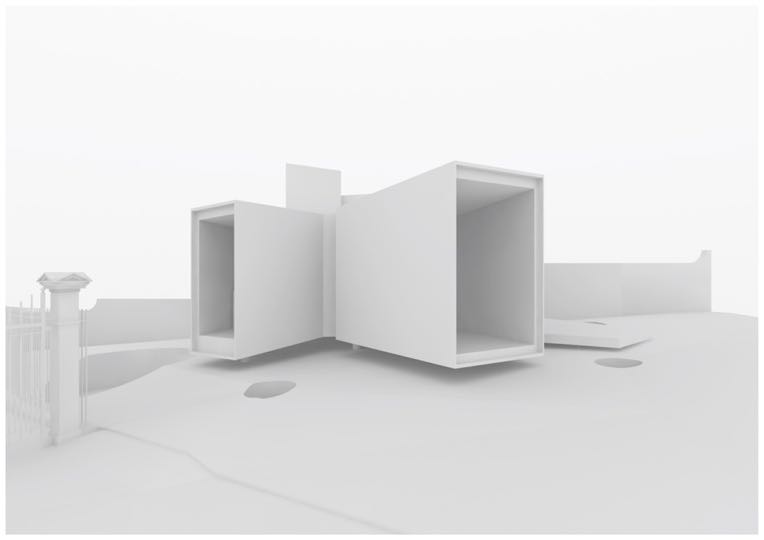

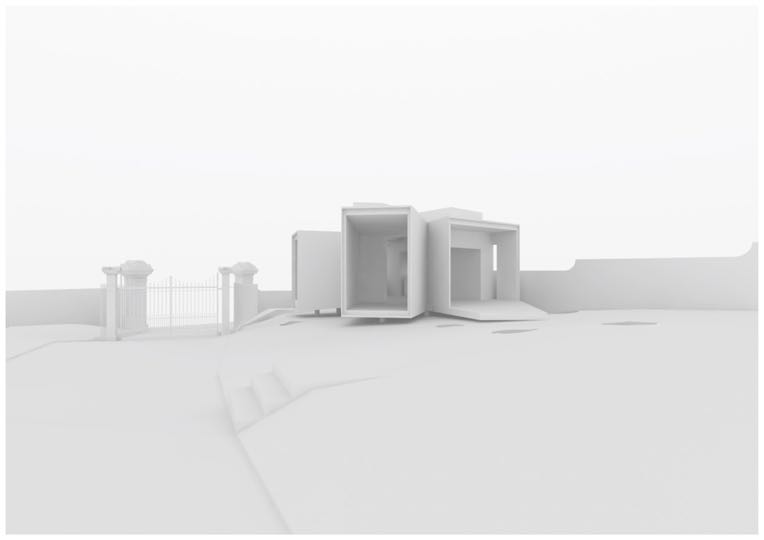

Garden Pavilion
Sketches of a small pavilion in a large garden
-

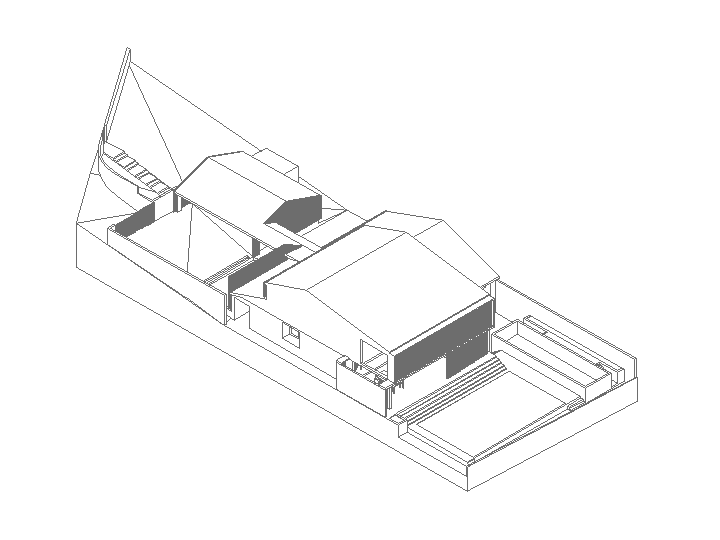

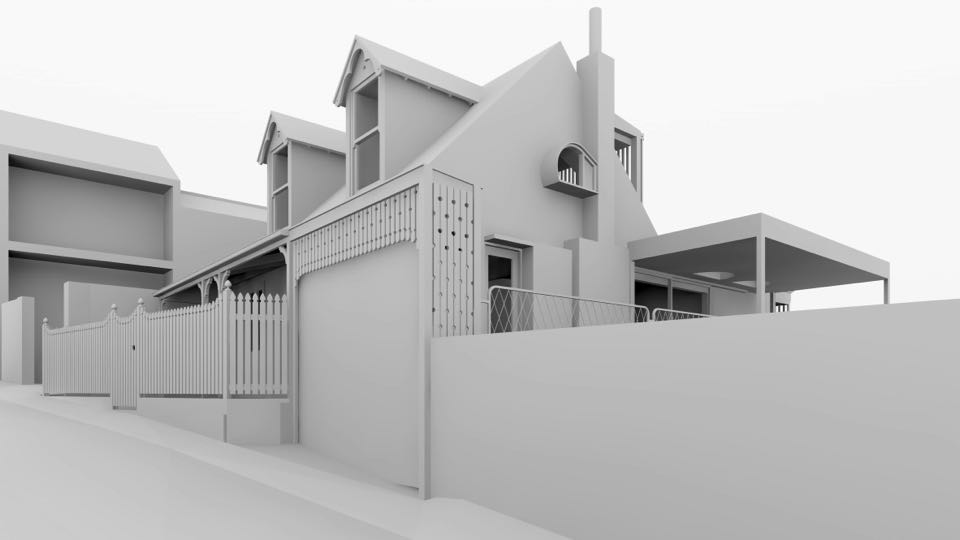

Alexandria House
-

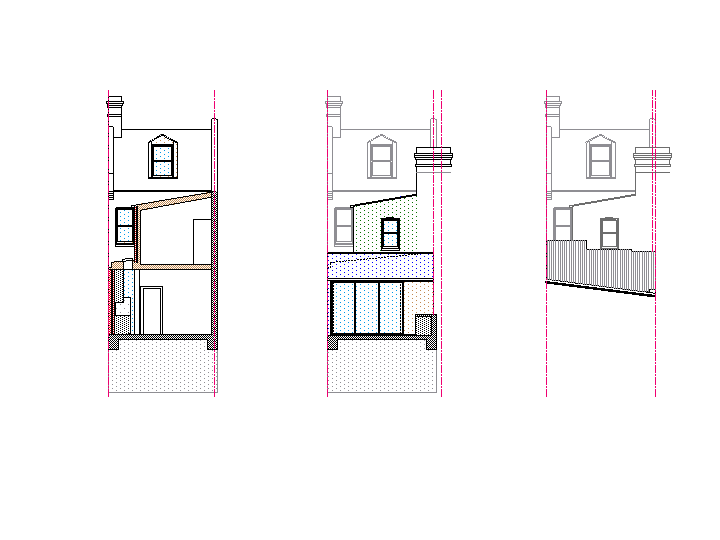

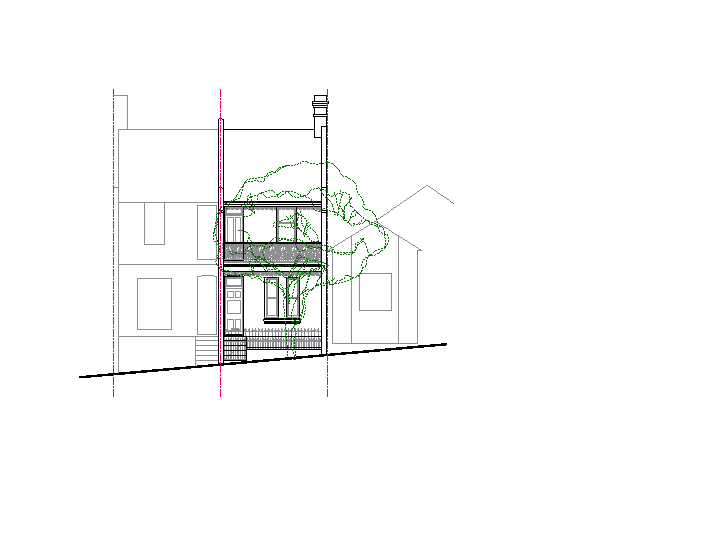

Existing
-

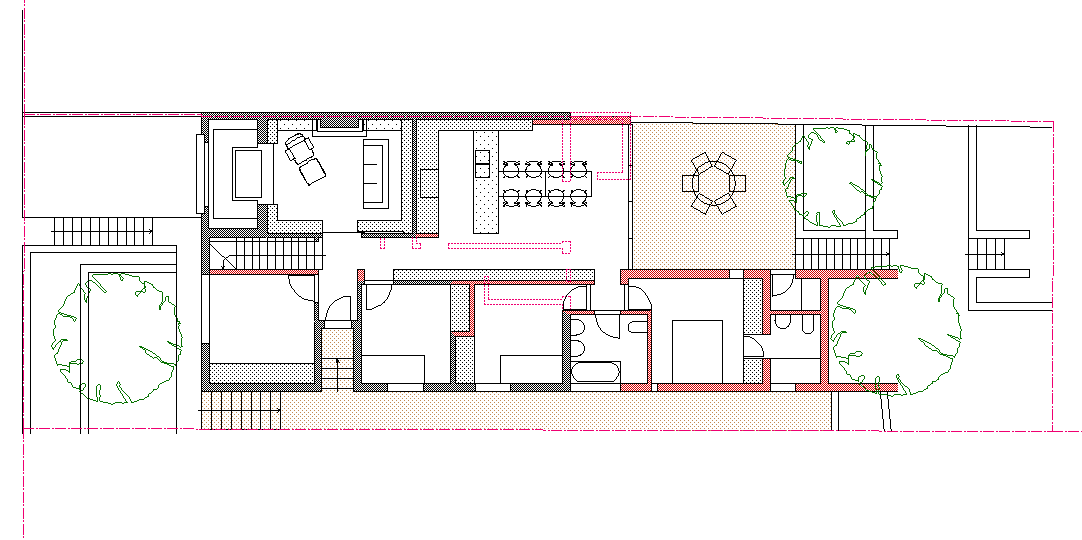

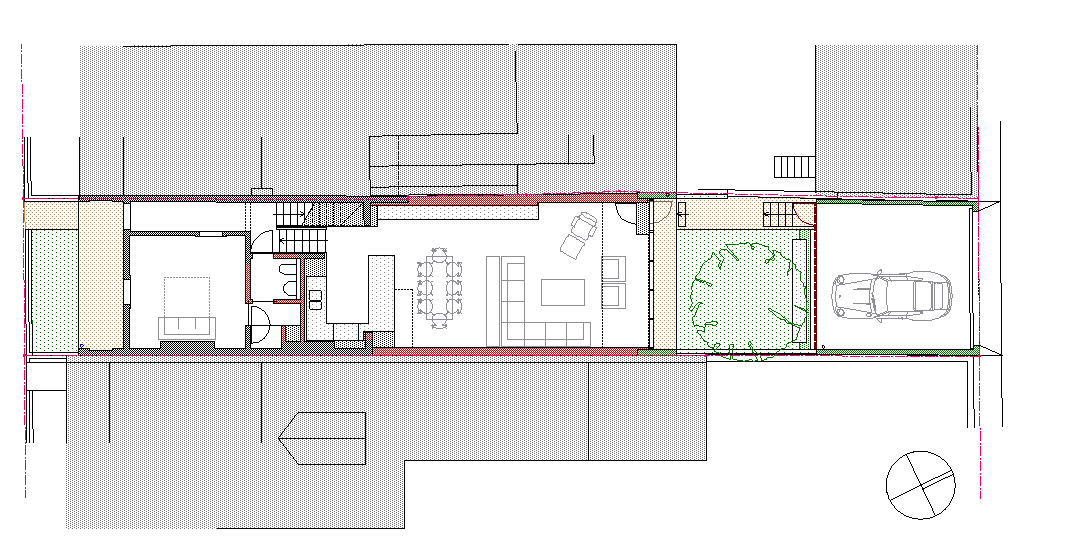

Proposed
-
Proposed
Additions to a terrace house
Sketch design

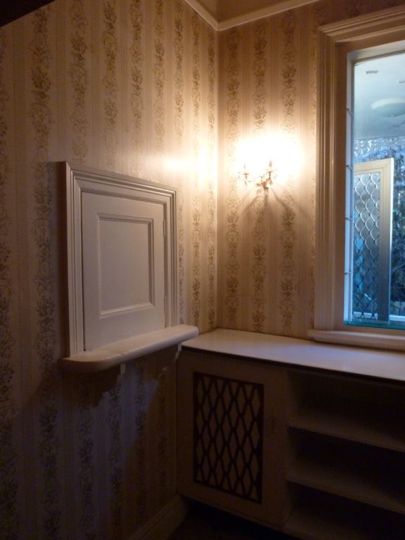

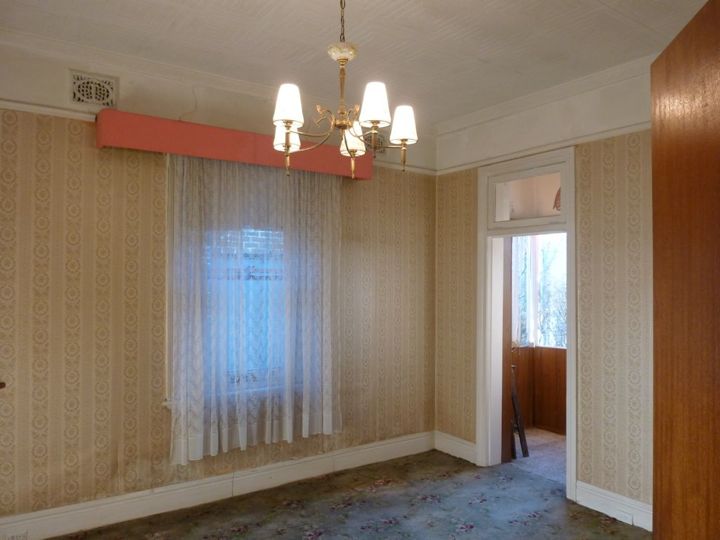

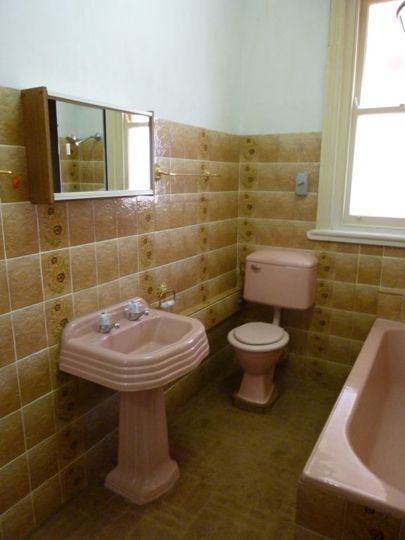

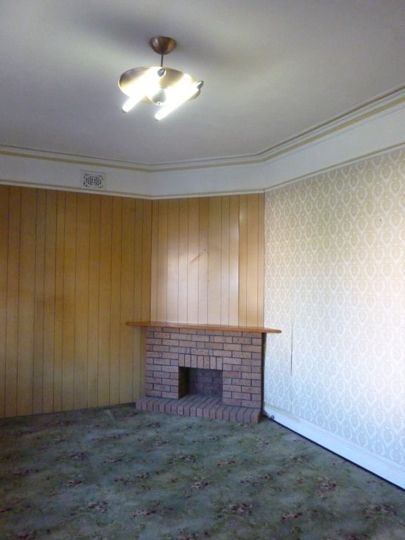

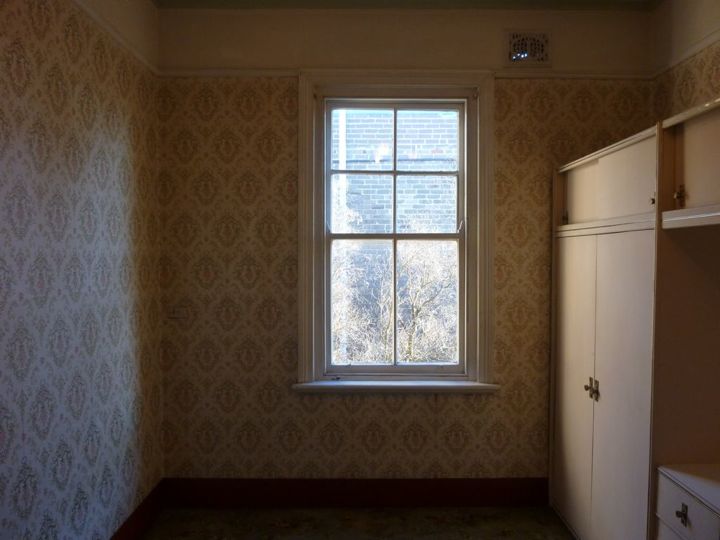

My brother found this place.
It was a large freestanding terrace in Alexandria.

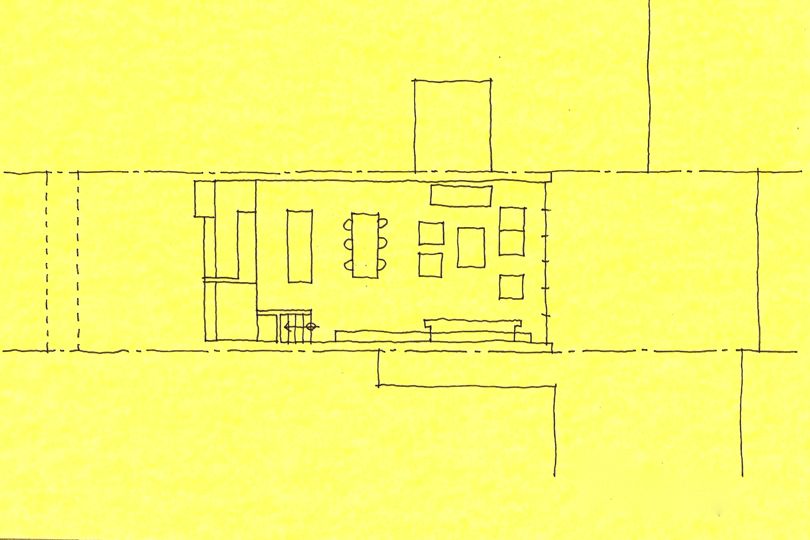

I did a quick sketch to try to encourge him to buy it.

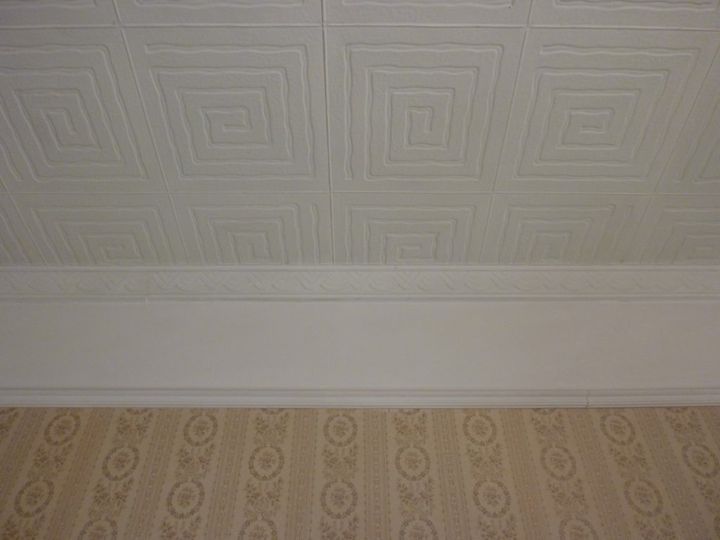

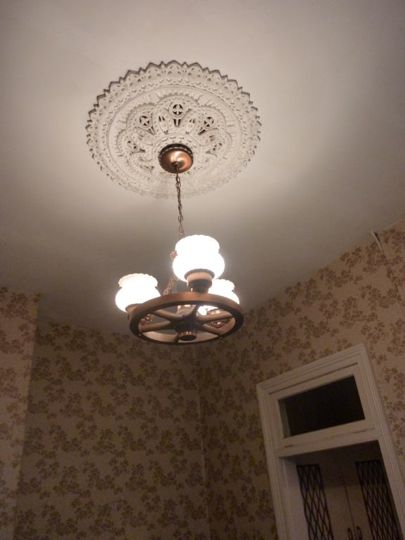

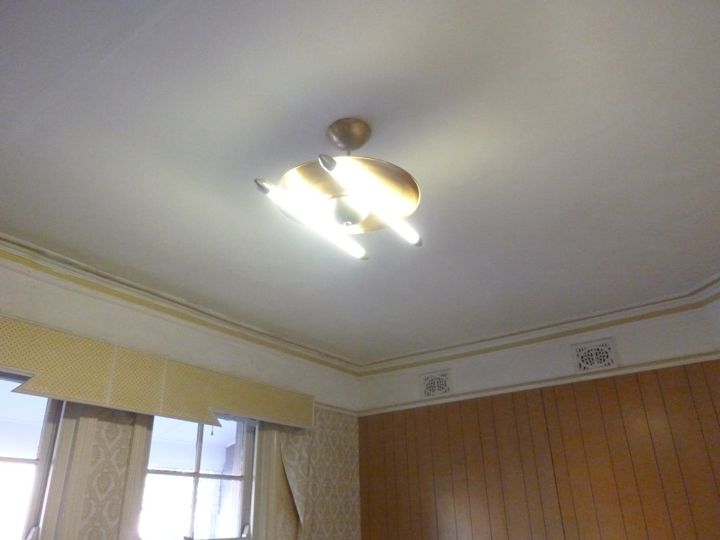

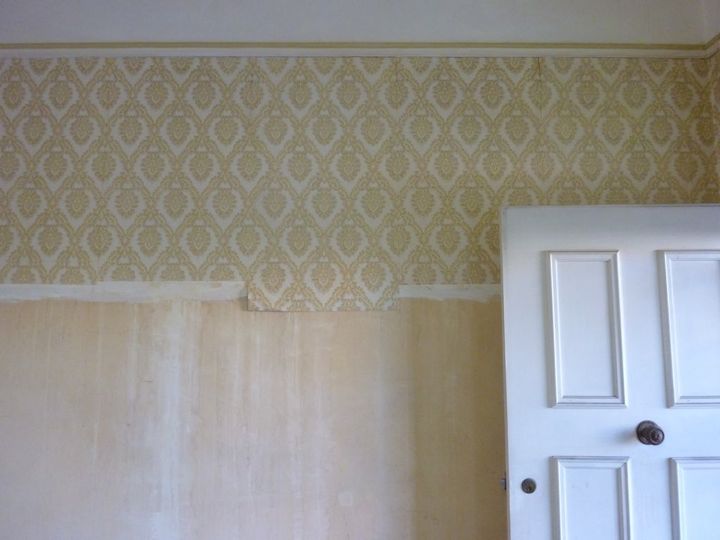

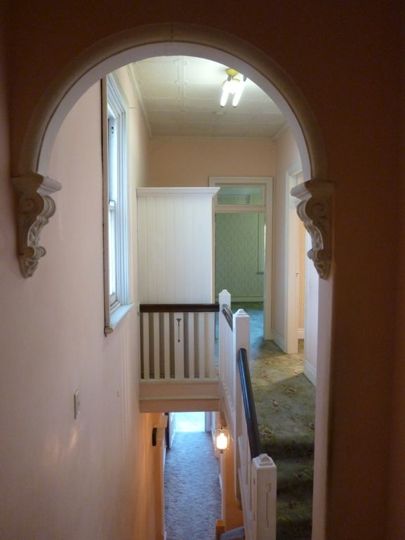

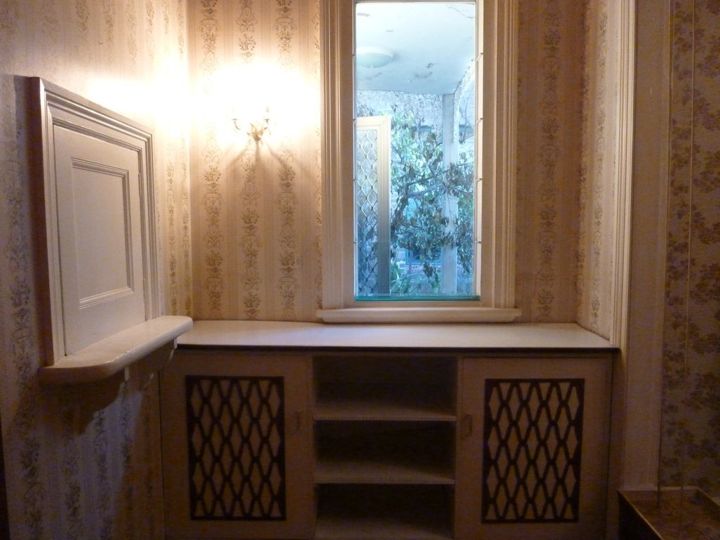

The house had so much character that you'd leave it largely
intact, wallpaper and all.
Just build a new room around a courtyard out the back.
Make the carport double as a covered terrace.
He didn't buy it. It didn't happen. Would have been great.
-
House 22, Surry Hills
-

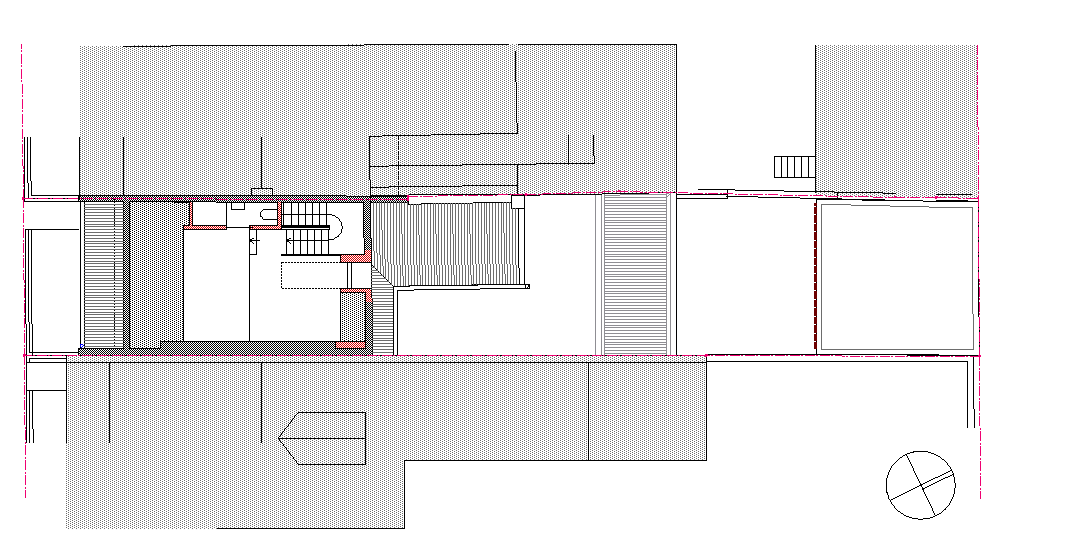

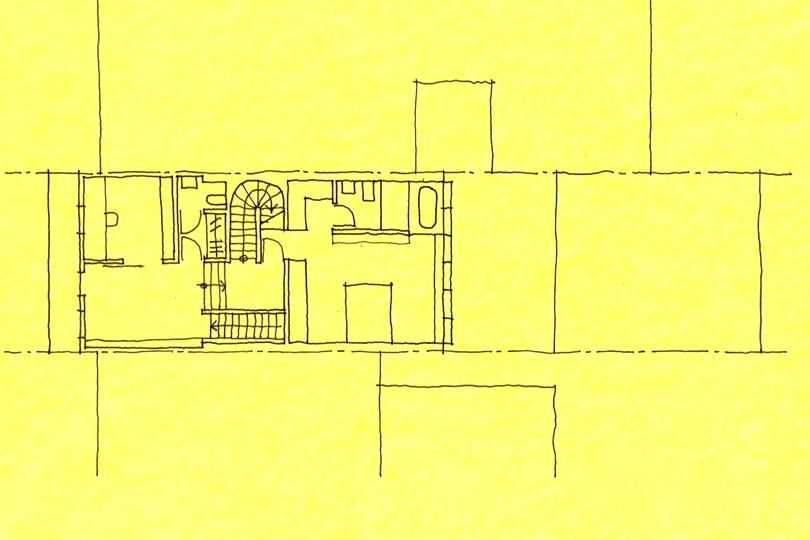

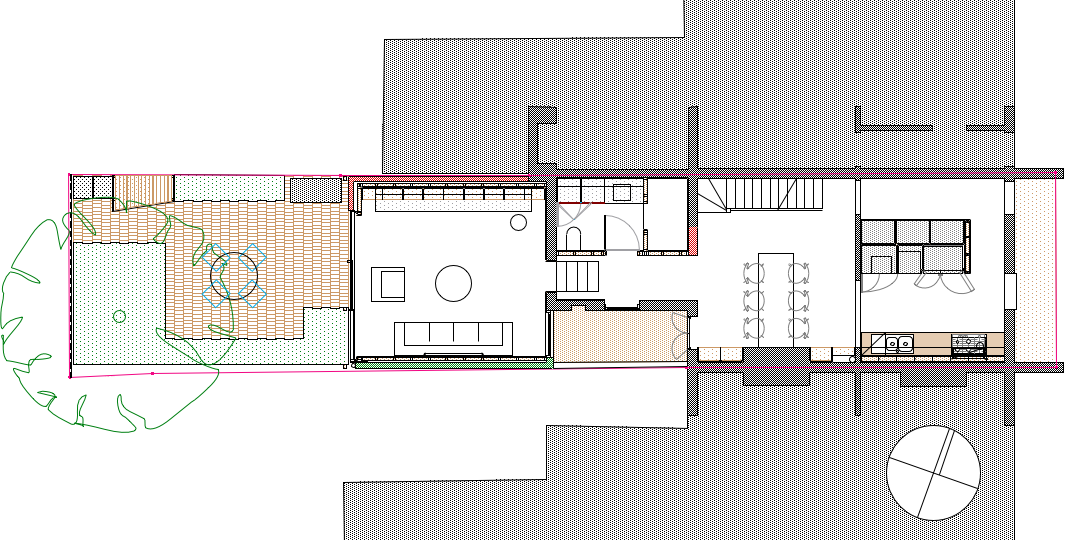

Level 1
-
Level 2
Additions & alterations to a terrace house
Sketch design

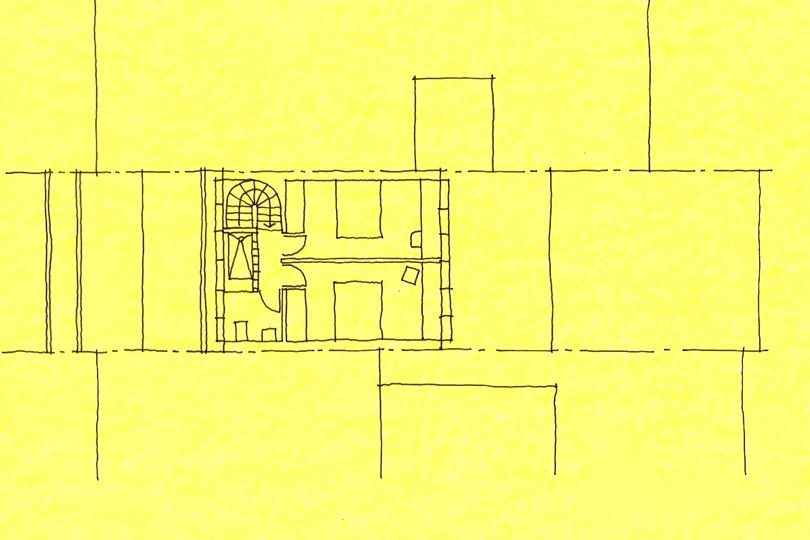

A quick sketch to show development potential of our
neighbour's house.
-
Goodhope St, Paddington
-

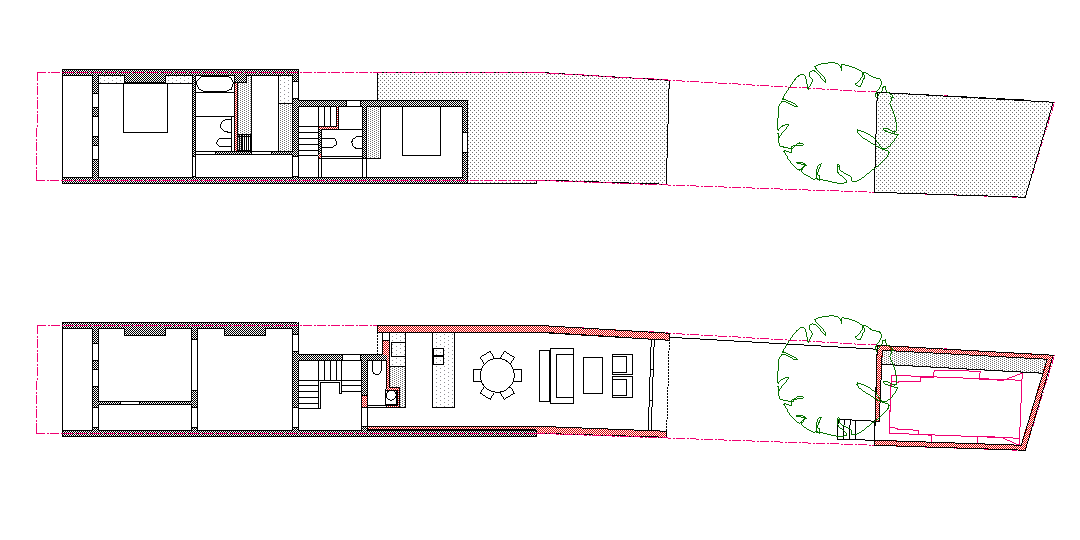

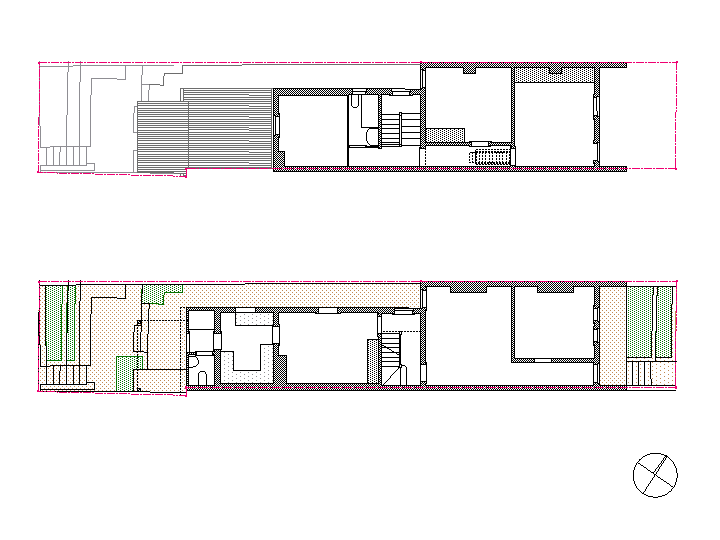

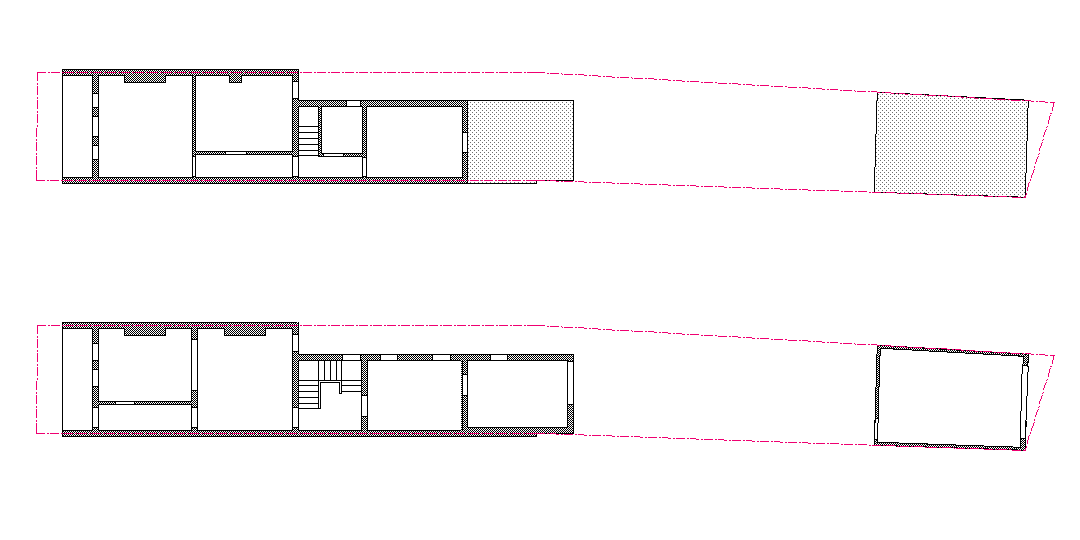

Sketch, Existing
-
Sketch, Proposed
Additions & alterations to a terrace house
Feasibility study
We were engaged to assist in the search for a home in
Paddington. We completed this sketch design following a
quick site visit and measure, using the Title Diagram in the
Contract. The sketch was sufficient for the clients to
realise this house would involve greater compromise than
they were prepared for.
-
House JS, Paddington
Additions & alterations to a house
Sketch Design
A quick sketch design to examine potential alterations to a
house.
-

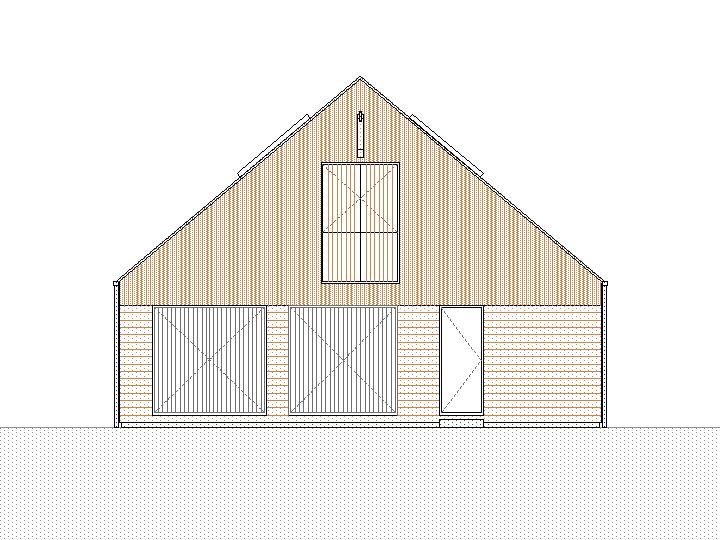

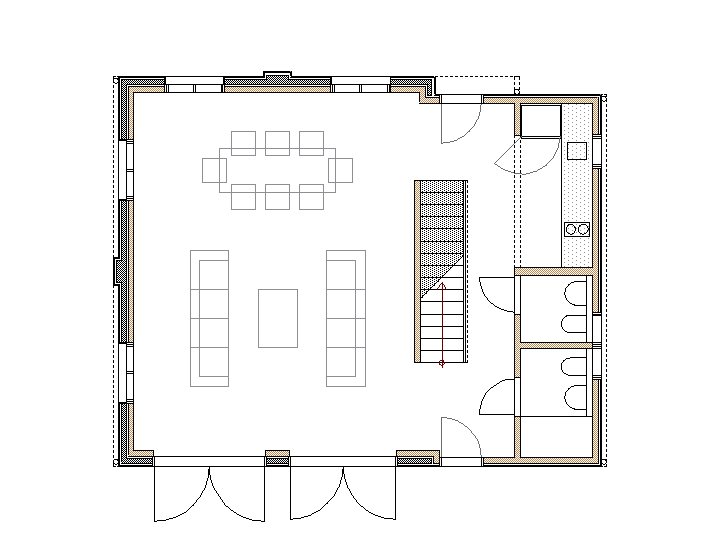

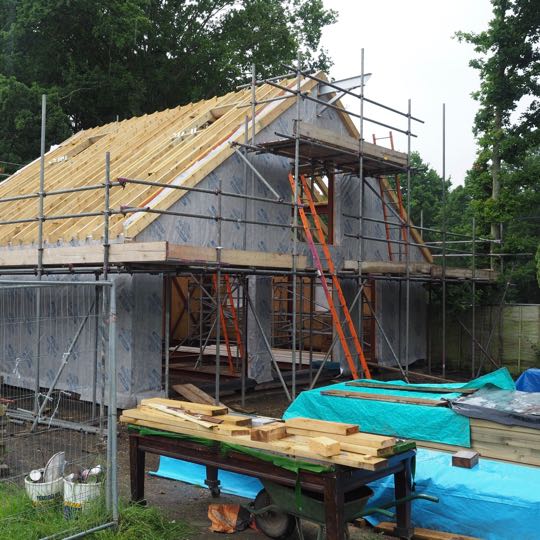

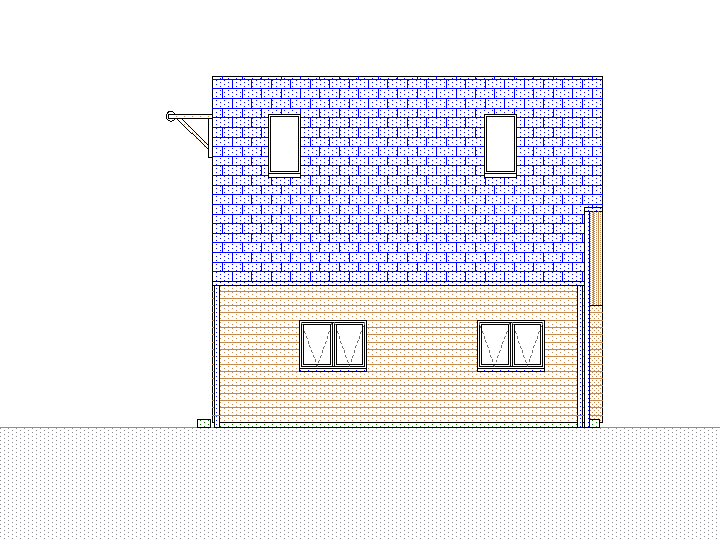

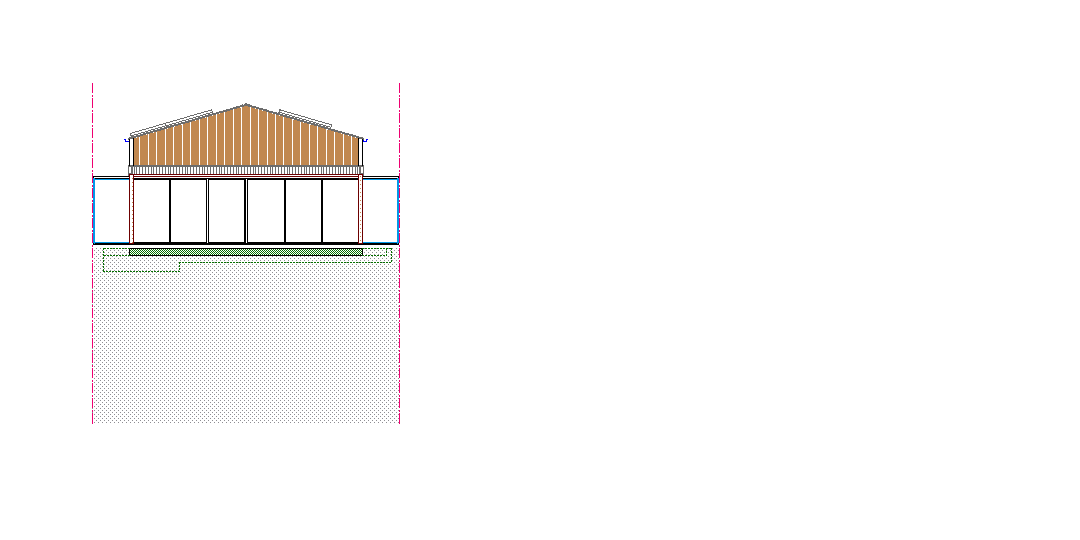

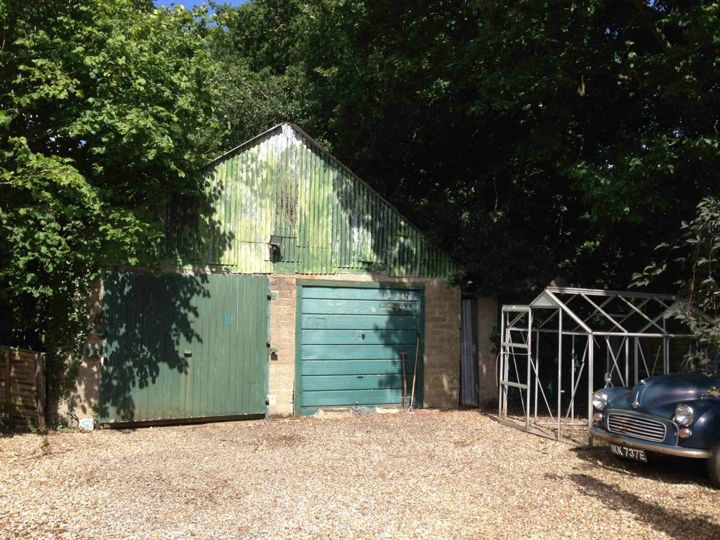

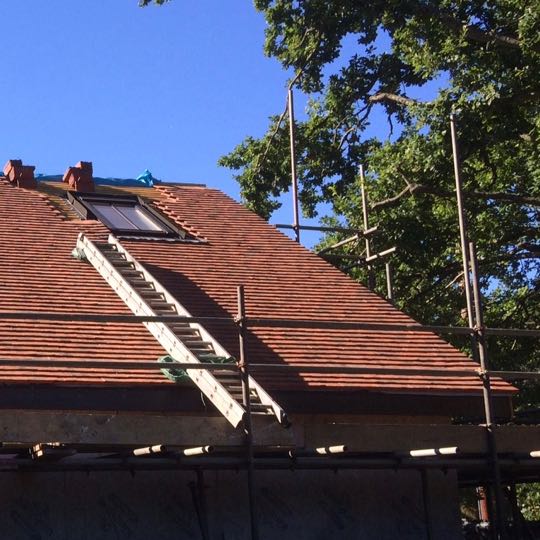

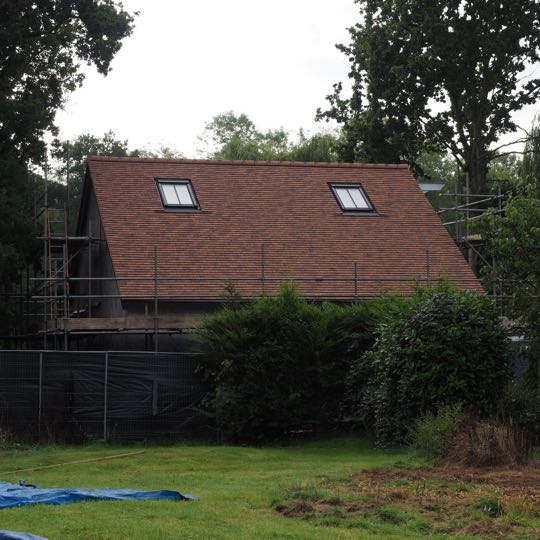

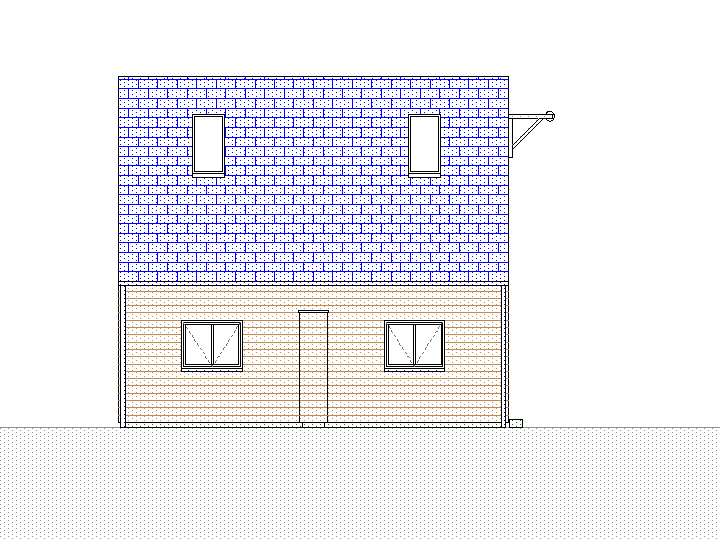

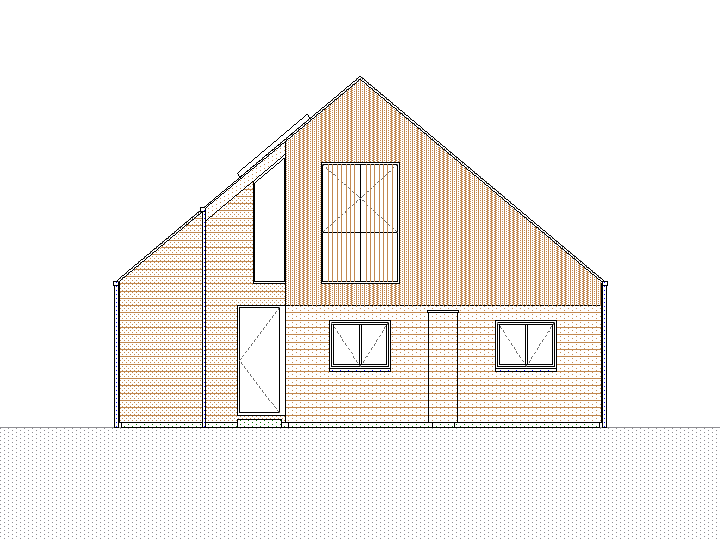

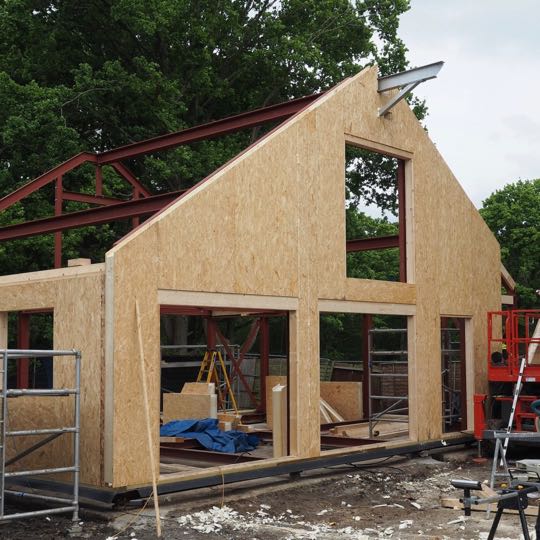

Shed, Hampshire, UK

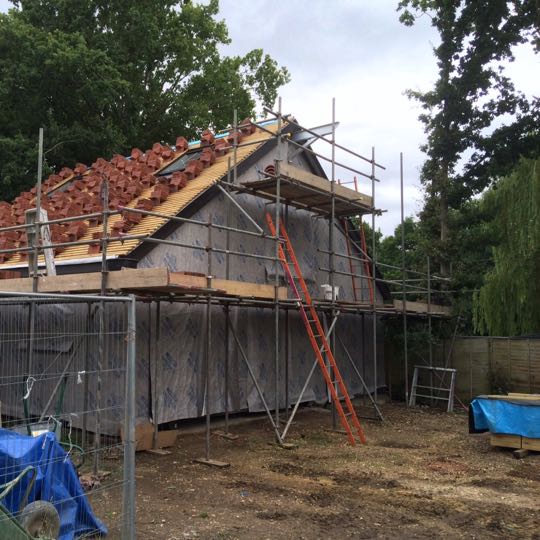

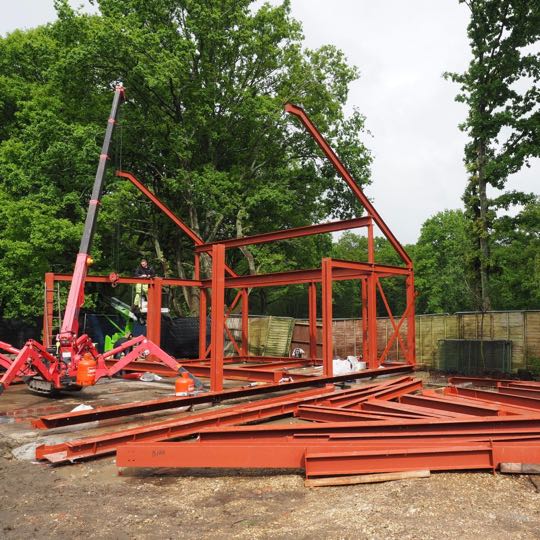

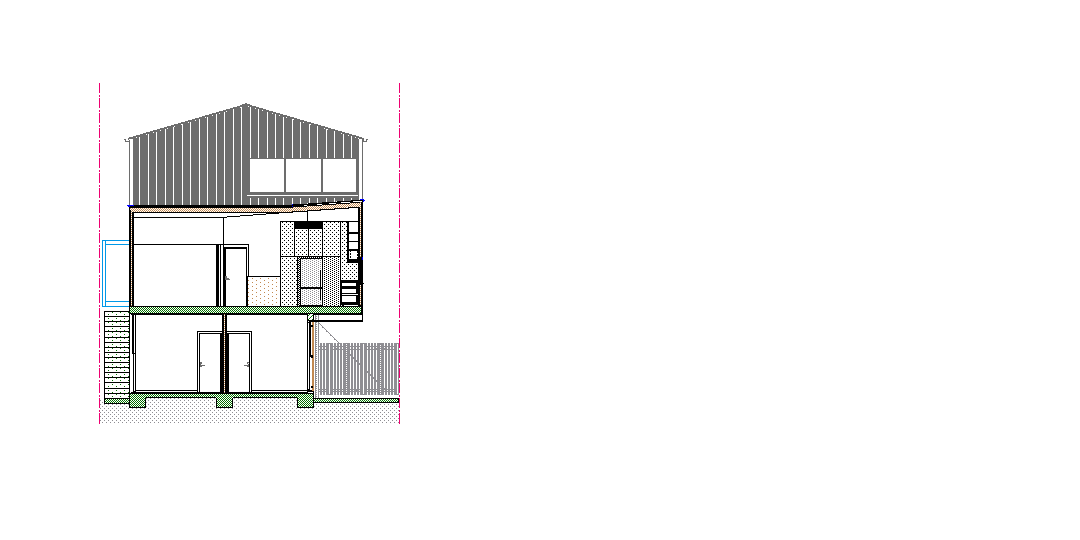

Alterations to a shed on family land
Hampshire, United Kingdom
My clients have inherited a small parcel of land in Hampshire.
They wanted the involvement of a local designer in Sydney to
assist them in the design for a proposed conversion of an
existing shed. The sketch design includes kitchen and
bathroom facilities and a mezzanine.
-

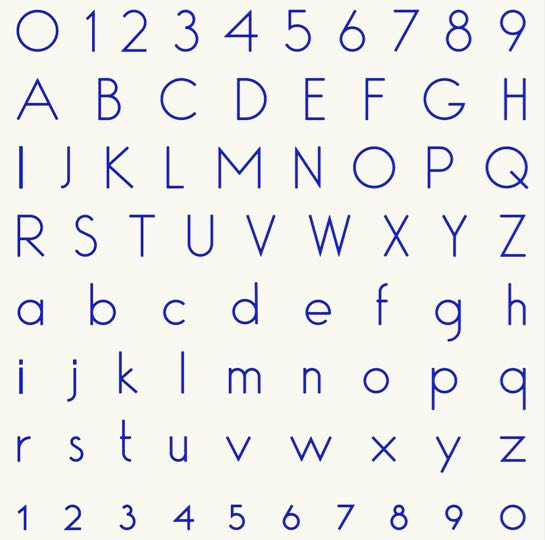

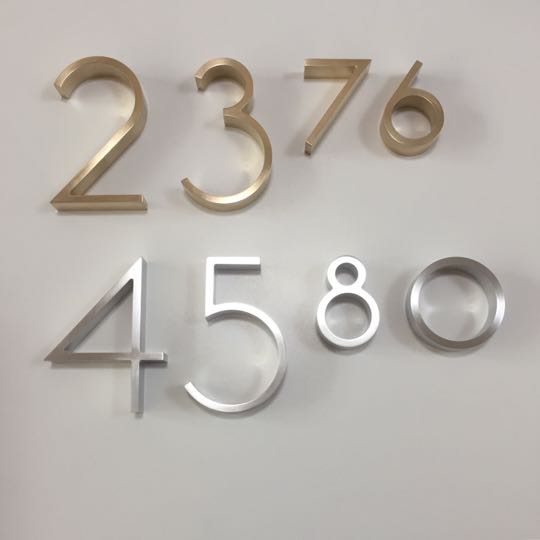

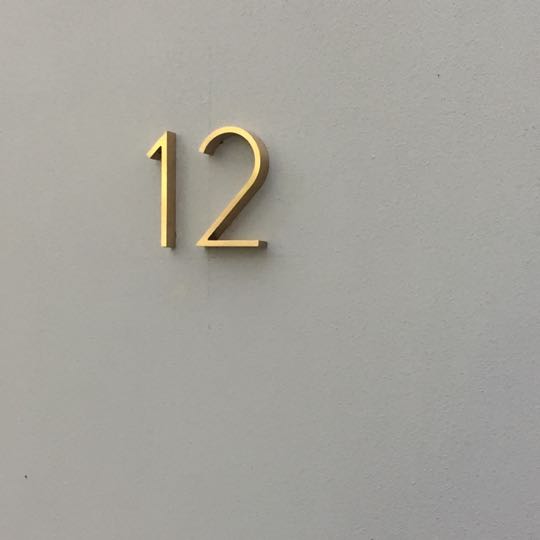

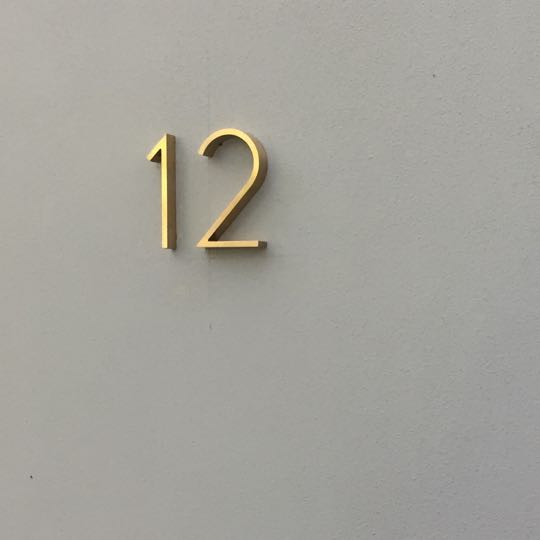

House Numbers
A full range of house numbers and letters we hope to make soon in
brass and aluminium. Numbers 72 or 120mm tall. Capitals 120mm tall.
Lower case x-height at 72mm.
20mm deep off wall.
